Wholesale Industrial Fixed H2S Monitors Detectors For Oil Gas Station 0-100PPM Safety Protection With Relay Control

Basic Information
Place of Origin: China
Brand Name: safegas
Certification: CE/ISO
Model Number: YT-95H
Minimum Order Quantity: 1 piece
Price: 430USD
Delivery Time: 3-5days
Payment Terms: T/T
Supply Ability: 8000 pcs per month
Detail Information
Product Name: Fixed Gas Detector Measure Range: Specified According To Application
Gas: CO/H2S/Customized Sensor Type: Specified According To Application
Language: Chinese/English Alarm Type: Light+Sound+Vibration
Detection Principle: Electrochemical, NDIR, Catalytic, PID, Etc Weight: ≤1.6kg
Size: 180×150×90mm Power: 12-36V DC
Communication Mode: G1/2 External Thread Explosion-proof Flexible Pipe Thread Size: M45*2mm
Temperature: –20℃~50℃ Humidity: 0-95%RH(nocondensation)
Explosionproof Grade: Ex D IIC T6 Gb
Highlight:

Oil Gas Station H2S Monitors Detectors

,

Safety Protection H2S Monitors Detectors

,

Industrial Fixed H2S Monitors Detectors


Product Description

Product video


Wholesale Industrial Fixed H2S Monitors Detectors For Oil Gas Station 0-100PPM Safety Protection With Relay Control 0




Our advantages

Wholesale Industrial Fixed H2S Monitors Detectors For Oil Gas Station 0-100PPM Safety Protection With Relay Control 1

Product description

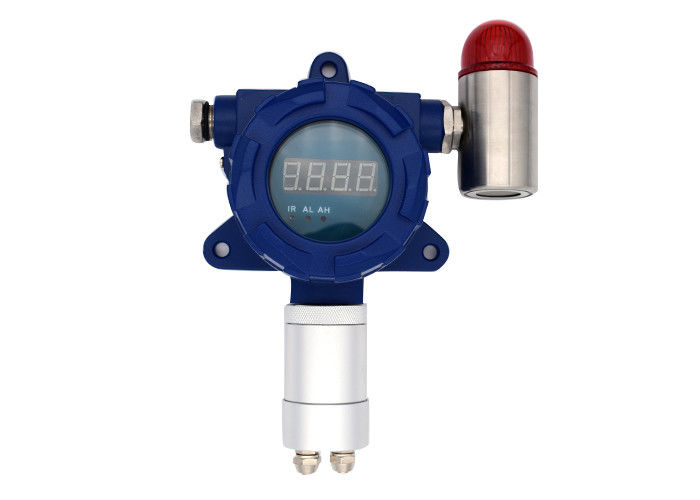

YT-95H/YT-95H-A series is a cost effective gas transmitter to detect oxygen, flammable gases and toxic gases. It integrates 3 wire 4-20 mA, RS485 and relayoutput. It is able to compatible with different controlsystems. The relay output supports control external devices such as horns, alarm lights, fans etc. With optional wireless data transmission so user can view real time data on laptop, mobile phone remotely.

Wholesale Industrial Fixed H2S Monitors Detectors For Oil Gas Station 0-100PPM Safety Protection With Relay Control 2Wholesale Industrial Fixed H2S Monitors Detectors For Oil Gas Station 0-100PPM Safety Protection With Relay Control 3Wholesale Industrial Fixed H2S Monitors Detectors For Oil Gas Station 0-100PPM Safety Protection With Relay Control 4Wholesale Industrial Fixed H2S Monitors Detectors For Oil Gas Station 0-100PPM Safety Protection With Relay Control 5Wholesale Industrial Fixed H2S Monitors Detectors For Oil Gas Station 0-100PPM Safety Protection With Relay Control 6


Product advantage
  • Online monitoring with sound/light alarm(Optional)

24h continuously monitoring, data will real-time display.High/low alarm with sound and light, sound >90dB, alarm point is settable.

  • Convenient remote control

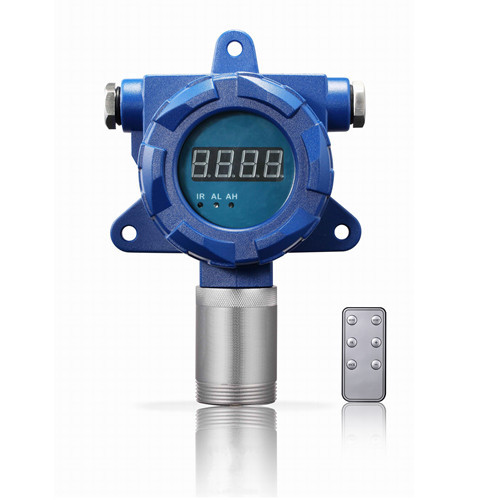

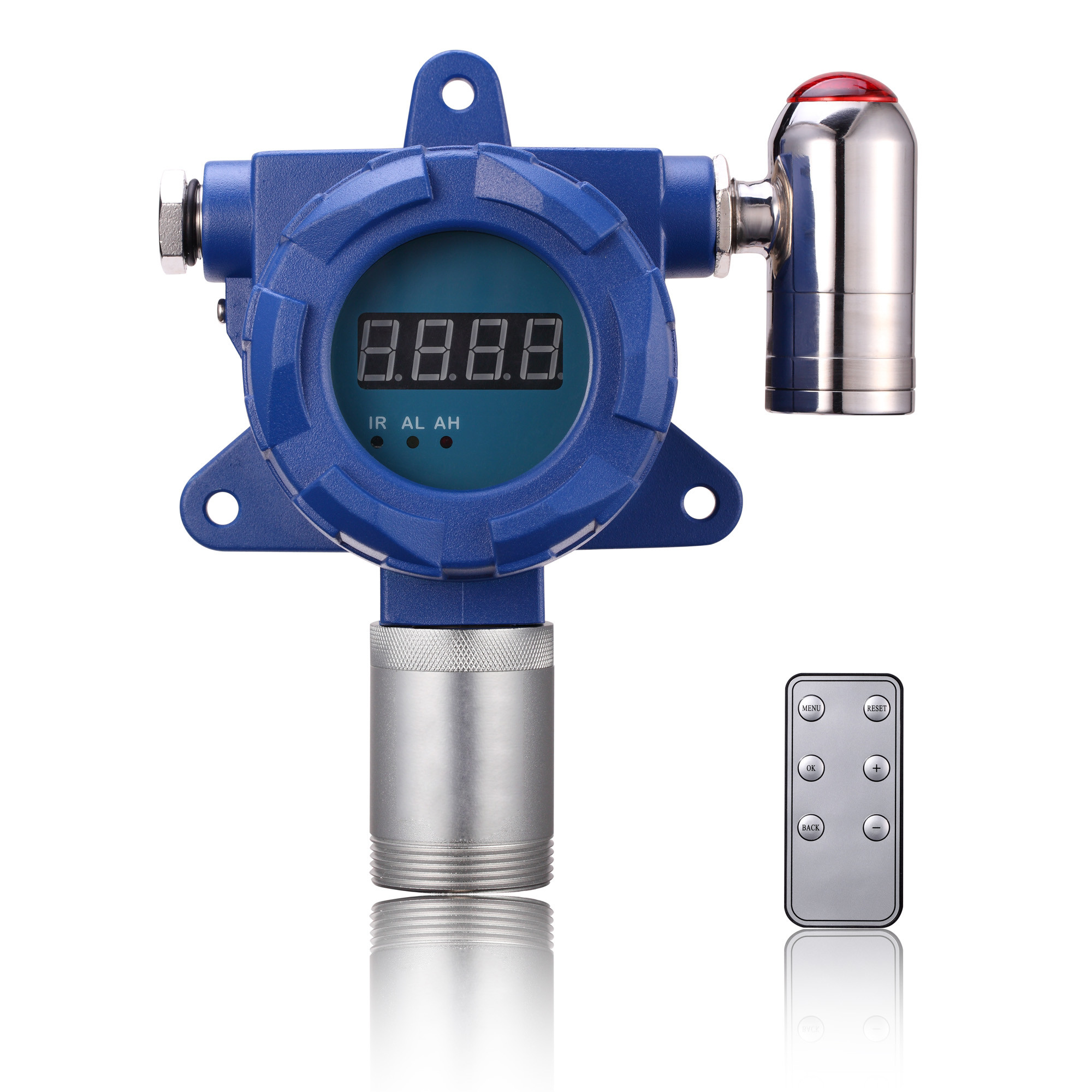

With infrared ray controller, which can remote control alarm point settings, zero calibration, and address modification.
  • Diversified output signals

 ​​It integrate 3 wire 4-20 mA analog, RS485 Modbus and relay out. To be compatible with different control systems.

  • Relay control

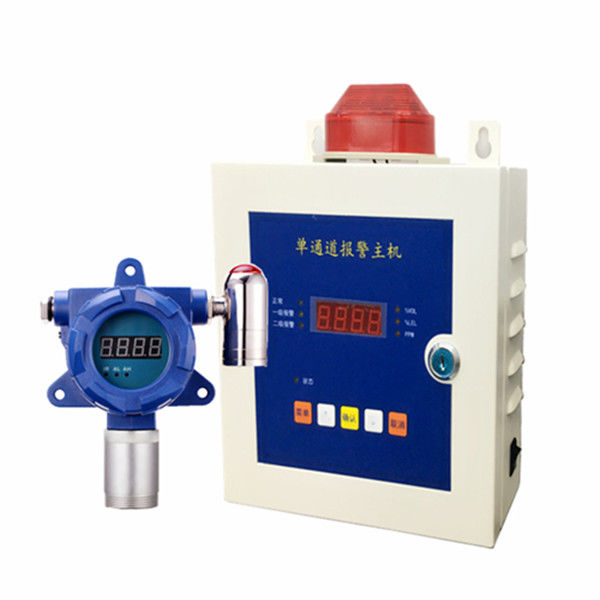

The relay output supports control external devices such as horns, alarm lights, fans etc.

  • ​Data transmission to PC
Through PC software can remote monitor the data.Wireless data transmission including Lora, 4G (Optional)
  • Durable housing

​​Die-cast aluminum housing, strong and durable;IP65 protection degree,water-proof, dust-proof,explosion-proof;
Wholesale Industrial Fixed H2S Monitors Detectors For Oil Gas Station 0-100PPM Safety Protection With Relay Control 7Wholesale Industrial Fixed H2S Monitors Detectors For Oil Gas Station 0-100PPM Safety Protection With Relay Control 8Wholesale Industrial Fixed H2S Monitors Detectors For Oil Gas Station 0-100PPM Safety Protection With Relay Control 9


company profile

Established in 2010, Shenzhen Yuante Technology Co., Limited has had a remarkable 16 - year journey in the high - end gas detection field. It has successfully built an integrated industrial system covering design, production, and sales, especially achieving outstanding results in gas detectors. The customized solutions for multiple key industries have driven industry transformation. Gathering top - notch talents, the company's products are renowned for high accuracy and rapid response, having become an industry benchmark. It is bound to continue writing a glorious chapter in the future.

Wholesale Industrial Fixed H2S Monitors Detectors For Oil Gas Station 0-100PPM Safety Protection With Relay Control 10Wholesale Industrial Fixed H2S Monitors Detectors For Oil Gas Station 0-100PPM Safety Protection With Relay Control 11Wholesale Industrial Fixed H2S Monitors Detectors For Oil Gas Station 0-100PPM Safety Protection With Relay Control 12Wholesale Industrial Fixed H2S Monitors Detectors For Oil Gas Station 0-100PPM Safety Protection With Relay Control 13Wholesale Industrial Fixed H2S Monitors Detectors For Oil Gas Station 0-100PPM Safety Protection With Relay Control 14Wholesale Industrial Fixed H2S Monitors Detectors For Oil Gas Station 0-100PPM Safety Protection With Relay Control 15Wholesale Industrial Fixed H2S Monitors Detectors For Oil Gas Station 0-100PPM Safety Protection With Relay Control 16

certifications

Wholesale Industrial Fixed H2S Monitors Detectors For Oil Gas Station 0-100PPM Safety Protection With Relay Control 17

FAQ

Wholesale Industrial Fixed H2S Monitors Detectors For Oil Gas Station 0-100PPM Safety Protection With Relay Control 18Wholesale Industrial Fixed H2S Monitors Detectors For Oil Gas Station 0-100PPM Safety Protection With Relay Control 19

specification

Gas type Specified according to application
Sensor type Specified according to application
Accuracy
≤±2%FS(Specified according to different sensor)
Measure Range Specified according to application
Resolution Specified according to application
Display:
4 digits Nixie tube display.
Explosion-proof
grade
Ex d IIC T6 Gb
Temperature
–20℃~50℃
Power
12-36V DC
Thread Size
M45*2mm
Zero shift
≤±1%(F.S./year)
Dimensions
180×150×90mm
Weight
≤1.6kg
Humidity

0-95%RH(nocondensation)
