Fixed Type Flammable Gas Leakage Detector In Workshop 0-100%LEL With RS485/4-20mA/Relay Signals Output

Basic Information
Place of Origin: China
Brand Name: safegas
Certification: CE/ISO
Model Number: YT-95H
Minimum Order Quantity: 1 piece
Price: 390USD
Delivery Time: 3-5days
Payment Terms: T/T
Supply Ability: 8000 pcs per month
Detail Information
Product Name: Fixed Gas Detector Measure Range: Specified According To Application
Gas: CO/H2S/Customized Sensor Type: Specified According To Application
Language: Chinese/English Alarm Type: Light+Sound+Vibration
Detection Principle: Electrochemical, NDIR, Catalytic, PID, Etc Weight: ≤1.6kg
Size: 180×150×90mm Power: 12-36V DC
Communication Mode: G1/2 External Thread Explosion-proof Flexible Pipe Thread Size: M45*2mm
Temperature: –20℃~50℃ Humidity: 0-95%RH(nocondensation)
Explosionproof Grade: Ex D IIC T6 Gb
Highlight:

4-20mA Flammable Gas Leakage Detector

,

Workshop Flammable Gas Leakage Detector

,

RS485 Flammable Gas Leakage Detector


Product Description

Product video


Fixed Type Flammable Gas Leakage Detector In Workshop 0-100%LEL With RS485/4-20mA/Relay Signals Output 0




Our advantages

Fixed Type Flammable Gas Leakage Detector In Workshop 0-100%LEL With RS485/4-20mA/Relay Signals Output 1

Product description

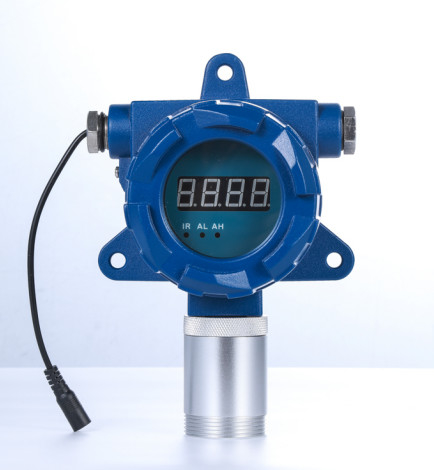

YT-95H/YT-95H-A series is a cost effective gas transmitter to detect oxygen, flammable gases and toxic gases. It integrates 3 wire 4-20 mA, RS485 and relayoutput. It is able to compatible with different controlsystems. The relay output supports control external devices such as horns, alarm lights, fans etc. With optional wireless data transmission so user can view real time data on laptop, mobile phone remotely.

Fixed Type Flammable Gas Leakage Detector In Workshop 0-100%LEL With RS485/4-20mA/Relay Signals Output 2Fixed Type Flammable Gas Leakage Detector In Workshop 0-100%LEL With RS485/4-20mA/Relay Signals Output 3Fixed Type Flammable Gas Leakage Detector In Workshop 0-100%LEL With RS485/4-20mA/Relay Signals Output 4Fixed Type Flammable Gas Leakage Detector In Workshop 0-100%LEL With RS485/4-20mA/Relay Signals Output 5Fixed Type Flammable Gas Leakage Detector In Workshop 0-100%LEL With RS485/4-20mA/Relay Signals Output 6


Product advantage

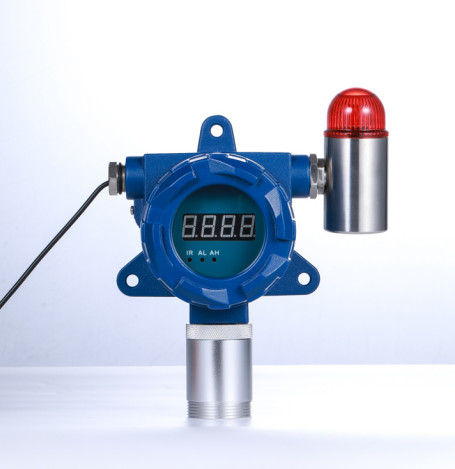

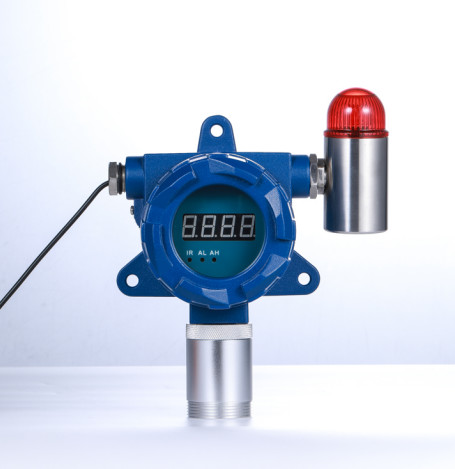

  • Online monitoring with sound/light alarm(Optional)

24h continuously monitoring, data will real-time display.High/low alarm with sound and light, sound >90dB, alarm point is settable.

  • Convenient remote control

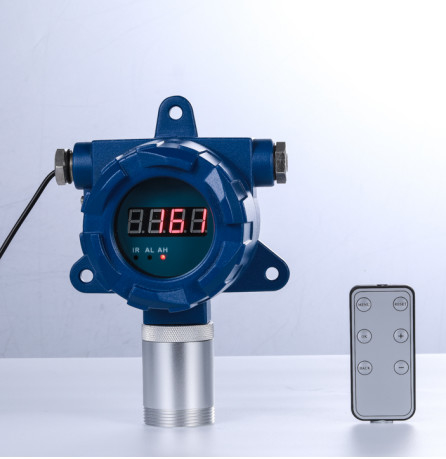

With infrared ray controller, which can remote control alarm point settings, zero calibration, and address modification.
  • Diversified output signals

 ​​It integrate 3 wire 4-20 mA analog, RS485 Modbus and relay out. To be compatible with different control systems.

  • Relay control

The relay output supports control external devices such as horns, alarm lights, fans etc.

  • ​Data transmission to PC

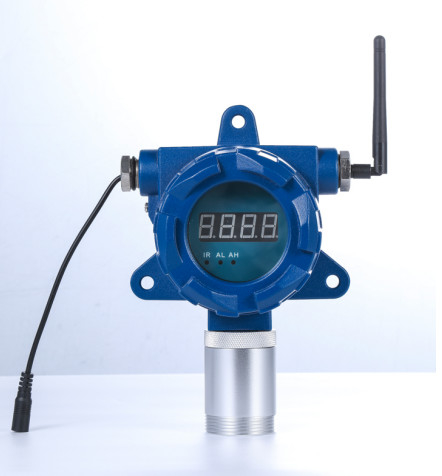

Through PC software can remote monitor the data.Wireless data transmission including Lora, 4G (Optional)
  • Durable housing

​​Die-cast aluminum housing, strong and durable;IP65 protection degree,water-proof, dust-proof,explosion-proof;
Fixed Type Flammable Gas Leakage Detector In Workshop 0-100%LEL With RS485/4-20mA/Relay Signals Output 7Fixed Type Flammable Gas Leakage Detector In Workshop 0-100%LEL With RS485/4-20mA/Relay Signals Output 8Fixed Type Flammable Gas Leakage Detector In Workshop 0-100%LEL With RS485/4-20mA/Relay Signals Output 9


company profile

In 2010, Shenzhen Yuante Technology Co., Limited was born with a dream of revolutionizing the gas detection field. In the early days of entrepreneurship, the team, with their dedication to technology and sharp market insights, kept exploring. From overcoming one technical problem after another to collaborating with various industries, they gradually built a complete industrial chain. Today, Yuante Technology has won market recognition with high - quality products and services. This is just the starting point of its great journey, and more exciting stories will be created in the future.

Fixed Type Flammable Gas Leakage Detector In Workshop 0-100%LEL With RS485/4-20mA/Relay Signals Output 10Fixed Type Flammable Gas Leakage Detector In Workshop 0-100%LEL With RS485/4-20mA/Relay Signals Output 11Fixed Type Flammable Gas Leakage Detector In Workshop 0-100%LEL With RS485/4-20mA/Relay Signals Output 12Fixed Type Flammable Gas Leakage Detector In Workshop 0-100%LEL With RS485/4-20mA/Relay Signals Output 13Fixed Type Flammable Gas Leakage Detector In Workshop 0-100%LEL With RS485/4-20mA/Relay Signals Output 14Fixed Type Flammable Gas Leakage Detector In Workshop 0-100%LEL With RS485/4-20mA/Relay Signals Output 15Fixed Type Flammable Gas Leakage Detector In Workshop 0-100%LEL With RS485/4-20mA/Relay Signals Output 16

certifications

Fixed Type Flammable Gas Leakage Detector In Workshop 0-100%LEL With RS485/4-20mA/Relay Signals Output 17

FAQ

Fixed Type Flammable Gas Leakage Detector In Workshop 0-100%LEL With RS485/4-20mA/Relay Signals Output 18Fixed Type Flammable Gas Leakage Detector In Workshop 0-100%LEL With RS485/4-20mA/Relay Signals Output 19

specification

Gas type Specified according to application
Sensor type Specified according to application
Accuracy
≤±2%FS(Specified according to different sensor)
Measure Range Specified according to application
Resolution Specified according to application
Display:
4 digits Nixie tube display.
Explosion-proof
grade
Ex d IIC T6 Gb
Temperature
–20℃~50℃
Power
12-36V DC
Thread Size
M45*2mm
Zero shift
≤±1%(F.S./year)
Dimensions
180×150×90mm
Weight
≤1.6kg
Humidity

0-95%RH(nocondensation)
