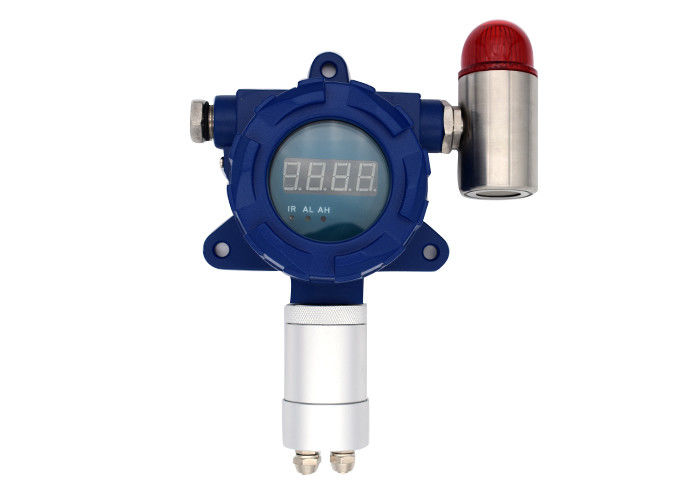

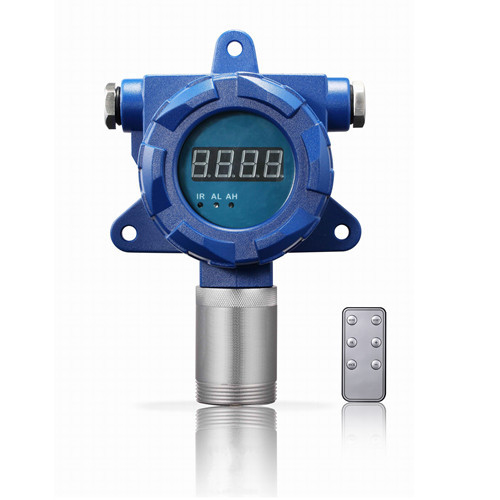

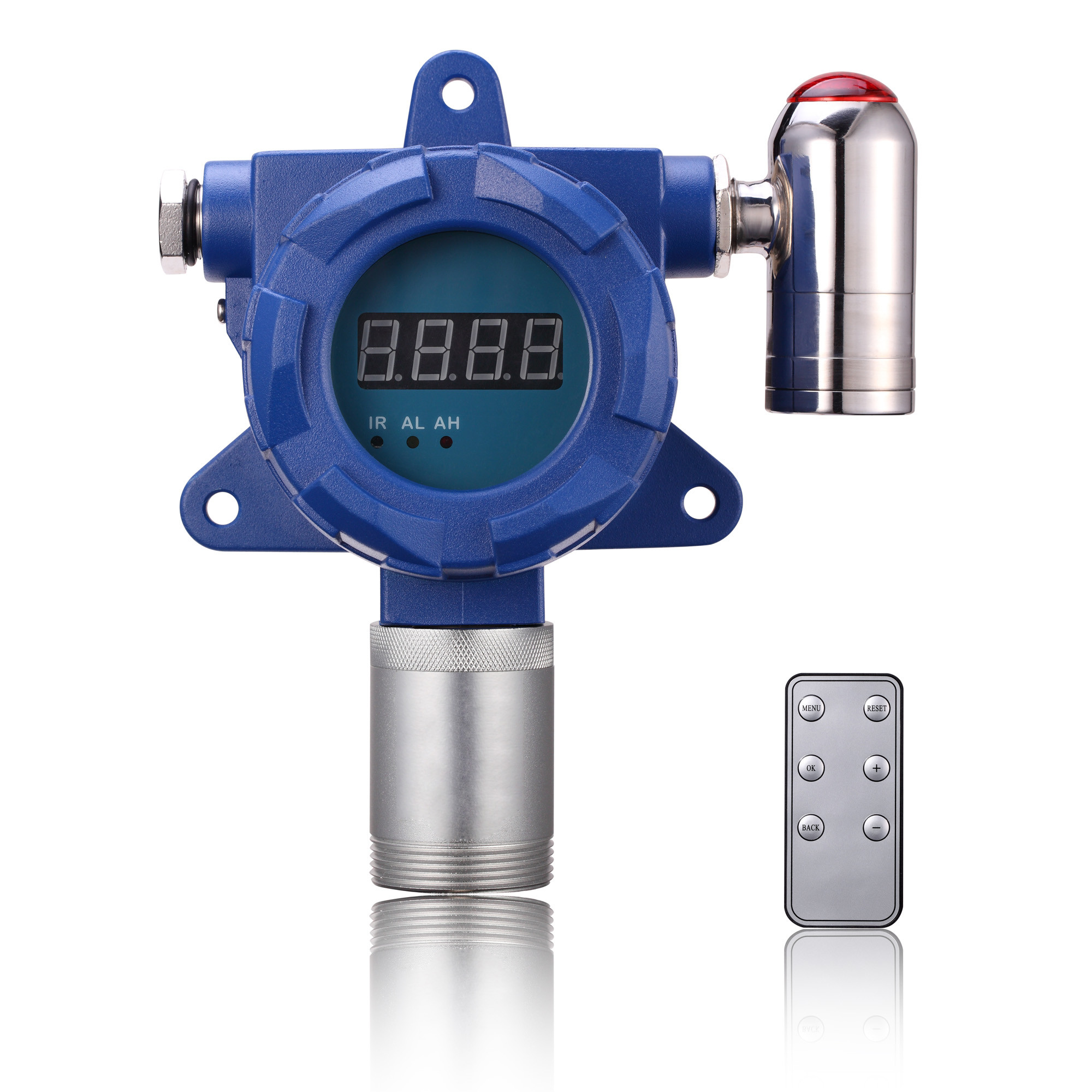

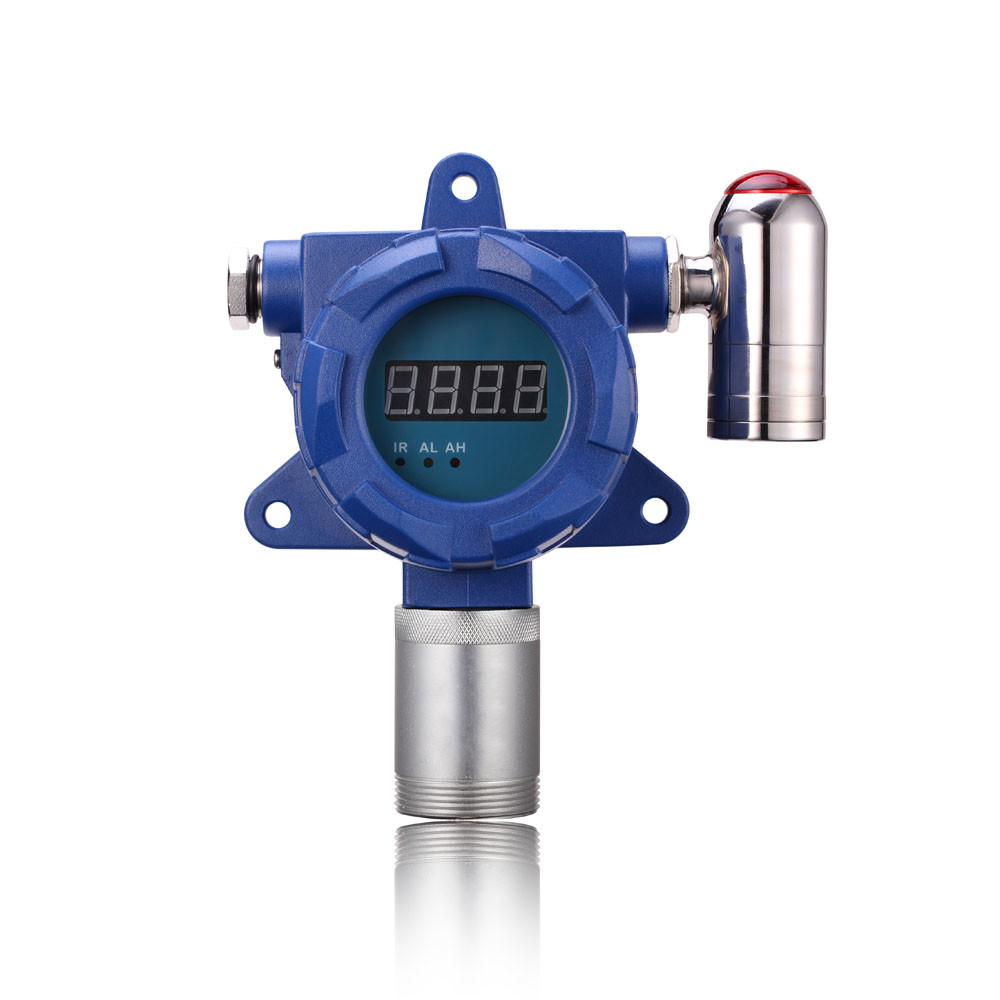

Fixed Type NH3 Gas Detector In Warehouse Standard With 4-20MA And 485 Signal Output For 24hours Monitoring

Basic Information
Place of Origin: China
Brand Name: safegas
Certification: CE/ISO
Model Number: YT-95H
Minimum Order Quantity: 1 piece
Price: 560USD
Delivery Time: 3-5days
Payment Terms: T/T
Supply Ability: 8000 pcs per month
Detail Information
Product Name: Fixed Gas Detector Measure Range: Specified According To Application
Gas: CO/H2S/Customized Sensor Type: Specified According To Application
Language: Chinese/English Alarm Type: Light+Sound+Vibration
Detection Principle: Electrochemical, NDIR, Catalytic, PID, Etc Weight: ≤1.6kg
Size: 180×150×90mm Power: 12-36V DC
Communication Mode: G1/2 External Thread Explosion-proof Flexible Pipe Thread Size: M45*2mm
Temperature: –20℃~50℃ Humidity: 0-95%RH(nocondensation)
Explosionproof Grade: Ex D IIC T6 Gb
Highlight:

Warehouse Standard NH3 Gas Detector

,

485 Signal Output NH3 Gas Detector

,

24hours Monitoring NH3 Gas Detector


Product Description

Product video


Fixed Type NH3 Gas Detector In Warehouse Standard With 4-20MA And 485 Signal Output For 24hours Monitoring 0




Our advantages

Fixed Type NH3 Gas Detector In Warehouse Standard With 4-20MA And 485 Signal Output For 24hours Monitoring 1

Product description

YT-95H/YT-95H-A series is a cost effective gas transmitter to detect oxygen, flammable gases and toxic gases. It integrates 3 wire 4-20 mA, RS485 and relayoutput. It is able to compatible with different controlsystems. The relay output supports control external devices such as horns, alarm lights, fans etc. With optional wireless data transmission so user can view real time data on laptop, mobile phone remotely.

Fixed Type NH3 Gas Detector In Warehouse Standard With 4-20MA And 485 Signal Output For 24hours Monitoring 2Fixed Type NH3 Gas Detector In Warehouse Standard With 4-20MA And 485 Signal Output For 24hours Monitoring 3Fixed Type NH3 Gas Detector In Warehouse Standard With 4-20MA And 485 Signal Output For 24hours Monitoring 4Fixed Type NH3 Gas Detector In Warehouse Standard With 4-20MA And 485 Signal Output For 24hours Monitoring 5Fixed Type NH3 Gas Detector In Warehouse Standard With 4-20MA And 485 Signal Output For 24hours Monitoring 6


Product advantage
  • Online monitoring with sound/light alarm(Optional)

24h continuously monitoring, data will real-time display.High/low alarm with sound and light, sound >90dB, alarm point is settable.

  • Convenient remote control
With infrared ray controller, which can remote control alarm point settings, zero calibration, and address modification.
  • Diversified output signals

 ​​It integrate 3 wire 4-20 mA analog, RS485 Modbus and relay out. To be compatible with different control systems.

  • Relay control

The relay output supports control external devices such as horns, alarm lights, fans etc.

  • ​Data transmission to PC
Through PC software can remote monitor the data.Wireless data transmission including Lora, 4G (Optional)
  • Durable housing

​​Die-cast aluminum housing, strong and durable;IP65 protection degree,water-proof, dust-proof,explosion-proof;
Fixed Type NH3 Gas Detector In Warehouse Standard With 4-20MA And 485 Signal Output For 24hours Monitoring 7Fixed Type NH3 Gas Detector In Warehouse Standard With 4-20MA And 485 Signal Output For 24hours Monitoring 8Fixed Type NH3 Gas Detector In Warehouse Standard With 4-20MA And 485 Signal Output For 24hours Monitoring 9


company profile

Shenzhen Yuante Technology Co., Limited was officially founded in 2010. Over the past 16 years, it has been deeply engaged in the design, production, and sales of high - end gas detection equipment and systems. For the core product of gas detectors, the company has created a complete industrial chain in line with Industry 4.0 standards through vertical integration. According to different standards such as ATEX and IECEx in industries like Oil, Medicine, and Electronics, it provides customized system integration solutions. Relying on independently developed advanced algorithms and sensing technologies, combined with the industry - university - research joint innovation model, the company's products have reached the international leading level in key performance indicators such as accuracy and response time. Looking ahead, Yuante Technology will continue to drive changes with technology and lead the development of the industry in the fields of industrial Internet of Things and intelligent safety detection.

Fixed Type NH3 Gas Detector In Warehouse Standard With 4-20MA And 485 Signal Output For 24hours Monitoring 10Fixed Type NH3 Gas Detector In Warehouse Standard With 4-20MA And 485 Signal Output For 24hours Monitoring 11Fixed Type NH3 Gas Detector In Warehouse Standard With 4-20MA And 485 Signal Output For 24hours Monitoring 12Fixed Type NH3 Gas Detector In Warehouse Standard With 4-20MA And 485 Signal Output For 24hours Monitoring 13Fixed Type NH3 Gas Detector In Warehouse Standard With 4-20MA And 485 Signal Output For 24hours Monitoring 14Fixed Type NH3 Gas Detector In Warehouse Standard With 4-20MA And 485 Signal Output For 24hours Monitoring 15Fixed Type NH3 Gas Detector In Warehouse Standard With 4-20MA And 485 Signal Output For 24hours Monitoring 16

certifications

Fixed Type NH3 Gas Detector In Warehouse Standard With 4-20MA And 485 Signal Output For 24hours Monitoring 17

FAQ

Fixed Type NH3 Gas Detector In Warehouse Standard With 4-20MA And 485 Signal Output For 24hours Monitoring 18Fixed Type NH3 Gas Detector In Warehouse Standard With 4-20MA And 485 Signal Output For 24hours Monitoring 19

specification

Gas type Specified according to application
Sensor type Specified according to application
Accuracy
≤±2%FS(Specified according to different sensor)
Measure Range Specified according to application
Resolution Specified according to application
Display:
4 digits Nixie tube display.
Explosion-proof
grade
Ex d IIC T6 Gb
Temperature
–20℃~50℃
Power
12-36V DC
Thread Size
M45*2mm
Zero shift
≤±1%(F.S./year)
Dimensions
180×150×90mm
Weight
≤1.6kg
Humidity

0-95%RH(nocondensation)
