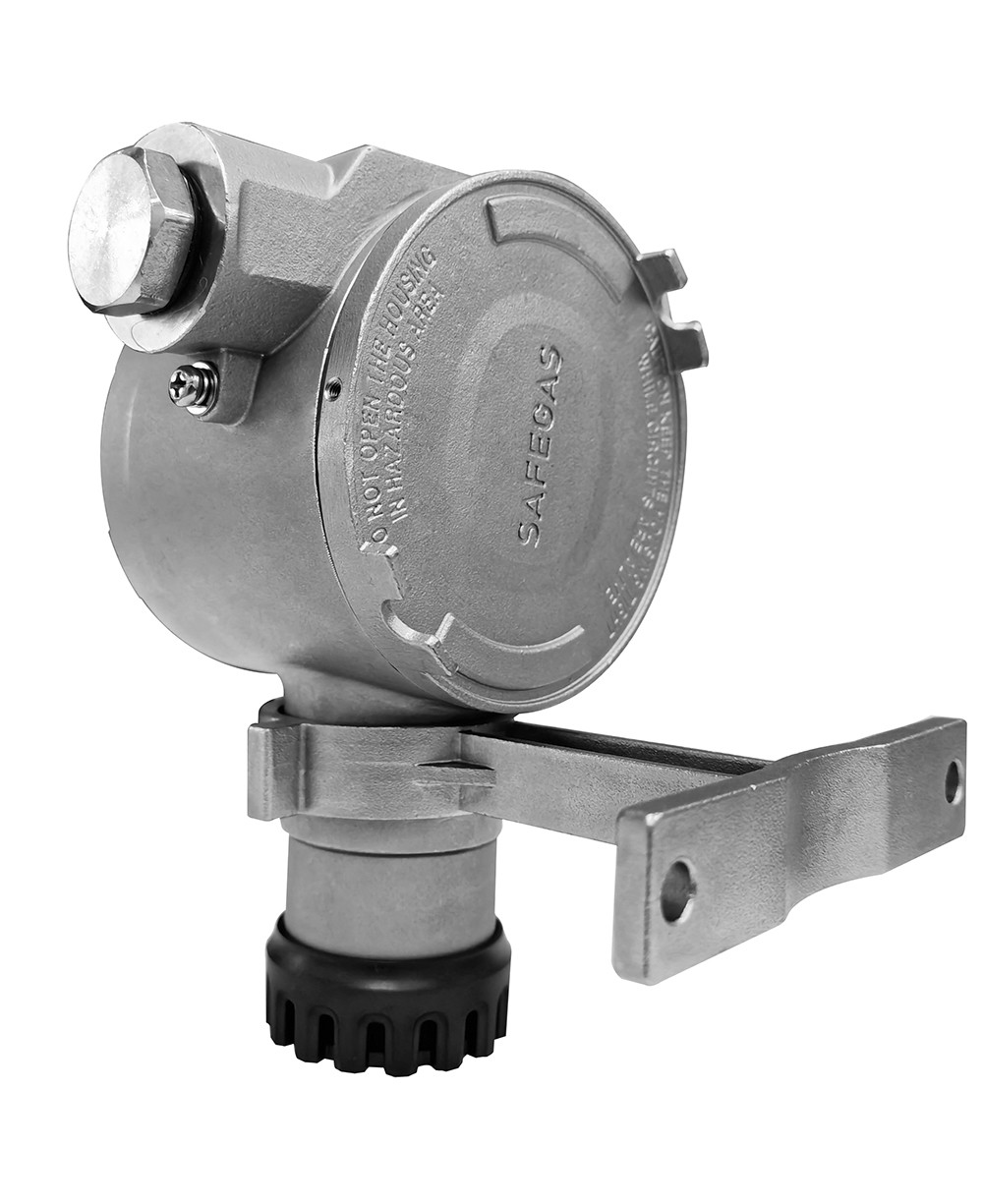

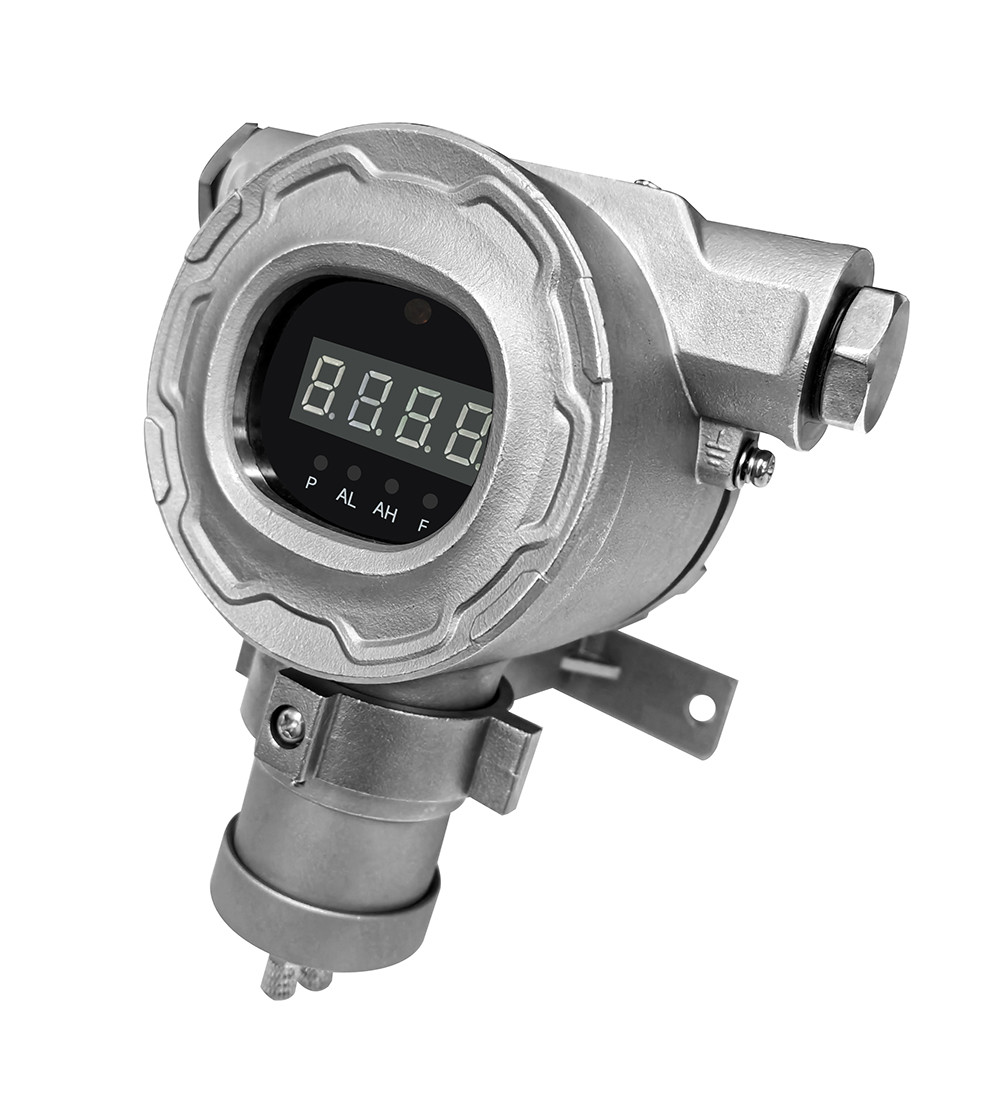

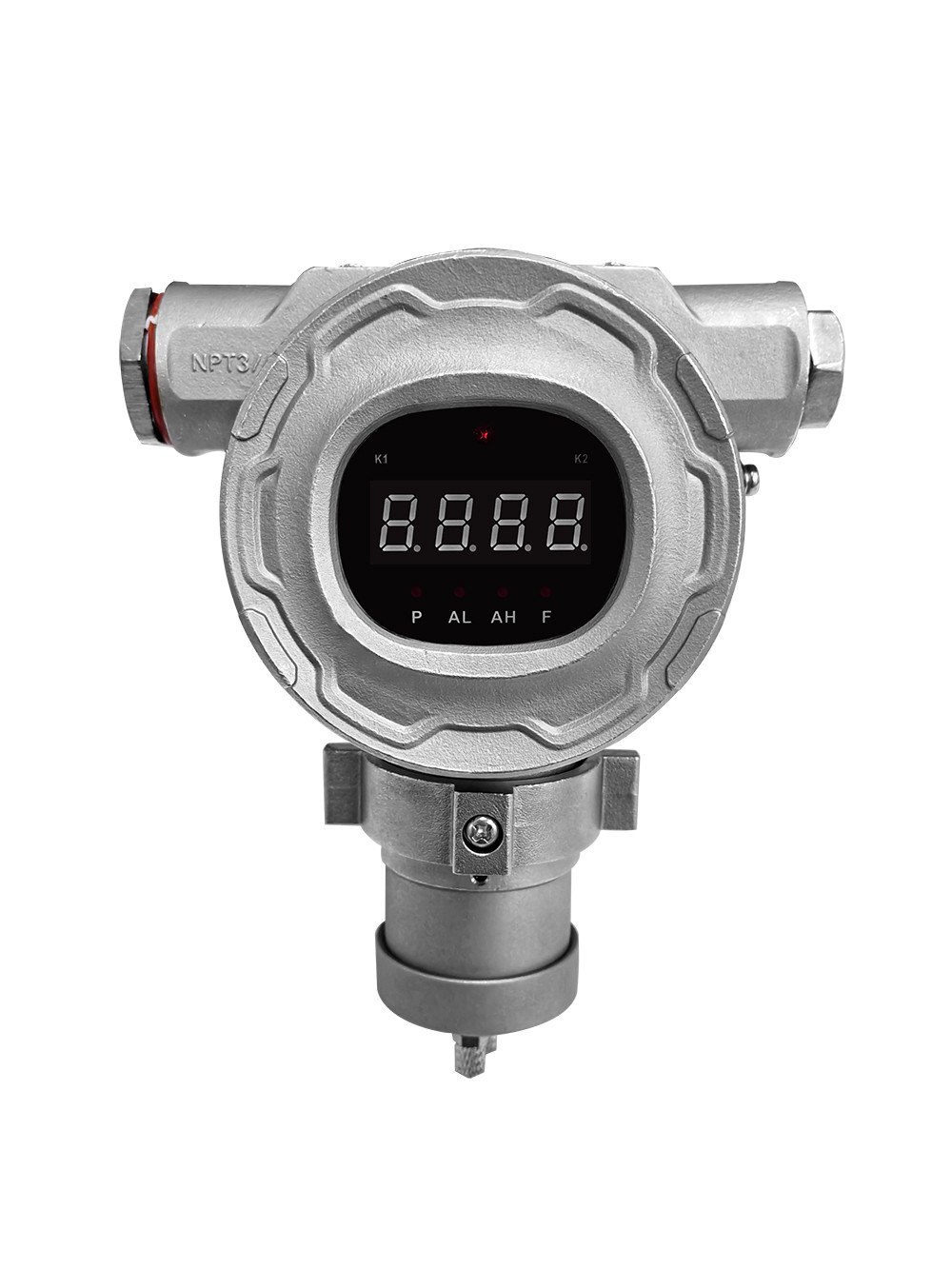

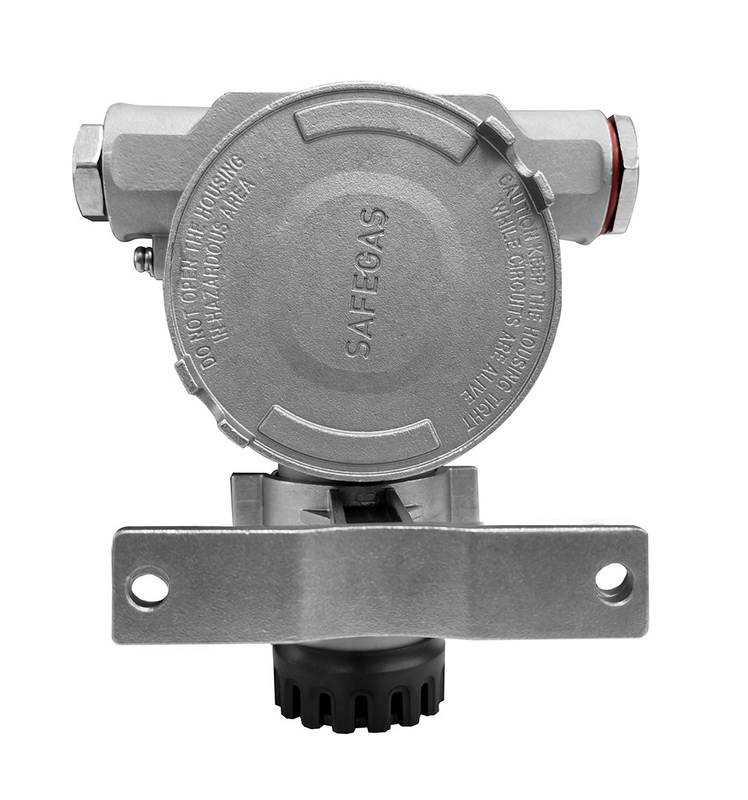

Wholesale Wall Mounted Fixed Gas Detector 316 Stainless Steel Material Corrosion Resistant Diffusion Type

Basic Information
Place of Origin: China
Brand Name: safegas
Certification: ATEX/IECEX
Model Number: SG100-xs
Minimum Order Quantity: 1 piece
Price: 650USD
Delivery Time: 3-5days
Payment Terms: T/T
Supply Ability: 8000 pcs per month
Detail Information
Product Name: Fixed Gas Detector Measure Range: Specified According To Application
Gas: EX/LEL/CH4/O2/CO/H2S/CO2(optional) Sensor Type: Specified According To Application
Language: Chinese/English Alarm Type: Light+Sound+Vibration
Detection Principle: Pumping Electrochemical, NDIR, Catalytic, PID, Etc Weight: 1KG
Size: 157.8x128.8x69.6mm Power Dissipation: Toxic Gas<2.5W,flammable Gas<4W
Communication Mode: 4-20mA(3-wires),RS485 1~5V,Hart(Optional)
Highlight:

Corrosion Resistant Wall Mounted Gas Detector

,

Diffusion Type Wall Mounted Gas Detector

,

Wall Mounted Fixed Gas Detector


Product Description

Product video



Wholesale Wall Mounted Fixed Gas Detector 316 Stainless Steel Material Corrosion Resistant Diffusion Type 0




Our advantages

Wholesale Wall Mounted Fixed Gas Detector 316 Stainless Steel Material Corrosion Resistant Diffusion Type 1

Product description

Wholesale Wall Mounted Fixed Gas Detector 316 Stainless Steel Material Corrosion Resistant Diffusion Type 2Wholesale Wall Mounted Fixed Gas Detector 316 Stainless Steel Material Corrosion Resistant Diffusion Type 3
Wholesale Wall Mounted Fixed Gas Detector 316 Stainless Steel Material Corrosion Resistant Diffusion Type 4
Wholesale Wall Mounted Fixed Gas Detector 316 Stainless Steel Material Corrosion Resistant Diffusion Type 5Wholesale Wall Mounted Fixed Gas Detector 316 Stainless Steel Material Corrosion Resistant Diffusion Type 6

SG100 series is a cost-effective gas detector for continuous monitoring of toxic gases, oxygen,flammable, VOC gases.It is IECEx, ATEX certified,with intrinsically safe explosion grade. Havinga 2 wireor 3 wire4 to 20 mA analog output, RS485 modbus output, optional HART output, making it to be compatible with most control systems. With optional wireless data transmission, customer is able to review, download thedata remotely. Support both magnetic andremote control,flexibleforsetting.


Product advantage

  • IP66/IP68 water & dust resistant
  • Intelligent plug and play sensor module. the module support calibration by Safegas PC software, making replacement and maintenance easier.
  • With standard splash guard to protect sensor for
  • outdoor installation or environment with water splash.
  • Small and light, weight is only 1 kg,and the detector
  • comes with standard mounting bracket, easy for installation
  • Standard 4-20 mAanalogsignal output andRS485
    modbus signal output, optionalHart output, 2 wire output.
    Compatible with most of control systems.
  • The detector comes with 3 relays, including low/high/fault
    alarm relay(Optional)


Wholesale Wall Mounted Fixed Gas Detector 316 Stainless Steel Material Corrosion Resistant Diffusion Type 7Wholesale Wall Mounted Fixed Gas Detector 316 Stainless Steel Material Corrosion Resistant Diffusion Type 8Wholesale Wall Mounted Fixed Gas Detector 316 Stainless Steel Material Corrosion Resistant Diffusion Type 9Wholesale Wall Mounted Fixed Gas Detector 316 Stainless Steel Material Corrosion Resistant Diffusion Type 10Wholesale Wall Mounted Fixed Gas Detector 316 Stainless Steel Material Corrosion Resistant Diffusion Type 11


company profile

In 2010, Shenzhen Yuante Technology Co., Limited was founded. For 16 years, the company has been devoted to the design, production, and sales of premium gas detection equipment and systems. Gas detectors are at the core of its offerings, and it provides customized production lines and solutions for different industries, such as Oil, Chemical, Medicine, and Energy. Through nearly 10 years of robust development, Yuante has become a notable supplier. The company adheres firmly to management concepts of market orientation, innovation motivation, quality as the foundation for survival, and growth as the objective. Its corporate culture is characterized by friendliness, openness, and strictness. With standardized management, it has gathered a talented group of individuals and established a proficient management and R & D team. The employees collaborate effectively in product R & D, production, and maintenance, and have a deep understanding of the customer-centric approach and a strong service attitude, thereby winning the trust and support of customers. The most important aspect of a detector is its accuracy and quick reaction. Relying on years of measurement experience and unique solutions, through independent R & D, collaborative efforts, and drawing on the latest overseas technologies, Yuante's products have outstripped domestic brands and are competitive in the global arena. The company is constantly exploring development and progress routes to meet the diverse requirements of its customers.
In these rewritten versions, I have used different words and expressions to convey the same information while maintaining the overall meaning of the original resume. You can choose the one that best suits your needs, or let me know if you want further adjustments or modifications based on specific requirements.

Wholesale Wall Mounted Fixed Gas Detector 316 Stainless Steel Material Corrosion Resistant Diffusion Type 12Wholesale Wall Mounted Fixed Gas Detector 316 Stainless Steel Material Corrosion Resistant Diffusion Type 13Wholesale Wall Mounted Fixed Gas Detector 316 Stainless Steel Material Corrosion Resistant Diffusion Type 14Wholesale Wall Mounted Fixed Gas Detector 316 Stainless Steel Material Corrosion Resistant Diffusion Type 15Wholesale Wall Mounted Fixed Gas Detector 316 Stainless Steel Material Corrosion Resistant Diffusion Type 16Wholesale Wall Mounted Fixed Gas Detector 316 Stainless Steel Material Corrosion Resistant Diffusion Type 17Wholesale Wall Mounted Fixed Gas Detector 316 Stainless Steel Material Corrosion Resistant Diffusion Type 18

certifications

Wholesale Wall Mounted Fixed Gas Detector 316 Stainless Steel Material Corrosion Resistant Diffusion Type 19

FAQ

Wholesale Wall Mounted Fixed Gas Detector 316 Stainless Steel Material Corrosion Resistant Diffusion Type 20Wholesale Wall Mounted Fixed Gas Detector 316 Stainless Steel Material Corrosion Resistant Diffusion Type 21

specification

Gas typeSpecified according to application
Sensor typeSpecified according to application
Accuracy≤±2-5%FS (Depending on the specific sensor)
Measure RangeSpecified according to application
ResolutionSpecified according to application
Display:
LED display
Explosion-proof
grade
IECEX:Ex db IIC T6 Gb,Ex db ia IIC T6 Gb ;
ATEX:Ex db IIC T6 Gb,Ex db ia IIC T6 Gb
Protection grade
IP66/68
Power dissipation
Toxic gas<2.5W,flammable gas<4W
Communication
mode
4-20mA(3-wires),RS485 1~5V,Hart(Optional)
Working voltage12-24VDC
Size157.8x128.8x69.6mm
WeightLORA, 4G(Optional)
Wireless

≤±1%
