| Place of Origin: | China |
|---|---|
| Brand Name: | safegas |
| Certification: | ATEX/IECEX |
| Model Number: | Minimeta |
| Minimum Order Quantity: | 1 piece |
| Price: | 150USD |
| Delivery Time: | 3-5days |
| Payment Terms: | T/T |
| Supply Ability: | 8000 pcs per month |
| Gas: | O2,H2S, CO, Etc | Measure Range: | Specified According To Application |
|---|---|---|---|
| Sensor Type: | Specified According To Application | Language: | Chinese/English |
| Alarm Type: | Light+Sound+Vibration | Sampling: | Diffusion |
| Working Environment: | -20℃～55℃, 0-95%RH (non-condensing) | Weight: | 125g (With Clip) |
| Size: | 90*60*33mm | ||
| Highlight: | Waterproof Portable Gas Detector,2 Year Standby Portable Gas Detector,Dustproof Portable Gas Detector |
||

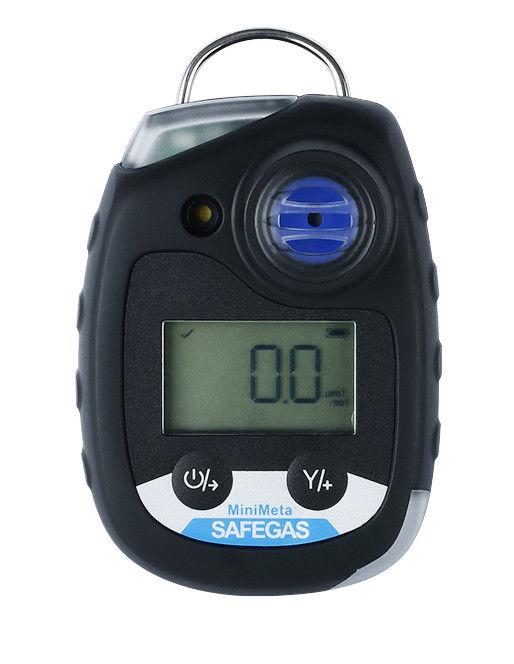

MiniMeta is an IECEX/ATEX/EMC certified single-gas detector. It can detect hundreds of user-selected toxic gases, user friendly and easy for operation. The battery and sensor is replaceable to provide user a long-term protection. It is designed to offer a low long-term ownership cost of a gas monitoring system.
Product advantage
1.IP68 water- and dust-resistant case.
2.Low power consumption with 2 years standby time,no need battery charge and calibration.
3.With Single /multi unit docking station to perform daily bump test and calibration (Optional)
4.With event and data logging function(optional)
5.With self-test function, which can improve safety by automatic self-test
6.Small size, light weight and with back clip for easily carry.
7.95db@30cm buzzer alarm, 2 high-bright red LED light alarm and vibration alarm
8.Real time value, TWA, STEL, MAX,MIN multiple numerical display
| Gas type | O2,H2S, CO, etc |
| Sensor type | Specified according to application |
| Sampling Method | Diffusion |
| Measure Range | Specified according to application |
| Resolution | Specified according to application |
| Precision |
≤±2-5%FS (depending on the specific sensor)
|
|
Principle
|
Electrochemical principle
|
| Response Time |
15-30s(depending on the specific sensor)
|
| Display: |
Gas name, concentration unit, measured value,
battery power
|
|
Power supply mode:
|
3.6V dry battery (non-rechargeable)
|
| Operating language | Chinese/English |
| Size |
90*60*33mm (length*width*thickness)
|
| Weight |
125g (With Clip)
|
|
Protection class
|
IP68 |
