Product Overview
SKY2000 series gas detector is a kind of gas measuring equipment with high precision and quick response. The built-in sampling pump has fast sampling speed and large flow rate, which ensures the response time of the detector. Unique design, small size and convenient transportation. High-strength special engineering plastic shell is suitable for various occasions and environments. We are committed to providing you with the most reliable, accurate and safe gas detection solution.
SKY2000 detector is a gas measuring device with fast response speed and high precision. SKY2000 detector is equipped with a built-in sampling pump, fast sampling speed, 10-level adjustable pump suction, high flow rate, up to 800ml/min, ensuring the response time of the detector.

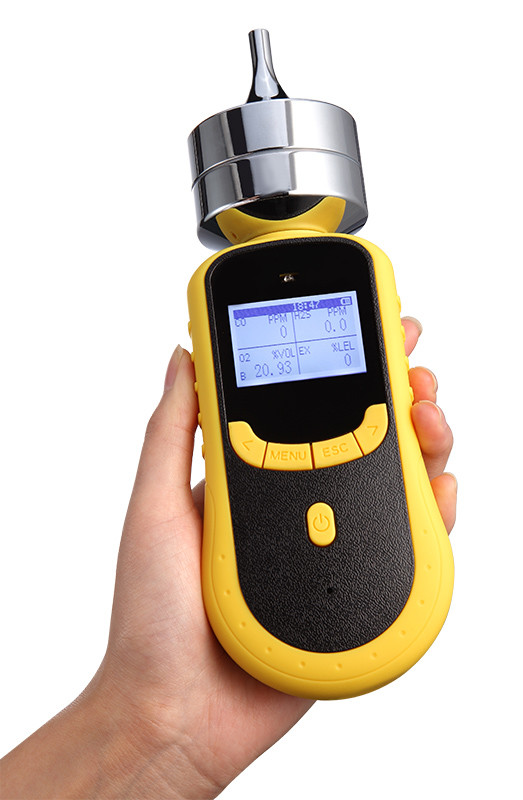

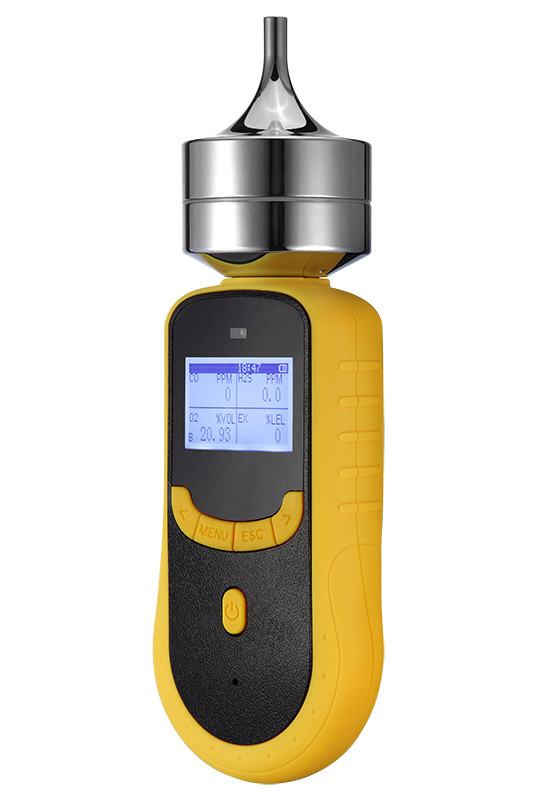

Product Picture
Applications
This device is widely used in these filed:
●Petrochemical & Chemcial Industry
●Municipal Engineering & Utilities
●Agricultral & Environmental Protection
●Electronic
●Food & Pharmaceutical Industry
Product Advantage
1) Employing original imported first-class brand sensor.
2) (optional) High speed data transmission by USB, which can download and print data.
3) LCD dot matrix display, the gas type, unit, concentration, local time can be showed on the screen.
4) Support Chinese and English operation, easy to shift.
5) Built-in micro sampling pump, 10 grades of suction are available.
6) Explosion-proof certification, explosion-proof grade: Ex ia IIC T4 Ga
Product Functions
1) Monitor the specified gas concentration in the environment and enclosed space, and give an alarm.
2) It has the functions of automatic calibration and zero calibration, which makes the detection more accurate and reliable.
3) Restore the factory settings with one button, trouble-free
4) Large capacity lithium polymer rechargeable battery.
5) Pump suction and the suction amount can be adjusted.
6) High-strength engineering plastic shell, non-slip, waterproof, dustproof and explosion-proof.
7) Elegant and exquisite aluminum alloy suitcase.
Product specifications
| Gas Detected |
NH3, CL2, O2, NO |
| Measure range |
NH3 0-100PPM, CL2 0-10PPM, O3 0-10PPM, NO 0-20PPM |
| Detection principle |
Electrochemical (NH3, CL2, O2, NO) |
| Instrument lifespan |
Sensors for 2-3 years, instruments for no less than 5 years |
| Linearity error |
±2%FS |
| Response time |
T90<30S(25℃) |
| Sampling Method |
Pumping suction |
| Resolution |
1ppm(NH3), 0.01PPM(CL2, O2, NO) |
| Signal Output (optional function) |
High-speed data transmission by USB, available for data downloading and printing |
| Response Time |
T90<30S(25℃) |
| Operating language |
Chinese/English |
| Temperature |
-20℃~50℃ |
| Explosion-Proof |
Ex ia II CT4 |
| Alarm mode |
Sound, light, vibration |
| Dimensions |
205*75*32mm |
| Recovery Time |
≤10S |
| Display |
LCD dot matrix display |
| Gas unit |
Units are switchable |
| Humidity |
0-90%RH |
| Degree of protection |
IP66 |
| Operating time |
100h(pump off) |
| Weight |
300g |
Gases
SKY2000 can detect 1-6 gases at the same time,here's part of the gases SKY2000 can detect:

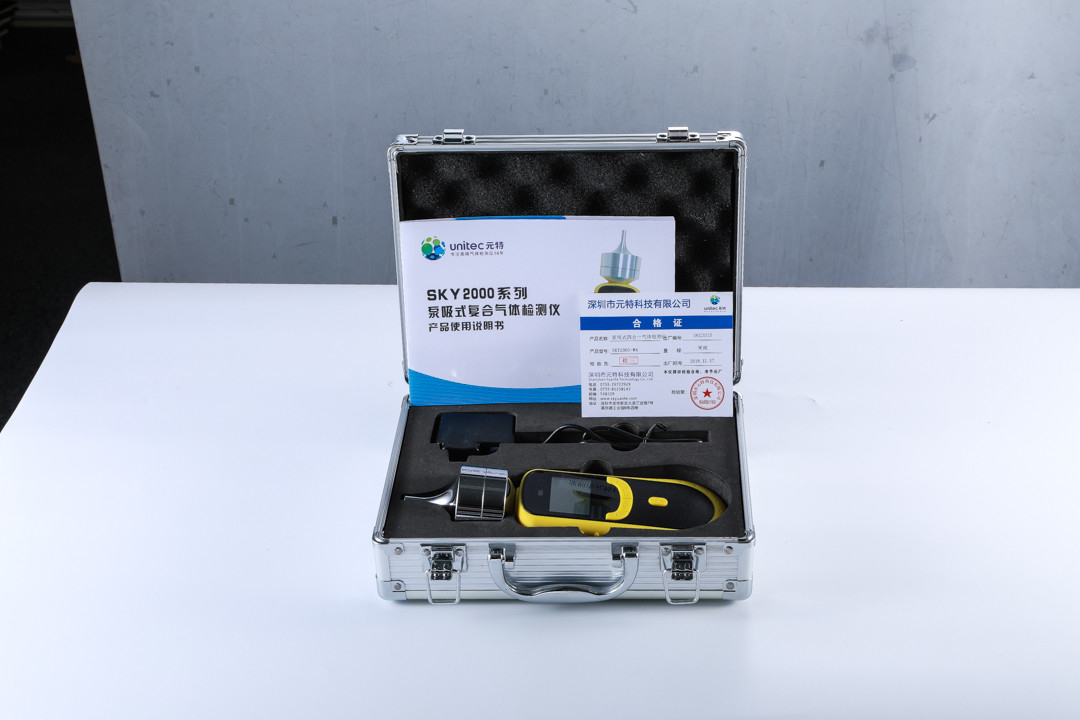

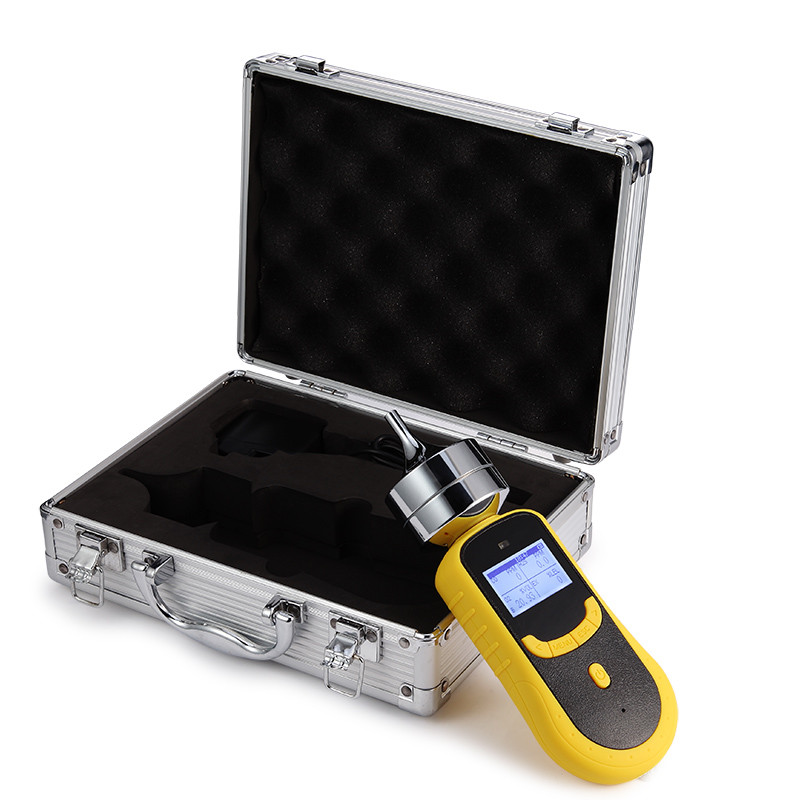

Standard configuration list
Standard accessories:
1) SKY2000
2) Aluminum suitcase
3) A charging adapter
4) Instruction
5) Qualification certificate
Application case
SKY2000 Series are widely used in Agriculture, industry, research LABS, chemical plants, smelters...... Here's an application case for your reference:
United States Xx Air Purification Product Manufacturer Detects the Ozone Concentration: SKY2000-O3 Application Case
Detection requirements:
According to national regulations, the allowable concentration of ozone in the atmosphere cannot exceed 0.2mg/m3 (about 0.1ppm). The products for indoor air purification developed by customer will generate ozone, so the customer want to detect whether the ozone concentration comply with the standard. Product with high detection accuracy and rapid response speed are required, the gas units can be switched between ppm and mg/m3.
Solution: SKY2000-O3, SKY2000 with original imported ozone sensor
Solution features:
1. The recommended product meets customer needs
2. SKY2000 is equipped with original imported ozone sensor, with a measure range of 0-1ppm
and a resolution of 0.01ppm, the precision and accuracy of the detection are guaranteed. SKY2000 supports one key switching between mg/m3 and ppm unit, without manual calculation, which can meet customer needs. Besides, SKY2000 supports unit one key switching between μmol/mol, ppm, mg/m³, %VOL, %LEL, can meet different application.
3. SKY2000 has built-in pump, the pump suction is 800ml/min, which greatly improves the speed of detection.
Why choose us?
1) R&D team experience: over 25 years.
2) Company certification: ISO9001, ISO45001
3) Product certification: IECEx (the only one in China), ATEX, CE
4) Delivery: 5-7 days
5) Yearly capacity: 80,000 units
6) Service: Professional sales staff provide 7*24 hours service
Company Profile
Established in 2010, Shenzhen Yuan Te Technology Co., Limited(Safegas)is a company that focuses on the design, production and sales of gas detection equipment and system for 16 years. With"gas detector" as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc.
Product line
Our products contain portable types, fixed types and controller panels.
Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000
Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200
Controller panels: YT-1100H, YT-1600H
Certifications
IECEX, ATEX, CE, TEST Report, ISO 9001, ISO 45001
Our products have obtained international explosion-proof certifications from IECEX and ATEX, ensuring product quality, which are comparable to international brand like Honeywell, MSA, RAE, but our products with competitive price.
Company we cooperated
Huawei, Cocacola, Samsung, Nestel and so on.
FAQs
Q1: What is a gas detector?
A1: Gas detector is an instrument for gas leakage concentration detection, including a portable gas detector, fixed gas detector, etc.
Q2: What does a gas detector detect?
A2: Combustible gases: Natural gas (methane), liquefied gas, coal gas, acetylene, pentane, alkynes, toluene, etc.
Toxic gases: Carbon monoxide, hydrogen sulfide, ammonia, chlorine, phosphine, sulfur dioxide, hydrogen chloride, chlorine dioxide and other toxic and harmful gases.
Q3: What is the ppm unit of the gas detector?
A3: ppm represents the volume concentration of the gas, that is, the volume of pollutants contained in one million volumes of air. For example, if the concentration of ammonia is 30ppm, it means that the volume of ammonia in one million volumes of air is 30.
