Product Overview
The SKY8000 is a portable gas analysis instrument. It is widely used in industrial waste gas, air pollution source emission detection, boiler flue gas, automobile exhaust gas, indoor air analysis and other applications. The analytical instrument can flexibly detect 1-18 kinds of gases; 1-3 modules can be selected, each module corresponds to one pump, and the internal structure is modularized to take separate air intake for the disturbing gas, effectively avoiding cross interference between gases.
Adopt 3.5-inch high-definition IPS LCD color screen, 150 degree wide viewing angle, Chinese and English operation interface; fall alarm, password protection, safety reminder and other functions for safety upgrade; optional high temperature probe can monitor the gas concentration in harsh high temperature and high humidity environment; The large-capacity lithium battery has a long standby time; the instrument casing is made of high-strength engineering materials, and its unique shape design and practical ergonomic operation can inprove users using feeling.
Product Advantages
Exterior atmosphere, 3.5-inch high-definition color screen

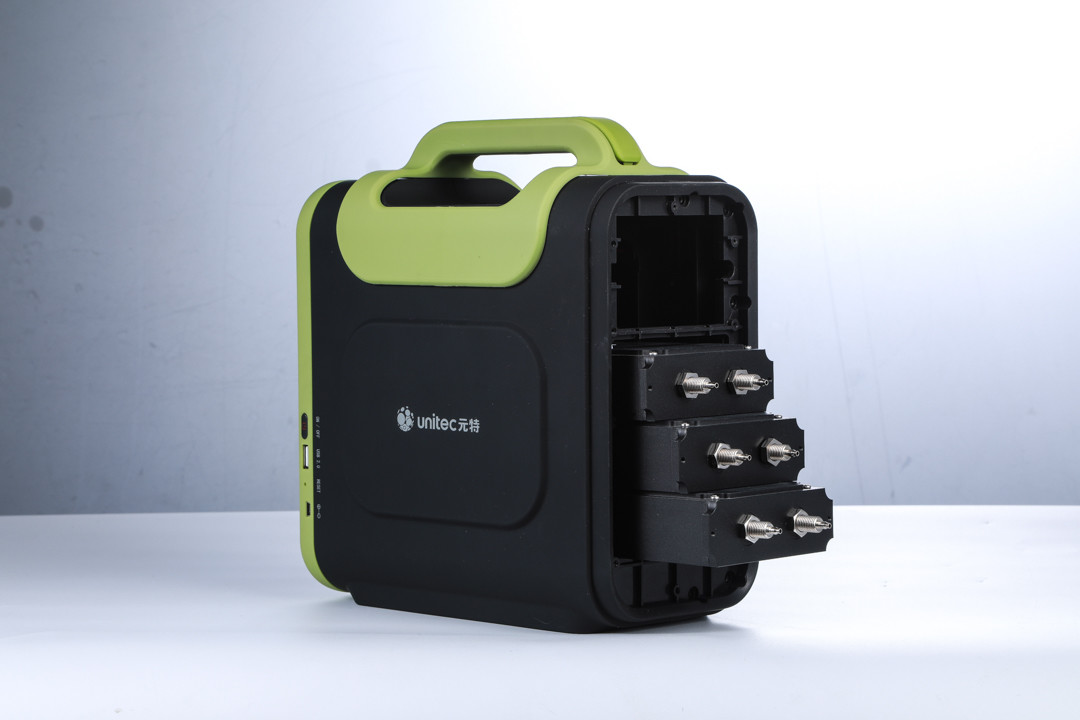

Modular internal structure
High customizability
Flexible, multi-pump system
Multiple display modes coexist
Data Storage
Multiple security protection
Powerful and more user-friendly

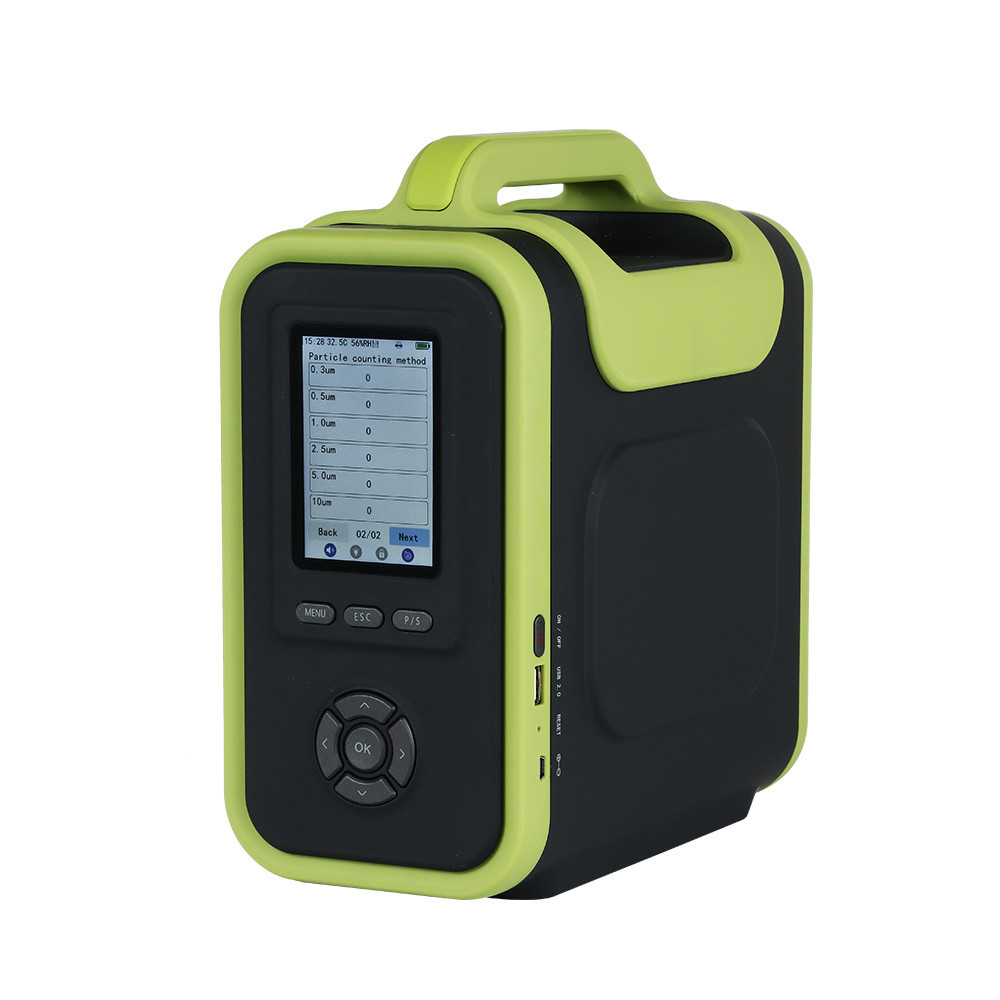

Product Pictures
![]()
Producta Specificiation
| Sensors |
|
Electrochemical(O2, H2S), IR (CO2, CH4)
|
| Gas detected |
|
O2, H2S, CO2, CH4
|
| Measure range |
|
O2 0-30%VOL, H2S 0-5000PPM, CH4 0-100%VOL, CO2 0-100%VOL
|
| Resolution |
|
1PPM(H2S), 0.1%VOL(O2, CO2, CH4)
|
| Display |
|
Formula, gas concentration data, measurement trend curve, gas curve, battery, time, temperature, humidity, pressure (optional), pump condition, wireless status, printer status, screen shot status |
| Alarm |
|
Buzzer, red LED and alarm status on the display, fault alarm, pump abnormal alarm, low battery alarm |
| Data storage |
|
Independent SD memory card, Max.32G, measurement data can be record automatically, customizable record time interval. |
| Data transmission and download |
|
RS485 singnal output,USB interface data transmission, with the upper computer software, can download storage, analyze and print data |
| Print function(Optional) |
|
Optional with internal portable printer or external bluetooth printer |
| Print content(Optional) |
|
Text, graphics, one-dimensional code, two-dimensional code, curves, characters, etc. |
| Charger |
|
Standard Mini-USB charging port. With 13V/2A special charger (built-in printer) or 5V/2A universal charger (external printer ) |
| Language |
|
Chinese/English |
| Wireless network (optional) |
|
Bluetooth |
| Network frequency |
|
2.4G high frequency. |
| wireless transmission distance |
|
Bluetooth is less than 10m |
| Probe specifications |
|
The flue gas environment must be equipped with a high temperature probe gun, which can be resistant to high temperatures of 600°C or 1000°C. The probe length can be 0.3m, 0.7m and 1m. |
Attachment configuration list
Standard accessories:
1) One User manual
2) One certificate/warranty card
3) One 8G large capacity SD card (more capacity needs to be customized)
4) One charging adapters
5) One water trap filter

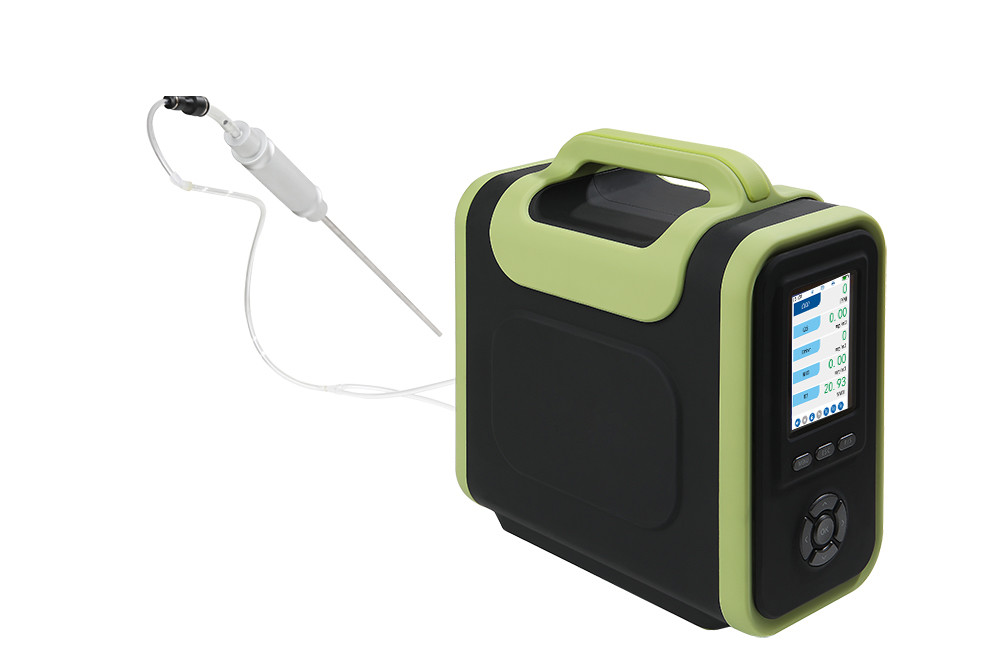

6) One intake sampling probe
7) One 1000mm hose
8) One non-toxic, odorless, explosion-proof, waterproof, heat-resistant, high-low temperature resistant, corrosion-resistant suitcase
Optional accessories:

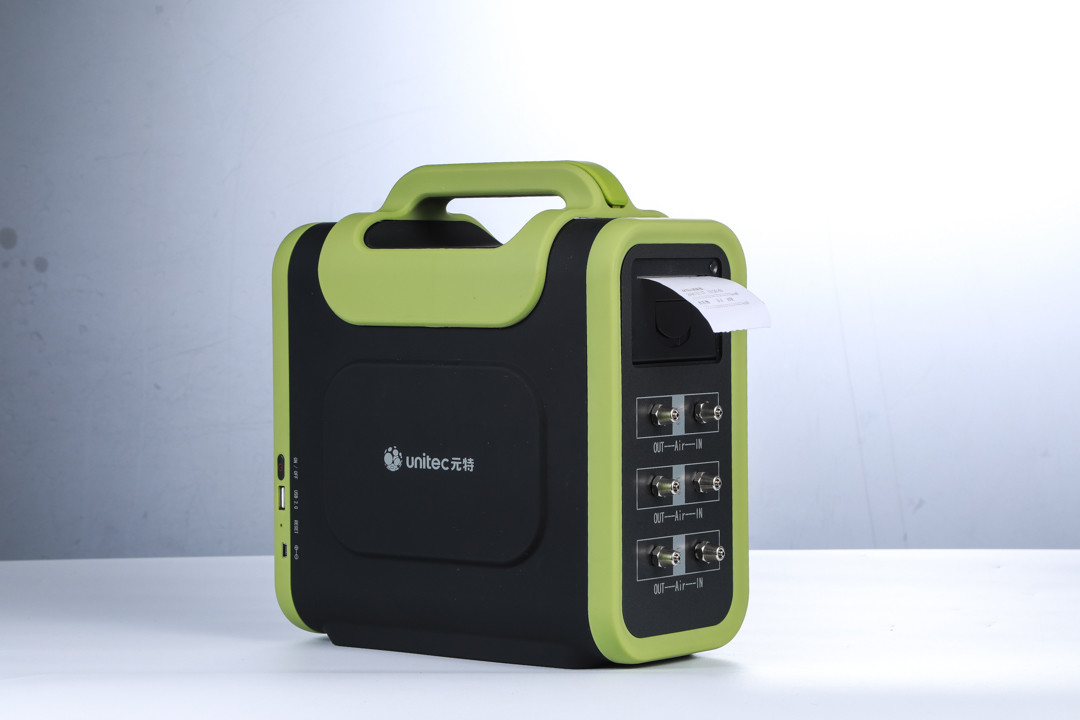

1) Printer (built-in thermal printer) one
2) A set of high temperature flue gas detectors
Application case
SKY8000 Series are widely used in Agriculture, industry, research LABS, chemical plants, smelters...... Here's an application case for your reference:
Thailand XX Government Department Detects Flue Gas Emissions and Air Quality: SKY8000-M7 Application Case
Detection requirements:
The customer is a government department, they need to detect flue gas emissions and air quality at the factory boundary. If the emissions do not meet the standards, the company is required to make rectifications to achieve regulatory effects. Seven gases are mainly monitored, and the device needs to have data storage functions to facilitate subsequent viewing.
Detected gases: O3, NO, NO2, NOX, HCL, CH2O, VOC
Solution:
1. SKY8000-M7, with original imported gas sensors specific for air quality detection.
2. SKY8000-M7, with original imported gas sensors specific for flue gas detection.
Solution features:
1. The recommended devices meet customer needs. SKY8000 can detect up to 18 gases, which can fully meet customers' demand to detect 7 gases.
2. Solution one, the O3, NO, NO2, and NOX sensors equipped with SKY8000 are high-performance gas sensors specific for air quality detection, with high resolution and low detection limit, suitable for detecting air quality at the factory boundary.
3. Solution two, the NO, NO2, and NOX sensors equipped with SKY8000 are specific for flue gas detection, with a wide measure range and good sensor performance, which can detect high concentration NO, NO2, NOX , suitable for detecting factory exhaust gas.
4. SKY8000 has a built-in 32G memory card for storing detected data. The storage interval can be adjusted, when the interval is set to 5 seconds, the device can store more than 1 million records. The detection data can be viewed on the instrument or exported through the USB disk (standard accessories).
5. SKY8000 has internal pump which can actively extract the gas for detection, the pump suction is 500ml/min, greatly improve the detection speed.
6. SKY8000 comes standard with a filter that can effectively filter out water vapor and dust to prevent them from entering the device and damaging the sensor.
Why choose us?
1. R&D team experience: over 25 years.
2. Company certification: ISO9001, ISO45001
3. Product certification: IECEx (the only one in China), ATEX, CE
4. Delivery: 5-7 days
5. Yearly capacity: 80,000 units
6. Service: Professional sales staff provide 7*24 hours service
Company Profile
Established in 2010, Shenzhen Yuan Te Technology Co., Limited(Safegas)is a company that focuses on the design, production and sales of gas detection equipment and system for 16 years. With"gas detector" as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc.
Product line
Our products contain portable types, fixed types and controller panels.
Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000
Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200
Controller panels: YT-1100H, YT-1600H
Certifications
IECEX, ATEX, CE, TEST Report, ISO 9001, ISO 45001
Our products have obtained international explosion-proof certifications from IECEX and ATEX, ensuring product quality, which are comparable to international brand like Honeywell, MSA, RAE, but our products with competitive price.
Company we cooperated
Huawei, Cocacola, Samsung, Nestel and so on.
FAQ
Q1:Are you manufacture or trading company?
A1:We are a professional manufacture specialize in the gas detector for more than 10 years.
Q2:What is the MOQ?
A2:Usually it is 1 piece.
Q3:How about the quality of your products?
A3:Our product is made of imported sensors and components, the products are certified.
Q4:How long is the warranty time of the products?
A4:The warranty period is 1 years from the factory, we also provide lifetime maintenance.
