CH4O Detector For Ppm Detection Low Concentration Electrochemical Sensor 0-1000PPM

Product Overview

SKY2000 series gas detector is a kind of gas measuring equipment with high precision and quick response. The built-in sampling pump has fast sampling speed and large flow rate, which ensures the response time of the detector. Unique design, small size and convenient transportation. High-strength special engineering plastic shell is suitable for various occasions and environments. We are committed to providing you with the most reliable, accurate and safe gas detection solution.



SKY2000 detector is a gas measuring device with fast response speed and high precision. SKY2000 detector is equipped with a built-in sampling pump, fast sampling speed, 10-level adjustable pump suction, high flow rate, up to 800ml/min, ensuring the response time of the detector.

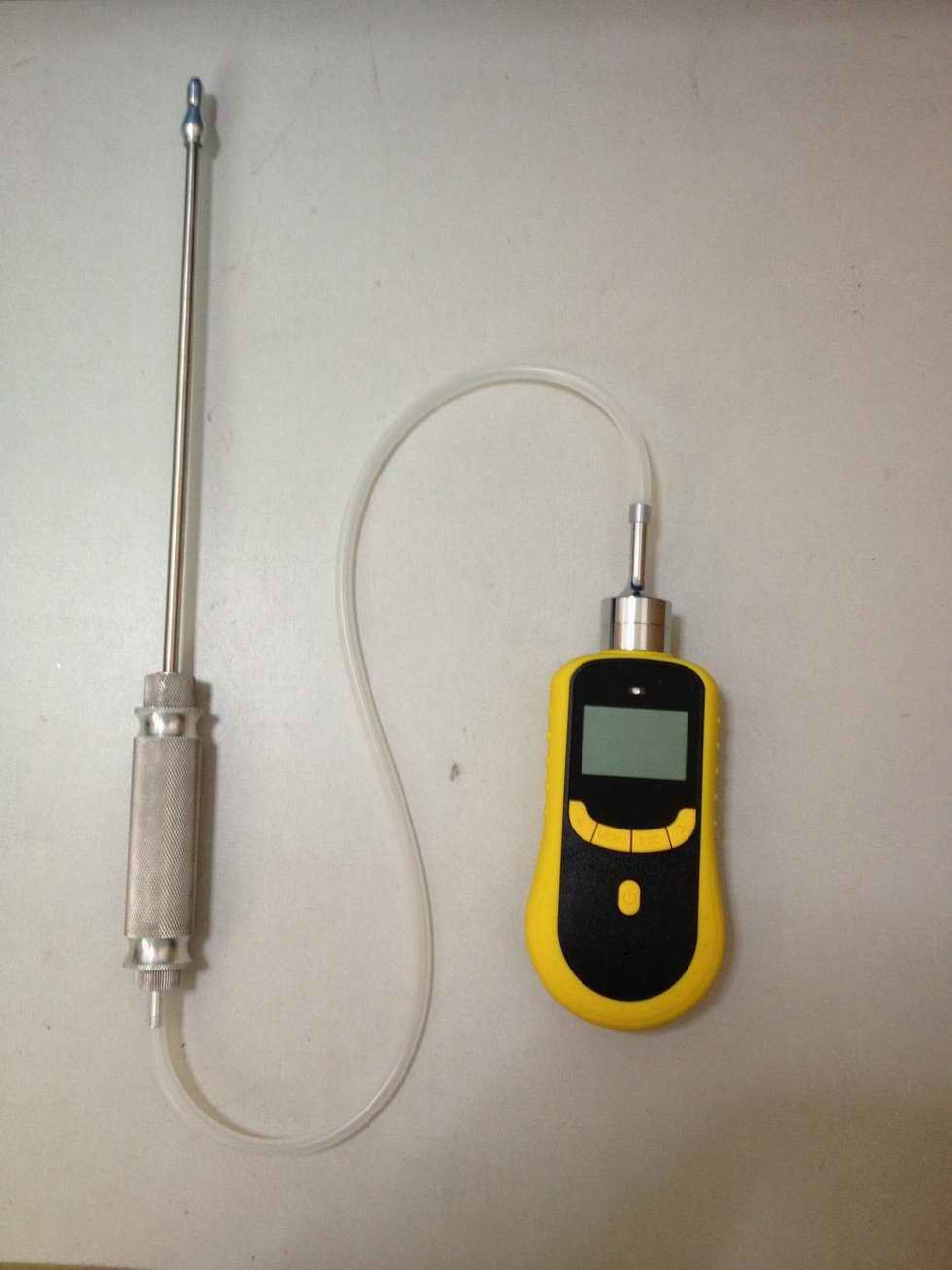

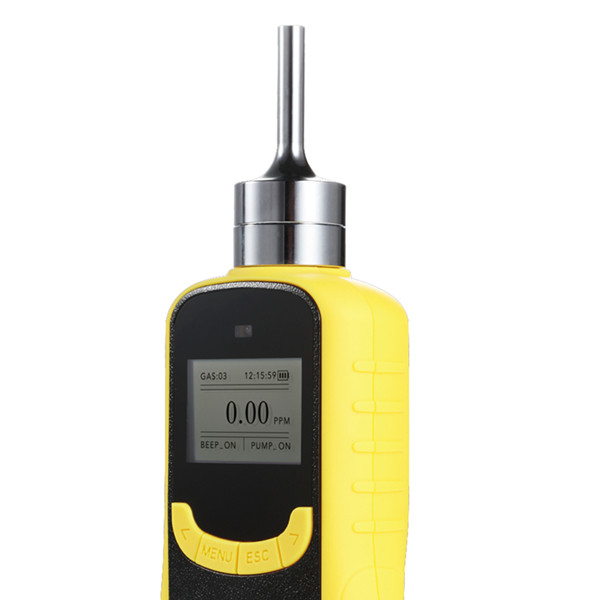

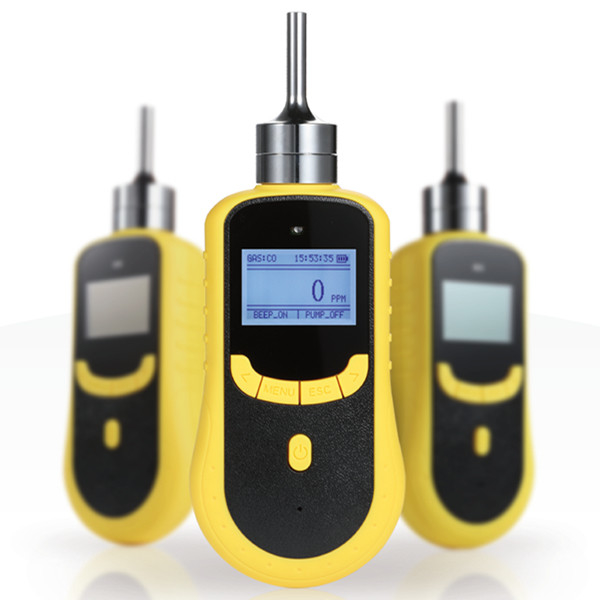

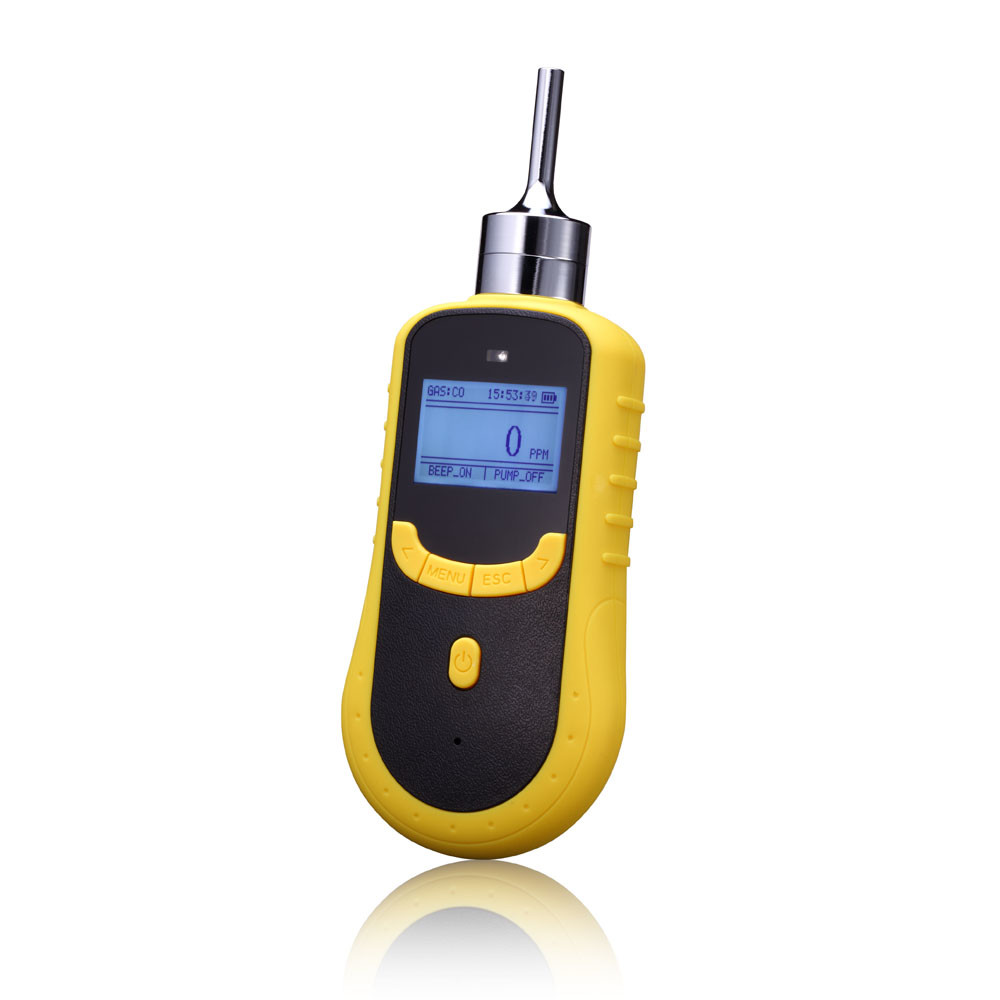

Product Picture











Product Advantage

1) Employing original imported first-class brand sensor.

2) (optional) High speed data transmission by USB, which can download and print data.

3) LCD dot matrix display, the gas type, unit, concentration, local time can be showed on the screen.

4) Support Chinese and English operation, easy to shift.

5) Built-in micro sampling pump, 10 grades of suction are available.

6) Explosion-proof certification, explosion-proof grade: Ex ia IIC T4 Ga



Product Functions

1) Monitor the specified gas concentration in the environment and enclosed space, and give an alarm.

2) It has the functions of automatic calibration and zero calibration, which makes the detection more accurate and reliable.

3) Restore the factory settings with one button, trouble-free

4) Large capacity lithium polymer rechargeable battery.

5) Pump suction and the suction amount can be adjusted.

6) High-strength engineering plastic shell, non-slip, waterproof, dustproof and explosion-proof.

7) Elegant and exquisite aluminum alloy suitcase.





Product specifications

Gas Detected	CH4O
Measure range	0-1000ppm
Detection principle	Electrochemical
Instrument lifespan	Sensors for 2-3 years, instruments for no less than 5 years
Linearity error	±2%FS
Response time	T90<30S(25℃)
Sampling Method	Pumping suction
Resolution	1ppm
Signal Output (optional function)	High-speed data transmission by USB, available for data downloading and printing
Response Time	T90<30S(25℃)
Operating language	Chinese/English
Temperature	-20℃~50℃
Explosion-Proof	Ex ia II CT4
Alarm mode	Sound, light, vibration
Dimensions	205*75*32mm
Recovery Time	≤10S
Display	LCD dot matrix display
Gas unit	Units are switchable
Humidity	0-90%RH
Degree of protection	IP66
Operating time	100h(pump off)
Weight	300g









Gases

SKY2000 can detect 1-6 gases at the same time,here's part of the gases SKY2000 can detect:



Standard configuration list

Standard accessories:

1) SKY2000

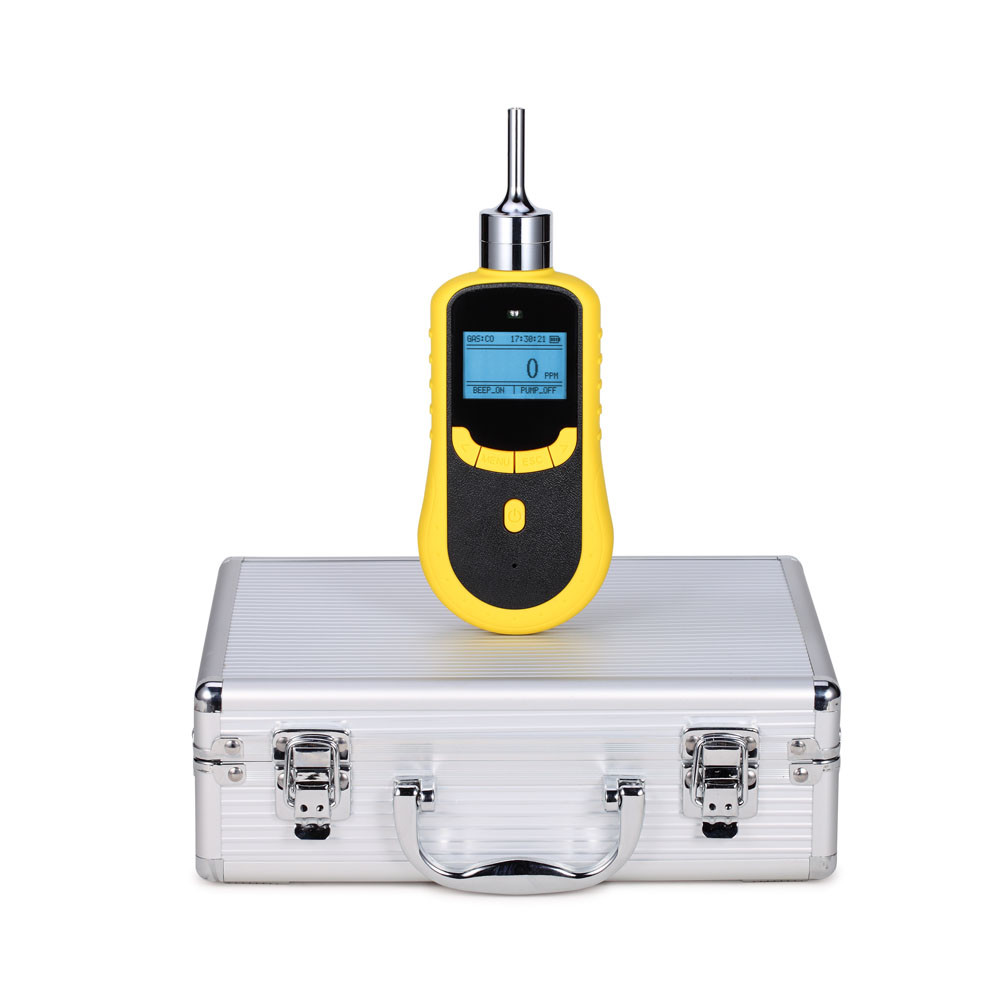

2) Aluminum suitcase

3) A charging adapter

4) Instruction

5) Qualification certificate



Application case

SKY2000 Series are widely used in Agriculture, industry, research LABS, chemical plants, smelters...... Here's an application case for your reference:



Singapore Xx Pollution Control Company Detects PM2.5: SKY2000-PM Application Case

Detection Requirements:

In the process of environmental pollution control, the detection of polluted gases is involved. So the customer needs to buy a device to detect PM2.5. Along with other detection devices are Because there are many instruments to carry with you during construction or testing, the device must be small and easy to carry.

Solution: SKY2000-PM, SKY2000 with imported PM2.5 sensor, temperature and humidity detection, and data storage function

Solution Features:

1. The recommended product and the function equipped provide a complete solution for customer detection.

2. Equip SKY2000 with imported PM2.5 sensors to ensure the accuracy and stability of detection.

3. Equipped data storage and export function, the device can store and export 100,000 sets of data,this function provides customers with great convenience: it is not necessary to observe and record the reading at all times. Adjustable storage interval provides rich and accurate data for subsequent analysis. Just connect the SKY2000 to the PC, the user can view and export the whole detected data by SAFEGAS PC software.



Why choose us?

1) R&D team experience: over 25 years.

2) Company certification: ISO9001, ISO45001

3) Product certification: IECEx (the only one in China), ATEX, CE

4) Delivery: 5-7 days

5) Yearly capacity: 80,000 units

6) Service: Professional sales staff provide 7*24 hours service



Company Profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited(Safegas)is a company that focuses on the design, production and sales of gas detection equipment and system for 16 years. With"gas detector" as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc.



Product line

Our products contain portable types, fixed types and controller panels.

Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000

Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200

Controller panels: YT-1100H, YT-1600H



Certifications

IECEX, ATEX, CE, TEST Report, ISO 9001, ISO 45001

Our products have obtained international explosion-proof certifications from IECEX and ATEX, ensuring product quality, which are comparable to international brand like Honeywell, MSA, RAE, but our products with competitive price.



Company we cooperated

Huawei, Cocacola, Samsung, Nestel and so on.

FAQs

Q1: What is a gas detector?

A1: Gas detector is an instrument for gas leakage concentration detection, including a portable gas detector, fixed gas detector, etc.



Q2: What does a gas detector detect?

A2: Combustible gases: Natural gas (methane), liquefied gas, coal gas, acetylene, pentane, alkynes, toluene, etc.

Toxic gases: Carbon monoxide, hydrogen sulfide, ammonia, chlorine, phosphine, sulfur dioxide, hydrogen chloride, chlorine dioxide and other toxic and harmful gases.



Q3: What is the ppm unit of the gas detector?

A3: ppm represents the volume concentration of the gas, that is, the volume of pollutants contained in one million volumes of air. For example, if the concentration of ammonia is 30ppm, it means that the volume of ammonia in one million volumes of air is 30.
