Product Description
SG100 Fixed Gas Detector
SG100 series is a cost-effectivegas detector for continuous monitoring of toxic gases, oxygen,flammable, VOC gases.It isIECEx, ATEXcertified,with intrinsically safe explosion grade.Havinga2 wire or 3 wire4 to 20 mA analog output, RS485 modbus output, optional HART output,making it to be compatible with mostcontrol systems. With optional wirelessdata transmission,customer is able to review, download the data remotely.Support both magnetic and remote control,flexible for setting.

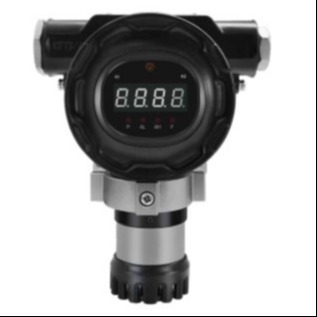

Product Picture
Product Advantage
- IP66/IP68 water & dust resistant

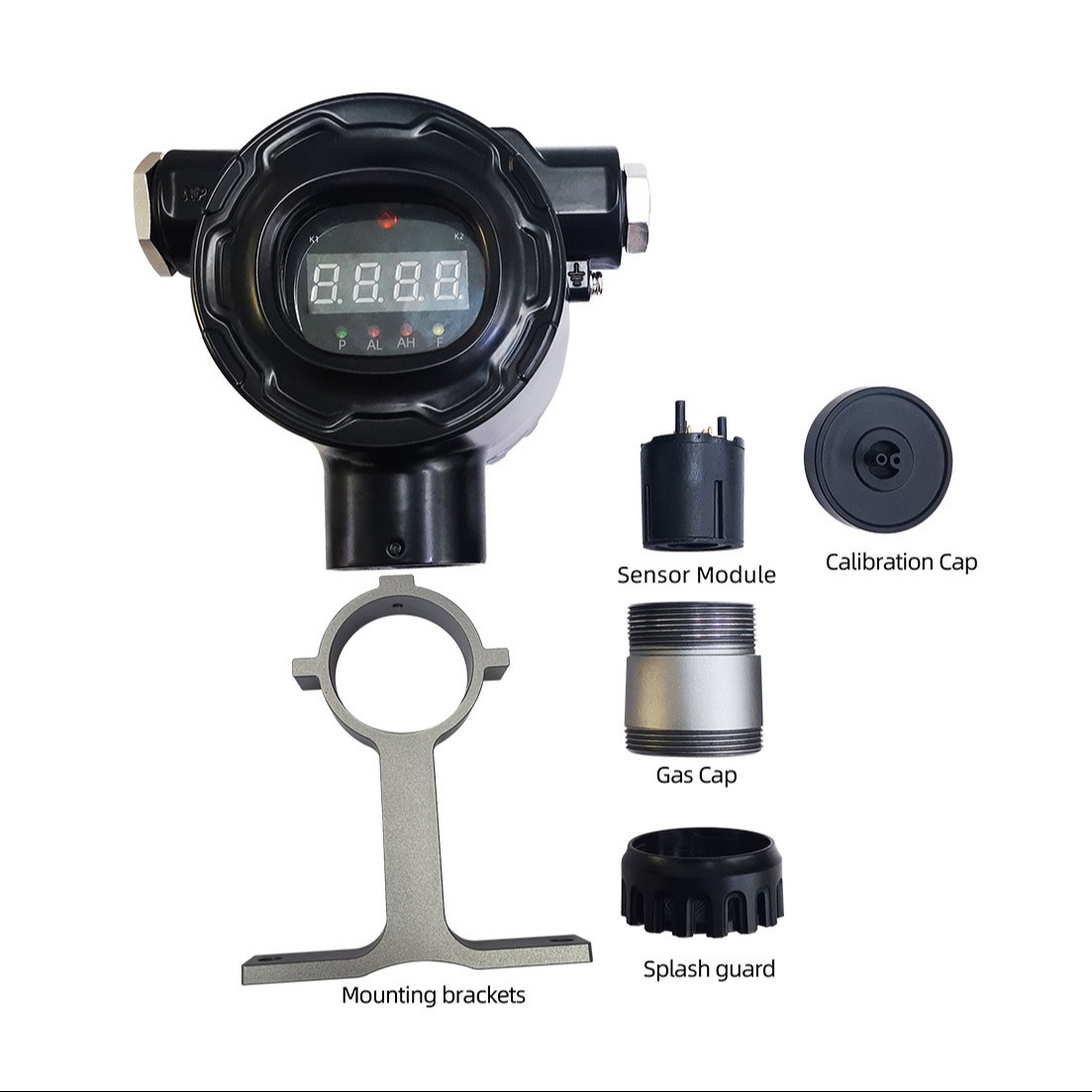

- Intelligentplug and play sensor module.the module supportcalibration by Safegas PC software, making replacement and maintenance easier.
- With standard splash guard to protect sensor for outdoor installation or environment with water splash.

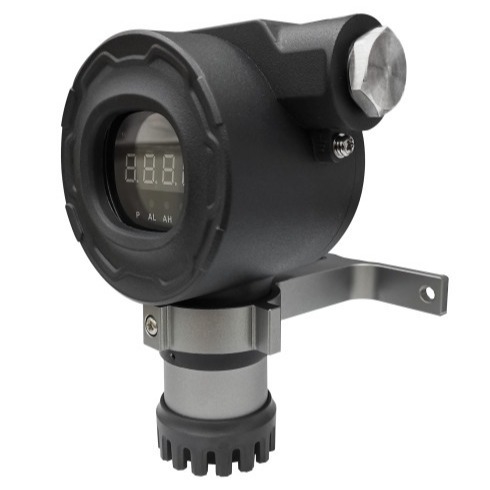

- Smalland light,weight is only 1 kg,andthe detector comes with standard mounting bracket,easy for installation.

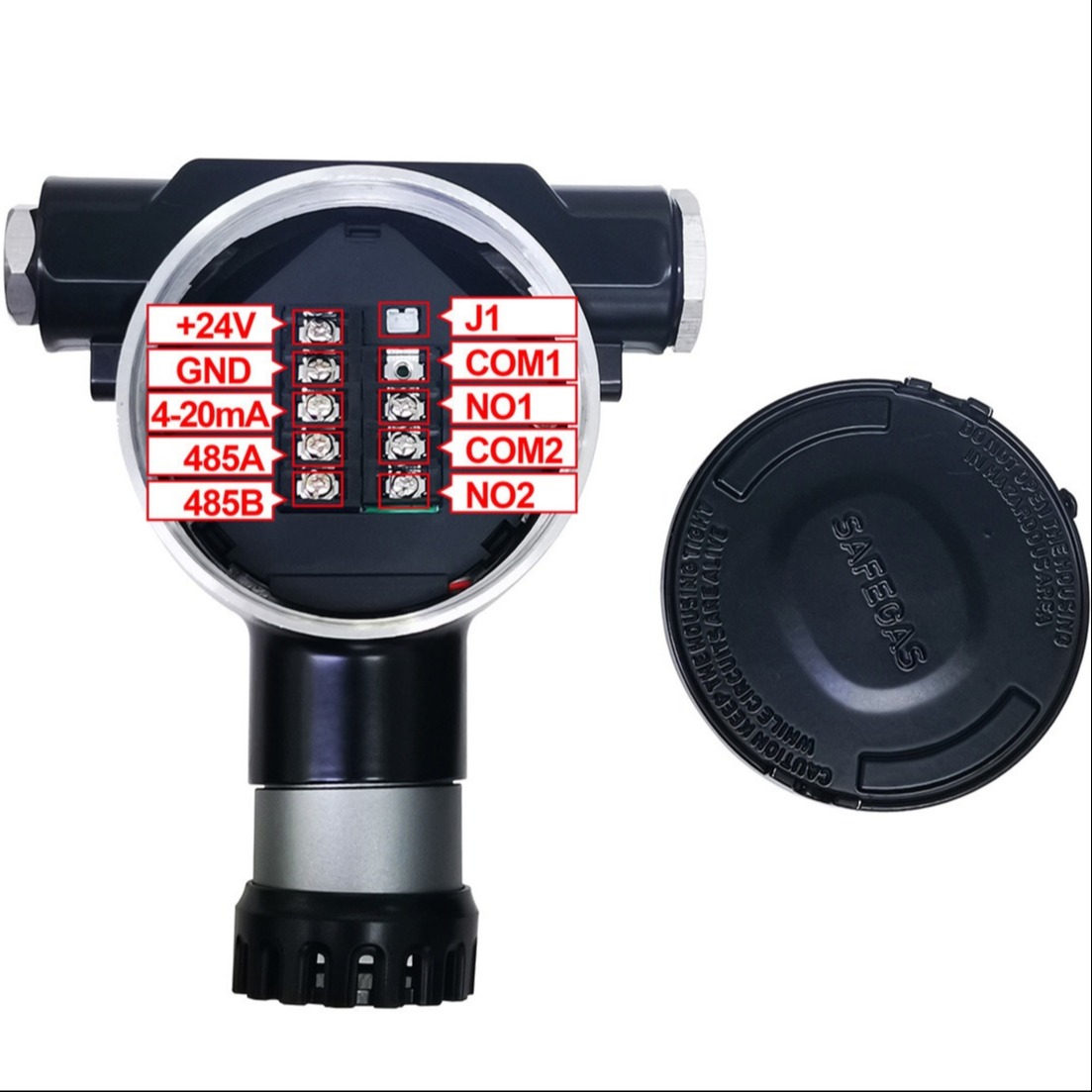

- Standard 4-20 mA analog signal output andRS485 modbus signal output,optional Hart output, 2wire output.Compatible with most of control systems.

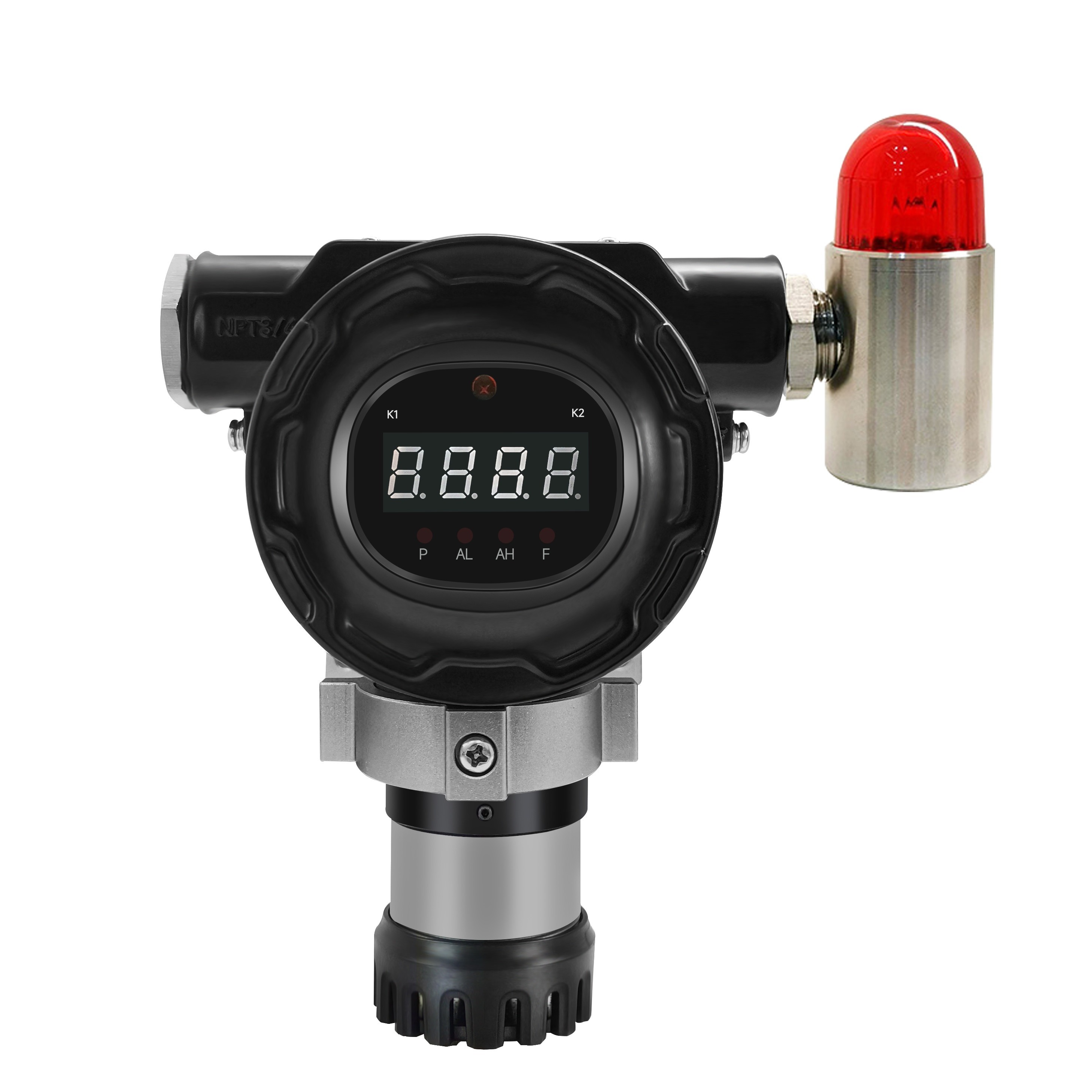

- The detector comes with 3relays, including low/high/fault alarm relay(Optional)
- Support both magnetic andremote control, flexible for setting.
Specifications:
| Detected Gas |
H2S |
| Measure Range |
0-200PPM |
| Install Method |
Wall-mounted, piping type, flow-type |
| Output signal |
4-20mA, 1-5V, 2-10V, RS485, RS232, relays (optional) |
| Precision |
≤±1%F.S. (to be specialized) |
| Zero shift |
≤±1%(F.S./year) |
| Display |
4 digits Nixie tube display. |
| Connection mode |
G3/4 external thread explosion-proof flexible pipe |
| Thread Size |
Standard M20*1.5, 3/4NPT |
| Temperature |
–20℃～50℃ |
| Humidity |
10-95%RH (non-condensing) |
| Explosion-Proof |
Ex db ⅡC T6/ Ex db ia IIC T6 Gb/ Ex da db ia IIC T6 Gb |
| Degree of protection |
IP66/IP68 |
| Material |
Sensor housing: aluminum alloy or 316 stainless steel |
| Power |
12-24V DC |
| Dimensions |
158×129×70mm |
| Weight |
≤1kg |
| Approval |
CE, CNEX explosion proof certificate, CMC(China Metrology Certification), IECEx, ATEX |
| Warranty |
12 months |
Gas
SG100 model can detect sigle gas, here's some gases we can detect:
Product Application
Chemical Industry
Environmental Monitoring
Healthcare Applications
Automotive Industry
Industrial Safety
Wastewater Treatment
Greenhouse Gas Monitoring
Oil and Gas Exploration
Food and Beverage Production
Mining and Mining Operations
Why choose us?
1. R&D team experience: over 25 years.
2. Company certification: ISO9001, ISO45001
3. Product certification: IECEx (the only one in China), ATEX, CE
4. Delivery: 5-7 days
5. Yearly capacity: 80,000 units
6. Service: Professional sales staff provide 7*24 hours service
Company Profile
Established in 2010, Shenzhen Yuan Te Technology Co., Limited(Safegas)is a company that focuses on the design, production and sales of gas detection equipment and system for 16 years. With"gas detector" as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc.
Product line
Our products contain portable types, fixed types and controller panels.
Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000
Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200
Controller panels: YT-1100H, YT-1600H
Certifications
IECEX, ATEX, CE, TEST Report, ISO 9001, ISO 45001
Our products have obtained international explosion-proof certifications from IECEX and ATEX, ensuring product quality, which are comparable to international brand like Honeywell, MSA, RAE, but our products with competitive price.
Company we cooperated
Huawei, Cocacola, Samsung, Nestel and so on.
FAQs
Q1:Are you manufacture or trading company?
A1:We are a professional manufacture specialize in the gas detector for more than 10 years.
Q2:What is the MOQ?
A2:Usually it is 1 piece.
Q3:How about the quality of your products?
A3:Our product is made of imported sensors and components, the products are certified.
Q4:How long is the warranty time of the products?
A4:The warranty period is 1 years from the factory, we also provide lifetime maintenance.
