Product Overview
MiniMeta stands as a highly reliable and versatile single - gas detector that has successfully obtained IECEX/ATEX/EMC certifications. These certifications are a testament to its compliance with the most stringent international safety and electromagnetic compatibility standards. IECEX certification, for instance, ensures its suitability for use in explosive atmospheres, while ATEX certification validates its safety in potentially hazardous environments across Europe. The EMC certification guarantees that MiniMeta will not interfere with other electronic devices and can operate effectively in an environment filled with electromagnetic noise.
One of the most remarkable features of MiniMeta is its ability to detect hundreds of user - selected toxic gases. Whether it's the common yet dangerous carbon monoxide, the pungent hydrogen sulfide, or a wide range of other harmful gases, MiniMeta has been engineered to identify them with high precision. This vast detection range makes it an ideal choice for various industries, including oil and gas, chemical manufacturing, mining, and even in environmental monitoring applications.
In terms of user - friendliness, MiniMeta has been designed with the operator in mind. The interface is intuitive, allowing even those with minimal technical knowledge to easily operate the device. Simple controls and clear displays ensure that users can quickly understand the readings and any alerts. Additionally, the device is equipped with user - friendly features such as easy - to - navigate menus and audible and visual alarms that are distinct and easy to recognize.
The battery and sensor of MiniMeta are both replaceable, which is a huge advantage for long - term use. The replaceable battery ensures that the device can keep running continuously. Users don't have to worry about the detector running out of power during critical monitoring periods. Instead, they can simply swap out the battery and continue with their gas monitoring tasks. Similarly, the replaceable sensor allows for the long - term functionality of the device. As sensors may degrade over time due to exposure to various gases, the ability to replace them means that MiniMeta can continue to provide accurate readings for an extended period. This not only provides users with long - term protection but also helps in reducing overall maintenance costs.
MiniMeta is strategically designed to offer a low - cost and long - term ownership gas monitoring system. By providing a cost - effective solution without compromising on quality, it enables businesses, especially those with budget constraints, to implement a reliable gas monitoring strategy. The combination of its wide detection range, user - friendliness, and replaceable components makes it an investment that pays off in the long run, ensuring continuous and efficient gas monitoring while keeping costs under control.

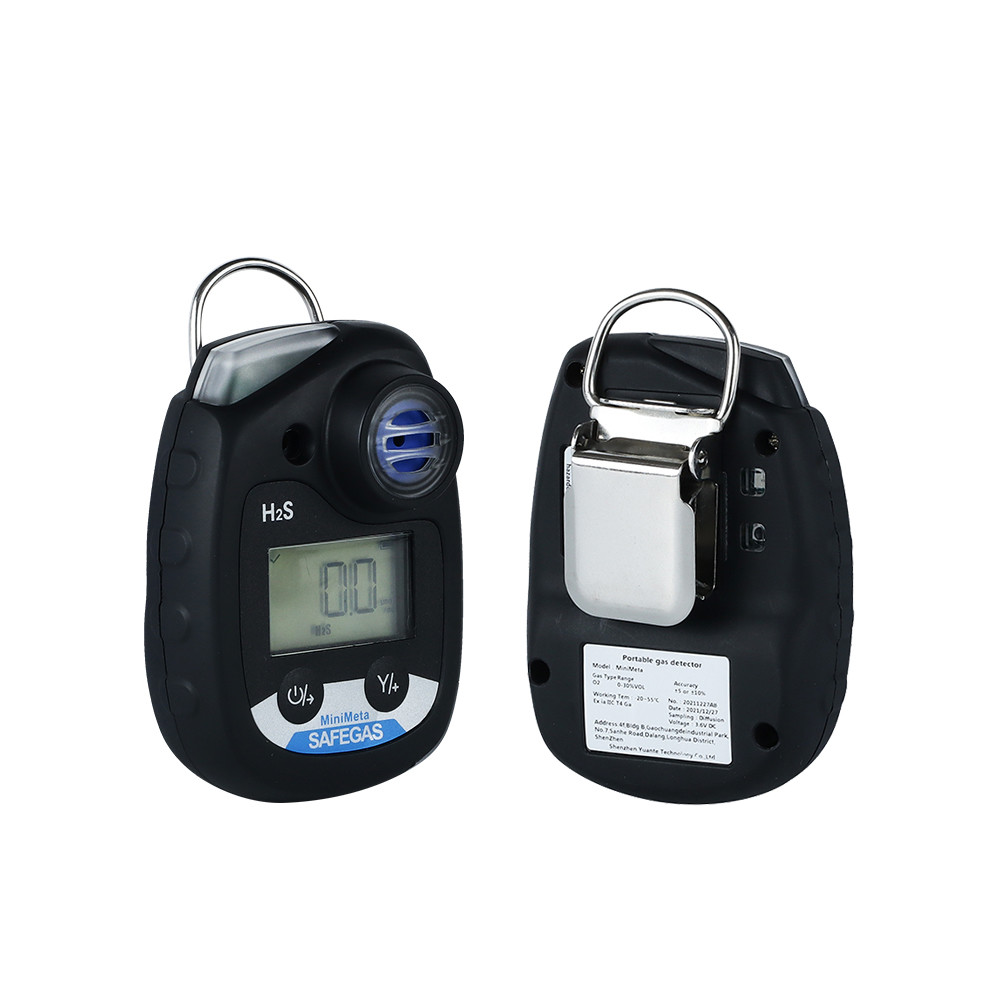

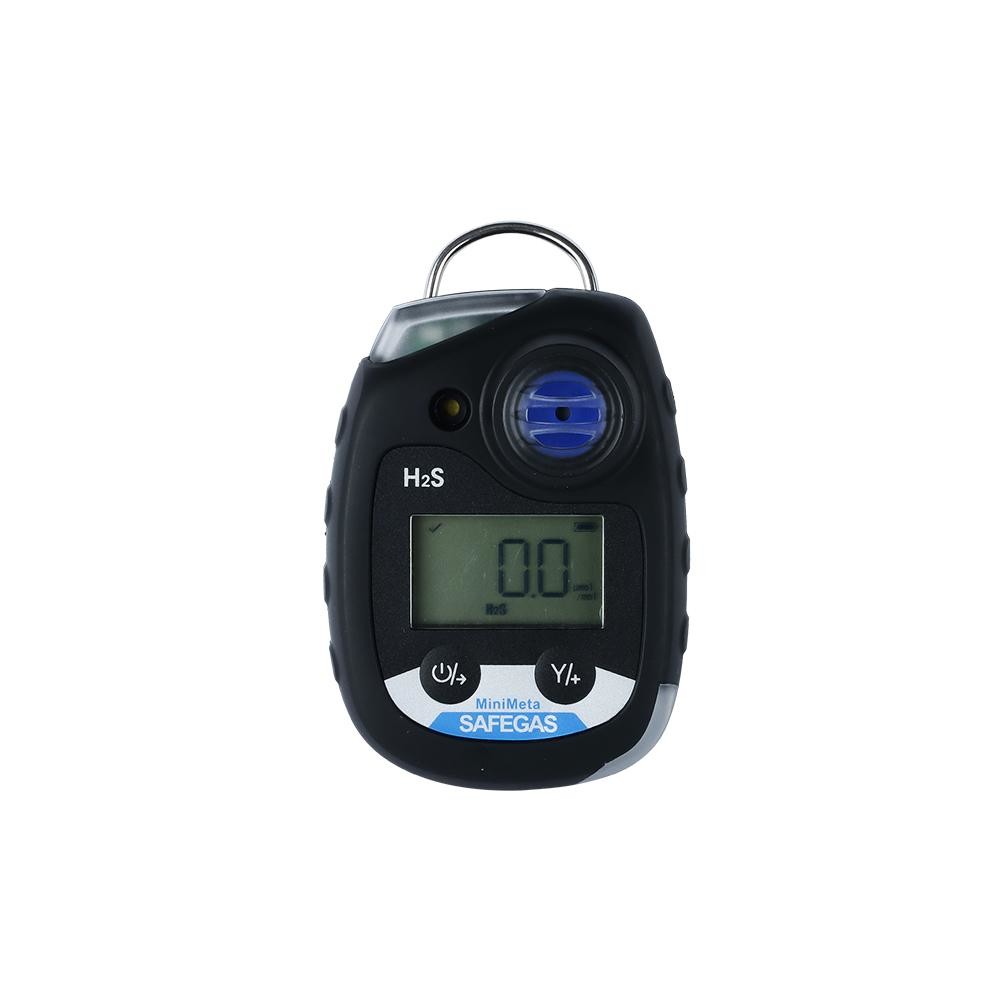

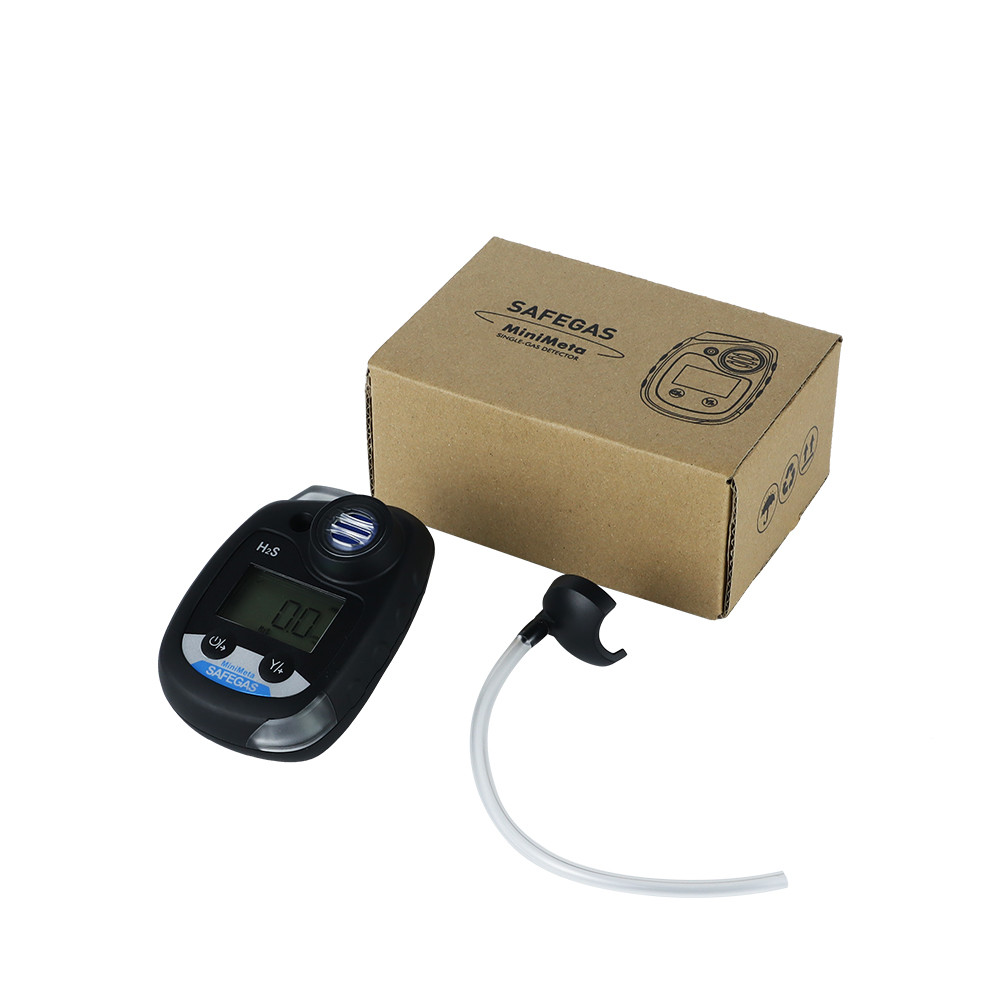

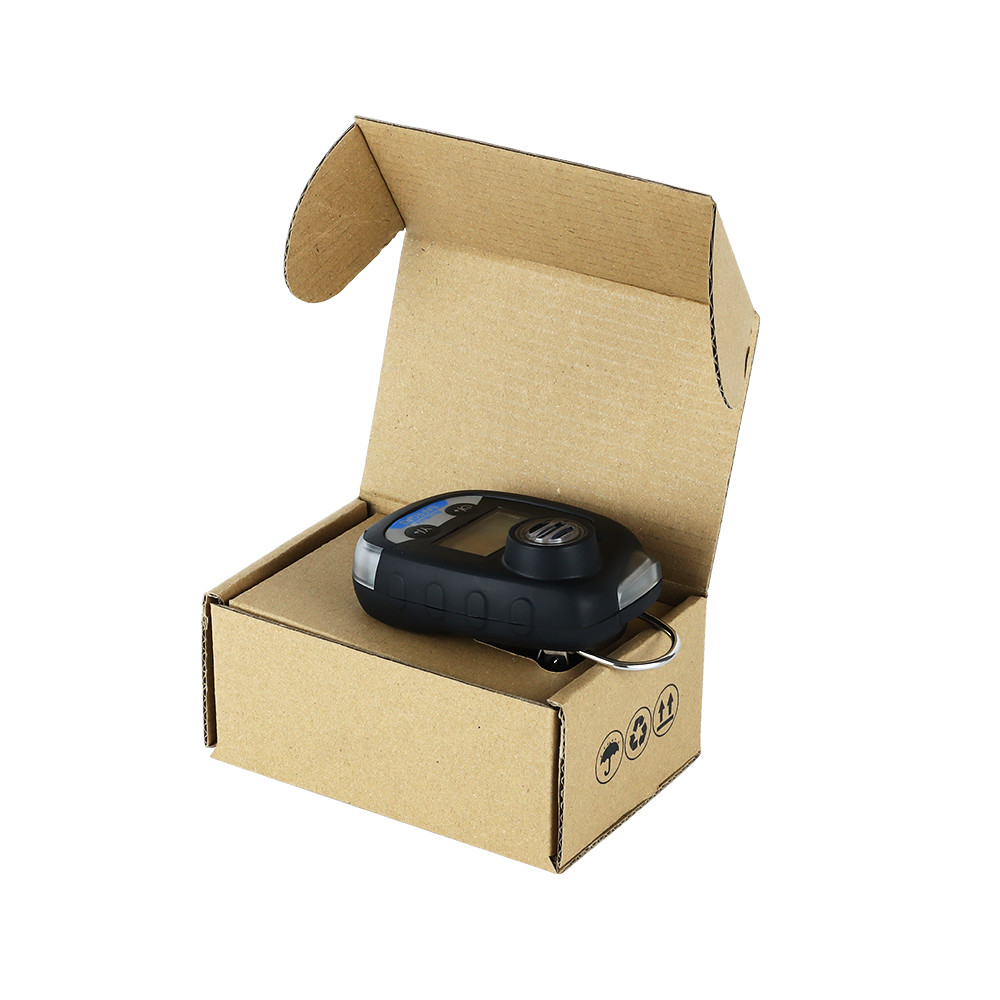

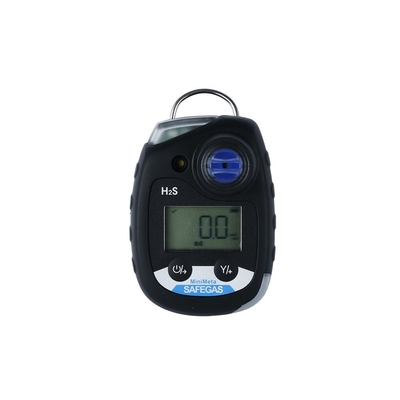

Product Picture
Product Specification
|
Detect gas
|
H2S
|
|
Sensor type
|
Electrochemical
|
|
Sampling method
|
Diffusion
|
|
Measure range
|
0-200ppm
|
|
Resolution
|
0.1ppm
|
|
Precision
|
≤± 3% F.S.
|
|
Response Time
|
≤30s(T90)
|
|
Unit
|
PPM
|
|
Display
|
Gas name, concentration unit, measured value, electricity
|
|
Alarm mode
|
Sound, light, vibration alarm, high and low alarm values can be set by yourself
|
|
Alarm type
|
Low alarm, high alarm, STEL, TWA, low battery
|
|
Display
|
LCD Display
|
|
Operating language
|
Chinese/English
|
|
Size
|
90*60*33mm
|
|
Weight
|
125g
|
|
Working Temperature
|
-20ºC~50ºC
|
|
Working Humidity
|
0-95%RH
|
|
Working air pressure
|
86~106kpa
|
Product Advantage
1) IP68 water- and dust-resistant case
2) Low power consumption with 2 years standby time, no need battery charge and calibration
3) With Single /multi unit docking station to perform daily bump test and calibration (Optional)
4) With event and data logging function (Optional)
5) With self-test function, which can improve safety by automatic self-test
6) Small size, lightweight and with back clip for easily carry
7) 95db@30cm buzzer alarm, 2 high-bright red LED light alarm and vibration alarm
8) Real time value, TWA, STEL, MAX, MIN multiple numerical display
Standard
1) Portable gas detector 1 piece
2) Calibration cap 1 piece
3) User manual 1 piece
4) Certificate of conformity/ Warranty card 1 piece
Why choose us?
1. R&D team experience: over 25 years.
2. Company certification: ISO9001, ISO45001
3. Product certification: IECEx (the only one in China), ATEX, CE
4. Delivery: 5-7 days
5. Yearly capacity: 80,000 units
6. Service: Professional sales staff provide 7*24 hours service
Company Profile
Established in 2010, Shenzhen Yuan Te Technology Co., Limited(Safegas)is a company that focuses on the design, production and sales of gas detection equipment and system for 16 years. With"gas detector" as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc.
Product line
Our products contain portable types, fixed types and controller panels.
Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000
Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200
Controller panels: YT-1100H, YT-1600H
Certifications
IECEX, ATEX, CE, TEST Report, ISO 9001, ISO 45001
Our products have obtained international explosion-proof certifications from IECEX and ATEX, ensuring product quality, which are comparable to international brand like Honeywell, MSA, RAE, but our products with competitive price.
Company we cooperated
Huawei, Cocacola, Samsung, Nestel and so on.
FAQs
Q1:Are you manufacture or trading company?
A1:We are a professional manufacture specialize in the gas detector for more than 10 years.
Q2:What is the MOQ?
A2:Usually it is 1 piece.
Q3:How about the quality of your products?
A3:Our product is made of imported sensors and components, the products are certified.
Q4:How long is the warranty time of the products?
A4:The warranty period is 1 years from the factory, we also provide lifetime maintenance.
