Product description

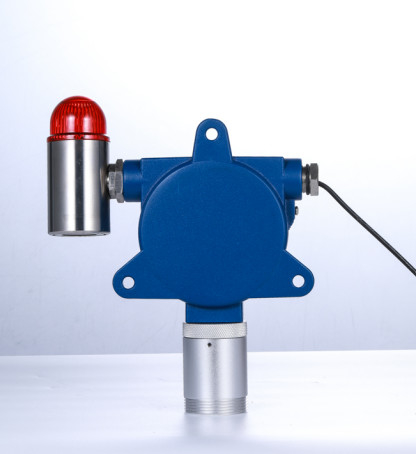

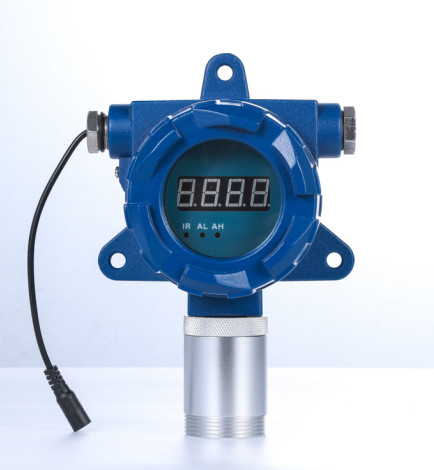

The YT-95H/YT-95H-A series fixed gas detectors are essential for industrial safety. Cost - effective, they can detect oxygen, flammable, and toxic gases. With 3 - wire 4 - 20 mA, RS485, and relay outputs, they're compatible with different control systems. The relay controls devices like horns and fans.
They offer 24 - hour online monitoring with optional sound/light alarms (over 90 dB). An infrared controller allows remote alarm setting, calibration, and address change. Data can be sent to a PC, and wireless options like Lora or 4G are available.
Housed in die - cast aluminum with IP65 rating, they're waterproof, dustproof, and explosion - proof. Technical specs are great: various detection principles, quick 20s response, high accuracy, and wide operating temperature (- 20°C - 50°C) and humidity (0 - 95%RH) ranges. The explosion - proof grade is Ex d IIC T6 Gb.
Product advantage
- Online monitoring with sound/light alarm(Optional)
24h continuously monitoring, data will real-time display.High/low alarm with sound and light, sound >90dB, alarm point is settable.

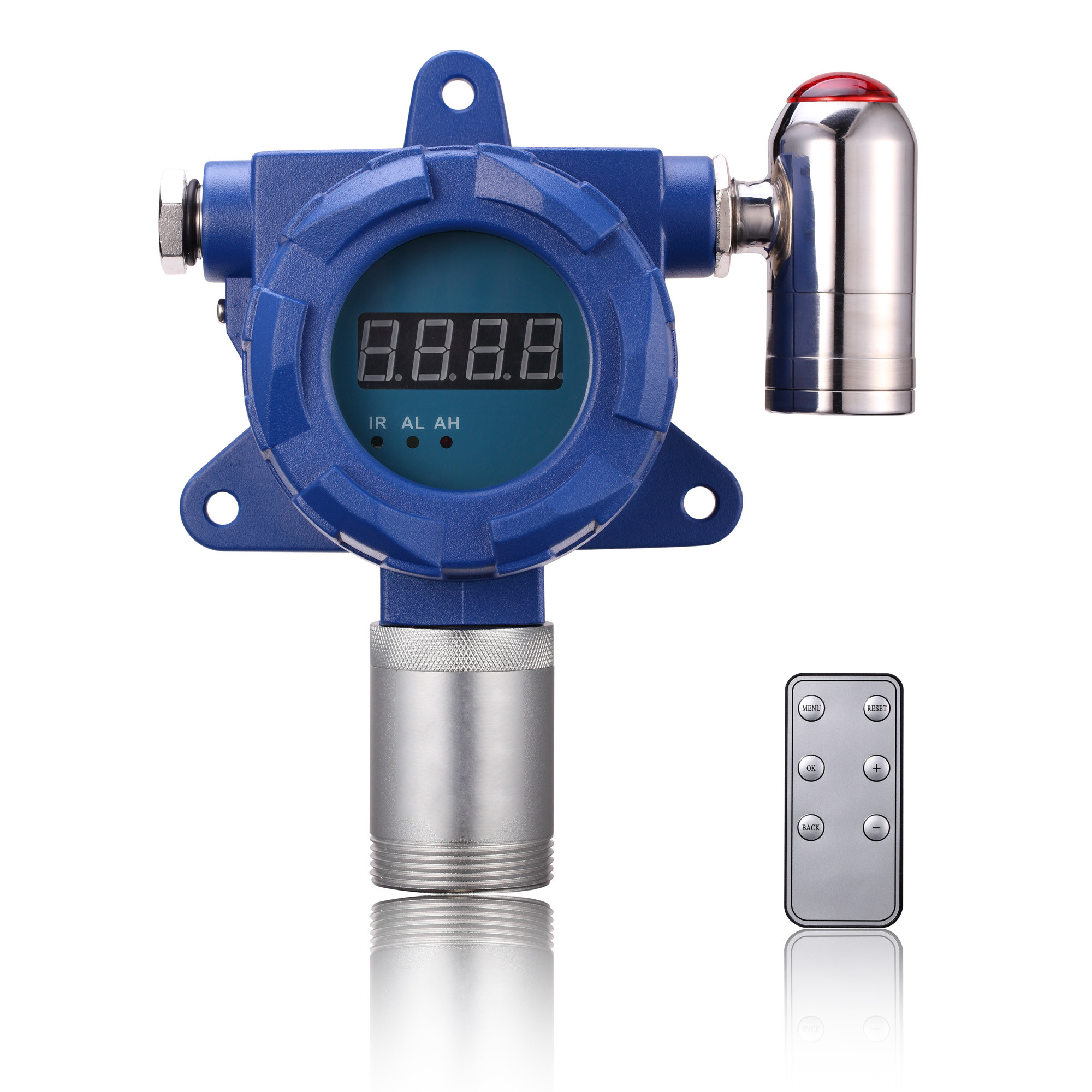

- Convenient remote control
With infrared ray controller, which can remote control alarm point settings, zero calibration, and address modification.
- Diversified output signals
It integrate 3 wire 4-20 mA analog, RS485 Modbus and relay out. To be compatible with different control systems.
The relay output supports control external devices such as horns, alarm lights, fans etc.

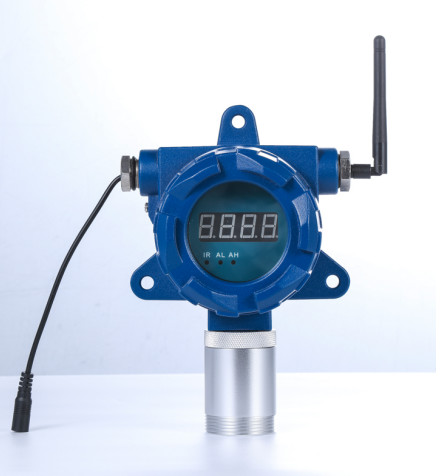

Through PC software can remote monitor the data.Wireless data transmission including Lora, 4G (Optional)
Die-cast aluminum housing, strong and durable;IP65 protection degree,water-proof, dust-proof,explosion-proof；
company profile
Established in 2010, Shenzhen Yuante Technology Co., Limited has had a remarkable 16 - year journey in the high - end gas detection field. It has successfully built an integrated industrial system covering design, production, and sales, especially achieving outstanding results in gas detectors. The customized solutions for multiple key industries have driven industry transformation. Gathering top - notch talents, the company's products are renowned for high accuracy and rapid response, having become an industry benchmark. It is bound to continue writing a glorious chapter in the future.
certifications
FAQ
specification
| Gas type |
Specified according to application |
| Sensor type |
Specified according to application |
| Accuracy |
≤±2%FS(Specified according to different sensor)
|
| Measure Range |
Specified according to application |
| Resolution |
Specified according to application |
|
Display:
|
4 digits Nixie tube display.
|
Explosion-proof
grade |
Ex d IIC T6 Gb
|
|
Temperature
|
–20℃～50℃
|
|
Power
|
12-36V DC
|
|
Thread Size
|
M45*2mm
|
|
Zero shift
|
≤±1%(F.S./year)
|
|
Dimensions
|
180×150×90mm
|
| Weight |
≤1.6kg
|
|
Humidity
|
0-95%RH(nocondensation)
|
