Industrial Grade EO Gas Detector With Optional Wireless Transmission Suitable For EO Disinfection Cabinet

Basic Information

Place of Origin:	China
Brand Name:	safegas
Certification:	CE/ISO
Model Number:	YT-95H

Minimum Order Quantity:	1 piece
Price:	450USD
Delivery Time:	3-5days
Payment Terms:	T/T
Supply Ability:	8000 pcs per month

Get Best Price Contact Now

Detail Information

Product Name:	Fixed Gas Detector	Measure Range:	Specified According To Application
Gas:	CO/H2S/EO/Customized	Sensor Type:	Specified According To Application
Language:	Chinese/English	Alarm Type:	Light+Sound+Vibration
Detection Principle:	Electrochemical, NDIR, Catalytic, PID, Etc	Weight:	≤1.6kg
Size:	180×150×90mm	Power:	12-36V DC
Communication Mode:	G1/2 External Thread Explosion-proof Flexible Pipe	Thread Size:	M45*2mm
Temperature:	–20℃～50℃	Humidity:	0-95%RH(nocondensation)
Explosionproof Grade:	Ex D IIC T6 Gb
Highlight:	Industrial Grade EO Gas Detector , Disinfection Cabinet EO Gas Detector , Wireless Transmission EO Gas Detector

Product Description

Product video

Our advantages

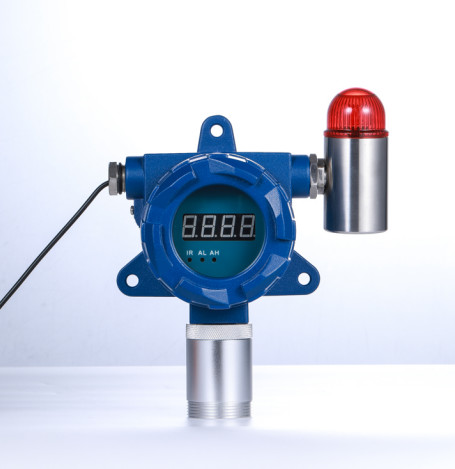

Industrial Grade EO Gas Detector With Optional Wireless Transmission Suitable For EO Disinfection Cabinet 1

Product description

Industrial production has gas safety risks, and the YT-95H/YT-95H-A series is a great choice. It accurately detects a wide range of gases. Multiple detection principles ensure reliable results.

The detectors' features are user - friendly. 24 - hour monitoring with optional alarms keeps workplaces safe. The infrared remote control simplifies operations like alarm setting. With multiple output signals, they can be integrated into different control systems. The relay output safeguards against gas leaks by controlling external devices.

The die - cast aluminum housing offers excellent protection. With good technical parameters like short response time and high accuracy, and a high explosion - proof grade (Ex d IIC T6 Gb), they can operate in tough conditions, ensuring production safety.

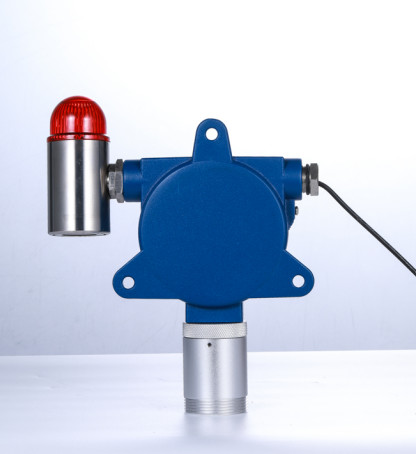

Industrial Grade EO Gas Detector With Optional Wireless Transmission Suitable For EO Disinfection Cabinet 2

Product advantage

Online monitoring with sound/light alarm(Optional)

24h continuously monitoring, data will real-time display.High/low alarm with sound and light, sound >90dB, alarm point is settable.

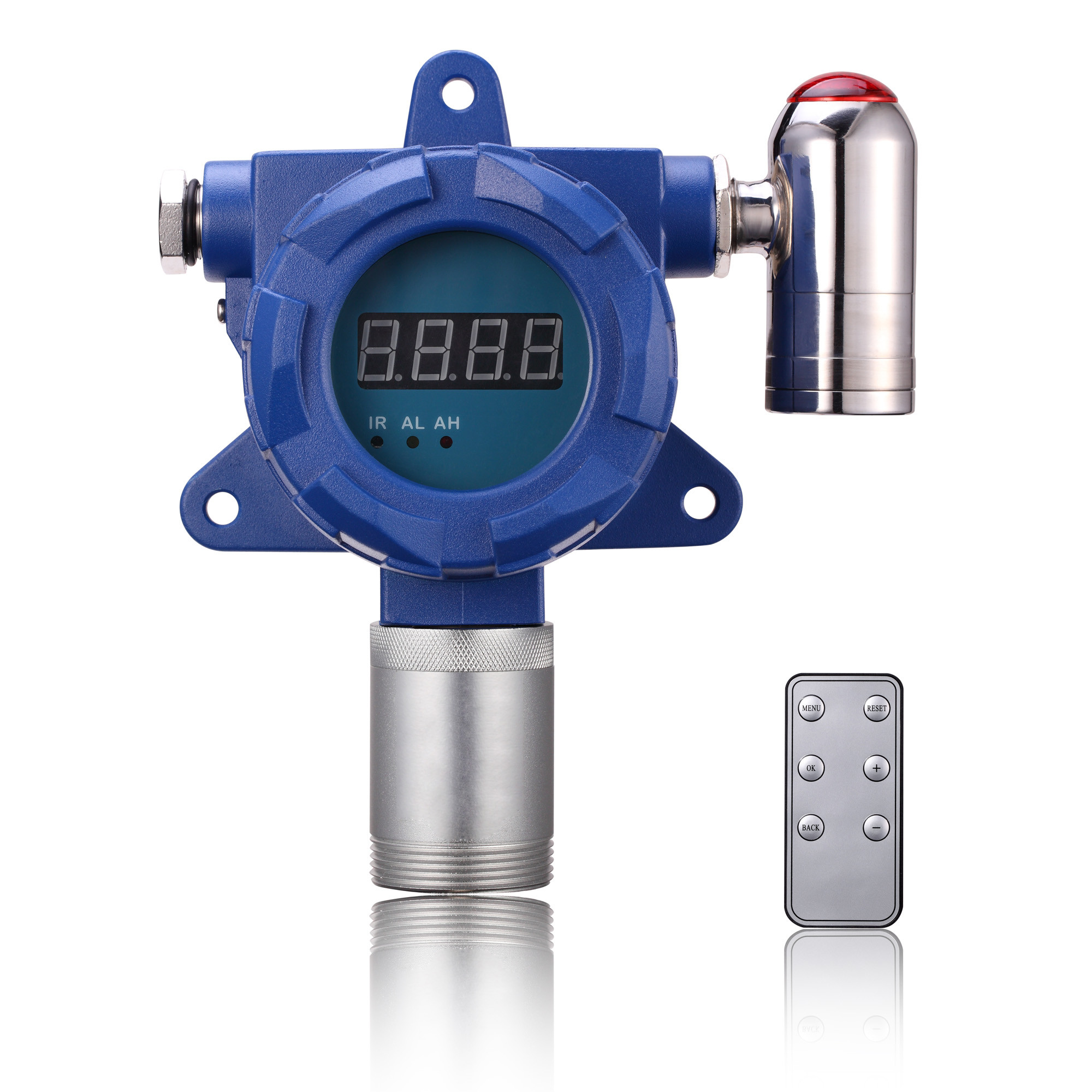

Convenient remote control

With infrared ray controller, which can remote control alarm point settings, zero calibration, and address modification.

Diversified output signals

It integrate 3 wire 4-20 mA analog, RS485 Modbus and relay out. To be compatible with different control systems.

Relay control

The relay output supports control external devices such as horns, alarm lights, fans etc.

Data transmission to PC

Through PC software can remote monitor the data.Wireless data transmission including Lora, 4G (Optional)

Durable housing

Die-cast aluminum housing, strong and durable;IP65 protection degree,water-proof, dust-proof,explosion-proof；
Industrial Grade EO Gas Detector With Optional Wireless Transmission Suitable For EO Disinfection Cabinet 7

company profile

Shenzhen Yuante Technology Co., Limited was officially founded in 2010. Over the past 16 years, it has been deeply engaged in the design, production, and sales of high - end gas detection equipment and systems. For the core product of gas detectors, the company has created a complete industrial chain in line with Industry 4.0 standards through vertical integration. According to different standards such as ATEX and IECEx in industries like Oil, Medicine, and Electronics, it provides customized system integration solutions. Relying on independently developed advanced algorithms and sensing technologies, combined with the industry - university - research joint innovation model, the company's products have reached the international leading level in key performance indicators such as accuracy and response time. Looking ahead, Yuante Technology will continue to drive changes with technology and lead the development of the industry in the fields of industrial Internet of Things and intelligent safety detection.

Industrial Grade EO Gas Detector With Optional Wireless Transmission Suitable For EO Disinfection Cabinet 10

certifications

FAQ

specification

Gas type	Specified according to application
Sensor type	Specified according to application
Accuracy	≤±2%FS(Specified according to different sensor)
Measure Range	Specified according to application
Resolution	Specified according to application
Display:	4 digits Nixie tube display.
Explosion-proof grade	Ex d IIC T6 Gb
Temperature	–20℃～50℃
Power	12-36V DC
Thread Size	M45*2mm
Zero shift	≤±1%(F.S./year)
Dimensions	180×150×90mm
Weight	≤1.6kg
Humidity	0-95%RH(nocondensation)
