Detail Information

Product Name:	Fixed Gas Detector	Measure Range:	Specified According To Application
Gas:	Flammable Gas	Sensor Type:	Specified According To Application
Language:	Chinese/English	Alarm Type:	Light+Sound+Vibration
Detection Principle:	Electrochemical, NDIR, Catalytic, PID, Etc	Weight:	1KG
Size:	157.8x128.8x69.6mm	Power Dissipation:	Toxic Gas<2.5W,flammable Gas<4W
Communication Mode:	4-20mA(3-wires),RS485 1~5V,Hart(Optional)
Highlight:	Imported Sensor Fixed Gas Detector , 0-100%LEL Fixed Gas Detector , Flammable Gas Leak Fixed Gas Detector

Product Description

Product video

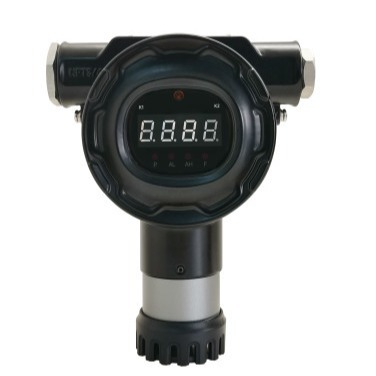

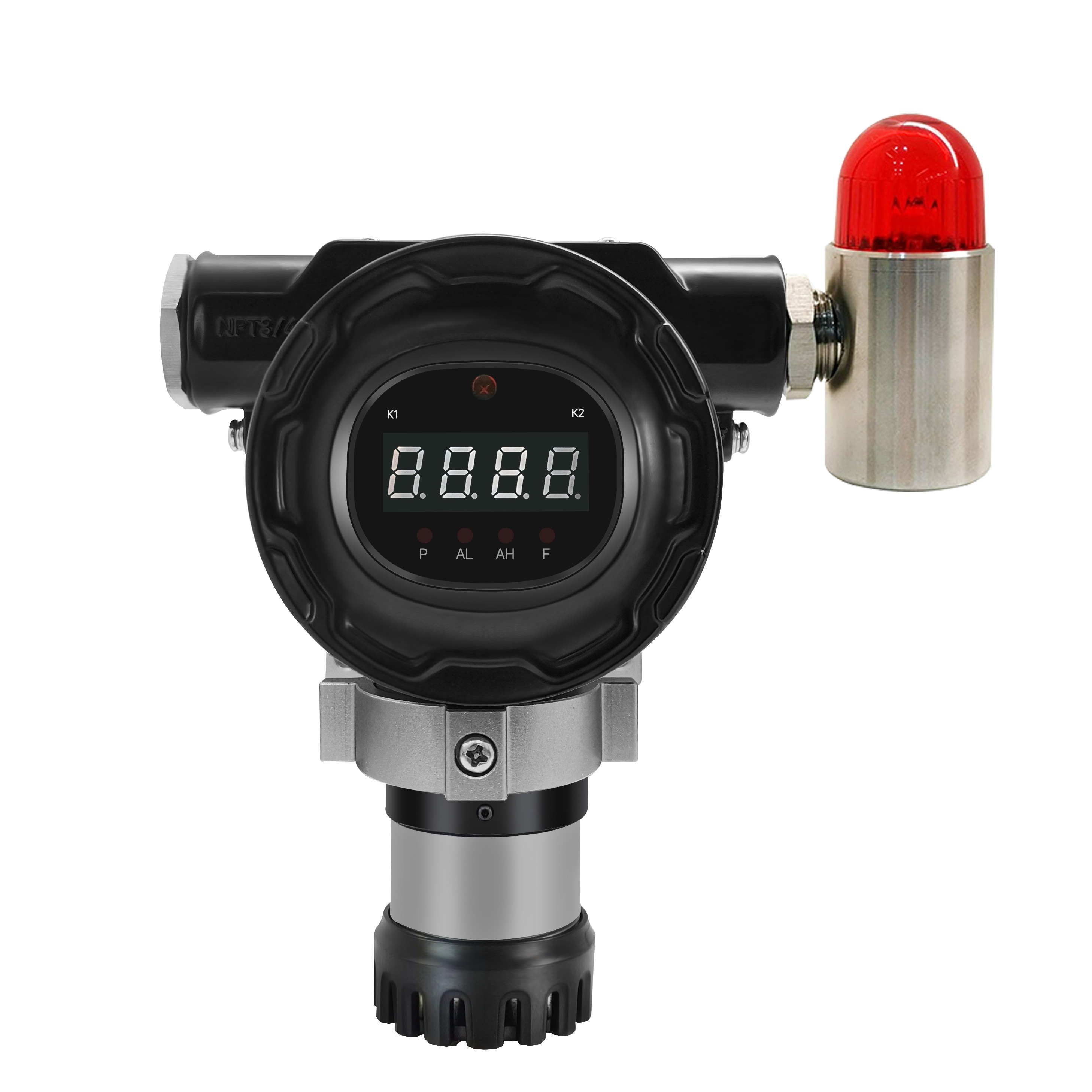

Name: 0-100%LEL Fixed Gas Detector for Flammable Gas Leak with Imported Sensor
Brand: Shenzhen YuanTe Technology Co., Ltd. (Safegas)
SKU: SG100
Price: 310 USD
Availability: InStock

0-100%LEL Fixed Gas Detector for Flammable Gas Leak with Imported Sensor 0

Our advantages

0-100%LEL Fixed Gas Detector for Flammable Gas Leak with Imported Sensor 1

Product description

The SG100 Fixed Gas Detector is at the forefront of gas - detection innovation. Its intelligent plug - and - play sensor module is a game - changer, simplifying maintenance and calibration. The optional wireless data transmission (LORA, 4G) allows for remote monitoring, a feature that's revolutionizing the industry. With IECEx and ATEX certifications, it combines safety with innovation. Its multiple output options and high - level protection (IP66/IP68) make it a trend - setter in the gas - detection market.

0-100%LEL Fixed Gas Detector for Flammable Gas Leak with Imported Sensor 2

Product advantage

IP66/IP68 water & dust resistant
Intelligent plug and play sensor module. the module support calibration by Safegas PC software, making replacement and maintenance easier.
With standard splash guard to protect sensor for
outdoor installation or environment with water splash.

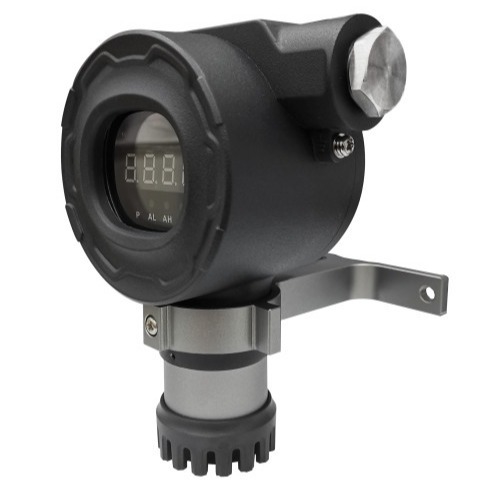

Small and light, weight is only 1 kg,and the detector
comes with standard mounting bracket, easy for installation

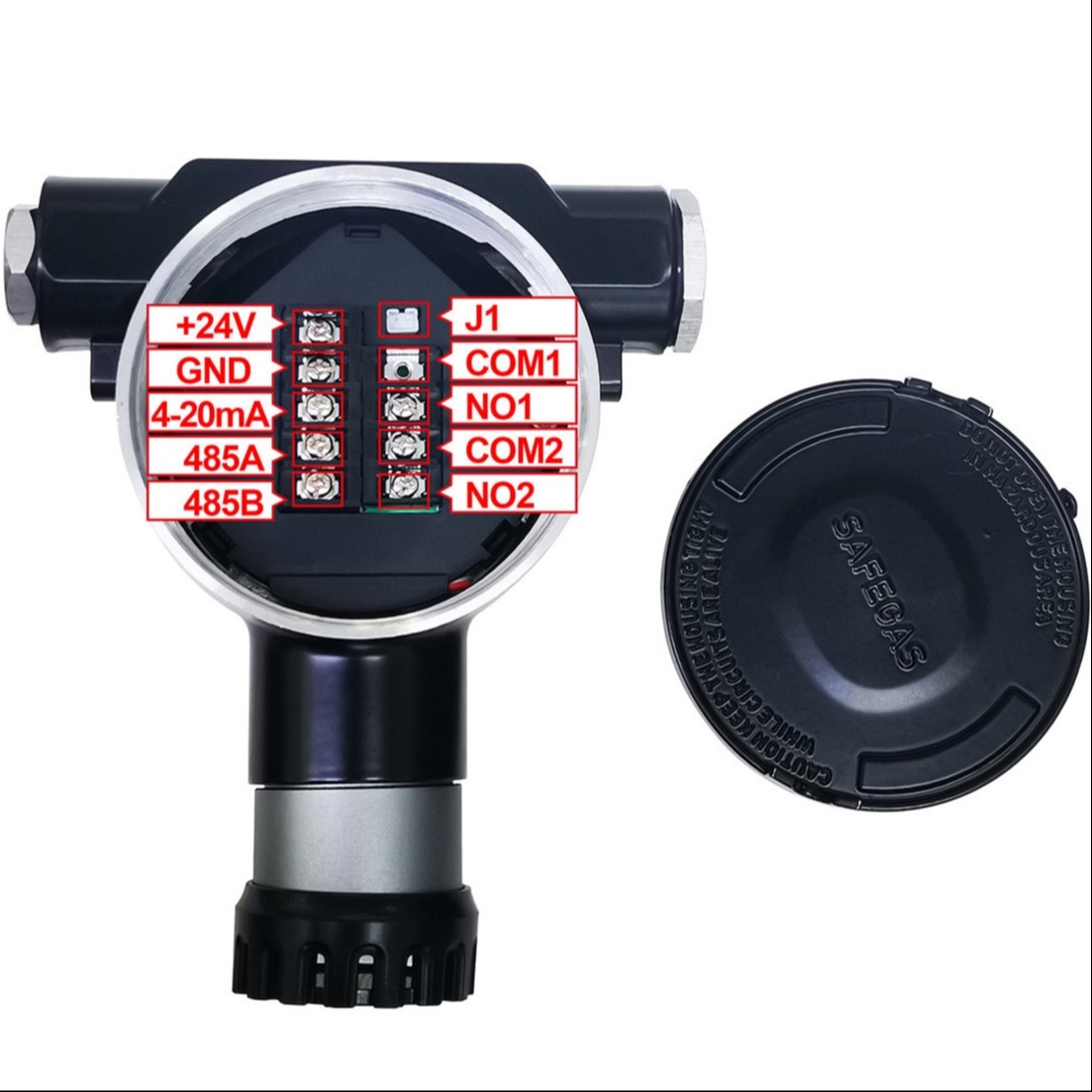

Standard 4-20 mAanalogsignal output andRS485

modbus signal output, optionalHart output, 2 wire output.

Compatible with most of control systems.
The detector comes with 3 relays, including low/high/fault

alarm relay(Optional)

0-100%LEL Fixed Gas Detector for Flammable Gas Leak with Imported Sensor 5

company profile

Shenzhen Yuante Technology Co., Limited came into being in 2010. For the past sixteen years, it has been unwaveringly focused on the design, production, and marketing of high - end gas detection equipment and systems. With gas detectors as its mainstay, the company has developed all - inclusive production lines and industry - specific solutions across various sectors such as Oil, Chemical, and Environmental Protection. After nearly a decade of dynamic expansion, Yuante has firmly established itself as a prominent entity within the industry.

Innovation lies at the heart of Yuante's business model. Guided by the market, driven by innovation, and committed to quality and development, the company has fostered a corporate culture that is both inviting and exacting. This, combined with its standardized management practices, has enabled it to attract top - tier talent, thereby building a high - caliber management and R & D team. Every member of the Yuante family, from R & D to production and customer service, is united in their dedication to the customer - centric approach. Their strong service ethos has been pivotal in winning over customers.

In the realm of gas detectors, precision and prompt response are non - negotiable. Yuante, through continuous innovation and by integrating independent R & D, collaborative efforts, and international technological insights, has developed products that are not only at the forefront domestically but also competitive globally. The company is in a constant state of evolution, always striving to exceed customer expectations.

0-100%LEL Fixed Gas Detector for Flammable Gas Leak with Imported Sensor 10

certifications

FAQ

specification

Gas type	Specified according to application
Sensor type	Specified according to application
Accuracy	≤±2-5%FS (Depending on the specific sensor)
Measure Range	Specified according to application
Resolution	Specified according to application
Display:	LED display
Explosion-proof grade	IECEX:Ex db IIC T6 Gb,Ex db ia IIC T6 Gb ； ATEX:Ex db IIC T6 Gb,Ex db ia IIC T6 Gb
Protection grade	IP66/68
Power dissipation	Toxic gas<2.5W,flammable gas<4W
Communication mode	4-20mA(3-wires),RS485 1～5V,Hart(Optional)
Working voltage	12-24VDC
Size	157.8x128.8x69.6mm
Weight	LORA, 4G(Optional)
Wireless	≤±1%

Tag:

Place of Origin:	China
Brand Name:	safegas
Certification:	ATEX/IECEX
Model Number:	SG100

Minimum Order Quantity:	1 piece
Price:	310USD
Delivery Time:	3-5days
Payment Terms:	T/T
Supply Ability:	8000 pcs per month
