Detail Information

Product Name:	Fixed Gas Detector	Measure Range:	Specified According To Application
Gas:	O2	Sensor Type:	Specified According To Application
Language:	Chinese/English	Alarm Type:	Light+Sound+Vibration
Detection Principle:	Electrochemical, NDIR, Catalytic, PID, Etc	Weight:	1KG
Size:	157.8x128.8x69.6mm	Power Dissipation:	Toxic Gas<2.5W,flammable Gas<4W
Communication Mode:	4-20mA(3-wires),RS485 1~5V,Hart(Optional)
Highlight:	Industrial Grade Fixed Oxygen Gas Detector , Gas Pipelines Fixed Oxygen Gas Detector

Product Description

Product video

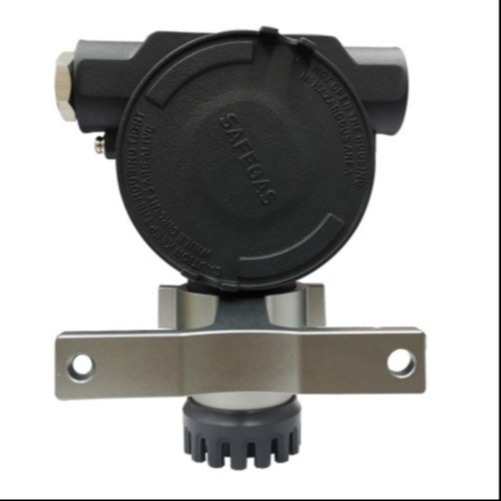

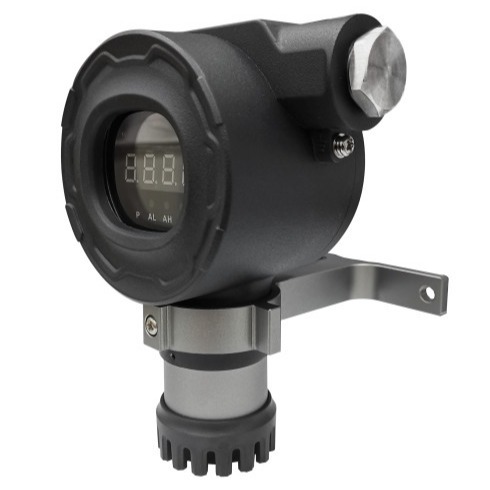

Name: Industrial Grade Fixed Oxygen Gas Detector for Real-Time Monitoring in Gas Pipelines
Brand: Shenzhen YuanTe Technology Co., Ltd. (Safegas)
SKU: SG100
Price: 299 USD
Availability: InStock

Industrial Grade Fixed Oxygen Gas Detector for Real-Time Monitoring in Gas Pipelines 0

Our advantages

Industrial Grade Fixed Oxygen Gas Detector for Real-Time Monitoring in Gas Pipelines 1

Product description

The SG100 fixed gas detector is a high - performance device designed for continuous gas monitoring. It can detect toxic gases, oxygen, flammable gases, and VOC gases with great accuracy. Thanks to its IECEx and ATEX certifications, it has an intrinsically safe explosion - proof grade, making it suitable for use in potentially explosive environments. The detector offers 4 - 20mA analog, RS485 modbus, and optional HART outputs, ensuring seamless integration with various control systems. Its IP66/IP68 protection grade makes it resistant to water and dust, and the intelligent plug - and - play sensor module simplifies maintenance. Weighing only 1 kg and equipped with a standard mounting bracket, it is easy to install.

Industrial Grade Fixed Oxygen Gas Detector for Real-Time Monitoring in Gas Pipelines 2

Product advantage

IP66/IP68 water & dust resistant
Intelligent plug and play sensor module. the module support calibration by Safegas PC software, making replacement and maintenance easier.
With standard splash guard to protect sensor for
outdoor installation or environment with water splash.
Small and light, weight is only 1 kg,and the detector
comes with standard mounting bracket, easy for installation

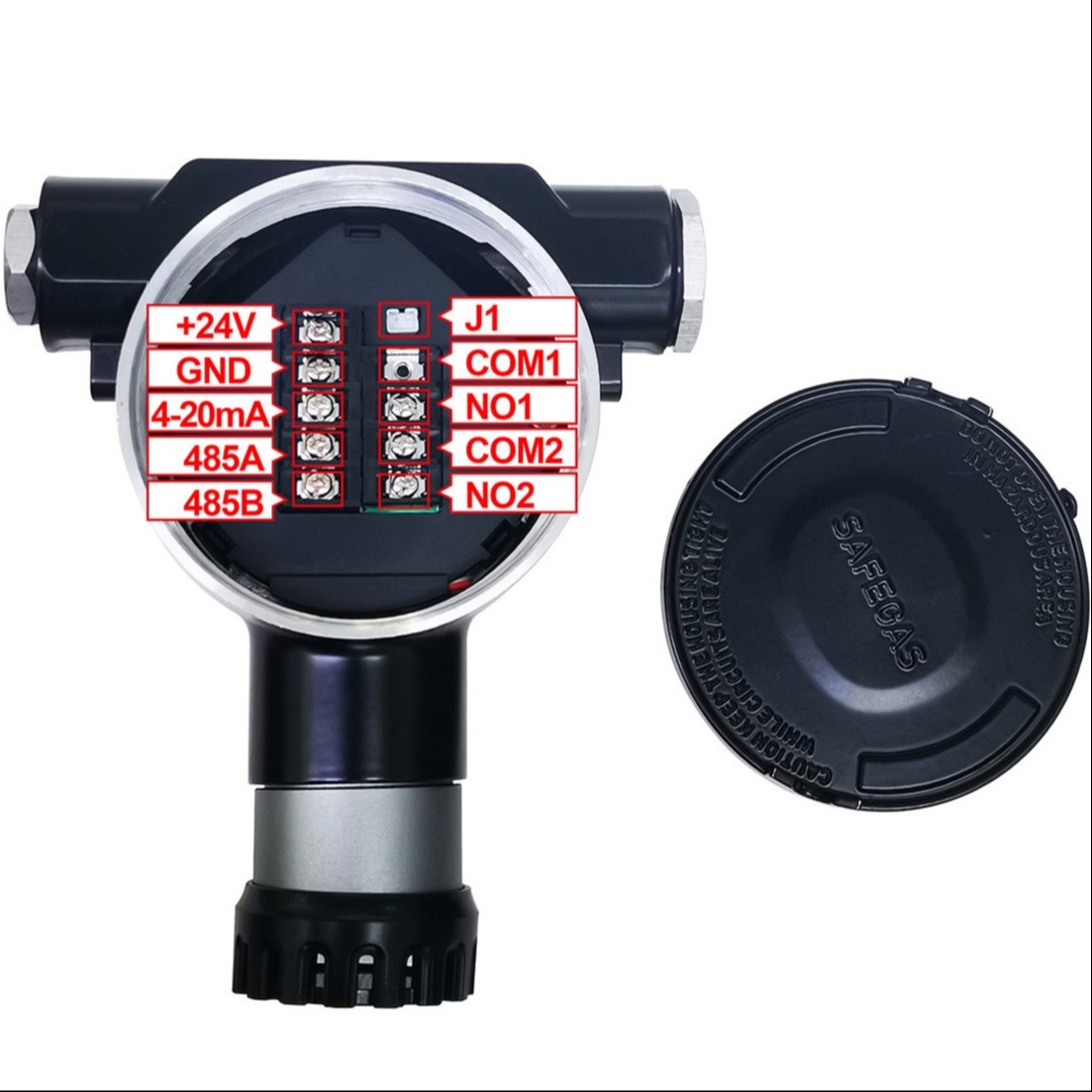

Standard 4-20 mAanalogsignal output andRS485

modbus signal output, optionalHart output, 2 wire output.

Compatible with most of control systems.

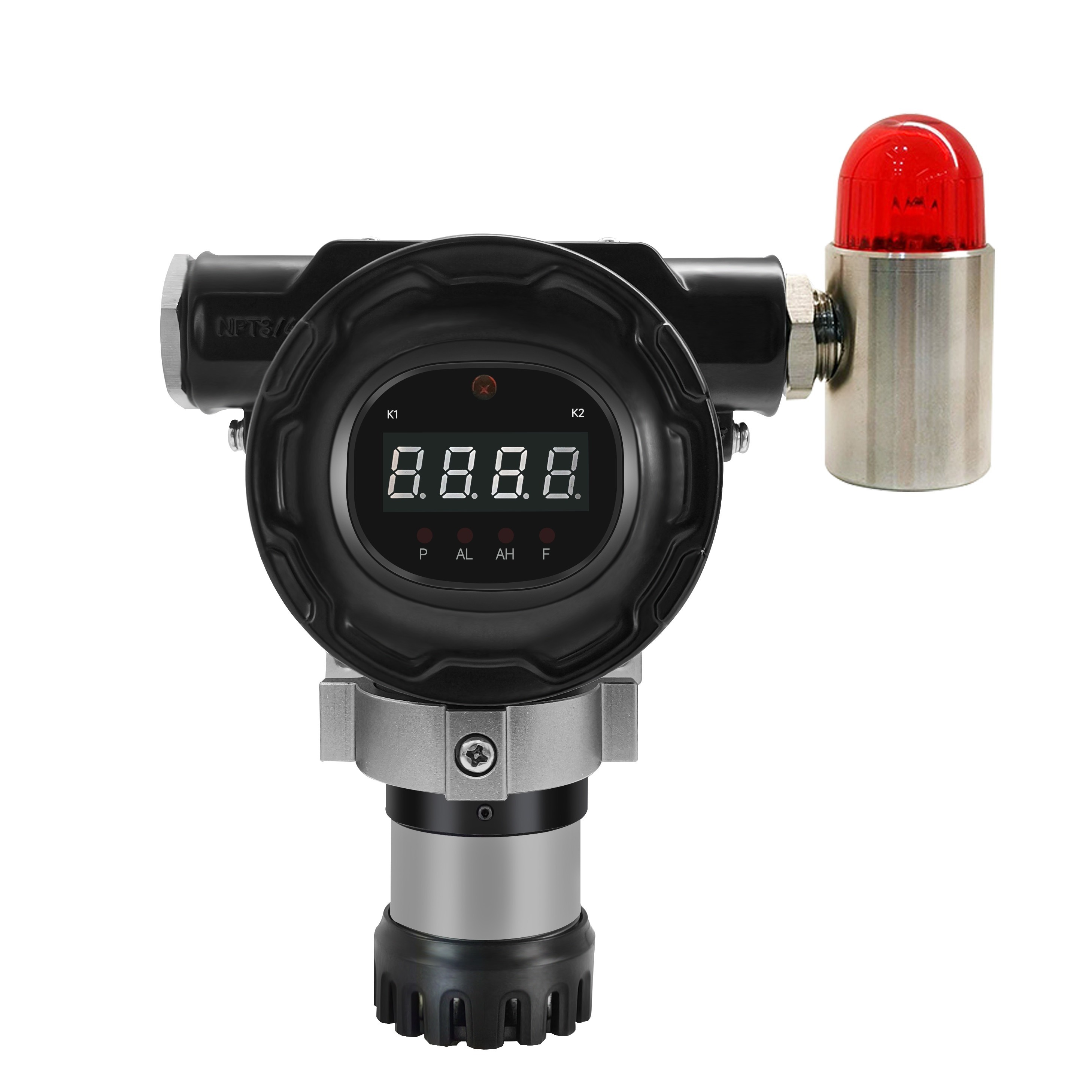

The detector comes with 3 relays, including low/high/fault

alarm relay(Optional)

Industrial Grade Fixed Oxygen Gas Detector for Real-Time Monitoring in Gas Pipelines 5

company profile

Since 2010, Shenzhen Yuante Technology Co., Ltd. has been growingsteadily in the gas detection field. Starting small, it has expanded itsproduct lines and market share. Through continuous R & D, Yuantehas developed high - performance gas detectors. These products arewidely used in various industries, like oil, chemical, and environmentalprotection. Today, Yuante is a prominent company, making importantcontributions to the global gas detection industry.

Industrial Grade Fixed Oxygen Gas Detector for Real-Time Monitoring in Gas Pipelines 10

certifications

FAQ

specification

Gas type	Specified according to application
Sensor type	Specified according to application
Accuracy	≤±2-5%FS (Depending on the specific sensor)
Measure Range	Specified according to application
Resolution	Specified according to application
Display:	LED display
Explosion-proof grade	IECEX:Ex db IIC T6 Gb,Ex db ia IIC T6 Gb ； ATEX:Ex db IIC T6 Gb,Ex db ia IIC T6 Gb
Protection grade	IP66/68
Power dissipation	Toxic gas<2.5W,flammable gas<4W
Communication mode	4-20mA(3-wires),RS485 1～5V,Hart(Optional)
Working voltage	12-24VDC
Size	157.8x128.8x69.6mm
Weight	LORA, 4G(Optional)
Wireless	≤±1%

Tag:

Place of Origin:	China
Brand Name:	safegas
Certification:	ATEX/IECEX
Model Number:	SG100

Minimum Order Quantity:	1 piece
Price:	299USD
Delivery Time:	3-5days
Payment Terms:	T/T
Supply Ability:	8000 pcs per month
