High Precision Ammonia Leakage Detector with Clear Display for 24-Hour Real-Time Monitoring

High Precision Ammonia Leakage Detector with Clear Display for 24-Hour Real-Time Monitoring
High Precision Ammonia Leakage Detector with Clear Display for 24-Hour Real-Time Monitoring
High Precision Ammonia Leakage Detector with Clear Display for 24-Hour Real-Time Monitoring High Precision Ammonia Leakage Detector with Clear Display for 24-Hour Real-Time Monitoring High Precision Ammonia Leakage Detector with Clear Display for 24-Hour Real-Time Monitoring High Precision Ammonia Leakage Detector with Clear Display for 24-Hour Real-Time Monitoring
Basic Information
Place of Origin: China
Brand Name: safegas
Certification: ATEX/IECEX
Model Number: SG100
Minimum Order Quantity: 1 piece
Price: 420USD
Delivery Time: 3-5days
Payment Terms: T/T
Supply Ability: 8000 pcs per month
Get Best Price Contact Now
Detail Information
Product Name: Fixed Gas Detector Measure Range: Specified According To Application
Gas: NH3 Sensor Type: Specified According To Application
Language: Chinese/English Alarm Type: Light+Sound+Vibration
Detection Principle: Electrochemical, NDIR, Catalytic, PID, Etc Weight: 1KG
Size: 157.8x128.8x69.6mm Power Dissipation: Toxic Gas<2.5W,flammable Gas<4W
Communication Mode: 4-20mA(3-wires),RS485 1~5V,Hart(Optional)
Highlight:

Clear Display Ammonia Leakage Detector

,

High Precision Ammonia Leakage Detector

,

24-Hour Real-Time Ammonia Leakage Detector

Product Description

Product video



High Precision Ammonia Leakage Detector with Clear Display for 24-Hour Real-Time Monitoring 0




Our advantages

High Precision Ammonia Leakage Detector with Clear Display for 24-Hour Real-Time Monitoring 1

Product description

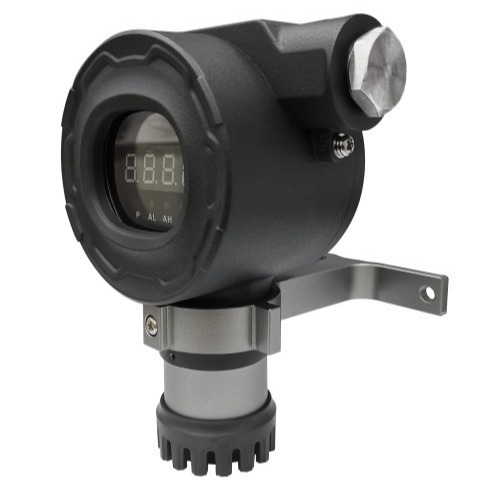

The SG100 fixed gas detector is a high - quality product for gas detection. It can detect a wide range of gases with excellent precision. Certified by IECEx and ATEX, it has a high - level explosion - proof grade, ensuring safety in potentially explosive atmospheres. The detector offers 4 - 20mA, RS485, and optional HART outputs for compatibility with different control systems. Its IP66/IP68 protection grade makes it resistant to water and dust. The intelligent sensor module simplifies maintenance, and the standard mounting bracket and 1 - kg weight make installation easy.

High Precision Ammonia Leakage Detector with Clear Display for 24-Hour Real-Time Monitoring 2
High Precision Ammonia Leakage Detector with Clear Display for 24-Hour Real-Time Monitoring 3High Precision Ammonia Leakage Detector with Clear Display for 24-Hour Real-Time Monitoring 4


Product advantage
  • IP66/IP68 water & dust resistant

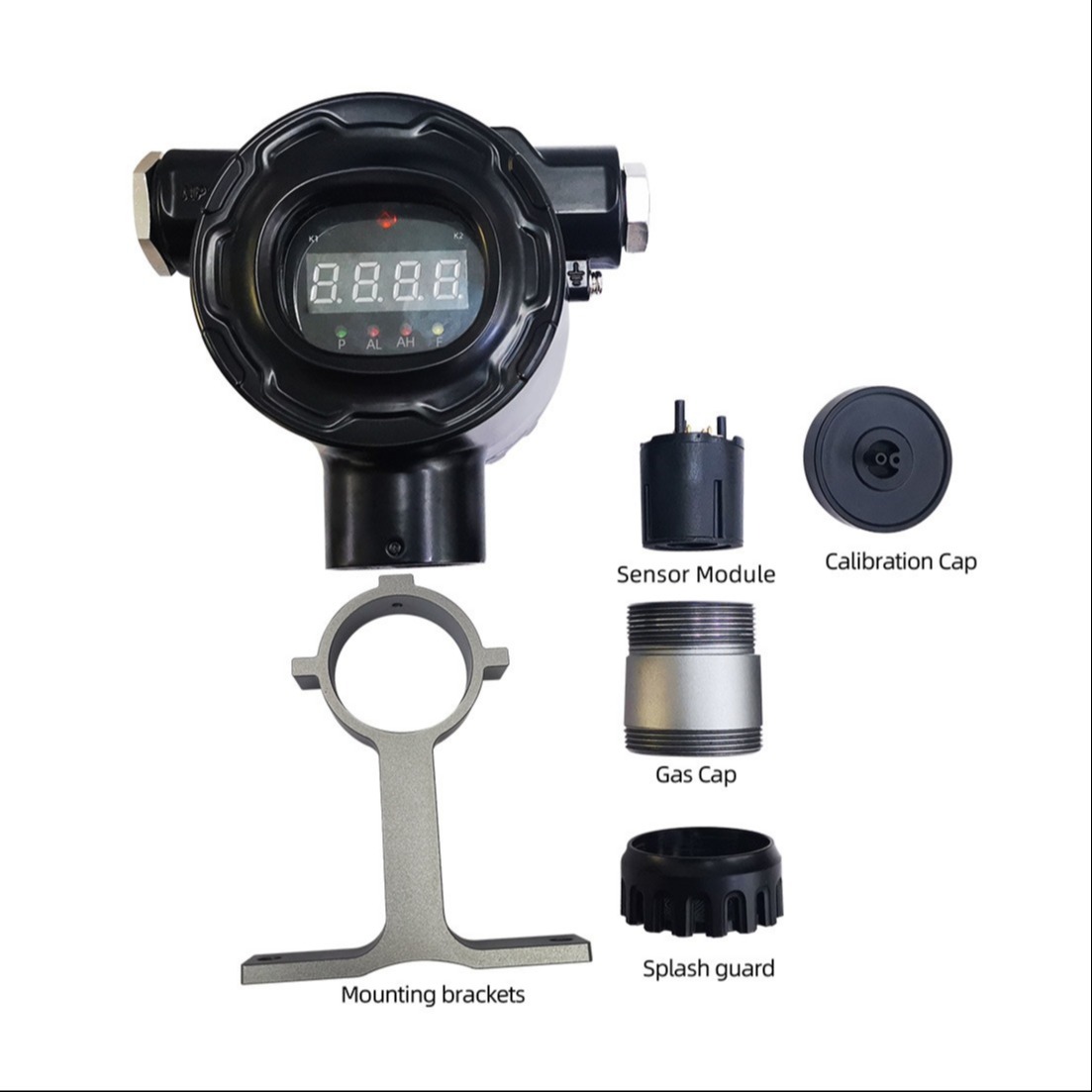

  • Intelligent plug and play sensor module. the module support calibration by Safegas PC software, making replacement and maintenance easier.
  • With standard splash guard to protect sensor for
  • outdoor installation or environment with water splash.
  • Small and light, weight is only 1 kg,and the detector
  • comes with standard mounting bracket, easy for installation

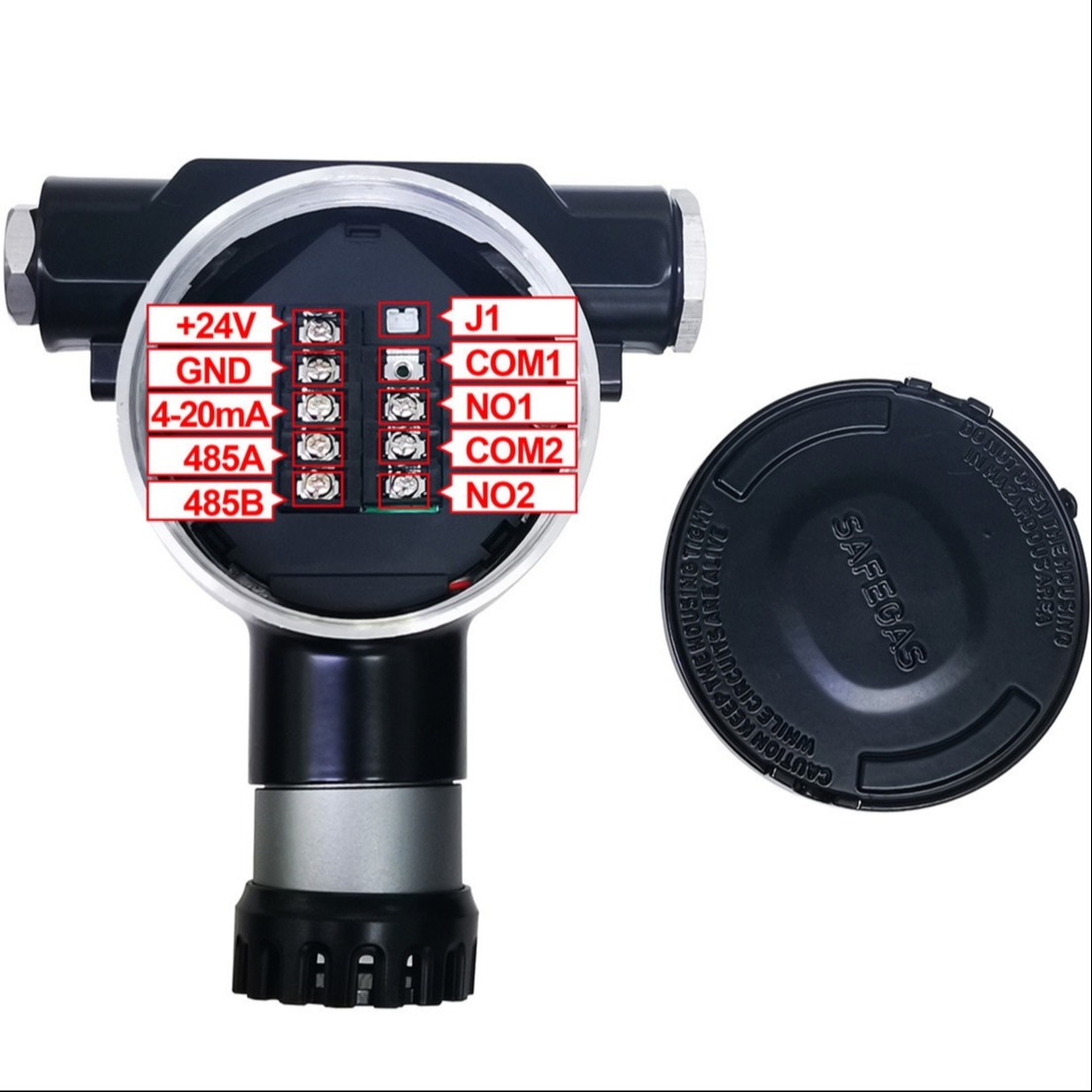

  • Standard 4-20 mAanalogsignal output andRS485
    modbus signal output, optionalHart output, 2 wire output.
    Compatible with most of control systems.
  • The detector comes with 3 relays, including low/high/fault
    alarm relay(Optional)


High Precision Ammonia Leakage Detector with Clear Display for 24-Hour Real-Time Monitoring 5High Precision Ammonia Leakage Detector with Clear Display for 24-Hour Real-Time Monitoring 6High Precision Ammonia Leakage Detector with Clear Display for 24-Hour Real-Time Monitoring 7High Precision Ammonia Leakage Detector with Clear Display for 24-Hour Real-Time Monitoring 8High Precision Ammonia Leakage Detector with Clear Display for 24-Hour Real-Time Monitoring 9


company profile

Shenzhen Yuante Technology Co., Ltd., founded in 2010, is a key player in the gas detection industry. Specializing in high - end gas detection equipment and systems, it offers a wide range of gas detectors. The company focuses on innovation, integrating independent R & D and global technologies. This enables it to create products with high accuracy and reliability, which are well - received both at home and abroad. Yuante's dedication to quality and continuous improvement ensures its leading position in the market.


High Precision Ammonia Leakage Detector with Clear Display for 24-Hour Real-Time Monitoring 10High Precision Ammonia Leakage Detector with Clear Display for 24-Hour Real-Time Monitoring 11High Precision Ammonia Leakage Detector with Clear Display for 24-Hour Real-Time Monitoring 12High Precision Ammonia Leakage Detector with Clear Display for 24-Hour Real-Time Monitoring 13High Precision Ammonia Leakage Detector with Clear Display for 24-Hour Real-Time Monitoring 14High Precision Ammonia Leakage Detector with Clear Display for 24-Hour Real-Time Monitoring 15High Precision Ammonia Leakage Detector with Clear Display for 24-Hour Real-Time Monitoring 16

certifications

High Precision Ammonia Leakage Detector with Clear Display for 24-Hour Real-Time Monitoring 17

FAQ

High Precision Ammonia Leakage Detector with Clear Display for 24-Hour Real-Time Monitoring 18High Precision Ammonia Leakage Detector with Clear Display for 24-Hour Real-Time Monitoring 19

specification

Gas typeSpecified according to application
Sensor typeSpecified according to application
Accuracy≤±2-5%FS (Depending on the specific sensor)
Measure RangeSpecified according to application
ResolutionSpecified according to application
Display:
LED display
Explosion-proof
grade		IECEX:Ex db IIC T6 Gb,Ex db ia IIC T6 Gb ；
ATEX:Ex db IIC T6 Gb,Ex db ia IIC T6 Gb
Protection grade
IP66/68
Power dissipation
Toxic gas<2.5W,flammable gas<4W
Communication
mode
4-20mA(3-wires),RS485 1～5V,Hart(Optional)
Working voltage12-24VDC
Size157.8x128.8x69.6mm
WeightLORA, 4G(Optional)
Wireless

≤±1%
