SS316 Enclosure Fixed H2S Gas Detector Imported Sensor High Accuracy

Basic Information
Place of Origin: China
Brand Name: SAFEGAS
Certification: ATEX/IECEX/CE/EMC
Model Number: SG100
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Aluminum Suitcase Packing
Delivery Time: 3 work days
Payment Terms: T/T, Western Union
Supply Ability: 100 pieces/day
Detail Information
Gas Detected: H2S Measure Range And Resolution: 0-200ppm
Accuracy: ≤±5%FS Explosion-proof Certification: IECEX, ATEX
Protection Grade: IP66/68 Communication Mode: 4-20mA, RS485, 1~5V, Optional Hart
Wireless(Optional): Support LORA Or 4G Relay: 3 Relays, Low/high/fault Alarm Relay
Working Temperature: –20℃~50℃ Size: 157.8x128.8x69.6mm
Weight: 1.0Kg
Highlight:

Fixed H2S Gas Detector

,

Imported Sensor H2S Gas Detector

,

SS316 Enclosure H2S Gas Detector


Product Description

Product Description

SG100 Fixed Gas Detector

SG100 series is a cost-effectivegas detector for continuous monitoring of toxic gases, oxygen,flammable, VOC gases.It isIECEx, ATEXcertified,with intrinsically safe explosion grade.Havinga2 wire or 3 wire4 to 20 mA analog output, RS485 modbus output, optional HART output,making it to be compatible with mostcontrol systems. With optional wirelessdata transmission,customer is able to review, download the data remotely.Support both magnetic and remote control,flexible for setting.

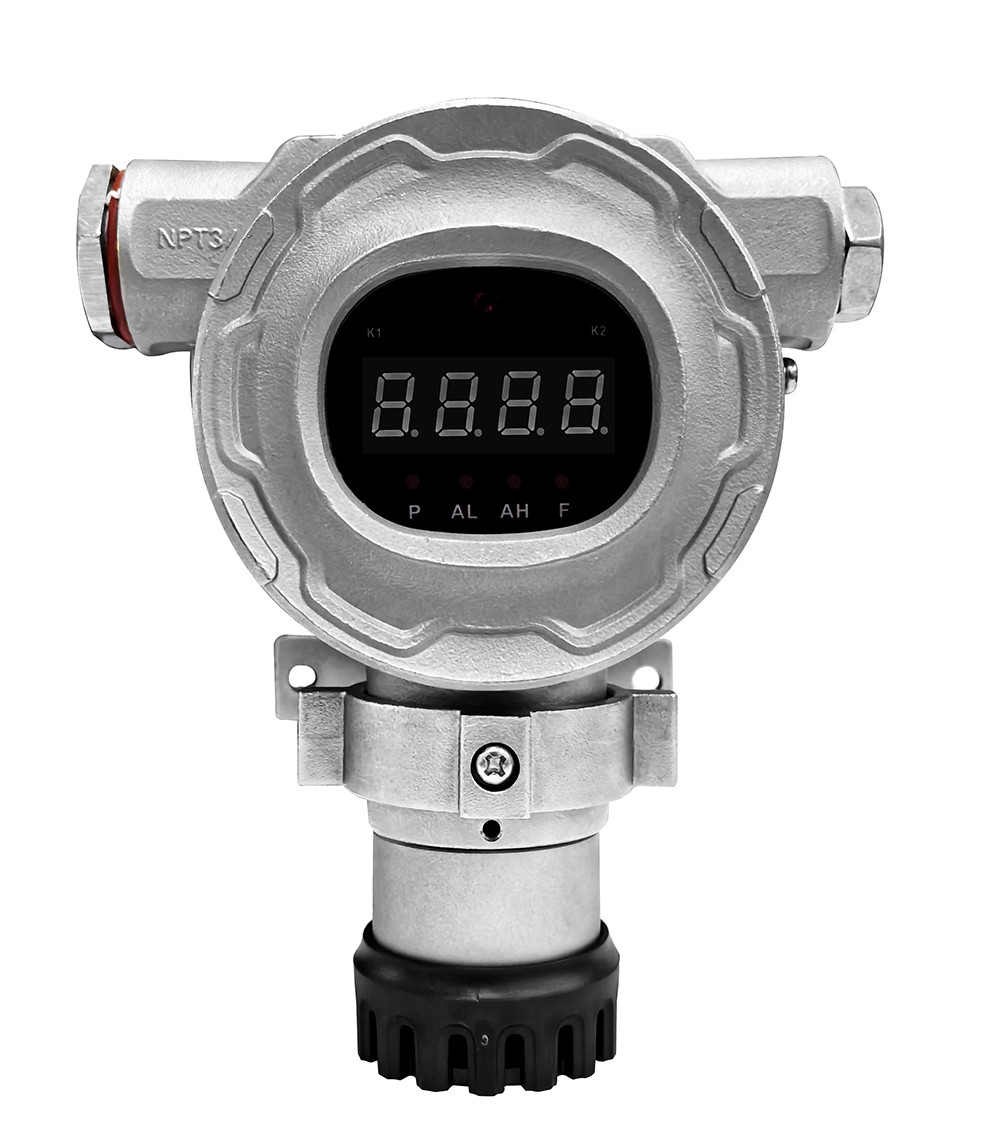

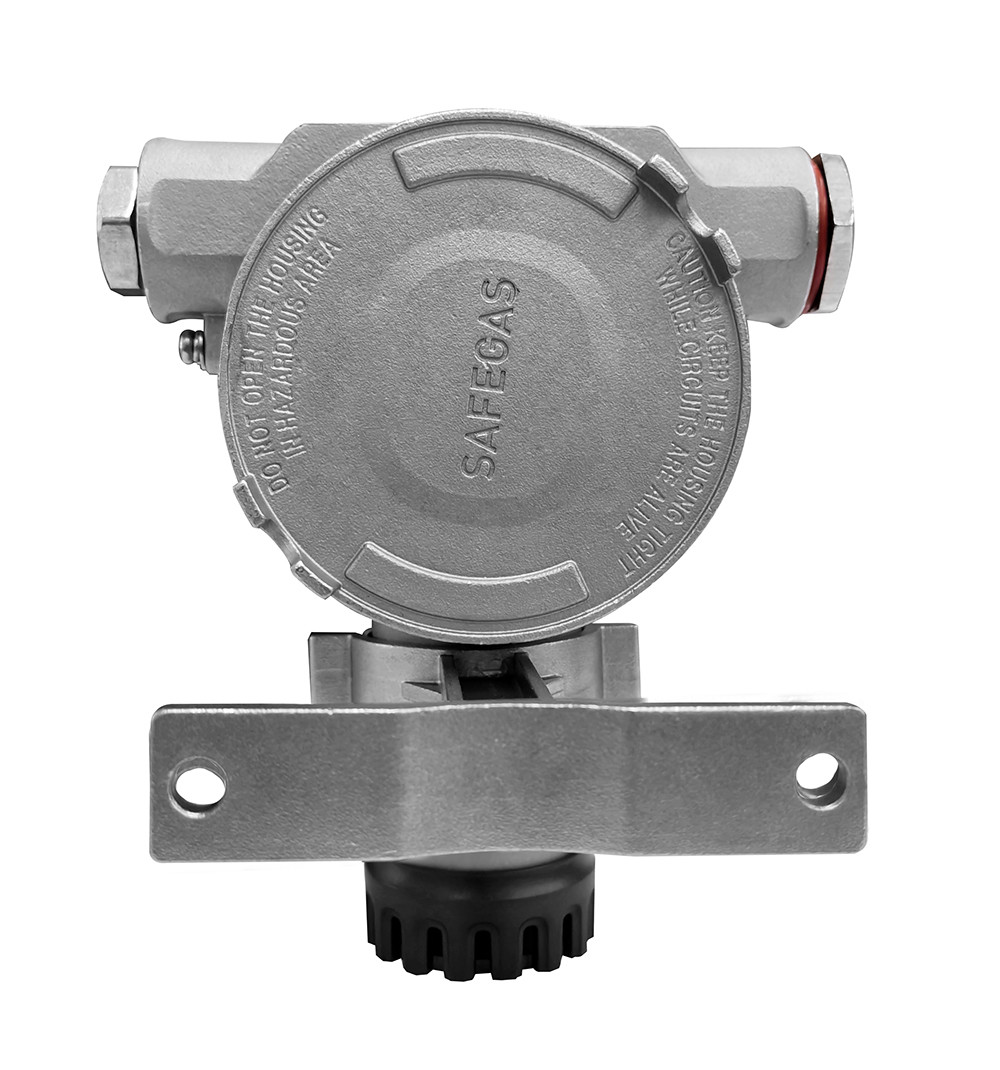

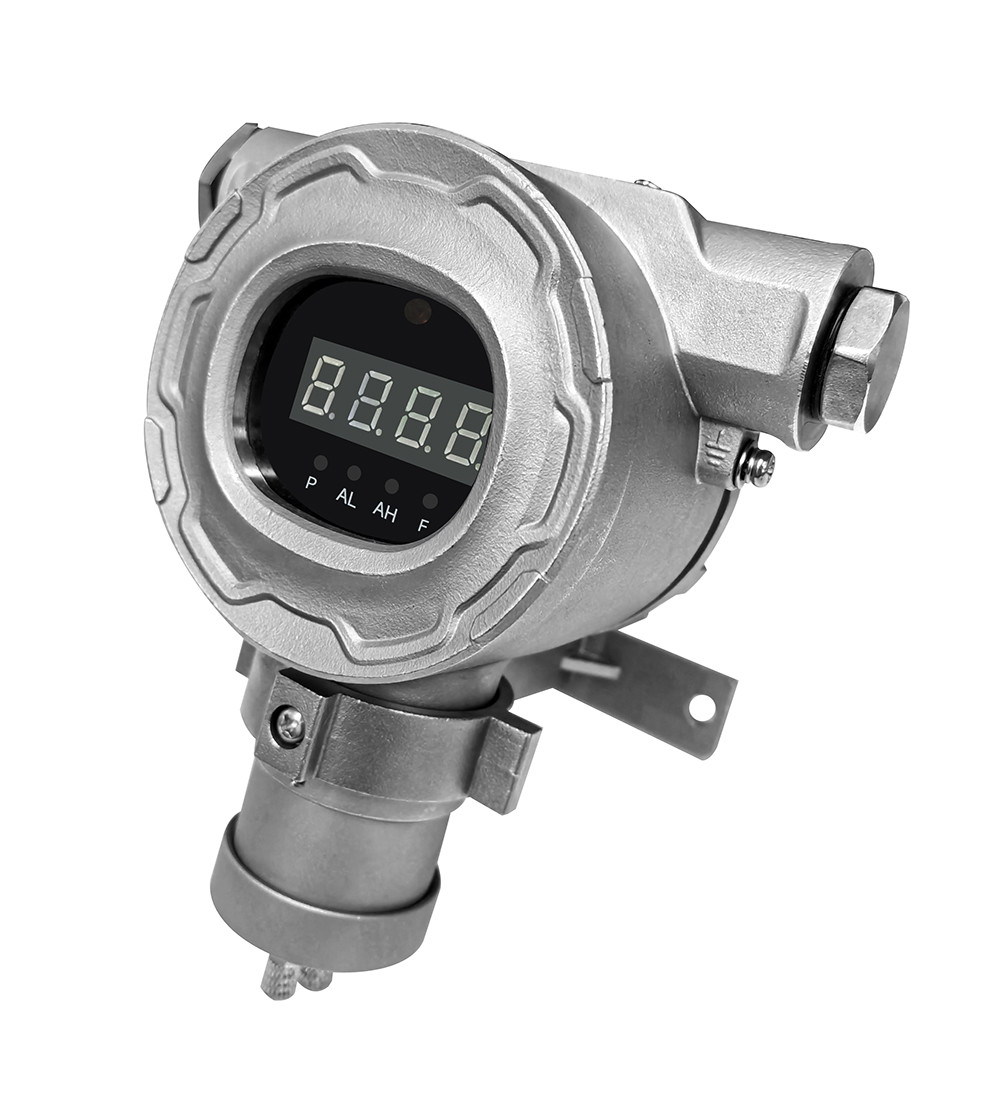

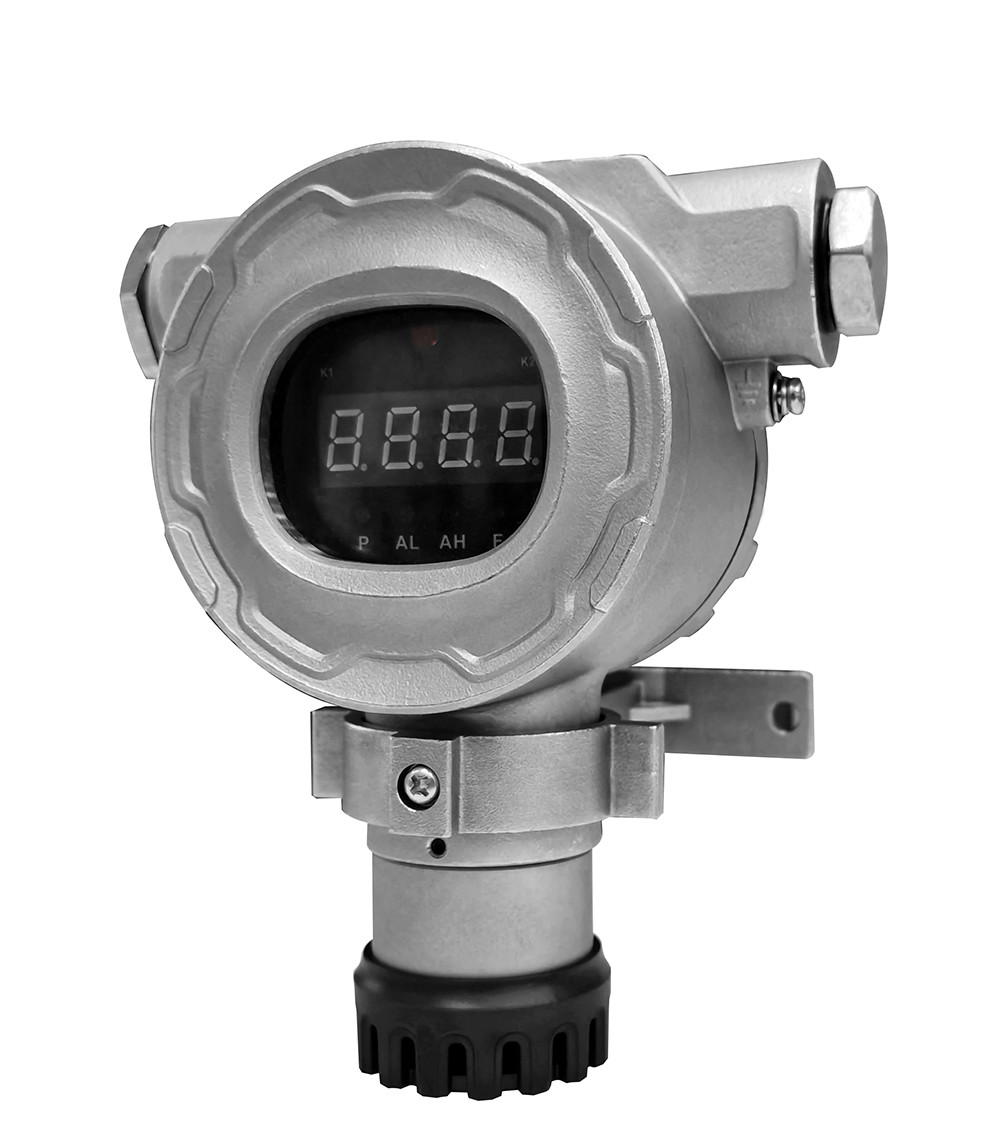

Product Picture









SS316 Enclosure Fixed H2S Gas Detector Imported Sensor High Accuracy 0

SS316 Enclosure Fixed H2S Gas Detector Imported Sensor High Accuracy 1

SS316 Enclosure Fixed H2S Gas Detector Imported Sensor High Accuracy 2

SS316 Enclosure Fixed H2S Gas Detector Imported Sensor High Accuracy 3

SS316 Enclosure Fixed H2S Gas Detector Imported Sensor High Accuracy 4



Product Advantage

  • IP66/IP68 water & dust resistant
  • Intelligentplug and play sensor module.the module supportcalibration by Safegas PC software, making replacement and maintenance easier.
  • With standard splash guard to protect sensor for outdoor installation or environment with water splash.
  • Smalland light,weight is only 1 kg,andthe detector comes with standard mounting bracket,easy for installation.
  • Standard 4-20 mA analog signal output andRS485 modbus signal output,optional Hart output, 2wire output.Compatible with most of control systems.
  • The detector comes with 3relays, including low/high/fault alarm relay(Optional)
  • Support both magnetic andremote control, flexible for setting.



Specifications:



Detected Gas H2S
Measure Range 0-200PPM
Install Method Wall-mounted, piping type, flow-type
Output signal 4-20mA, 1-5V, 2-10V, RS485, RS232, relays (optional)
Precision ≤±1%F.S. (to be specialized)
Zero shift ≤±1%(F.S./year)
Display 4 digits Nixie tube display.
Connection mode G3/4 external thread explosion-proof flexible pipe
Thread Size Standard M20*1.5, 3/4NPT
Temperature –20℃~50℃
Humidity 10-95%RH (non-condensing)
Explosion-Proof Ex db ⅡC T6/ Ex db ia IIC T6 Gb/ Ex da db ia IIC T6 Gb
Degree of protection IP66/IP68
Material Sensor housing: aluminum alloy or 316 stainless steel
Power 12-24V DC
Dimensions 158×129×70mm
Weight ≤1kg
Approval CE, CNEX explosion proof certificate, CMC(China Metrology Certification), IECEx, ATEX
Warranty 12 months



Gas

SG100 model can detect sigle gas, here's some gases we can detect:

SS316 Enclosure Fixed H2S Gas Detector Imported Sensor High Accuracy 5

SS316 Enclosure Fixed H2S Gas Detector Imported Sensor High Accuracy 6

SS316 Enclosure Fixed H2S Gas Detector Imported Sensor High Accuracy 7







Product Application

Chemical Industry

Environmental Monitoring

Healthcare Applications

Automotive Industry

Industrial Safety

Wastewater Treatment

Greenhouse Gas Monitoring

Oil and Gas Exploration

Food and Beverage Production

Mining and Mining Operations


Monitoring hydrogen sulfide leakage in the laboratory of XX University of Malaysia: SG100-A-H2S Application case

Detection requirements: SAFEGAS used to supply portable products to this customer, because of good purchase experience, when they need fixed detector, they contact us directly. They want to measure H2S leakage and the device needs to have a display, need sound and light alarm function. The customer does not want to wire, it is best to receive the goods that can be used directly.

Solution: Gas detector: SG100-A-H2S, SG100 with imported H2S sensor, with sound and light alarm, with power adapter

Solution features:
1. The recommended product meet customer needs.
2. The protection grade of SG100 is IP66/IP68. Equipped with original imported H2S sensor to ensure accurate and stable detection. Set the alarm value for SG100, when the concentration reaches the alarm value, the sound and light alarm will be activated.
3. The weight of SG100 is only 1Kg, and it is equipped with mounting bracket accessories as standard, to make the installation operation simple and convenient. Provide customers with a power adapter, and the equipment can be directly plugged in for use.
SS316 Enclosure Fixed H2S Gas Detector Imported Sensor High Accuracy 8




FAQs



Q1:Are you manufacture or trading company?
A1:We are a professional manufacture specialize in the gas detector for more than 10 years.


Q2:What is the MOQ?
A2:Usually it is 1 piece.


Q3:How about the quality of your products?
A3:Our product is made of imported sensors and components, the products are certified.


Q4:How long is the warranty time of the products?
A4:The warranty period is 1 years from the factory, we also provide lifetime maintenance.
