SS316 Enclosure Fixed LEL Gas Detector IECEx And ATEX Certificated

Basic Information
Place of Origin: China
Brand Name: SAFEGAS
Certification: ATEX/IECEX/CE/EMC
Model Number: SG100
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Aluminum Suitcase Packing
Delivery Time: 3 work days
Payment Terms: T/T, Western Union
Supply Ability: 100 pieces/day
Detail Information
Gas Detected: LEL Measure Range And Resolution: 0-100%LEL
Accuracy: ≤±2-5%FS Explosion-proof Certification: IECEX, ATEX, CE, EMC
Protection Grade: IP66/68 Communication Mode: 4-20mA、RS485 1~5V,Optional Hart
Wireless(Optional): Support LORA Or 4G Relay: 3 Relays, Low/high/fault Alarm Relay
Working Temperature: –20℃~50℃ Size: 157.8x128.8x69.6mm
Weight: 1.0Kg
Highlight:

ATEX Fixed LEL Gas Detector

,

SS316 Fixed LEL Gas Detector

,

IECEx Fixed LEL Gas Detector


Product Description

Product Description
SG100 Fixed Gas Detector
SG100 series is a cost-effectivegas detector for continuous monitoring of toxic gases, oxygen,flammable, VOC gases.It isIECEx, ATEXcertified,with intrinsically safe explosion grade.Havinga2 wire or 3 wire4 to 20 mA analog output, RS485 modbus output, optional HART output,making it to be compatible with mostcontrol systems. With optional wirelessdata transmission,customer is able to review, download the data remotely.Support both magnetic and remote control,flexible for setting.

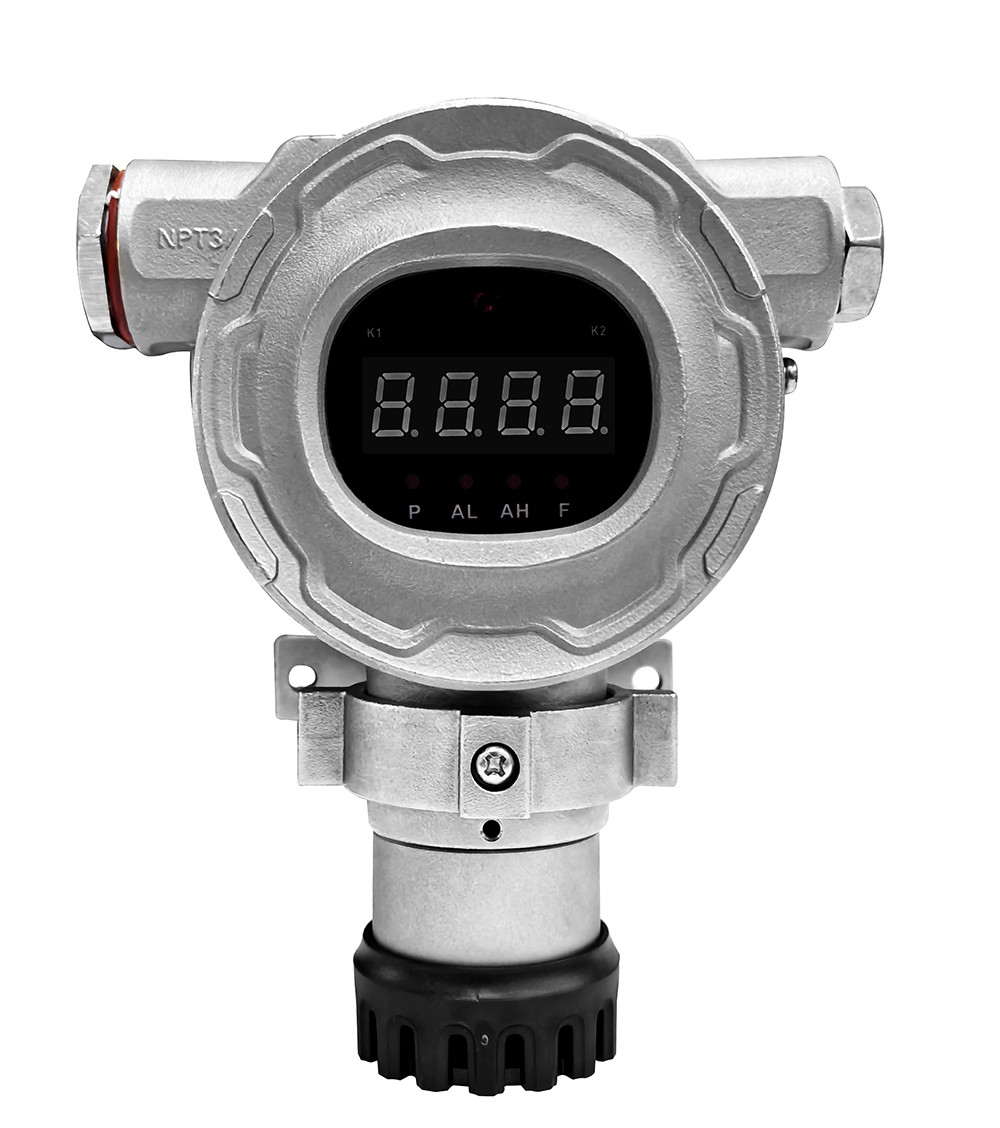

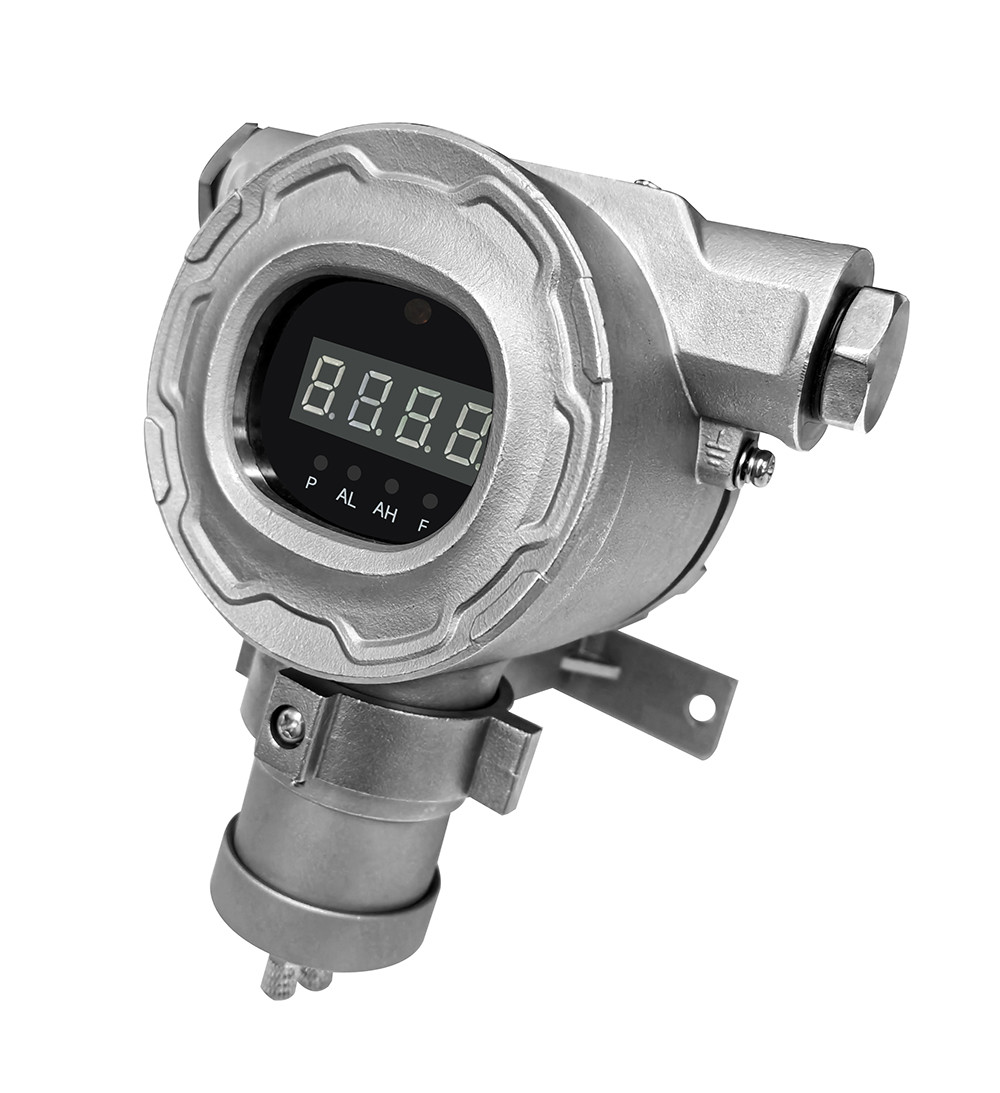

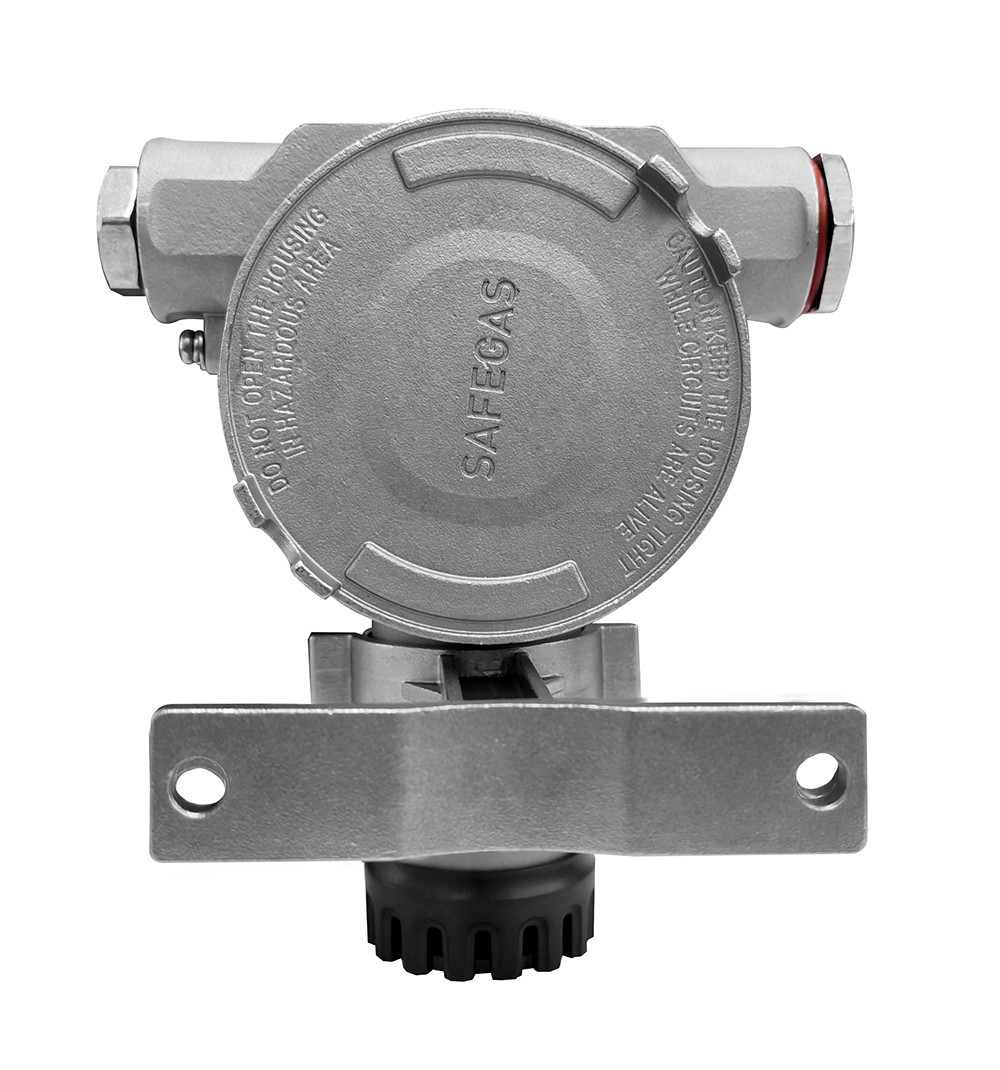

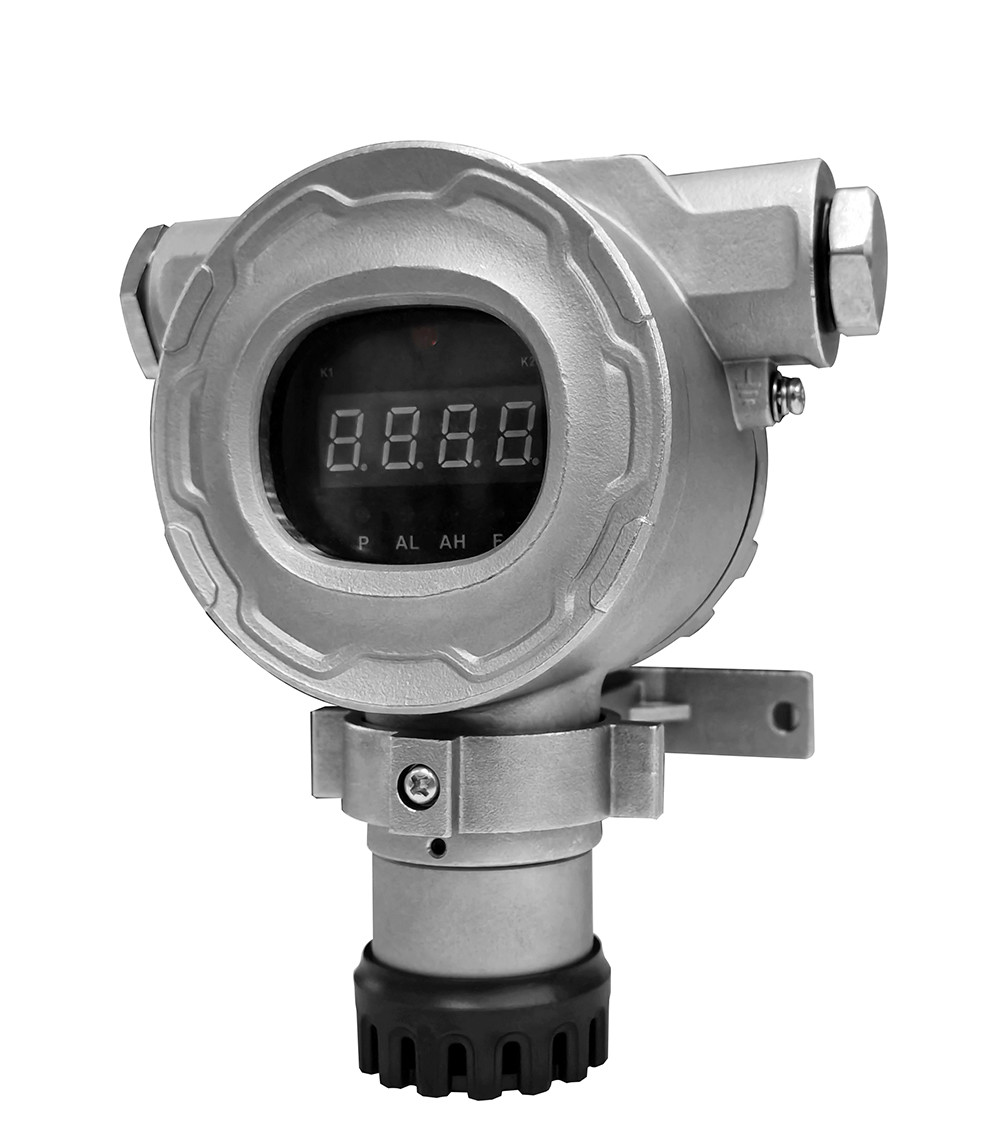

Product Picture









SS316 Enclosure Fixed LEL Gas Detector IECEx And ATEX Certificated 0SS316 Enclosure Fixed LEL Gas Detector IECEx And ATEX Certificated 1SS316 Enclosure Fixed LEL Gas Detector IECEx And ATEX Certificated 2

SS316 Enclosure Fixed LEL Gas Detector IECEx And ATEX Certificated 3

SS316 Enclosure Fixed LEL Gas Detector IECEx And ATEX Certificated 4


Product Advantage

  • IP66/IP68 water & dust resistant
  • Intelligentplug and play sensor module.the module supportcalibration by Safegas PC software, making replacement and maintenance easier.
  • With standard splash guard to protect sensor for outdoor installation or environment with water splash.
  • Smalland light,weight is only 1 kg,andthe detector comes with standard mounting bracket,easy for installation.
  • Standard 4-20 mA analog signal output andRS485 modbus signal output,optional Hart output, 2wire output.Compatible with most of control systems.
  • The detector comes with 3relays, including low/high/fault alarm relay(Optional)
  • Support both magnetic andremote control, flexible for setting.


Specifications:


Detected GasLEL
Measure Range0-100%LEL
Install MethodWall-mounted, piping type, flow-type
Output signal4-20mA, 1-5V, 2-10V, RS485, RS232, relays (optional)
Precision≤±1%F.S. (to be specialized)
Zero shift≤±1%(F.S./year)
Display4 digits Nixie tube display.
Connection modeG3/4 external thread explosion-proof flexible pipe
Thread SizeStandard M20*1.5, 3/4NPT
Temperature–20℃~50℃
Humidity10-95%RH (non-condensing)
Explosion-ProofEx db ⅡC T6/ Ex db ia IIC T6 Gb/ Ex da db ia IIC T6 Gb
Degree of protectionIP66/IP68
MaterialSensor housing: aluminum alloy or 316 stainless steel
Power12-24V DC
Dimensions158×129×70mm
Weight≤1kg
ApprovalCE, CNEX explosion proof certificate, CMC(China Metrology Certification), IECEx, ATEX
Warranty12 months


Gas
SG100 model can detect sigle gas, here's some gases we can detect:
SS316 Enclosure Fixed LEL Gas Detector IECEx And ATEX Certificated 5
SS316 Enclosure Fixed LEL Gas Detector IECEx And ATEX Certificated 6
SS316 Enclosure Fixed LEL Gas Detector IECEx And ATEX Certificated 7
