Specifications:
| Detected Gas |
HF |
| Measure Range |
0-10.000PPM |
| Install Method |
Wall-mounted, piping type, flow-type |
| Output signal |
4-20mA, 1-5V, 2-10V, RS485, RS232, relays (optional) |
| Precision |
≤±1%F.S. (to be specialized) |
| Zero shift |
≤±1%(F.S./year) |
| Display |
4 digits Nixie tube display. |
| Connection mode |
G3/4 external thread explosion-proof flexible pipe |
| Thread Size |
Standard M20*1.5, 3/4NPT |
| Temperature |
–20℃～50℃ |
| Humidity |
10-95%RH (non-condensing) |
| Explosion-Proof |
Ex db ⅡC T6/ Ex db ia IIC T6 Gb/ Ex da db ia IIC T6 Gb |
| Degree of protection |
IP66/IP68 |
| Material |
Sensor housing: aluminum alloy or 316 stainless steel |
| Power |
12-24V DC |
| Dimensions |
158×129×70mm |
| Weight |
≤1kg |
| Approval |
CE, CNEX explosion proof certificate, CMC(China Metrology Certification), IECEx, ATEX |
| Warranty |
12 months
|
Product Description
SG100 Fixed Gas Detector
The SG100 series is a cost-effective gas detector, capable of continuously monitoring toxic gases, oxygen, flammable gases, and VOCs. It's well-suited for industrial applications requiring accurate gas detection for safety and regulatory compliance.
Certified by IECEx and ATEX, the detector has an intrinsically safe explosion grade, ensuring safe operation in hazardous environments like oil refineries and chemical plants.
For connectivity, it offers 2-wire or 3-wire 4 to 20 mA analog output, RS485 Modbus output, and an optional HART output, easily integrating with most control systems. An optional wireless data transmission feature allows remote data review and download, enhancing operational efficiency.
With support for both magnetic and remote control, the SG100 series enables flexible setting adjustments. Magnetic control allows on-site operation without opening the enclosure, while remote control ensures safe configuration from a distance.

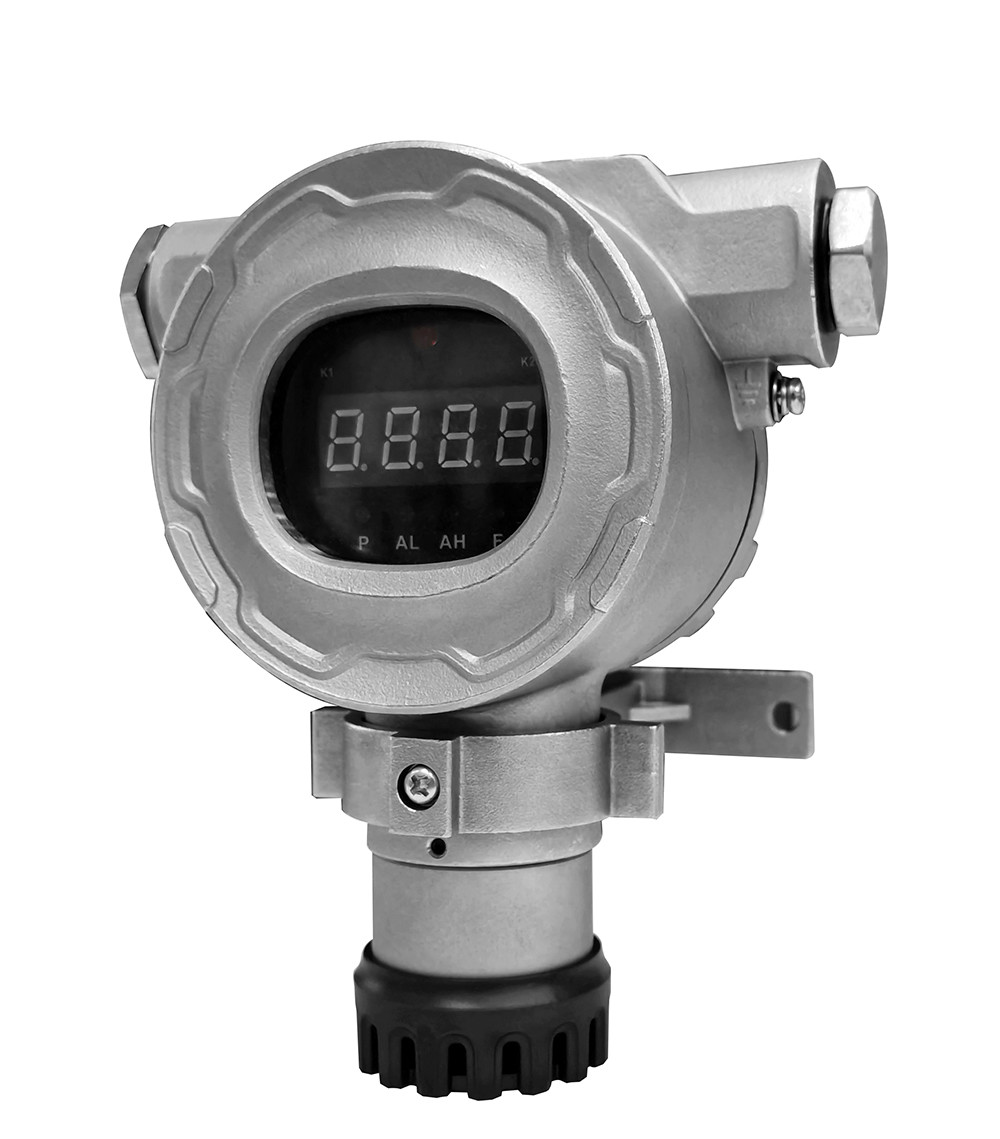

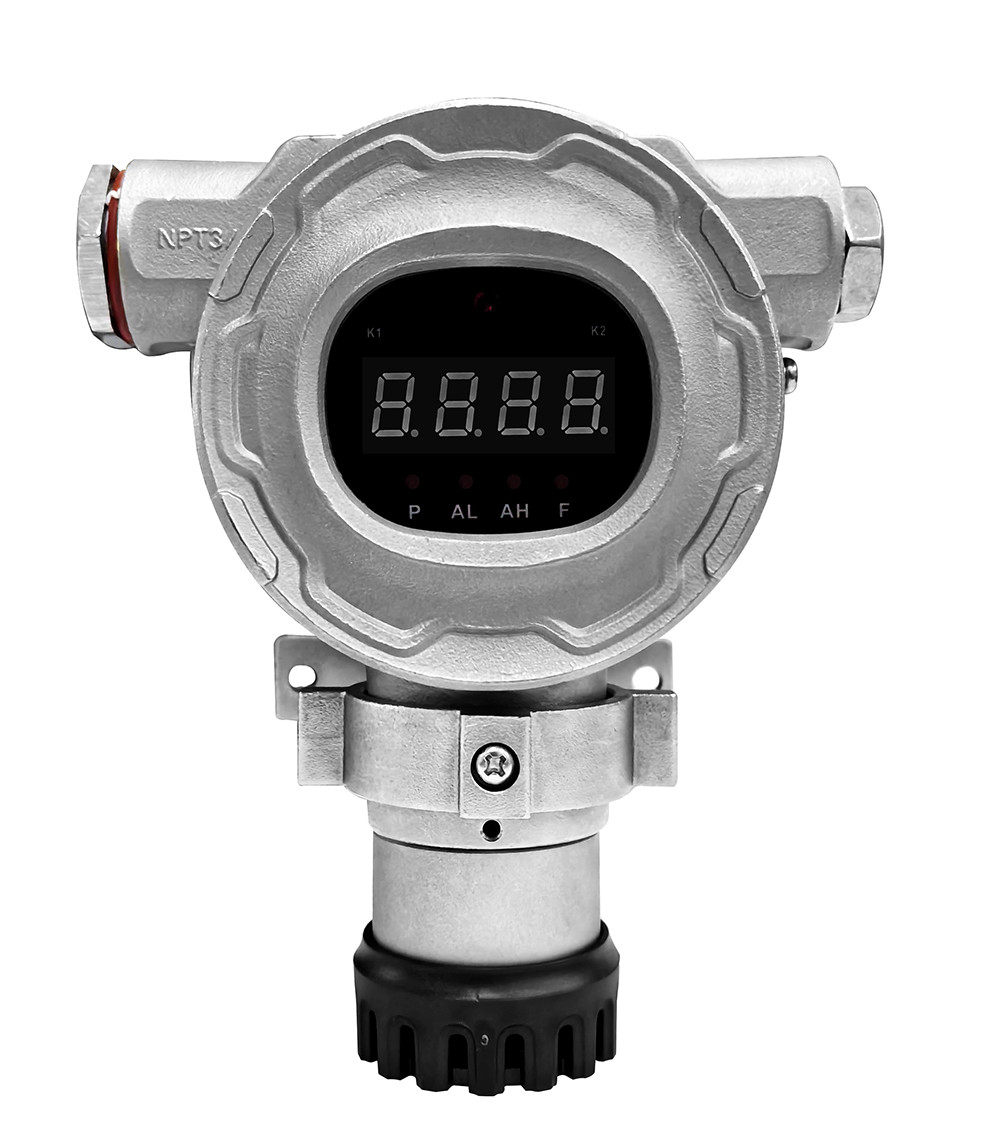

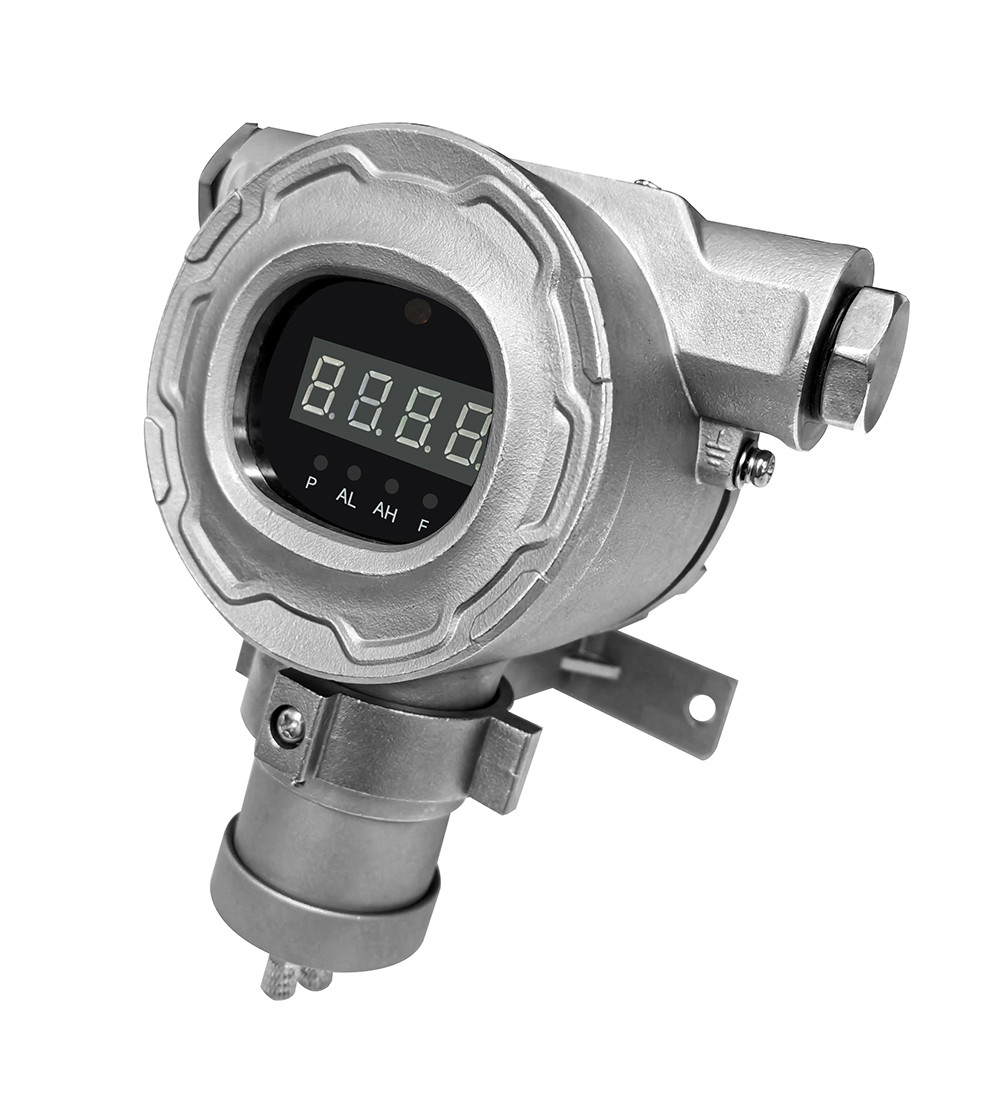

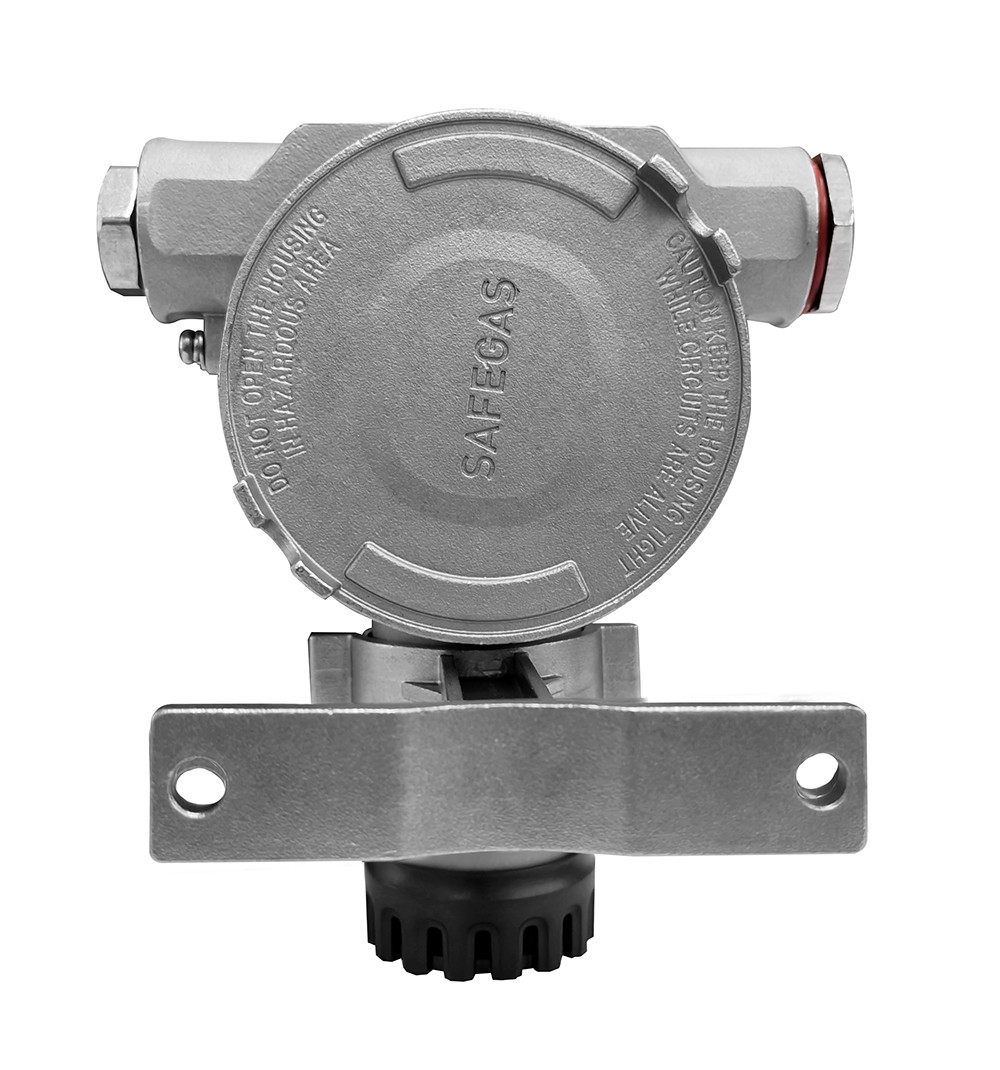

Product Picture
Product Advantage
· This sensor module excels in protection, with IP66/IP68 ratings. IP66 resists powerful water jets, while IP68 allows submersion, and it fully blocks dust, ideal for harsh outdoor and industrial settings.
· It's user-friendly with intelligent plug-and-play, easily integrated without complex setup. Calibration via Safegas PC software simplifies replacement and maintenance for optimal performance.
· A standard splash guard protects it in outdoor or water-splash environments. Weighing only 1 kg and paired with a standard mounting bracket, installation is quick and hassle-free.
· Connectivity is versatile, with standard 4-20 mA analog and RS485 Modbus outputs, plus optional Hart and 2-wire outputs for broad system compatibility.
· It has 3 optional relays for low/high/fault alarms, enabling rapid issue detection. Magnetic and remote control offer flexible parameter adjustment, making it suitable for diverse applications.
Gas
SG100 model can detect sigle gas, here's some gases we can detect:
Why choose us?
1. R&D team experience: over 25 years.
2. Company certification: ISO9001, ISO45001
3. Product certification: IECEx (the only one in China), ATEX, CE
4. Delivery: 5-7 days
5. Yearly capacity: 80,000 units
6. Service: Professional sales staff provide 7*24 hours service
