SS316 Enclosure Fixed NO Gas Detector NO Concentration Diffusion Samping Imoprted Sensor

Basic Information
Place of Origin: China
Brand Name: SAFEGAS
Certification: ATEX/IECEX/CE/EMC
Model Number: SG100
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Aluminum Suitcase Packing
Delivery Time: 3 work days
Payment Terms: T/T, Western Union
Supply Ability: 100 pieces/day
Detail Information
Gas Detected: NO Measure Range And Resolution: 0-100PPM
Accuracy: ≤±2-5%FS Explosion-proof Certification: IECEX, ATEX, CE, EMC
Protection Grade: IP66/68 Communication Mode: 4-20mA、RS485 1~5V,Optional Hart
Wireless(Optional): Support LORA Or 4G Relay: 3 Relays, Low/high/fault Alarm Relay
Working Temperature: From –20℃ To 50℃ Size: 157.8x128.8x69.6mm
Weight: About 1.0Kg
Highlight:

Fixed NO Gas Detector

,

SS316 Enclosure NO Gas Detector


Product Description

Product Description

SG100 Fixed Gas Detector

The SG100 series gas detector offers excellent value, providing continuous monitoring for toxic gases, oxygen, flammable substances, and VOCs. It’s perfectly designed for industrial use, guaranteeing precise gas detection to meet safety and compliance standards.

Boasting IECEx and ATEX certifications, this detector features an intrinsically safe explosion rating. This makes it reliable for operation in high-risk environments such as oil refineries and chemical plants.

In terms of connectivity, it provides 2-wire or 3-wire 4 - 20 mA analog, RS485 Modbus, and optional HART outputs, allowing seamless integration with most control systems. The optional wireless data transmission function enables remote data access, improving overall operational efficiency.

Equipped with both magnetic and remote control options, the SG100 series allows for easy setting adjustments. Magnetic control enables convenient on-site operation, while remote control offers safe configuration from afar.

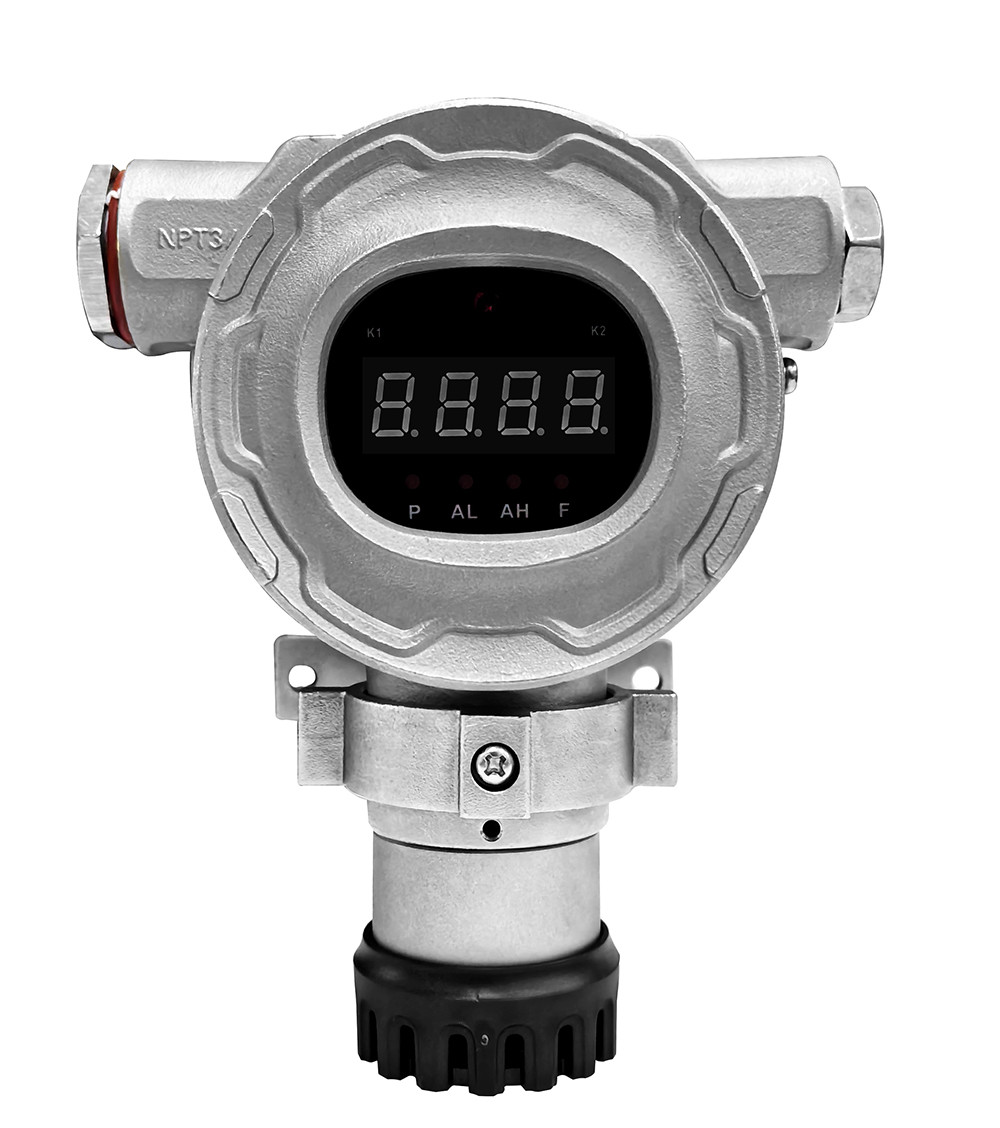

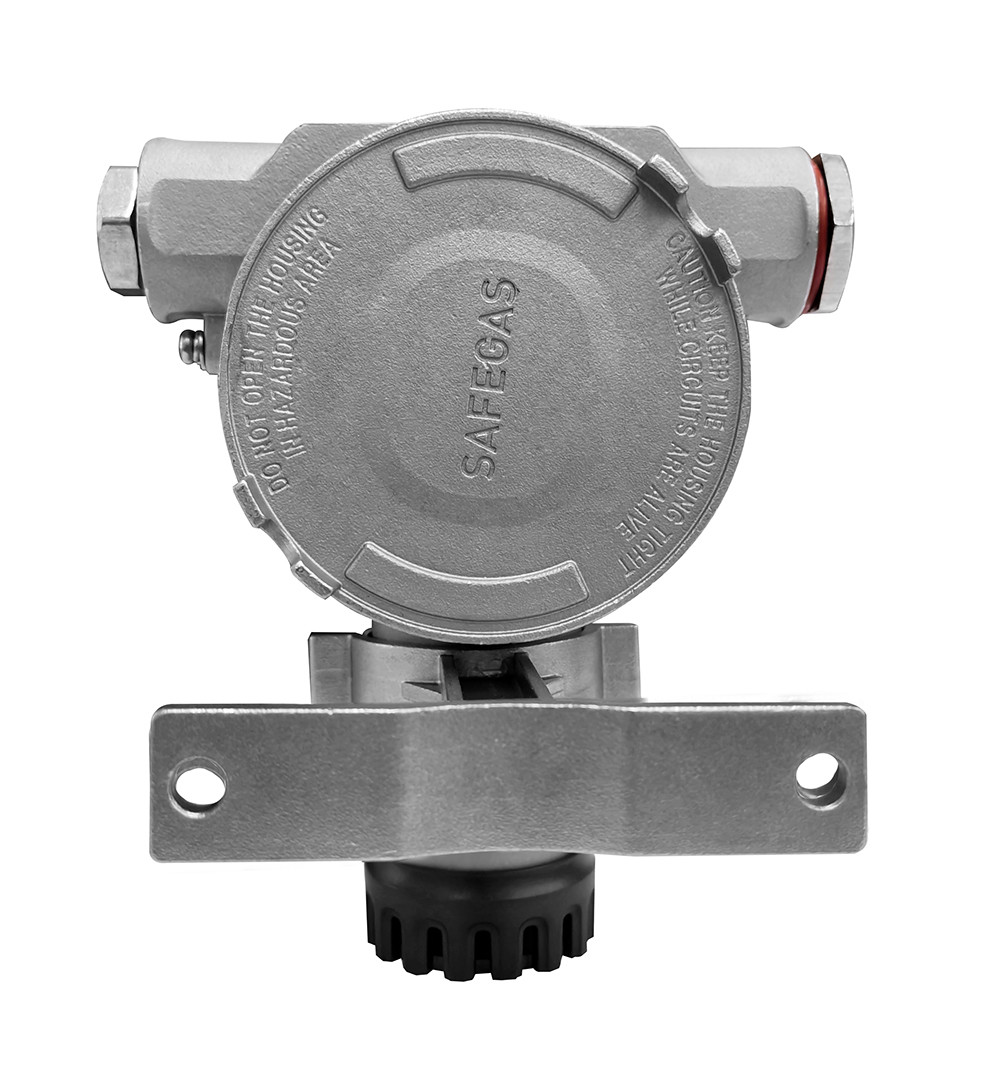

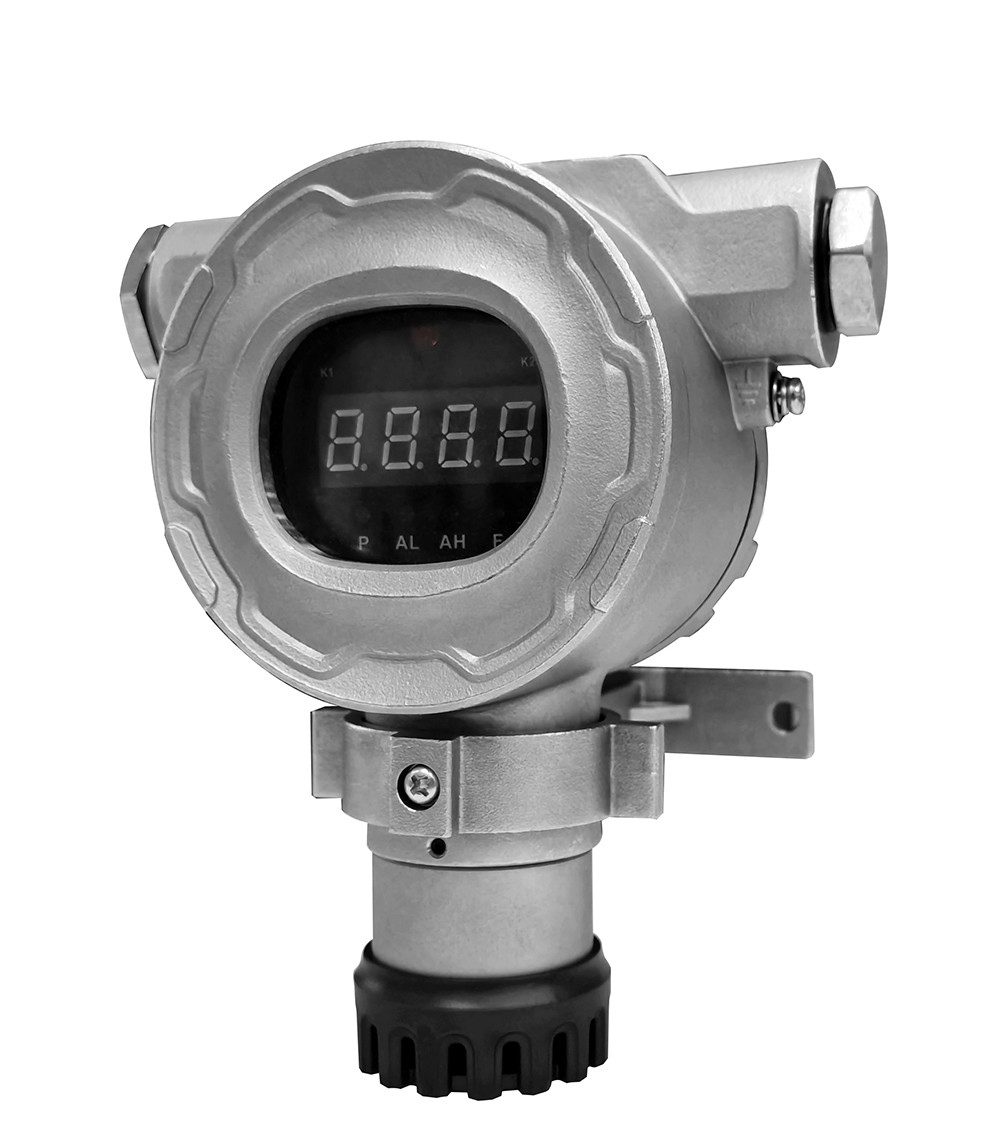

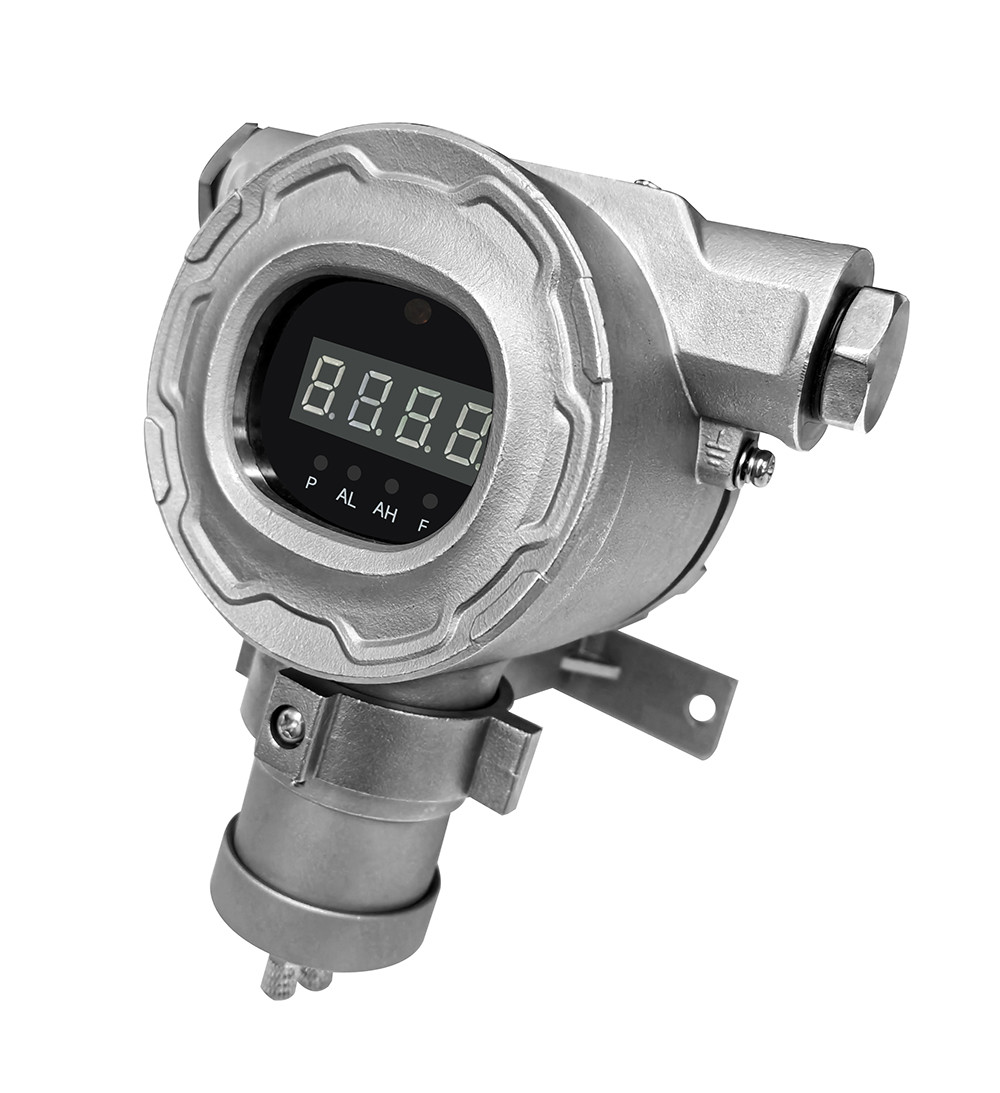

Product Picture









SS316 Enclosure Fixed NO Gas Detector NO Concentration Diffusion Samping Imoprted Sensor 0SS316 Enclosure Fixed NO Gas Detector NO Concentration Diffusion Samping Imoprted Sensor 1SS316 Enclosure Fixed NO Gas Detector NO Concentration Diffusion Samping Imoprted Sensor 2

SS316 Enclosure Fixed NO Gas Detector NO Concentration Diffusion Samping Imoprted Sensor 3

SS316 Enclosure Fixed NO Gas Detector NO Concentration Diffusion Samping Imoprted Sensor 4



Product Advantage

· This sensor module excels in protection, with IP66/IP68 ratings. IP66 resists powerful water jets, while IP68 allows submersion, and it fully blocks dust, ideal for harsh outdoor and industrial settings.
· It's user-friendly with intelligent plug-and-play, easily integrated without complex setup. Calibration via Safegas PC software simplifies replacement and maintenance for optimal performance.
· A standard splash guard protects it in outdoor or water-splash environments. Weighing only 1 kg and paired with a standard mounting bracket, installation is quick and hassle-free.
· Connectivity is versatile, with standard 4-20 mA analog and RS485 Modbus outputs, plus optional Hart and 2-wire outputs for broad system compatibility.
· It has 3 optional relays for low/high/fault alarms, enabling rapid issue detection. Magnetic and remote control offer flexible parameter adjustment, making it suitable for diverse applications.




Specifications:



Detected Gas SO2
Measure Range 0-100PPM
Install Method Wall-mounted, piping type, flow-type
Output signal 4-20mA, 1-5V, 2-10V, RS485, RS232, relays (optional)
Precision ≤±1%F.S. (to be specialized)
Zero shift ≤±1%(F.S./year)
Display 4 digits Nixie tube display.
Connection mode G3/4 external thread explosion-proof flexible pipe
Thread Size Standard M20*1.5, 3/4NPT
Temperature –20℃~50℃
Humidity 10-95%RH (non-condensing)
Explosion-Proof Ex db ⅡC T6/ Ex db ia IIC T6 Gb/ Ex da db ia IIC T6 Gb
Degree of protection IP66/IP68
Material Sensor housing: aluminum alloy or 316 stainless steel
Power 12-24V DC
Dimensions 158×129×70mm
Weight ≤1kg
Approval CE, CNEX explosion proof certificate, CMC(China Metrology Certification), IECEx, ATEX
Warranty 12 months



Gas

SG100 model can detect sigle gas, here's some gases we can detect:

SS316 Enclosure Fixed NO Gas Detector NO Concentration Diffusion Samping Imoprted Sensor 5

SS316 Enclosure Fixed NO Gas Detector NO Concentration Diffusion Samping Imoprted Sensor 6

SS316 Enclosure Fixed NO Gas Detector NO Concentration Diffusion Samping Imoprted Sensor 7



Detection of combustible gas concentration in China xx warehouse: SG100-A-EX Application case

Detection requirements:

1. At the request of the Environmental Protection Bureau, the warehouse needs to install two fixed combustible gas detector, with data display, alarm function and simple installation.

2. Install the control panel outside the warehouse, need data display, with alarm function. Cost-effective products are needed.


Solution:

1. Gas detector: SG100-A-EX, SG100 with imported combustible gas sensor, with sound and light alarm

2. Control panel: YT-1100H


Solution features:

1. All recommended products meet customer needs.

2. Equipped with original imported combustible gas sensor to ensure accurate and stable detection. LED display is used to make the data clear and readable. Set the alarm value for SG100, when the concentration reaches the alarm value, the sound and light alarm will be activated.The weight of SG100 is only 1Kg, and it is equipped with mounting bracket accessories as standard, to make the installation operation simple and convenient.

3. YT-1100H has a preferential price. The detector and the control panel are connected by 4-20MA, and the gas concentration of each channel is displayed cyclically on the control panel. When the detector alarms, the information will be transmitted to the YT-1100H, and YT-1100H will alarm with sound and light.





Why choose us?



Company Profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited(Safegas)is a company that focuses on the design, production and sales of gas detection equipment and system for 16 years. With"gas detector" as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc.





As a professional gas detector manufacturer, we control the entire process from design-R&D-production-sales to ensure the consistency of product quality. We have more than 100 independent intellectual property patents in design and development;In production, we have skilled technical workers and a complete industrial line, which can grasp the production and quality of products throughout the process;and our company has rich overseas sales experience and a professional sales team, can provide customers with 7*24h considerate service.



We have professional R&D department, thet have been engaged in gas detect industrial for about 25 years.They have professional knowledge and rich experience,can provide customers with professional technical after-sales service.



We carry out a strict quality management system and take the principle of quality first as the core to produce gas detector,Therefore, we have been recognized by authoritative organizations and obtained ISO9001 and ISO14001 certifications to provide customers with safe and environmentally friendly products.

SS316 Enclosure Fixed NO Gas Detector NO Concentration Diffusion Samping Imoprted Sensor 8

Our products have obtained IECEx and ATEX explosion-proof certification, so our detectors can be used in hazardous areas such as mines, underground and oil plants. We are the first and currently the only manufacturer in China who obtain this certification, products without explosion-proof certification are prohibited from being used in dangerous areas.

SS316 Enclosure Fixed NO Gas Detector NO Concentration Diffusion Samping Imoprted Sensor 9

Our core components, such as ICs or sensors, use imported brands like Honeywell, CITY and Alpha, which improving the accuracy of our product,stabilizing the product's service life, ensuring the accuracy of detection and protecting the safety of customers' lives.



Our complete product line and stable inventory provide customers with fast delivery. If the order quantity is less than 10 pcs, we usually deliver them within 3 days. If the quantity exceeds 100 pcs, under normal circumstances,we can deliver it within half a month.

SS316 Enclosure Fixed NO Gas Detector NO Concentration Diffusion Samping Imoprted Sensor 10



FAQ:



Q1: What is a gas detector?

A1: Gas detector is an instrument for gas leakage concentration detection, including a portable gas detector, fixed gas detector, etc.



Q2: What does a gas detector detect?

A2: Combustible gases: Natural gas (methane), liquefied gas, coal gas, acetylene, pentane, alkynes, toluene, etc.

Toxic gases: Carbon monoxide, hydrogen sulfide, ammonia, chlorine, phosphine, sulfur dioxide, hydrogen chloride, chlorine dioxide and other toxic and harmful gases.



Q3: What is the ppm unit of the gas detector?

A3: ppm represents the volume concentration of the gas, that is, the volume of pollutants contained in one million volumes of air. For example, if the concentration of ammonia is 30ppm, it means that the volume of ammonia in one million volumes of air is 30.



Q4:Are you manufacture or trading company?
A1:We are a professional manufacture specialize in the gas detector for more than 10 years.


Q5:What is the MOQ?
A2:Usually it is 1 piece.


Q6:How about the quality of your products?
A3:Our product is made of imported sensors and components, the products are certified.


Q7:How long is the warranty time of the products?
A4:The warranty period is 1 years from the factory, we also provide lifetime maintenance.
