Specificiation
| Gas Detected |
H2S |
| Detection principle |
Electrochemical |
| Install methode |
Wall-mounted, piping type, flow-type(according to the detected environment) |
| Measure Range |
0-100PPM
|
| Resolution |
0.1PPM
|
| Accuracy |
≤±2-5%FS |
| Signal Output |
4-20MA, RS485, relay |
| Response Time(T90) |
15-30s(depending on the specific sensor) |
Recovery Time |
≤10S |
| Repeatability |
≤±1% |
Display |
2.4-inch color display, resolution 320*240 |
| Operating language |
English/Chinese |
Display content |
gas molecular formula, concentration, unit, pump
status, etc |
| Temperature |
-20ºC~55ºC |
Humidity |
0-95%RH |
| Explosion-Proof |
IECEX:
Ex db IIC T6 Gb
ATEX :
Ex db IIC T6 Gb |
Degree of protection |
IP66 |
| Alarm mode |
Sound, light |
Operating time |
24h |
| Dimensions |
43*27*15cm |
Weight |
4.6kg |
Product Advantage
This YT-98H fixed gas detector is designed for gas monitoring in harsh environments, especially for high-risk areas such as the oil and gas industry. It has passed the dual authoritative certification of IECEx and ATEX, and can operate safely and reliably in explosive hazardous environments, building a solid line of defense for safe production.
In terms of detection performance, the YT-98H is equipped with advanced sensing technology, which supports simultaneous monitoring of up to 6 toxic gases. Common hazardous gases such as carbon monoxide and hydrogen sulfide cannot escape its "eyes". The built-in long-life vacuum pump (service life exceeds 12,000 hours) can achieve rapid sampling, whether in open spaces or confined areas, even when working at heights, it can quickly capture changes in gas concentration and provide real-time protection for personnel safety.
In terms of system docking, the YT-98H provides a wealth of connection options. Wired protocols such as 4-20mA, HART, and Modbus can easily access various control systems; the optional wireless module supports remote access to data through mobile devices, laptops or cloud platforms, which is convenient for managers to grasp the situation and make decisions in a timely manner.
In terms of operation experience, the 2.4-inch high-definition color screen is equipped with a bilingual interface in Chinese and English, and with an intuitive icon design, the operating status is clear at a glance. Users can also flexibly set alarm thresholds and convert gas units according to actual needs. In addition, the infrared remote control function avoids frequent cover opening operations. While ensuring system safety, it provides a variety of signal outputs such as 4-20mA, RS485, and dual relay control, and supports optional voltage output.
In the face of harsh environments, the IP65 protection level combined with explosion-proof, lightning protection, anti-static, and anti-surge design makes the YT-98H fearless of wind and rain erosion. At the same time, it also provides a wealth of expansion accessories, sound and light alarms, high-temperature flue gas pretreatment systems, and 2-8 km wireless transceivers or 2G/4G cloud modules to meet diverse monitoring needs.
The YT-98H and YT-98H-A series redefine the industry standard for gas detection equipment with excellent accuracy, stability and flexibility, and are ideal for gas safety monitoring in critical scenarios.

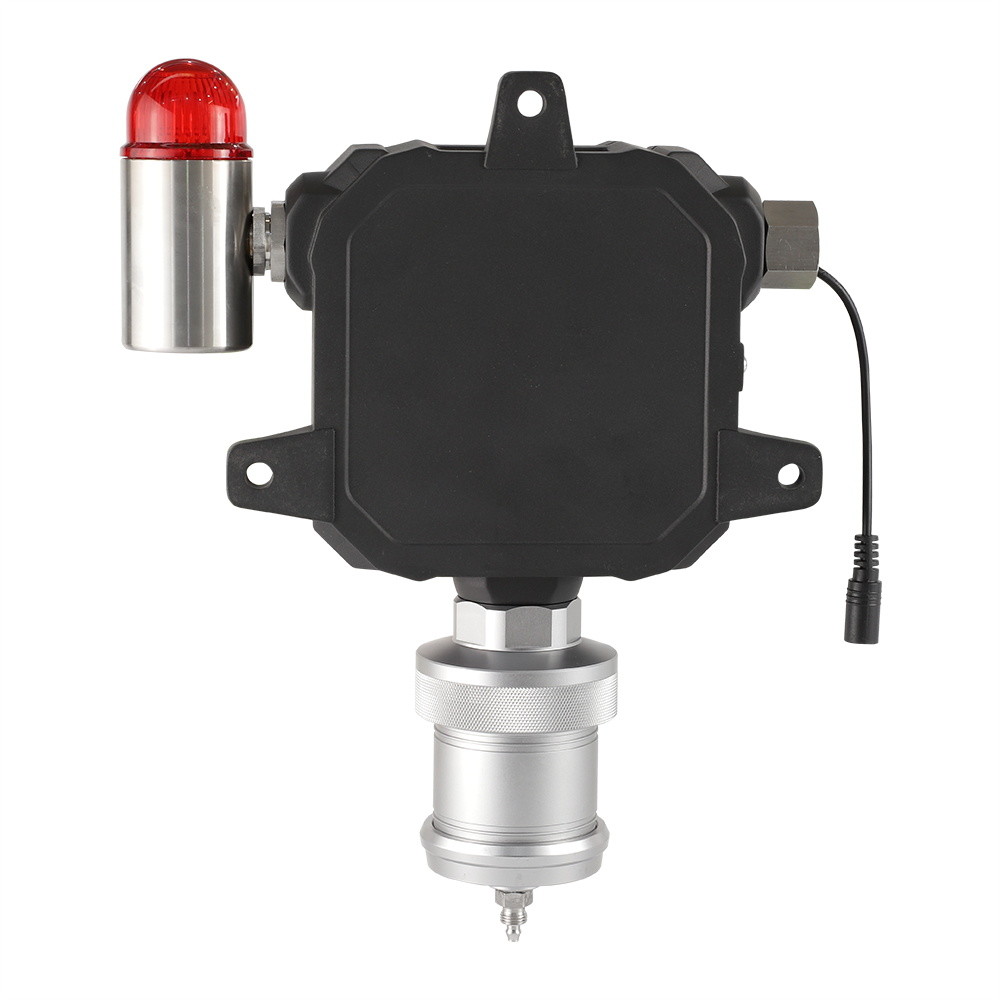

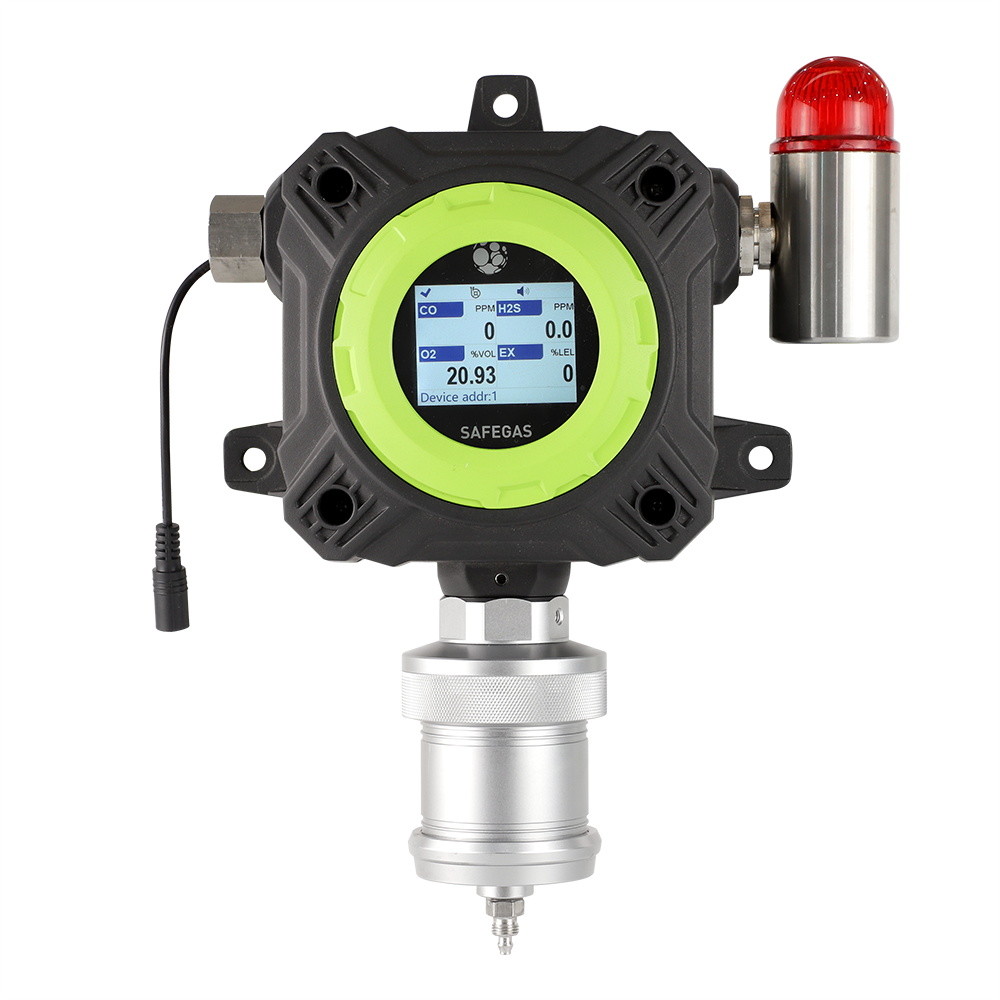

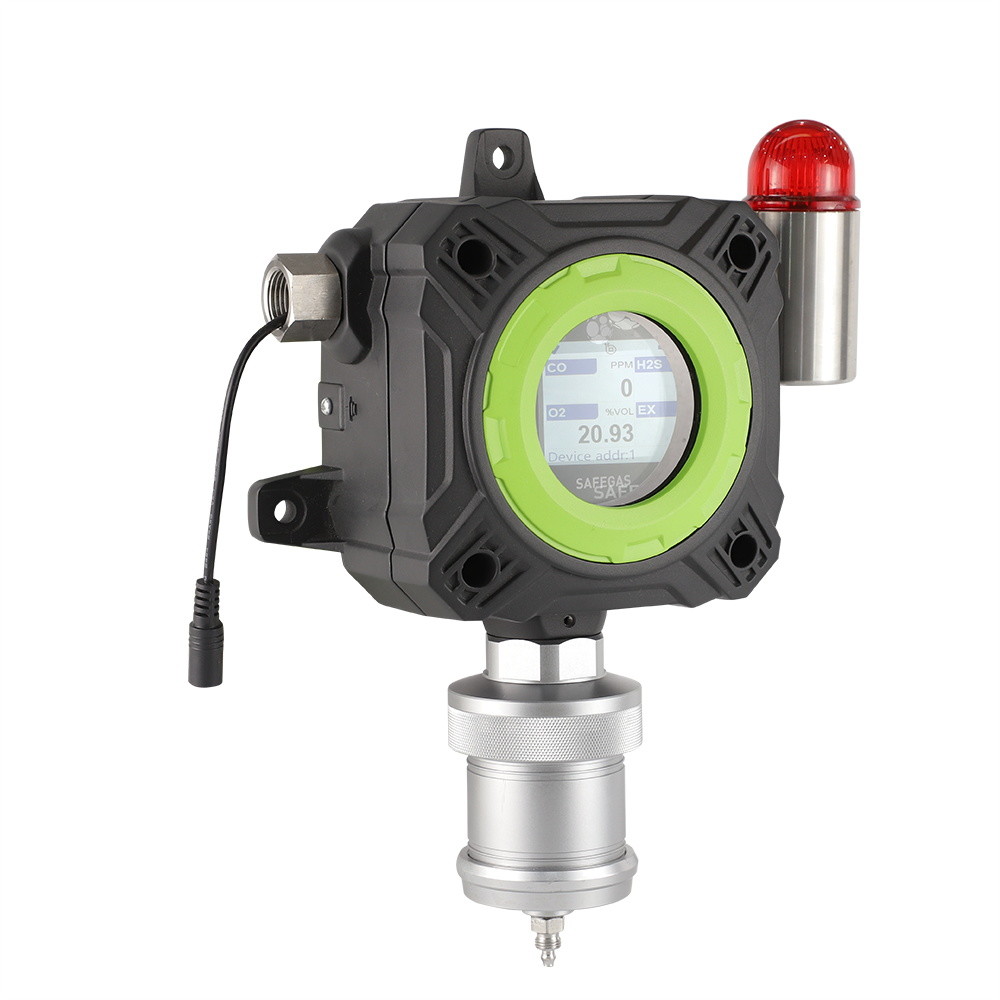

Product Picture--YT-98H(with display)

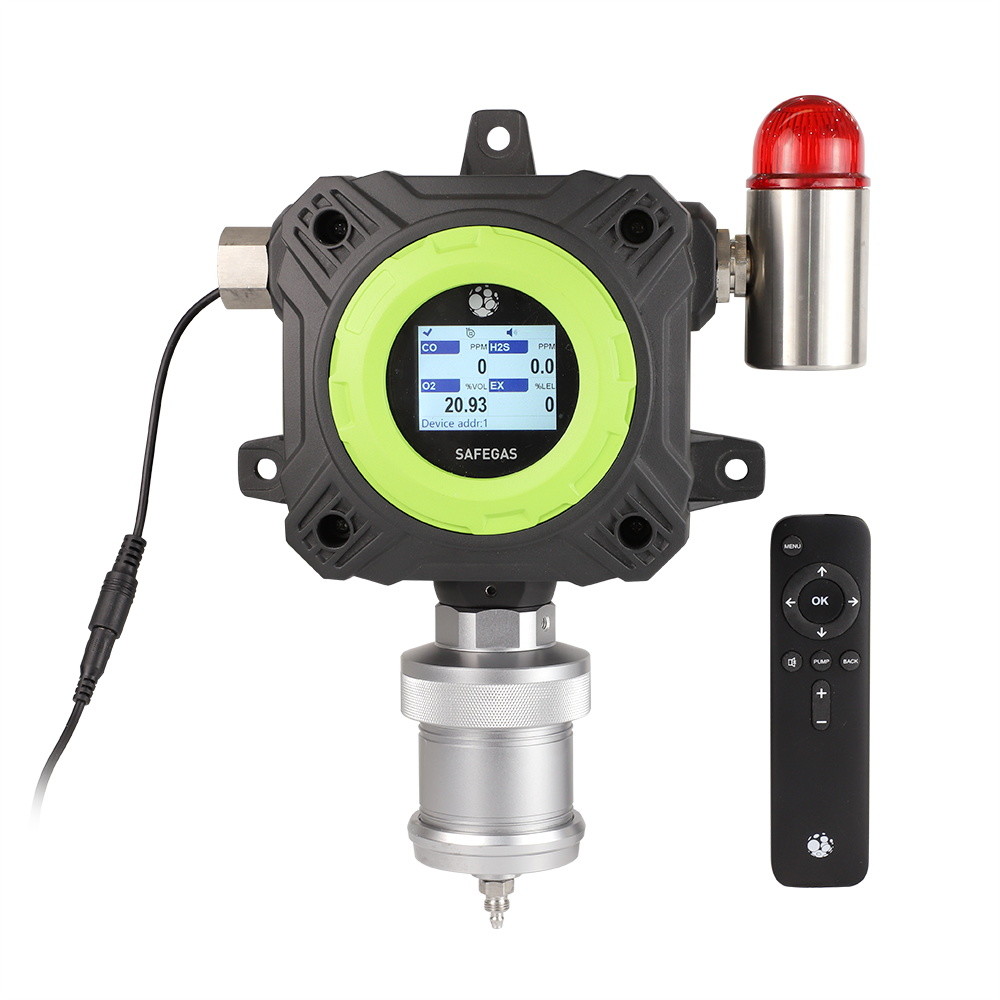

Product Picture--YT-98H-A(with display and alarm light)
