Specificiation
| Gas Detected |
CO |
| Detection principle |
Electrochemical |
| Install methode |
Wall-mounted, piping type, flow-type(according to the detected environment) |
| Measure Range |
0-100PPM
|
| Resolution |
0.1PPM
|
| Accuracy |
≤±2-5%FS |
| Signal Output |
4-20MA, RS485, relay |
| Response Time(T90) |
15-30s(depending on the specific sensor) |
Recovery Time |
≤10S |
| Repeatability |
≤±1% |
Display |
2.4-inch color display, resolution 320*240 |
| Operating language |
English/Chinese |
Display content |
gas molecular formula, concentration, unit, pump
status, etc |
| Temperature |
-20ºC~55ºC |
Humidity |
0-95%RH |
| Explosion-Proof |
IECEX:
Ex db IIC T6 Gb
ATEX :
Ex db IIC T6 Gb |
Degree of protection |
IP66 |
| Alarm mode |
Sound, light |
Operating time |
24h |
| Dimensions |
43*27*15cm |
Weight |
4.6kg |
Product Description
YT-98H Fixed Gas Detector: Advanced Monitoring for Hazardous Environments
The YT-98H is a high-end fixed gas detector designed for critical gas monitoring applications, particularly in the oil and gas industry.
1. Safety Certifications
Certified under IECExand ATEXstandards, the YT-98H series is approved for deployment in explosive atmospheres, ensuring safe operation in hazardous zones.
---
2. Detection Capabilities
Multi-Gas Detection
Supports simultaneous monitoring of up to 6 toxic gases(e.g., carbon monoxide, hydrogen sulfide) through configurable single- or multi-gas sensing.
High-Efficiency Pump
Equipped with a 12,000+ hour lifespan vacuum pumpfor rapid gas sampling. Enables swift response in open or confined spaces, enhancing personnel safety by detecting gas concentration changes in real time, even at elevated heights.
---
3. Connectivity & Integration
Wired Protocols
Supports 4-20mA, relays, HART, and Modbusfor seamless compatibility with existing and modern control systems.
Wireless Capability
Optional wireless modules enable remote data accessvia mobile devices, laptops, or cloud platforms, empowering real-time decision-making.
---
4. User-Centric Features
Intuitive Interface
A 2.4-inch HD color screenwith bilingual (Chinese/English) menus and visual icons ensures clear status monitoring.
Customizable Alerts
Adjustable alarm thresholds and unit conversions for individual gases.

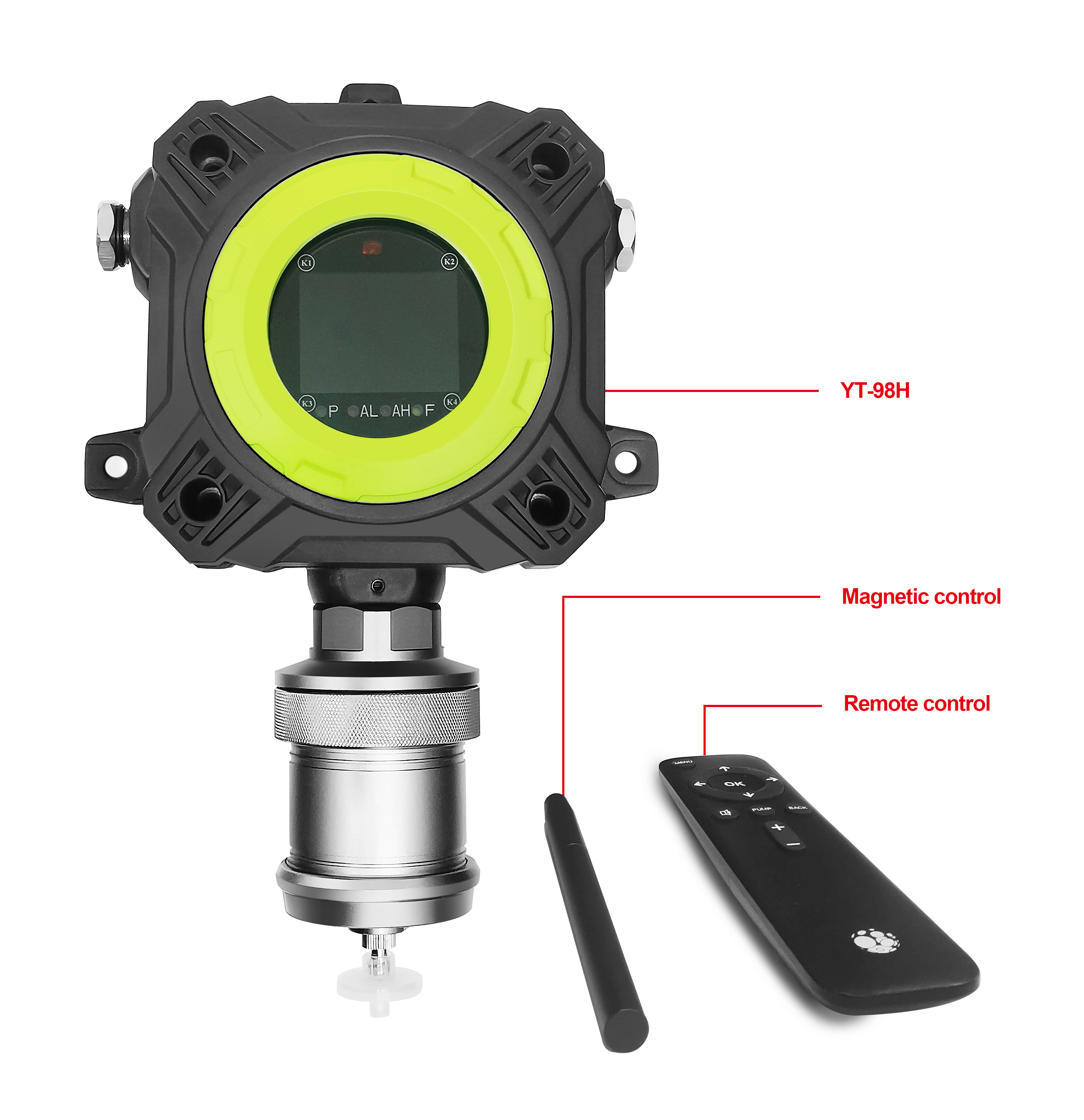

Safe Remote Control
Infrared remote operation eliminates the need to open the enclosure, maintaining system integrity. Includes 4-20mA, RS485 outputs, dual relays, and optional voltage outputs.
---
5. Robust Protection & Accessories
Environmental Resilience
Rated IP65with explosion-proof, lightning-resistant, anti-static, and surge-protected housing for harsh conditions.
Optional Add-Ons
- Audible/visual alarms
- High-temperature flue gas pretreatment systems
2-8km wireless transceiversor 2G/4G cloud-enabled modulesfor remote data management.
---
Engineered for precision, reliability, and adaptability, the YT-98H/YT-98H-A series delivers industry-leading safety and performance for gas detection in mission-critical environments.
Product Picture--YT-98H(with display)

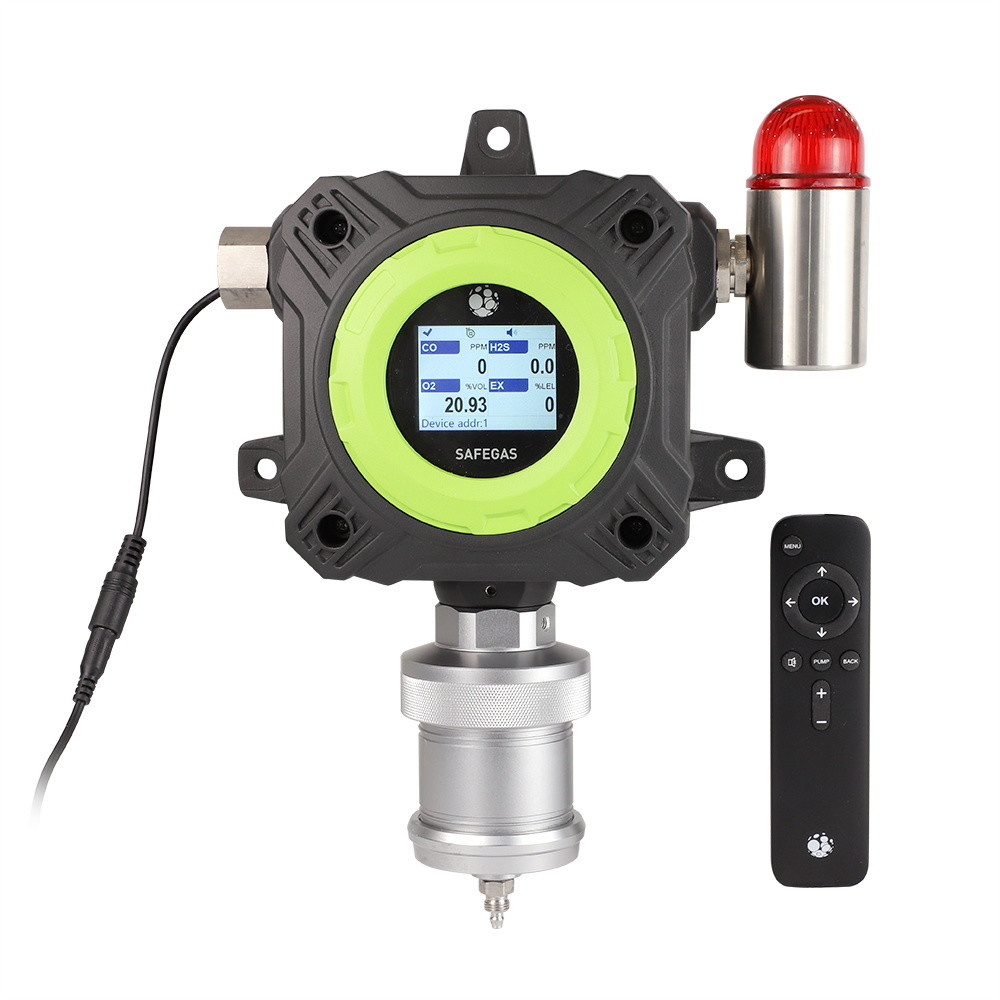

Product Picture--YT-98H-A(with display and alarm light)
Applications
This device is widely used in these filed:
●Petrochemical & Chemcial Industry
●Municipal Engineering & Utilities
●Agricultral & Environmental Protection
●Electronic
●Food & Pharmaceutical Industry
Why choose us?
1. R&D team experience: over 25 years.
2. Company certification: ISO9001, ISO45001
3. Product certification: IECEx (the only one in China), ATEX, CE
4. Delivery: 5-7 days
5. Yearly capacity: 80,000 units
6. Service: Professional sales staff provide 7*24 hours service
Company Profile
Established in 2010, Shenzhen Yuan Te Technology Co., Limited(Safegas)is a company that focuses on the design, production and sales of gas detection equipment and system for 16 years. With"gas detector" as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc.
Product line
Our products contain portable types, fixed types and controller panels.
Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000
Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200
Controller panels: YT-1100H, YT-1600H
Certifications
IECEX, ATEX, CE, TEST Report, ISO 9001, ISO 45001
Our products have obtained international explosion-proof certifications from IECEX and ATEX, ensuring product quality, which are comparable to international brand like Honeywell, MSA, RAE, but our products with competitive price.
Company we cooperated
Huawei, Cocacola, Samsung, Nestel and so on.
