Fixed CH4 Gas Detector Infrared Ray Principle High Accuracy Lora Transmit

Fixed CH4 Gas Detector Infrared Ray Principle High Accuracy Lora Transmit
Fixed CH4 Gas Detector Infrared Ray Principle High Accuracy Lora Transmit
Fixed CH4 Gas Detector Infrared Ray Principle High Accuracy Lora Transmit Fixed CH4 Gas Detector Infrared Ray Principle High Accuracy Lora Transmit Fixed CH4 Gas Detector Infrared Ray Principle High Accuracy Lora Transmit Fixed CH4 Gas Detector Infrared Ray Principle High Accuracy Lora Transmit
Basic Information
Place of Origin: China
Brand Name: safegas
Certification: CE/ISO
Model Number: YT-95H
Minimum Order Quantity: 1 piece
Price: 599USD
Delivery Time: 3-5days
Payment Terms: T/T
Supply Ability: 8000 pcs per month
Get Best Price Contact Now
Detail Information
Product Name: Fixed Gas Detector Measure Range: Specified According To Application
Gas: CO/H2S/Customized Sensor Type: Specified According To Application
Language: Chinese/English Alarm Type: Light+Sound+Vibration
Detection Principle: Electrochemical, NDIR, Catalytic, PID, Etc Weight: ≤1.6kg
Size: 180×150×90mm Power: 12-36V DC
Communication Mode: G1/2 External Thread Explosion-proof Flexible Pipe Thread Size: M45*2mm
Temperature: –20℃～50℃ Humidity: 0-95%RH(nocondensation)
Explosionproof Grade: Ex D IIC T6 Gb
Highlight:

Lora Transmit Fixed CH4 Gas Detector

,

Infrared Ray Fixed CH4 Gas Detector

,

High Accuracy Fixed CH4 Gas Detector

Product Description

Product video


Fixed CH4 Gas Detector Infrared Ray Principle High Accuracy Lora Transmit 0




Our advantages

Fixed CH4 Gas Detector Infrared Ray Principle High Accuracy Lora Transmit 1

Product description

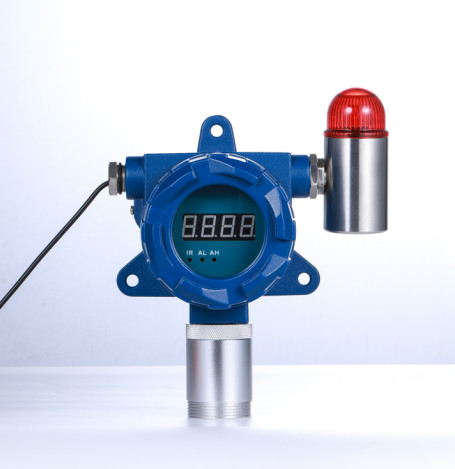

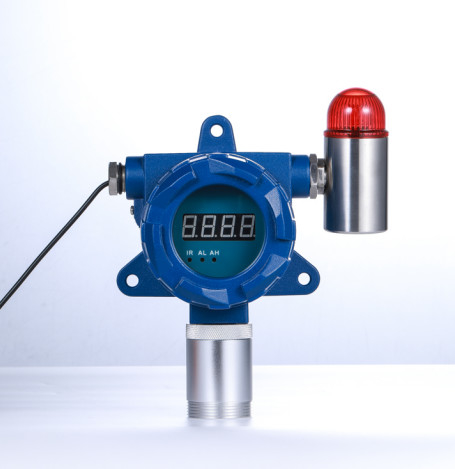

Featuring a built-in display and alarm light, the YT-95H-A enhances safety with instant visual and audible alerts (sound >90dB). Its customizable high/low alarm points and 24-hour continuous monitoring ensure proactive hazard detection. The infrared remote controller enables easy configuration of alarm settings, zero calibration, and address modification, minimizing downtime for maintenance.

Fixed CH4 Gas Detector Infrared Ray Principle High Accuracy Lora Transmit 2Fixed CH4 Gas Detector Infrared Ray Principle High Accuracy Lora Transmit 3Fixed CH4 Gas Detector Infrared Ray Principle High Accuracy Lora Transmit 4Fixed CH4 Gas Detector Infrared Ray Principle High Accuracy Lora Transmit 5Fixed CH4 Gas Detector Infrared Ray Principle High Accuracy Lora Transmit 6


Product advantage
  • Online monitoring with sound/light alarm(Optional)

24h continuously monitoring, data will real-time display.High/low alarm with sound and light, sound >90dB, alarm point is settable.

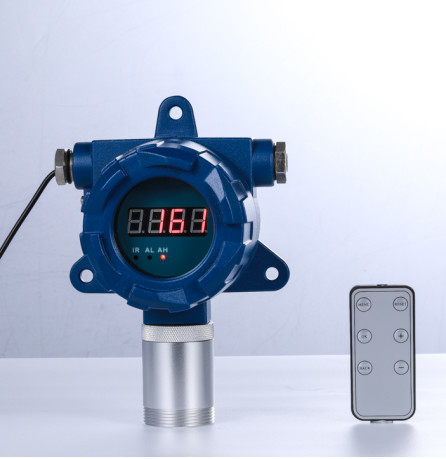

  • Convenient remote control
With infrared ray controller, which can remote control alarm point settings, zero calibration, and address modification.
  • Diversified output signals

 ​​It integrate 3 wire 4-20 mA analog, RS485 Modbus and relay out. To be compatible with different control systems.

  • Relay control

The relay output supports control external devices such as horns, alarm lights, fans etc.

  • ​Data transmission to PC

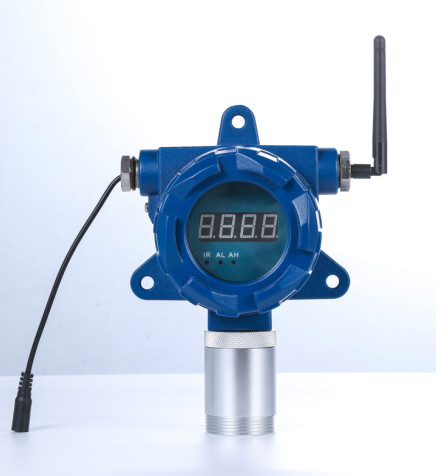

Through PC software can remote monitor the data.Wireless data transmission including Lora, 4G (Optional)
  • Durable housing

​​Die-cast aluminum housing, strong and durable;IP65 protection degree,water-proof, dust-proof,explosion-proof；
Fixed CH4 Gas Detector Infrared Ray Principle High Accuracy Lora Transmit 7Fixed CH4 Gas Detector Infrared Ray Principle High Accuracy Lora Transmit 8Fixed CH4 Gas Detector Infrared Ray Principle High Accuracy Lora Transmit 9


company profile

Shenzhen Yuante Technology Co., Limited was officially founded in 2010. Over the past 16 years, it has been deeply engaged in the design, production, and sales of high - end gas detection equipment and systems. For the core product of gas detectors, the company has created a complete industrial chain in line with Industry 4.0 standards through vertical integration. According to different standards such as ATEX and IECEx in industries like Oil, Medicine, and Electronics, it provides customized system integration solutions. Relying on independently developed advanced algorithms and sensing technologies, combined with the industry - university - research joint innovation model, the company's products have reached the international leading level in key performance indicators such as accuracy and response time. Looking ahead, Yuante Technology will continue to drive changes with technology and lead the development of the industry in the fields of industrial Internet of Things and intelligent safety detection.

Fixed CH4 Gas Detector Infrared Ray Principle High Accuracy Lora Transmit 10Fixed CH4 Gas Detector Infrared Ray Principle High Accuracy Lora Transmit 11Fixed CH4 Gas Detector Infrared Ray Principle High Accuracy Lora Transmit 12Fixed CH4 Gas Detector Infrared Ray Principle High Accuracy Lora Transmit 13Fixed CH4 Gas Detector Infrared Ray Principle High Accuracy Lora Transmit 14Fixed CH4 Gas Detector Infrared Ray Principle High Accuracy Lora Transmit 15Fixed CH4 Gas Detector Infrared Ray Principle High Accuracy Lora Transmit 16

certifications

Fixed CH4 Gas Detector Infrared Ray Principle High Accuracy Lora Transmit 17

FAQ

Fixed CH4 Gas Detector Infrared Ray Principle High Accuracy Lora Transmit 18Fixed CH4 Gas Detector Infrared Ray Principle High Accuracy Lora Transmit 19

specification

Gas type Specified according to application
Sensor type Specified according to application
Accuracy
≤±2%FS(Specified according to different sensor)
Measure Range Specified according to application
Resolution Specified according to application
Display:
4 digits Nixie tube display.
Explosion-proof
grade
Ex d IIC T6 Gb
Temperature
–20℃～50℃
Power
12-36V DC
Thread Size
M45*2mm
Zero shift
≤±1%(F.S./year)
Dimensions
180×150×90mm
Weight
≤1.6kg
Humidity

0-95%RH(nocondensation)

Tag:

gas measuring device,

gas leak detector,

industrial gas monitors
