Name: SS316 NO2 Gas Detector 0-100ppm IECEx ATEX Certified IP66
Brand: Shenzhen YuanTe Technology Co., Ltd. (Safegas)
SKU: SG100
Price: 1,037.00 USD
Availability: InStock

Detail Information

Gas Detected:	NO2	Measure Range And Resolution:	0-100ppm
Accuracy:	≤±2-5%FS	Explosion-proof Certification:	IECEX, ATEX, CE, EMC
Protection Grade:	IP66/68	Communication Mode:	4-20mA、RS485 1～5V，Optional Hart
Wireless(Optional):	Support LORA Or 4G	Relay:	3 Relays, Low/high/fault Alarm Relay
Working Temperature:	–20℃～50℃	Size:	157.8x128.8x69.6mm
Weight:	1.0Kg
Highlight:	SS316 NO2 gas detector , ATEX certified gas detector , IP66 NO2 detector

Product Description

SS316 Enclosure Fixed NO2 Gas Detector Explosion-Proof Certificated IECEx

Product Description

SG100 Fixed Gas Detector
The SG100 series is a cost-effective gas detector for continuous monitoring of toxic gases, oxygen, flammable, and VOC gases. It is IECEx and ATEX certified with intrinsically safe explosion grade. Featuring 2-wire or 3-wire 4-20 mA analog output, RS485 Modbus output, and optional HART output, it is compatible with most control systems. With optional wireless data transmission, customers can review and download data remotely. Supports both magnetic and remote control for flexible configuration.

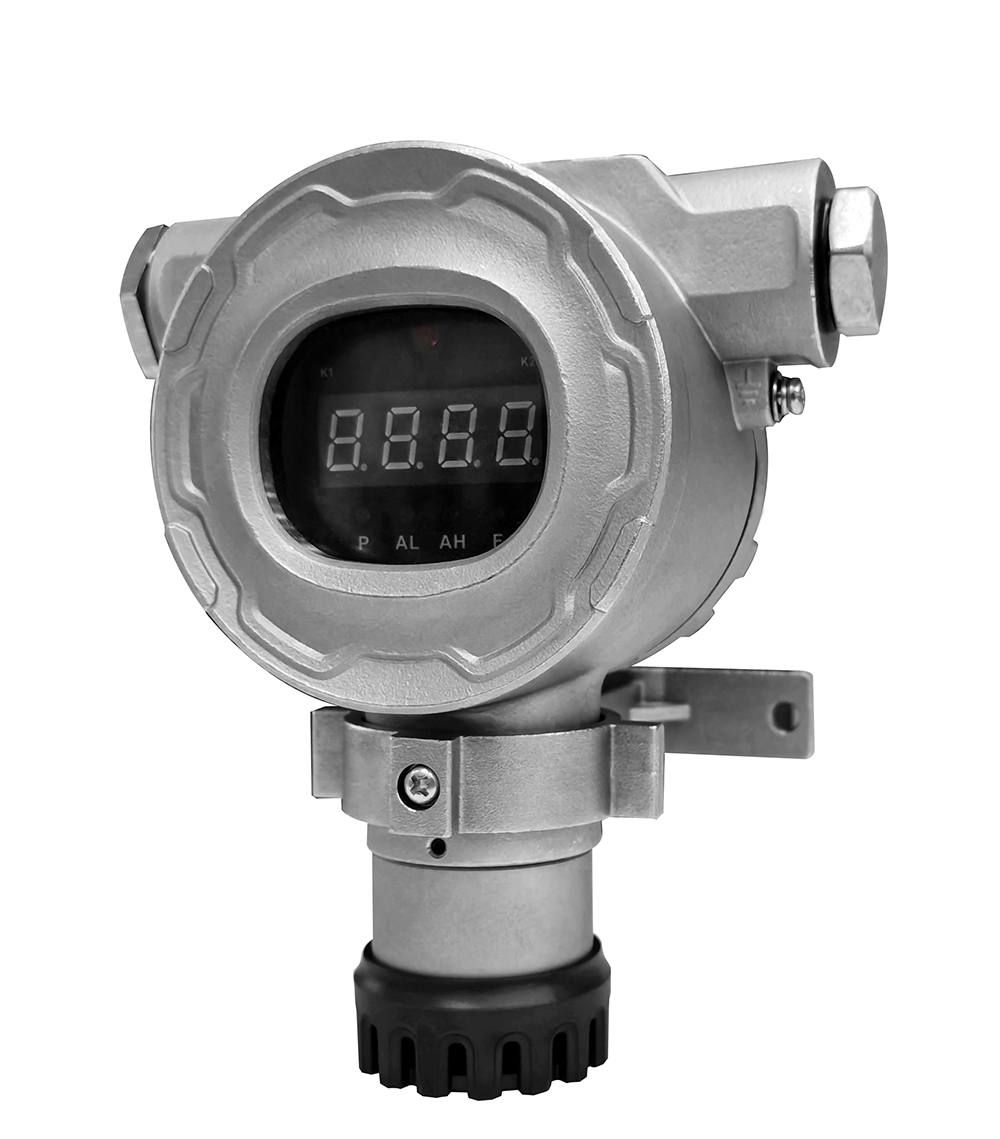

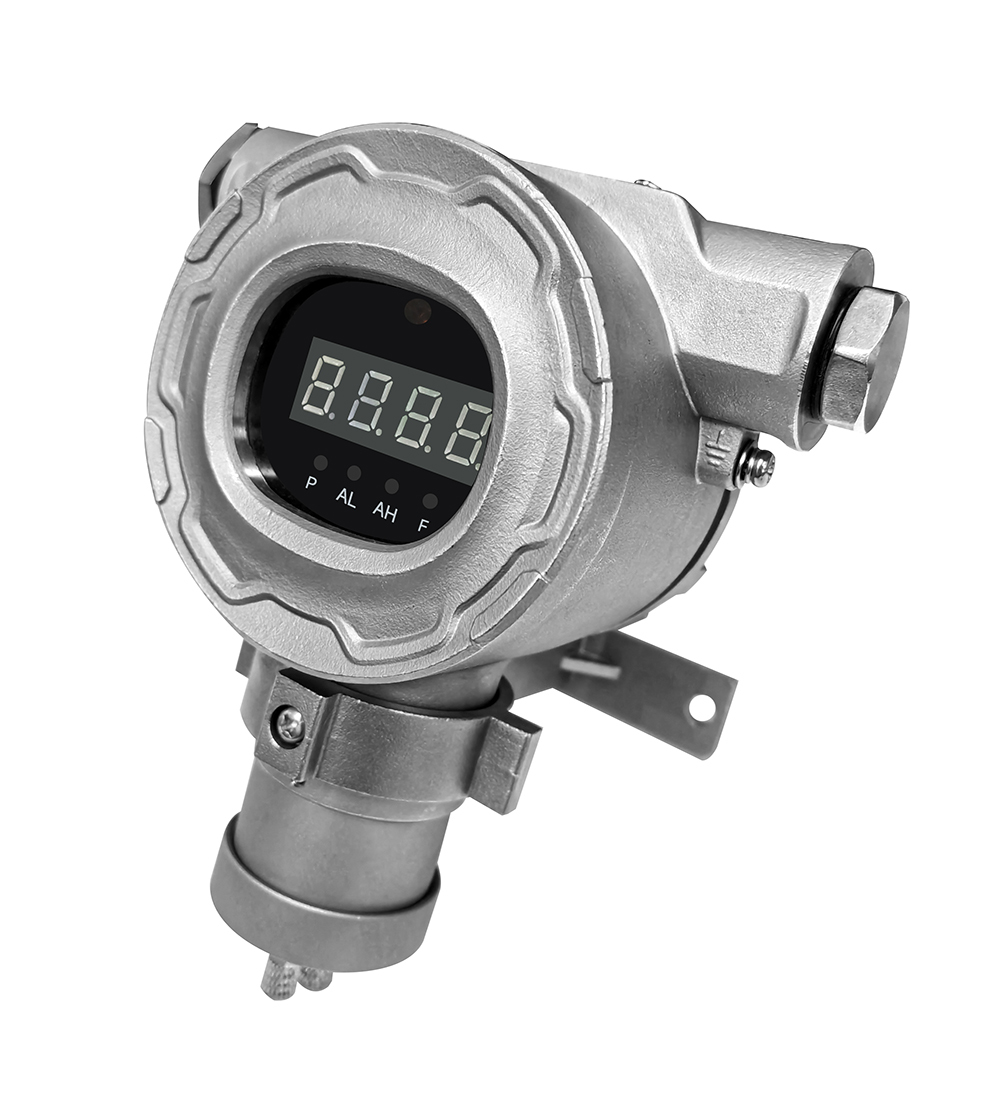

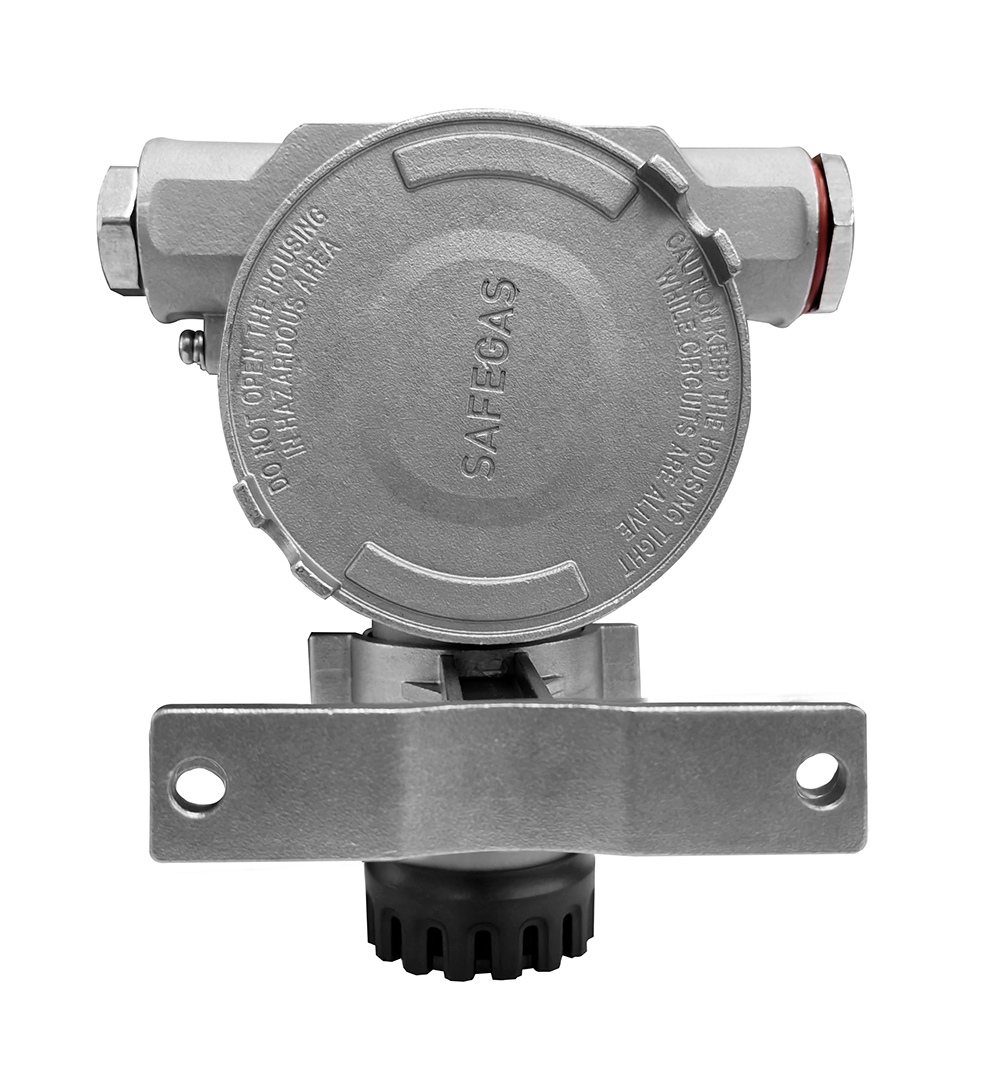

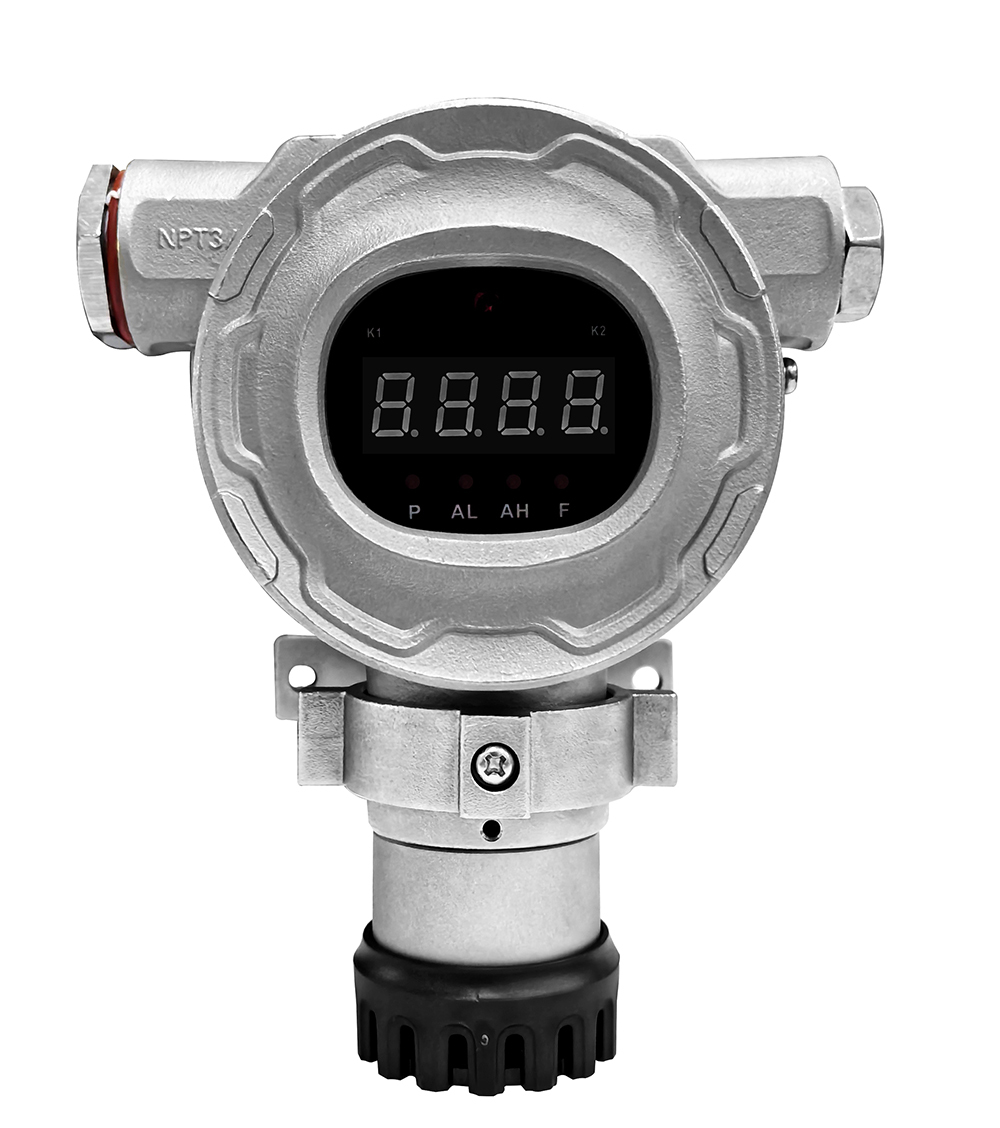

Product Images

Product Advantages

Superior Protection: IP66/IP68 ratings resist powerful water jets and submersion while fully blocking dust, making it ideal for harsh outdoor and industrial environments.
User-Friendly: Intelligent plug-and-play design with easy calibration via Safegas PC software simplifies replacement and maintenance.
Easy Installation: Standard splash guard, lightweight design (1 kg), and included mounting bracket enable quick, hassle-free installation.
Versatile Connectivity: Standard 4-20 mA analog and RS485 Modbus outputs, plus optional Hart and 2-wire outputs for broad system compatibility.
Advanced Alarm System: 3 optional relays for low/high/fault alarms enable rapid issue detection with flexible parameter adjustment via magnetic or remote control.

Technical Specifications

Parameter	Specification
Detected Gas	NO2
Measure Range	0-100PPM
Install Method	Wall-mounted, piping type, flow-type
Output Signal	4-20mA, 1-5V, 2-10V, RS485, RS232, relays (optional)
Precision	≤±1%F.S. (to be specialized)
Zero Shift	≤±1%(F.S./year)
Display	4 digits Nixie tube display
Connection Mode	G3/4 external thread explosion-proof flexible pipe
Thread Size	Standard M20*1.5, 3/4NPT
Temperature Range	-20℃～50℃
Humidity	10-95%RH (non-condensing)
Explosion-Proof Rating	Ex db ⅡC T6/ Ex db ia IIC T6 Gb/ Ex da db ia IIC T6 Gb
Degree of Protection	IP66/IP68
Material	Sensor housing: aluminum alloy or 316 stainless steel
Power Supply	12-24V DC
Dimensions	15812970mm
Weight	≤1kg
Certifications	CE, CNEX explosion proof certificate, CMC(China Metrology Certification), IECEx, ATEX
Warranty	12 months

Detectable Gases

Why Choose Our Products?

Expertise & Certification

• R&D team with over 25 years experience in gas detection technology
• Company certifications: ISO9001, ISO45001
• Product certifications: IECEx (the only manufacturer in China with this certification), ATEX, CE

Production & Quality

• Full control from design to production ensures consistent quality
• More than 100 independent intellectual property patents
• Skilled technical workers and complete industrial production line
• Strict quality management system with ISO9001 and ISO14001 certifications

Reliability & Performance

• Core components use imported brands (Honeywell, CITY, Alpha) for accuracy and longevity
• First and currently only Chinese manufacturer with IECEx and ATEX explosion-proof certification
• Suitable for hazardous areas including mines, underground, and oil plants

Service & Support

• Professional sales staff providing 24/7 service
• Fast delivery: 3 days for orders <10 pcs, within half month for >100 pcs
• Yearly production capacity: 80,000 units

Tag:

Place of Origin:	China
Brand Name:	SAFEGAS
Certification:	ATEX/IECEX/CE/EMC
Model Number:	SG100

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Aluminum Suitcase Packing
Delivery Time:	3 work days
Payment Terms:	T/T,Western Union
Supply Ability:	100 pieces/day
