Safegas Portable Gas Analyzer for Coal Combustion Flue Gas Detection and SO2 CO CO2 NOX VOC Monitoring
Professional SO2, CO, CO2, NOX, VOC Detector
Product Overview
The SKY8000 portable gas analyzer is designed for industrial waste gas monitoring, air pollution source emission detection, boiler flue gas analysis, automobile exhaust testing, and indoor air quality assessment. This versatile instrument can detect 1-18 different gases with flexible module configuration.
Key Features:
- Modular design with 1-3 selectable modules (each with dedicated pump)
- Separate air intake system to prevent cross-gas interference
- 3.5-inch high-definition IPS LCD color screen with 150° viewing angle
- Dual-language interface (Chinese/English)
- Safety features including fall alarm and password protection
- Optional high-temperature probe for harsh environments
- High-capacity lithium battery for extended operation
- Durable high-strength engineering material casing

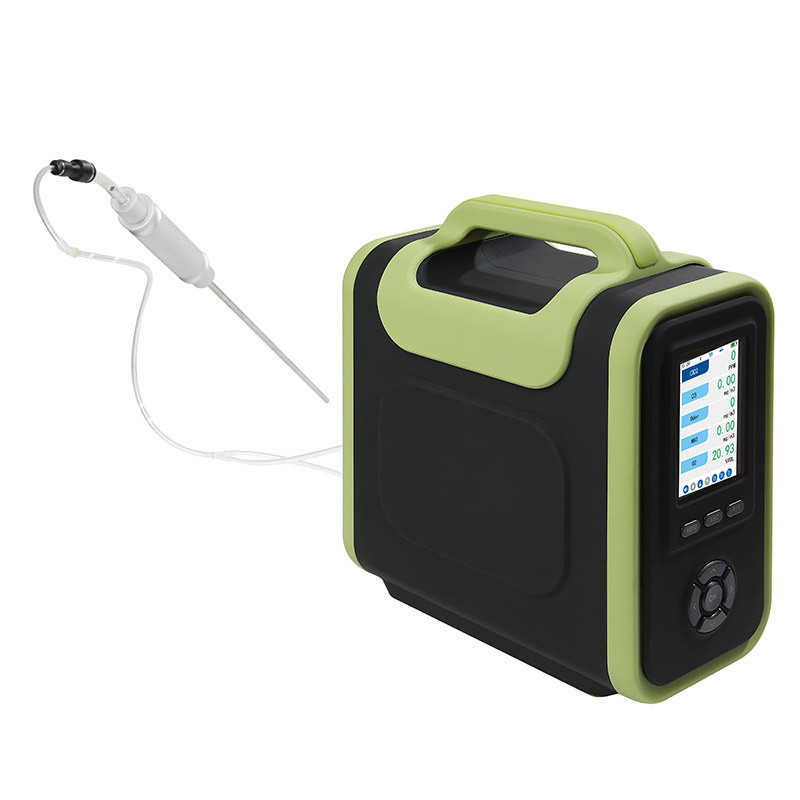

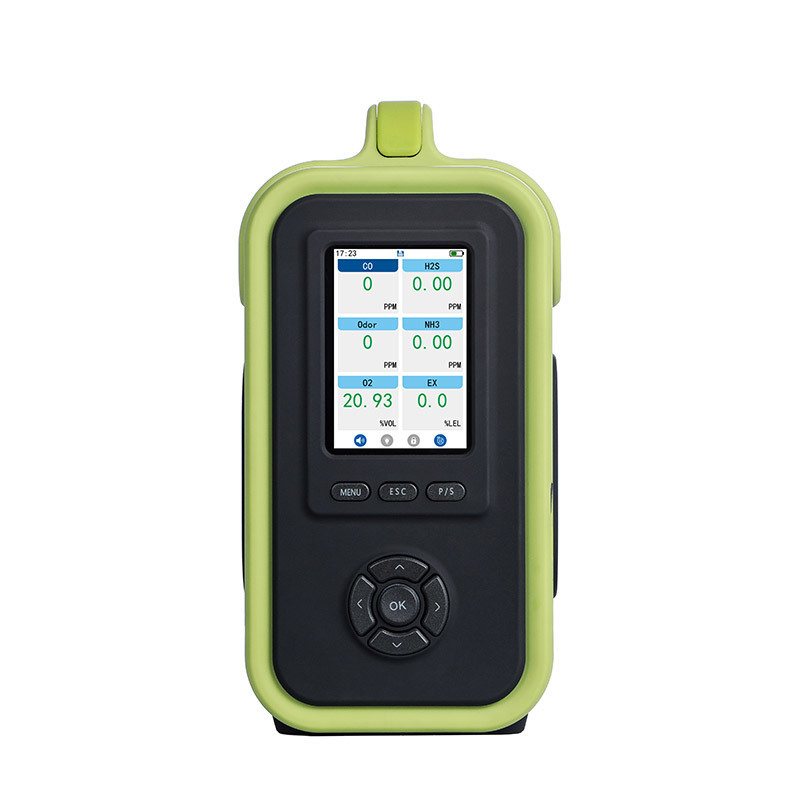

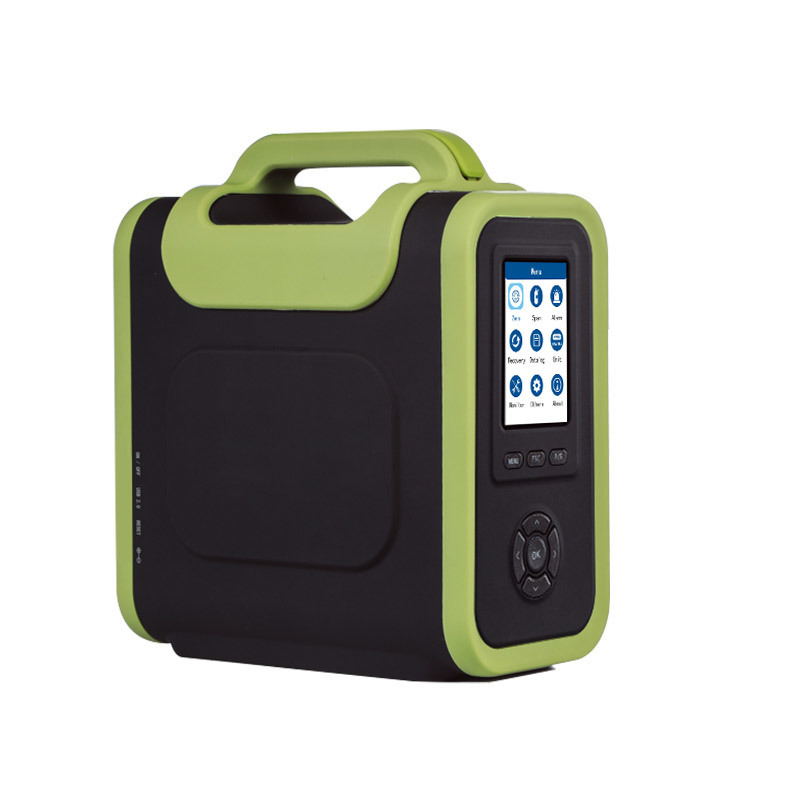

Product Images
Technical Specifications
| Sensors |
Electrochemical (CO, SO2, NOX), Infrared (CO2), PID photo ion principle (VOC) |
| Gas Detection |
CO, SO2, NOX, CO2, VOC |
| Measurement Range |
CO 0-20000PPM
CO2 0~20%VOL
SO2 0~5000PPM
NOX 0~5000PPM
VOC 0~5000PPM |
| Resolution |
CO 1PPM
CO2 0.001%VOL
SO2 1PPM
NOX 1PPM
VOC 1PPM |
| Display |
Gas concentration data, measurement trend curve, battery status, time, temperature, humidity, pressure (optional), pump condition, wireless status |
| Alarm |
Audible buzzer, visual LED indicator, display alarm status, fault alarm, pump abnormal alarm, low battery alarm |
| Data Storage |
SD card (max 32GB), automatic recording with customizable intervals |
| Data Transmission |
RS485 output, USB interface, compatible with PC software for data analysis |
| Probe Specifications |
High-temperature probe options available (600°C or 1000°C resistant), lengths: 0.3m, 0.7m, 1m |
Product Advantages
Advanced Display & Design
Features a 3.5-inch high-definition color screen with wide viewing angle and intuitive interface. The durable chassis with handle design combines portability with industrial-strength construction using aviation-grade materials.
Innovative Modular Structure
Patented modular design allows for up to three independent detection modules (each detecting up to six gases), preventing cross-interference between sensors for more accurate measurements.
Customizable Configuration
Supports up to 18 different sensors with flexible combinations, including specialized flue gas configurations for simultaneous measurement of up to 9 gases.
Multi-Pump System
Three-pump air supply system with adjustable flow rates (10 settings) to accommodate different environmental conditions and ensure measurement accuracy.
Comprehensive Data Management
Standard 8GB SD card provides up to seven years of continuous data storage (at 5-second intervals). View historical data and curves directly on the instrument or export via USB.
Enhanced Safety Features
- Fall detection alarm (optional)
- Password protection for parameter settings
- Safety alert system
- High/low alarm lock function
User-Friendly Operation
- Unit conversion (PPM/mg/m3)
- Factory reset for individual sensors
- Bilingual interface (Chinese/English)
- Timed shutdown function
- Built-in thermal printer (optional)
- Wireless monitoring via PC or mobile app (optional)
- High-temperature probe options (up to 1200°C)
Standard Accessories
- User manual
- Certificate/warranty card
- 8GB SD card (larger capacities available)
- Charging adapter
- Water trap filter
- Intake sampling probe
- 1000mm hose

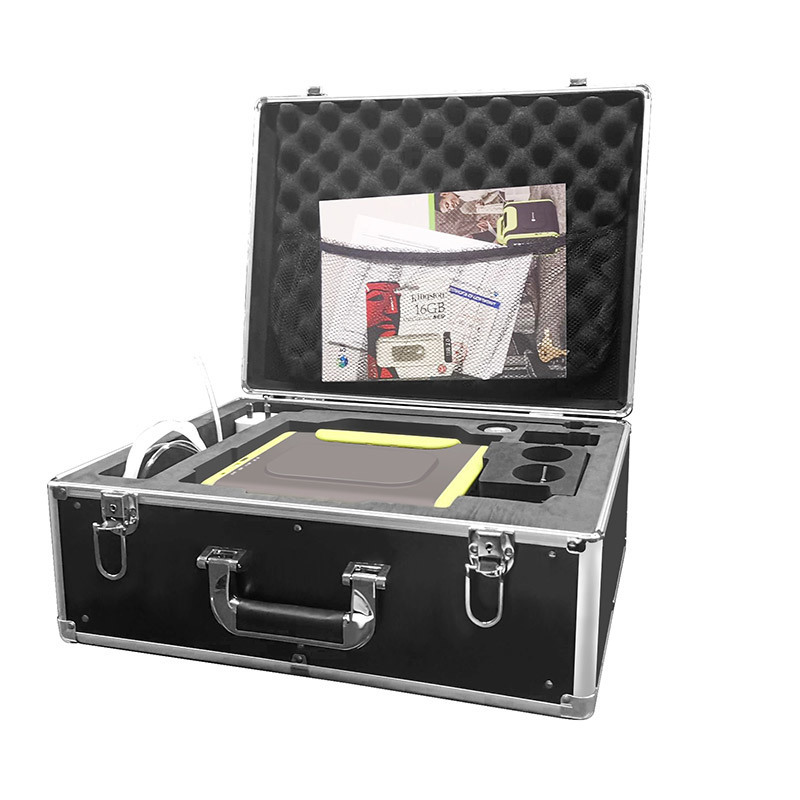

- Protective carrying case (waterproof, heat-resistant)
Optional Accessories
- Built-in thermal printer
- High-temperature flue gas detector set
Why Choose Safegas?
- 25+ years of R&D experience
- Certifications: ISO9001, ISO45001, IECEx, ATEX, CE
- Fast delivery: 5-7 days
- Annual production capacity: 80,000 units
- 24/7 professional support
Safegas specializes in environmental monitoring equipment with 16 years of industry experience. Our gas detection solutions serve diverse sectors including oil, chemical, pharmaceutical, energy, and environmental protection. Through continuous innovation and strict quality control, we've become a leading supplier in domestic and international markets.
