IECEX Certified Multi Gas Detector with IP66/IP68 Protection
Safegas Portable Multi Gas Detector Light Weight IECEX certificated IP68 drop resistant Diffusion Suction With Back Clip
Product Overview
MicMeta is a multi-gas detector with IP66/IP68 protection that can detect 1-4 gases simultaneously under normal circumstances. For two conventional range gases (CO and H2S), it can detect up to 5 gases simultaneously.
Micmeta holds three explosion-proof certifications: IECEX, ATEX, and China Explosion-proof. With an explosion-proof level of Ex ia IICT4 Ga/Ex ia I Ma, it is suitable for use in both Zone 0 and Zone 1 hazardous areas.
The device features an LCD screen with Chinese/English language switching capability and gas unit conversion. It includes two-level sound and light alarms with customizable alarm points, optional PC software for data download, and an optional docking station for bump testing, calibration, configuration, and data recording.

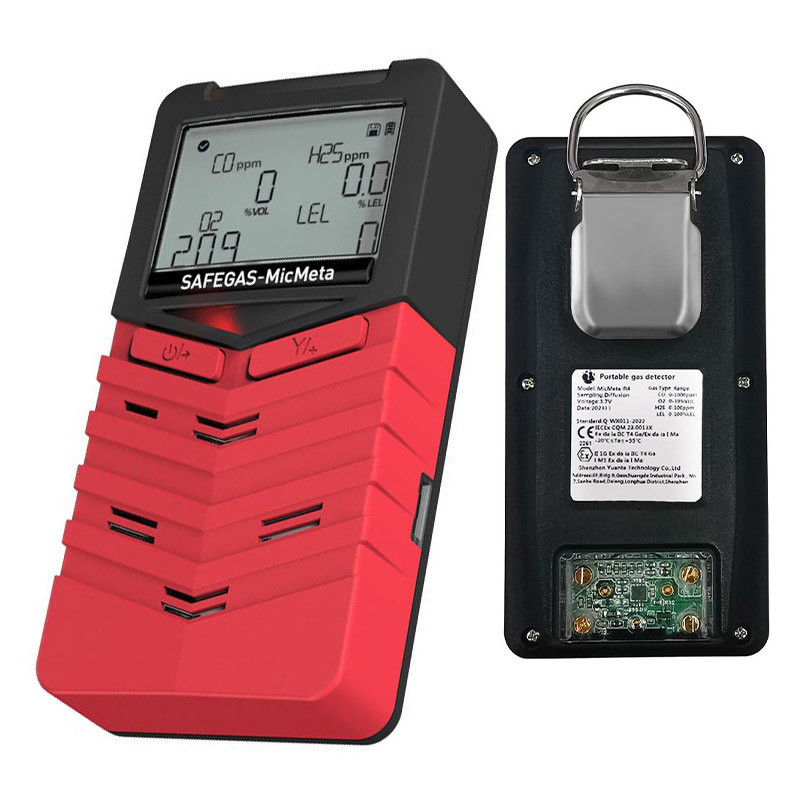

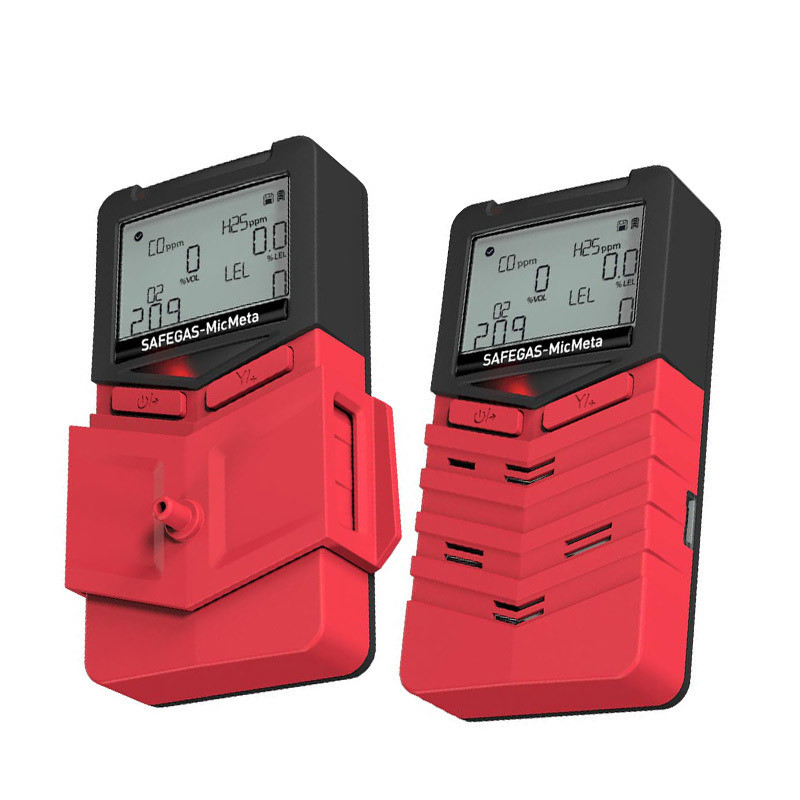

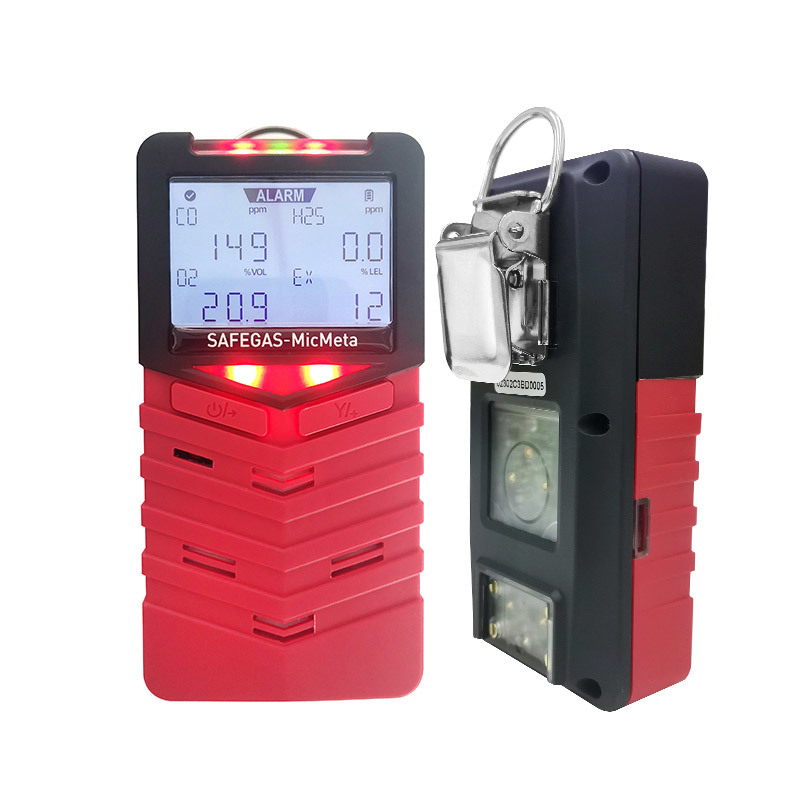

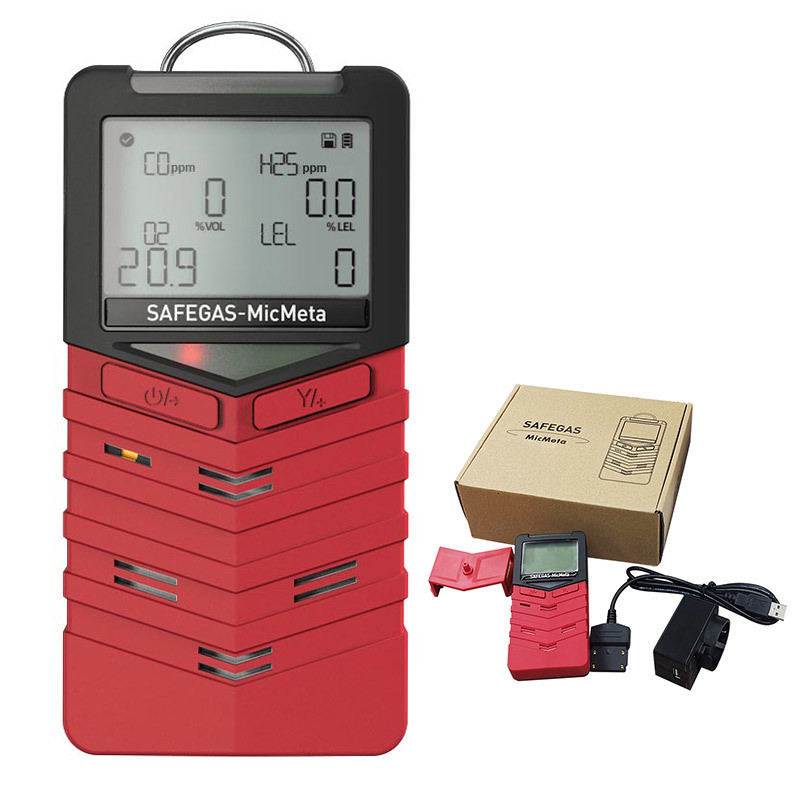

Product Images
Product Advantages
- Compact and Lightweight: Small size with light weight (240g), robust and durable construction withstands drops up to 1.5 meters with IP66/IP68 waterproof and dustproof protection
- User-Friendly Operation: Simple two-button operation for ease of use
- Bright Visual Alarm: Wide-angle visual alarm bar for increased visibility
- EMC Tested: Successfully passed EMC anti-static interference tests for reliable operation in various environments
- Ergonomic Design: Comfortable, wear-resistant back clip that is lightweight for easy carrying
Product Specifications
| Specification |
Details |
| Sampling method |
Diffusion suction |
| Gas type |
Can be customized, detect up to 5 gases |
| Measure range |
Customized |
| Resolution |
Customized |
| Response time |
≤60S (T90) |
| Precision |
≤±5%FS or ±10% (depends on the specific sensor) |
| Language |
Chinese/English |
| Automatically test and calibrate after power-on |
Including auto-test, calibration, auto-zero, maximum value (MAX), minimum value (MIN), STEL, TWA value |
| Unit |
PPM and mg/m³ can be switched and displayed by one key, and the concentration value is automatically converted by the system |
| Display |
Segment code LCD display |
| Calibration platform |
Modification, function testing and calibration operations can be performed on DKM-MicMeta docking station (optional) |
| Data record |
1000 sets data records and 100 sets events records |
| Alarm |
95dB buzzer (@30cm), vibration alarm and flashing red bar, as well as on-screen alarm status indication, alarm lock; Diagnostic alarms and battery undervoltage alarms, man down alarms, all sensor alarm value is settable |
| Battery |
3.7V rechargeable lithium battery, battery capacity 2300mA |
| Working hours |
Standby time 18h, charging time <6h |
| Wireless transmission |
Bluetooth transmission function (optional), Lora transmission function (optional) |
| Explosion-proof grade |
IECEx: Ex ia IIC T4 Ga, Ex ia I Ma
ATEX: II 1G Ex ia IIC T4 Ga, Ex ia I Ma
(EU regulations): 2004/108/EC(EMC), 94/9/EC(ATEX), CE |
| Protection grade |
IP66/IP68 |
| Working temperature |
-20°C~55°C |
| Humidity |
0-95%RH (non-condensing) |
| Environmental pressure |
86～106Kpa |
| Size |
113*60*32mm (length * width * height) |
| Weight |
200g (with lithium battery) |
Detectable Gases
Micmeta can detect 1-5 gases simultaneously. The device supports various gas detection configurations.
Applications
Chemical Industry
Environmental Monitoring
Healthcare Applications
Automotive Industry
Industrial Safety
Wastewater Treatment
Greenhouse Gas Monitoring
Oil and Gas Exploration
Food and Beverage Production
Mining and Mining Operations
Why Choose Safegas?
- R&D Team Experience: Over 25 years of expertise in gas detection technology
- Company Certification: ISO9001, ISO45001 certified manufacturer
- Product Certification: IECEx (the only one in China), ATEX, CE certified products
- Delivery: Fast 5-7 day delivery timeframe
- Production Capacity: Annual capacity of 80,000 units
- Service: Professional sales staff providing 24/7 customer support
Company Profile
Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production, and sales of gas detection equipment and systems. With 16 years of industry experience and "gas detector" as our core product, we provide complete production lines and solutions for various industries including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, and Household Appliances.
Product Line
Our comprehensive product range includes portable types, fixed types, and controller panels:
Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000
Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200
Controller panels: YT-1100H, YT-1600H
Certifications
Our products hold international certifications including IECEX, ATEX, CE, TEST Report, ISO 9001, and ISO 45001. These international explosion-proof certifications ensure product quality comparable to leading brands like Honeywell, MSA, and RAE, while offering competitive pricing.
Corporate Partners
We are proud to serve major international companies including Huawei, Coca-Cola, Samsung, Nestlé and others.
Frequently Asked Questions
Q1: What is a gas detector?
A1: A gas detector is an instrument for detecting gas leakage concentration, including portable gas detectors and fixed gas detectors.
Q2: What does a gas detector detect?
A2:
Combustible gases: Natural gas (methane), liquefied gas, coal gas, acetylene, pentane, alkynes, toluene, etc.
Toxic gases: Carbon monoxide, hydrogen sulfide, ammonia, chlorine, phosphine, sulfur dioxide, hydrogen chloride, chlorine dioxide and other toxic and harmful gases.
Q3: What is the ppm unit of the gas detector?
A3: ppm represents the volume concentration of the gas, meaning the volume of pollutants contained in one million volumes of air. For example, if the concentration of ammonia is 30ppm, it means that the volume of ammonia in one million volumes of air is 30.
