IECEx ATEX Certified Flammable Gas Monitor with Relay Output and IP66/IP68 Protection

Basic Information
Place of Origin: China
Brand Name: Safegas
Certification: ATEX IECEX
Model Number: SG100
Minimum Order Quantity: 1
Price: 220USD
Packaging Details: Carton
Delivery Time: 3-10 Days
Payment Terms: T/T
Supply Ability: 1000 PCS/Day
Detail Information
Gas Detected: EX Measure Range: 0-100%LEL
Resolution: 1%LEL Protection Gradee: IP66IP68
Explosion-proof Certification: IECEX, ATEX, CE Wireless(Optional): Support LORA Or 4G
Communication Mode: 4-20mA、RS485 1~5V,Optional Hart Working Temperature: –20℃~50℃
Relay: 3 Relays, Including Low/high/fault Alarm Relay(Optional) Size: 157.8x128.8x69.6mm
Weight: 1.0Kg

Product Description

Flammable Gas Monitor with Relay Output IECEx ATEX Certified Gas Detection System
Product Overview

The SG100 Fixed Gas Detector provides reliable continuous monitoring of EX and industrial environments with advanced alarm functionality. This cost-effective solution monitors toxic gases, oxygen, flammable substances, and VOC gases with IECEx and ATEX certified intrinsically safe explosion grade.

Technical Specifications
Parameter Specification
Detected Gas EX
Measurement Range 0-100%LEL
Installation Method Wall-mounted, piping type, flow-type
Output Signal 4-20mA, 1-5V, 2-10V, RS485, RS232, relays (optional)
Precision ≤±1%F.S. (to be specialized)
Zero Shift ≤±1%(F.S./year)
Display 4 digits Nixie tube display
Connection Mode G3/4 external thread explosion-proof flexible pipe
Thread Size Standard M20*1.5, 3/4NPT
Temperature Range -20℃~50℃
Humidity Range 10-95%RH (non-condensing)
Explosion-Proof Rating Ex db ⅡC T6/ Ex db ia IIC T6 Gb/ Ex da db ia IIC T6 Gb
Protection Degree IP66/IP68
Material Sensor housing: aluminum alloy or 316 stainless steel
Power Supply 12-24V DC
Dimensions 158*129*70mm
Weight ≤1kg
Certifications CE, CNEX explosion proof certificate, CMC, IECEx, ATEX
Warranty 12 months

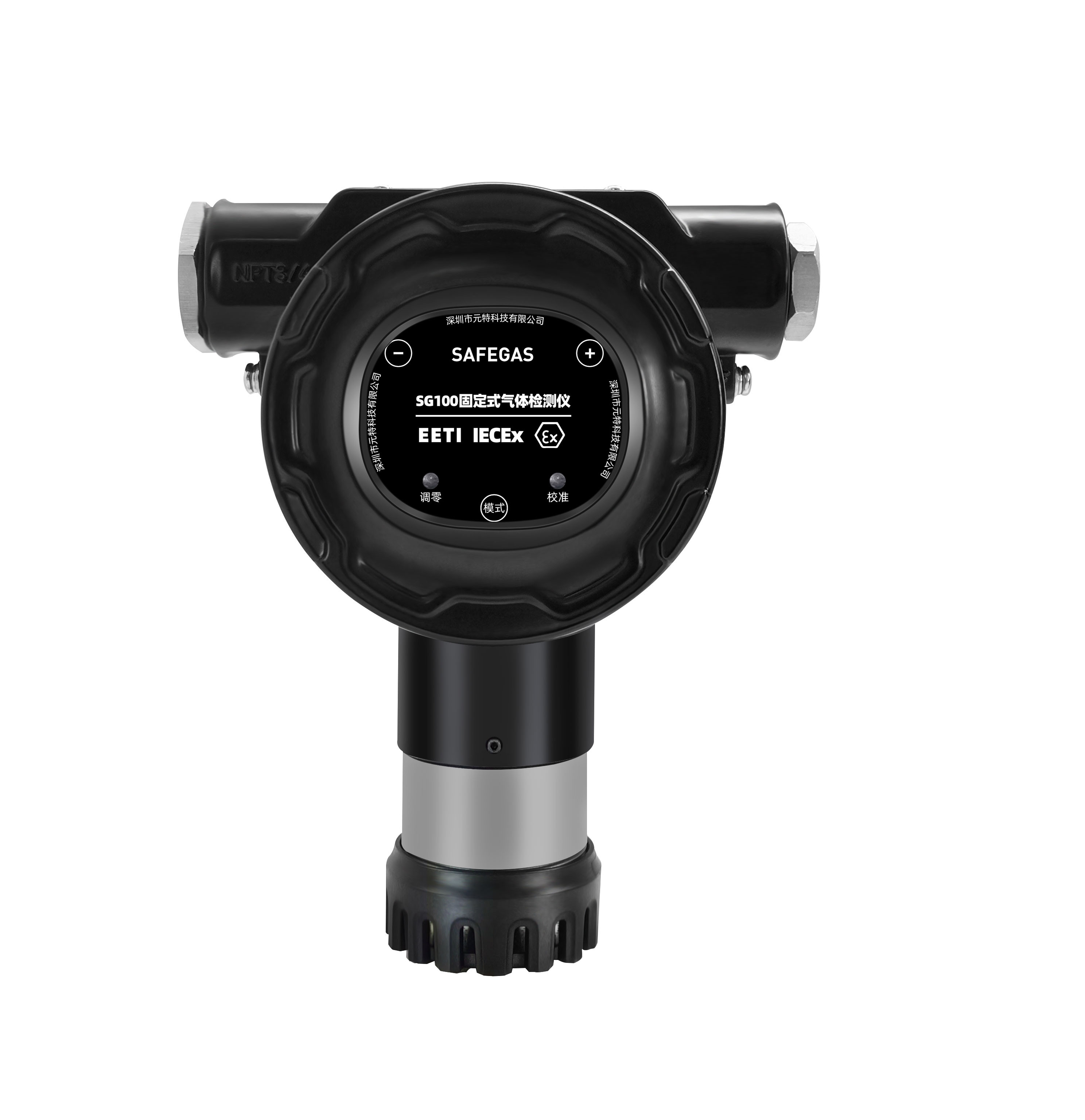

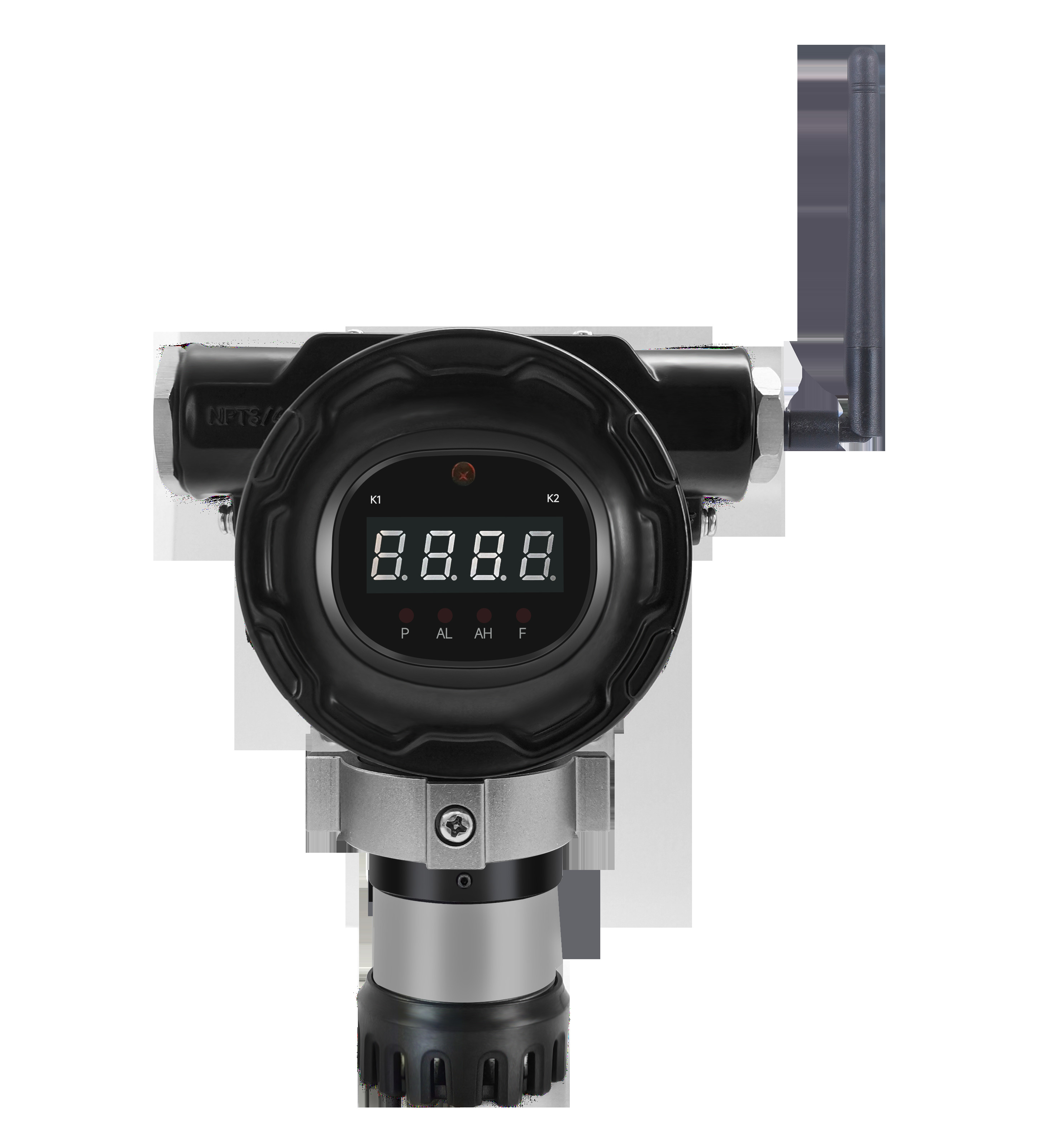

Product Gallery
Key Product Advantages
Robust Construction

IP66/IP68 water and dust resistant with standard splash guard for outdoor installation

Smart Technology

Intelligent plug-and-play sensor module with PC software calibration support

Compact Design

Lightweight (1kg) with standard mounting bracket for easy installation

Flexible Outputs

Standard 4-20mA analog and RS485 modbus with optional Hart output

Advanced Alarms

Three relays for low/high/fault alarm configuration

Dual Control

Magnetic and remote control options for flexible setting

Manufacturer Profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production, and sales of gas detection equipment and systems. With 16 years of industry experience, we provide comprehensive solutions for various sectors including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.

As a professional gas detector manufacturer, we maintain complete control over the entire process from design and R&D to production and sales, ensuring consistent product quality.

Company Achievements
  • 100+ independent intellectual property patents
  • Complete industrial production line with skilled technical workers
  • 7*24h professional customer service
  • R&D department with 25 years of gas detection industry experience
  • ISO9001 and ISO14001 certified quality management systems

Our products hold IECEx and ATEX explosion-proof certifications, making them suitable for hazardous areas including mines, underground facilities, and oil plants. We are the first and currently the only manufacturer in China to obtain these certifications.

We utilize imported core components from leading brands, ensuring detection accuracy, product stability, and extended service life to protect customer safety.

Our efficient supply chain ensures rapid delivery: 3 days for orders under 10 units and 15 days for orders exceeding 100 units under normal circumstances.
