Name: Diffusion Type Nitrogen Gas Detector IP68 Dustproof Industrial Oxygen Deficiency Alarm Device
Brand: Shenzhen YuanTe Technology Co., Ltd. (Safegas)
SKU: Minimeta
Price: 1,037.00 USD
Availability: InStock

Detail Information

Resolution:	0.01ppm	Working Air Pressure:	86 To 106kpa
Display:	Gas Name, Battery Power, Concentration Unit, Measured Value	Gas Detected:	N2
Measure Range:	0-99.99%VOL	Weight (With Clip):	125g
Principle:	Electrochemical Principle	Explosion-proof Certification:	IECEx, ATEX
Dimensions:	90mm60mm33mm (lengthwidththickness)	Power Supply Mode::	3.6V Dry Battery (non-rechargeable And Replaceable)
Detection Principle:	Diffusion	Alarm Type:	Low Alarm, High Alarm, STEL, TWA, Low Battery Optional Calibration Due And Bump Test Due
Response Time(T90):	15 To 30s	Accuracy:	≤±2-5%FS
Working Temperature:	-20℃ To 55℃	Working Humidity (non-condensing):	0-95%RH
Alarm Mode:	Sound, Light, Vibration Alarm	Protection Class:	IP66/68
Highlight:	Diffusion Type Nitrogen Gas Detector , IP68 Dustproof Oxygen Deficiency Alarm , Industrial Single Gas Detector

Product Description

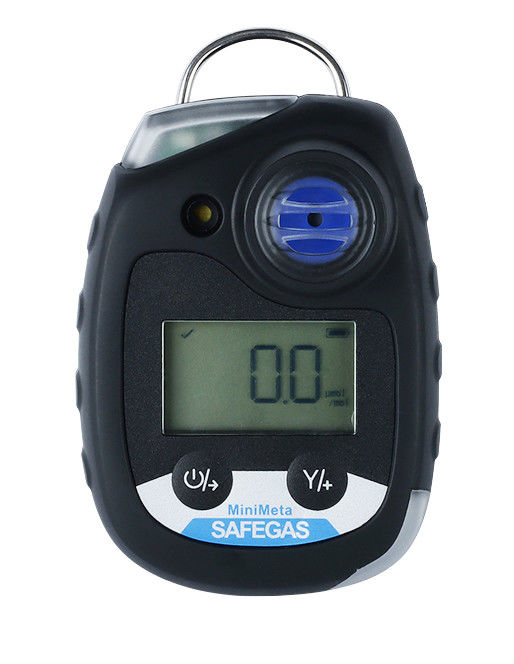

Diffusion Type Nitrogen Gas Detector IP68 Dustproof Industrial Oxygen Deficiency Alarm Device

Portable N2 Gas Detector IP68 Waterproof Industrial Usage

Product Overview

Minimeta Portable N2 Gas Detector is a high-precision portable gas detector for nitrogen detection using diffusion detection principle, designed for industrial safety applications.

MiniMeta is an IECEX/ATEX/EMC certified single-gas detector that can detect hundreds of user-selected toxic gases. User-friendly and easy to operate, it features replaceable battery and sensor for long-term protection. Designed to offer a low-cost, long-term ownership gas monitoring system.

Key Features

IP68 water- and dust-resistant case
Low power consumption with 2 years standby time - no battery charging or calibration needed
Optional single/multi unit docking station for daily bump test and calibration
Event and data logging function
Self-test function for improved safety through automatic self-testing
Small size, lightweight design with back clip for easy carrying
95db@30cm buzzer alarm, 2 high-bright red LED light alarm and vibration alarm
Real time value, TWA, STEL, MAX, MIN multiple numerical display

Applications

Food nitrogen filling packaging workshop air monitoring
Chemical nitrogen purging pipeline leakage detection
Warehouse inert gas protection oxygen lack warning
Pharmaceutical production closed workshop gas testing
Welding nitrogen shielding working area safety inspection
Cryogenic nitrogen storage site concentration monitoring
And more industrial applications

Technical Parameters

Parameter	Specification
Detect gas	N2
Sensor type	Electrochemical
Sampling method	Diffusion
Measure range	0-99.99%vol
Resolution	0.01%vol
Precision	≤± 3% F.S.
Response Time	≤30s(T90)
Unit	PPM %vol lel
Display	Gas name, concentration unit, measured value, electricity
Alarm mode	Sound, light, vibration alarm, high and low alarm values can be set by user
Alarm type	Low alarm, high alarm, STEL, TWA, low battery
Display	LCD Display
Operating language	Chinese/English
Size	906033mm
Weight	125g
Working Temperature	-20ºC~50ºC
Working Humidity	0-95%RH
Working air pressure	86~106kpa

Company Advantages

R&D team experience: over 25 years
Company certifications: ISO9001, ISO45001
Product certifications: IECEx, ATEX, CE
Delivery time: 5-7 days
Annual capacity: 80,000 units
Professional 7*24 hours customer service

Manufacturer Profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production, and sales of gas detection equipment and systems. With 16 years of industry experience, we provide comprehensive solutions for various sectors including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.

Product Line

Our product portfolio includes portable detectors, fixed systems, controller panels and particle counters:

Portable: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000, SKY1000, MAXMETA
Fixed: YT-95H, YT-98H, YT-96H, SG100, SG200
Controllers: YT-1100H, YT-1600H, YT-1800H
Particle Counter: AQD5000, SKY6000-PM, SKY2000-PM
