Name: IECEx ATEX Certified NOX Gas Detector with IP66/68 Waterproof Protection and 0-500PPM Range for Industrial Safety
Brand: Shenzhen YuanTe Technology Co., Ltd. (Safegas)
SKU: Minimeta
Price: 1,037.00 USD
Availability: InStock

Detail Information

Display:	Real Time Vale, Min, Max, Twa, Stel	Gas Detected:	NOX
Measure Range:	0-500PPM	Resolution:	1ppm
Working Air Pressure:	86 To 106kpa	Weight (With Clip):	125g
Principle:	Electrochemical Principle	Explosion-proof Certification:	IECEx, ATEX
Dimensions:	90mm60mm33mm (lengthwidththickness)	Power Supply Mode::	3.6V Dry Battery (non-rechargeable And Replaceable)
Detection Principle:	Diffusion	Alarm Type:	Low Alarm, High Alarm, STEL, TWA, Low Battery Optional Calibration Due And Bump Test Due
Response Time(T90):	15 To 30s	Accuracy:	≤±2-5%FS
Working Temperature:	-20℃ To 55℃	Working Humidity (non-condensing):	0-95%RH
Alarm Mode:	Sound, Light, Vibration Alarm	Protection Class:	IP66/68

Product Description

Certified Intrinsically Safe Gas Monitor For Nitrogen Oxides Leakage Environmental Emission Detection NOX Gas Detector

Product Overview

Portable NOX Gas Detector IP68 Waterproof Industrial Usage

Minimeta Portable NOX Gas Detector is a high-precision portable gas detector for nitrogen oxides detection using diffusion detection principle, designed for industrial safety applications.

MiniMeta is an IECEX/ATEX/EMC certified single-gas detector that can detect hundreds of user-selected toxic gases. User-friendly and easy to operate, it features replaceable battery and sensor for long-term protection. Designed to offer a low-cost, long-term ownership gas monitoring system.

Key Features

IP68 water- and dust-resistant case
Low power consumption with 2 years standby time - no battery charging or calibration needed
Optional single/multi unit docking station for daily bump test and calibration
Event and data logging function
Self-test function for improved safety through automatic self-testing
Small size, lightweight design with back clip for easy carrying
95db@30cm buzzer alarm, 2 high-bright red LED light alarm and vibration alarm
Real time value, TWA, STEL, MAX, MIN multiple numerical display

Applications

Thermal power plant boiler flue gas emission monitoring
Industrial waste gas environmental protection sampling inspection
Automobile manufacturing exhaust gas detection testing
Chemical nitric acid production workshop toxic gas warning
Waste incineration plant tail gas nitrogen oxides monitoring
Tunnel traffic vehicle exhaust safety concentration inspection
And more...

Product Images

Technical Parameters

Parameter	Specification
Detect gas	NOX
Sensor type	Electrochemical
Sampling method	Diffusion
Measure range	0-500PPM
Resolution	1PPM
Precision	≤± 3% F.S.
Response Time	≤30s(T90)
Unit	PPM %vol lel
Display	Gas name, concentration unit, measured value, electricity
Alarm mode	Sound, light, vibration alarm, high and low alarm values can be set by user
Alarm type	Low alarm, high alarm, STEL, TWA, low battery
Display	LCD Display
Operating language	Chinese/English
Size	906033mm
Weight	125g
Working Temperature	-20ºC~50ºC
Working Humidity	0-95%RH
Working air pressure	86~106kpa

Company Advantages

R&D team experience: over 25 years
Company certifications: ISO9001, ISO45001
Product certifications: IECEx, ATEX, CE
Delivery time: 5-7 days
Annual capacity: 80,000 units
Professional 7*24 hours customer service

Manufacturer Profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production, and sales of gas detection equipment and systems. With 16 years of industry experience, we provide comprehensive solutions for various sectors including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.

Product Line

Our product portfolio includes portable detectors, fixed systems, controller panels and particle counters:

Portable: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000, SKY1000, MAXMETA
Fixed: YT-95H, YT-98H, YT-96H, SG100, SG200
Controllers: YT-1100H, YT-1600H, YT-1800H
Particle Counter: AQD5000, SKY6000-PM, SKY2000-PM

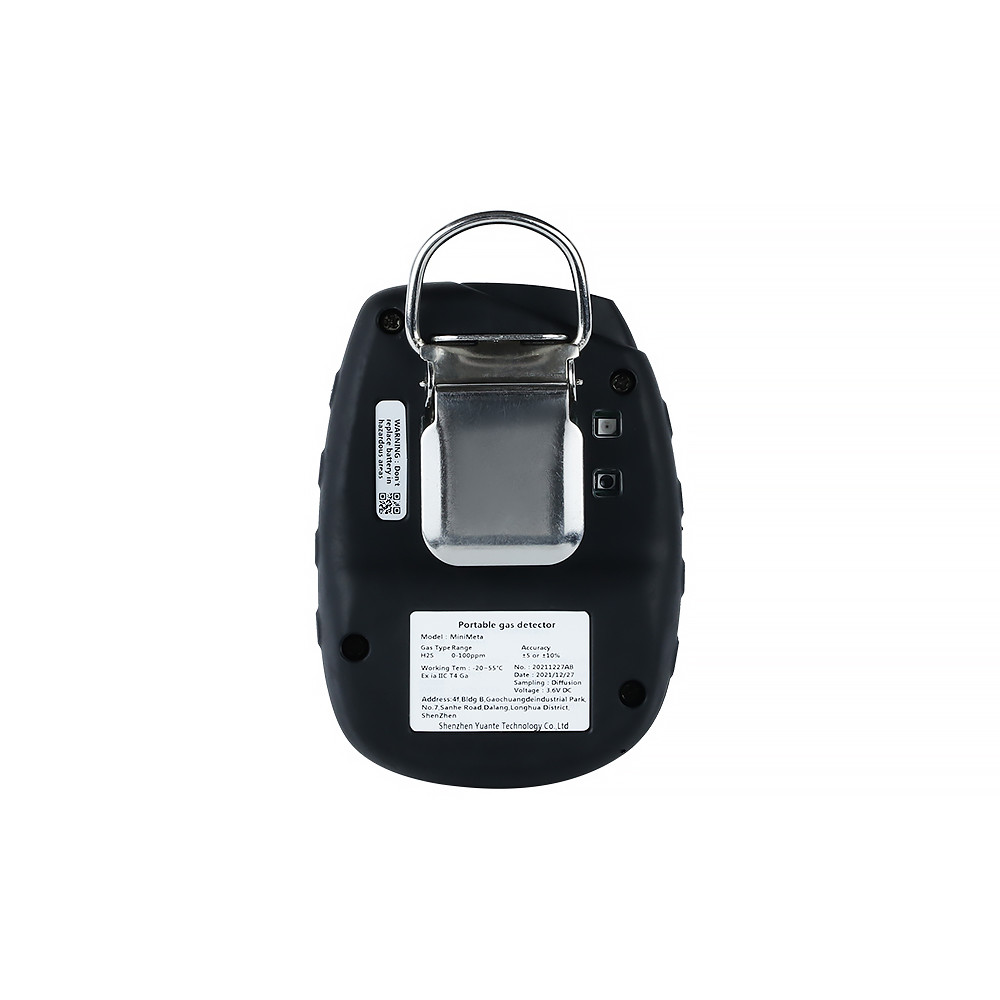

Additional Product Images
