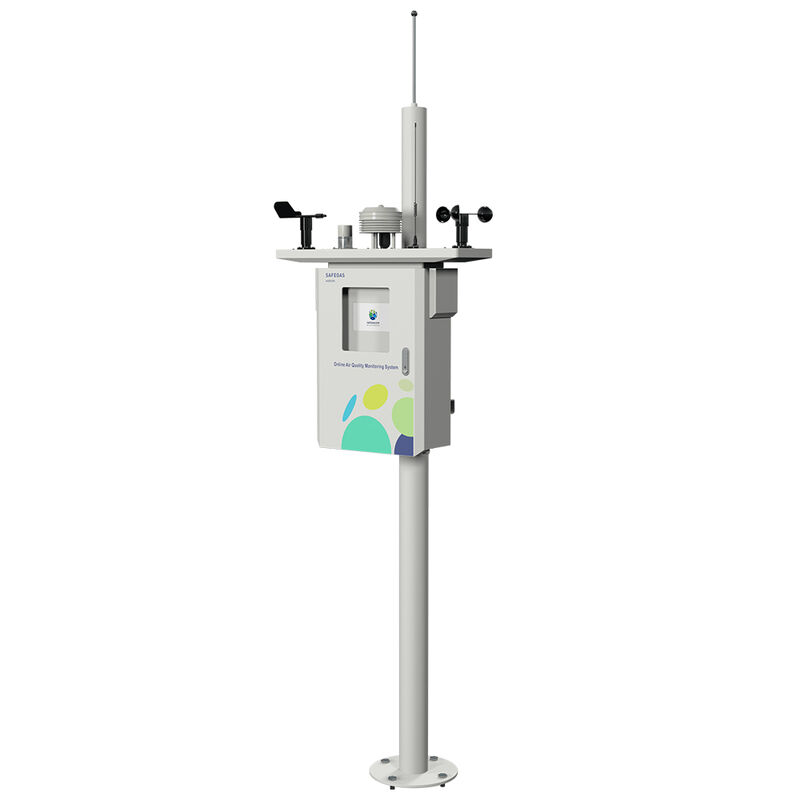

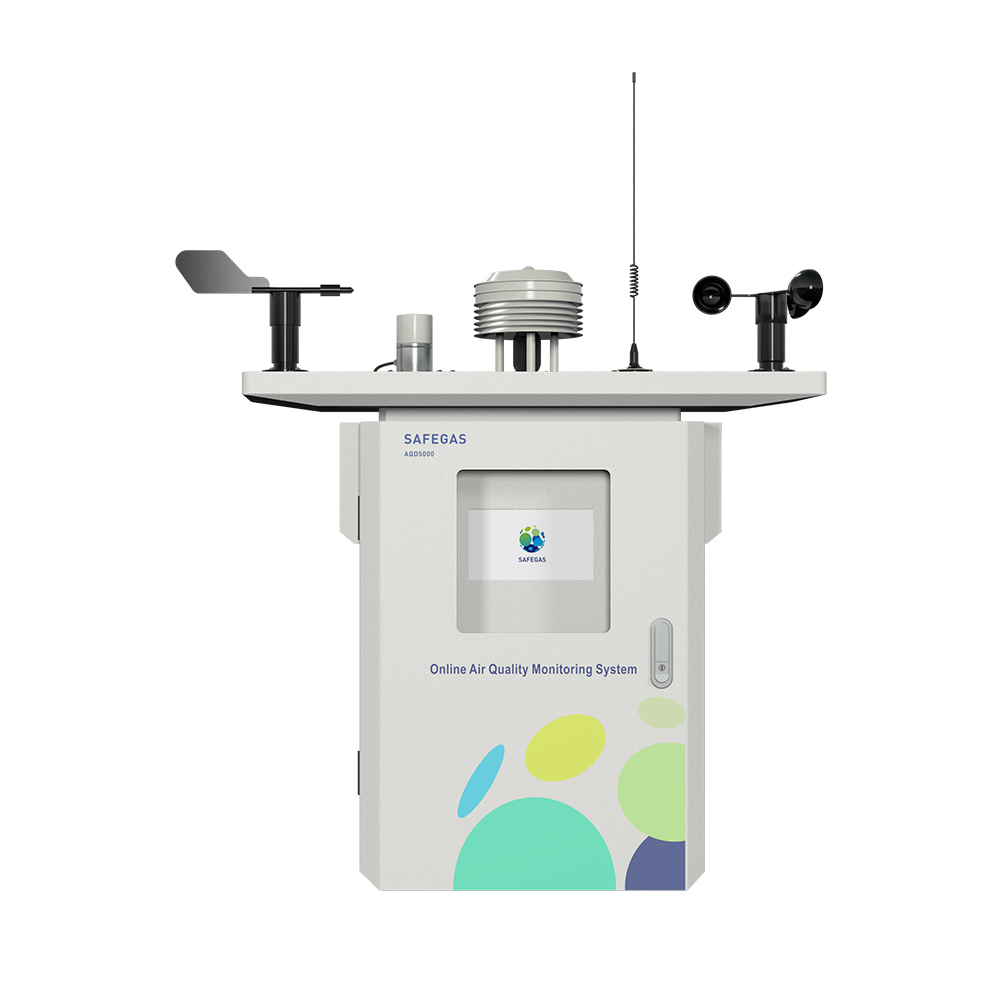

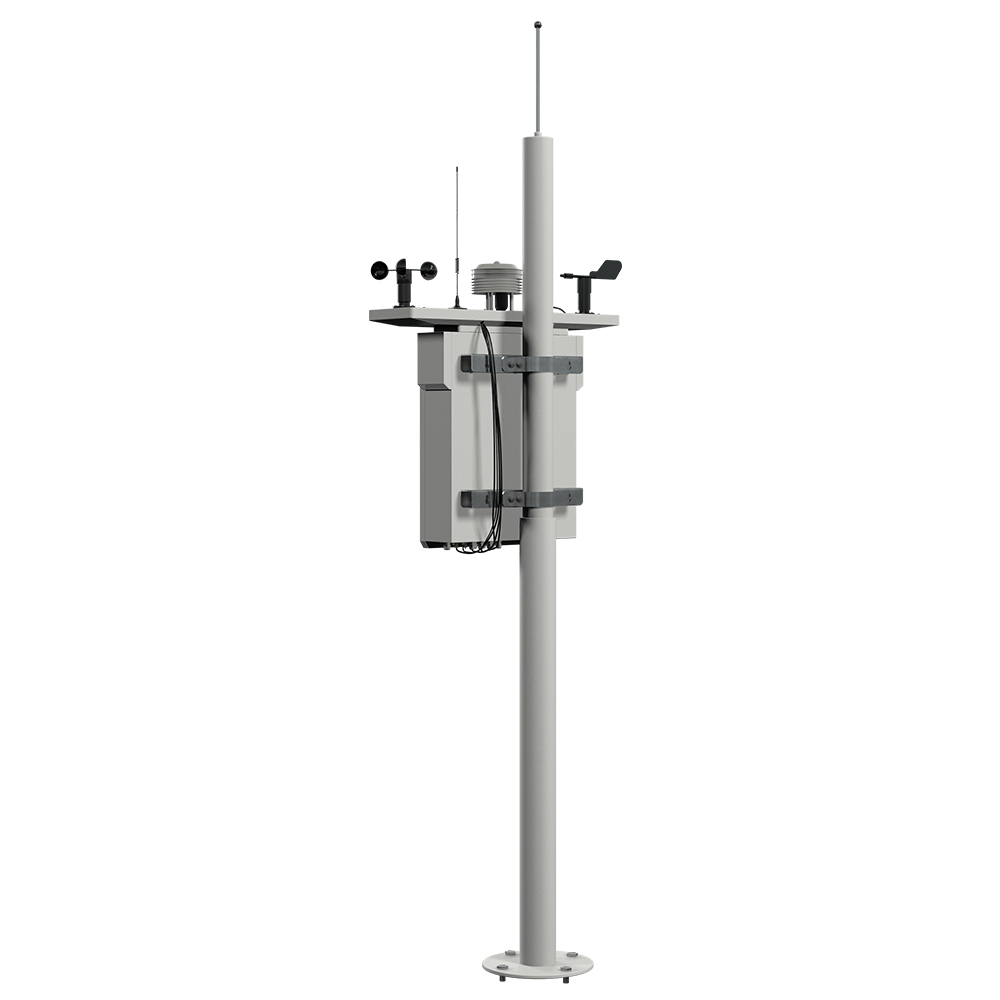

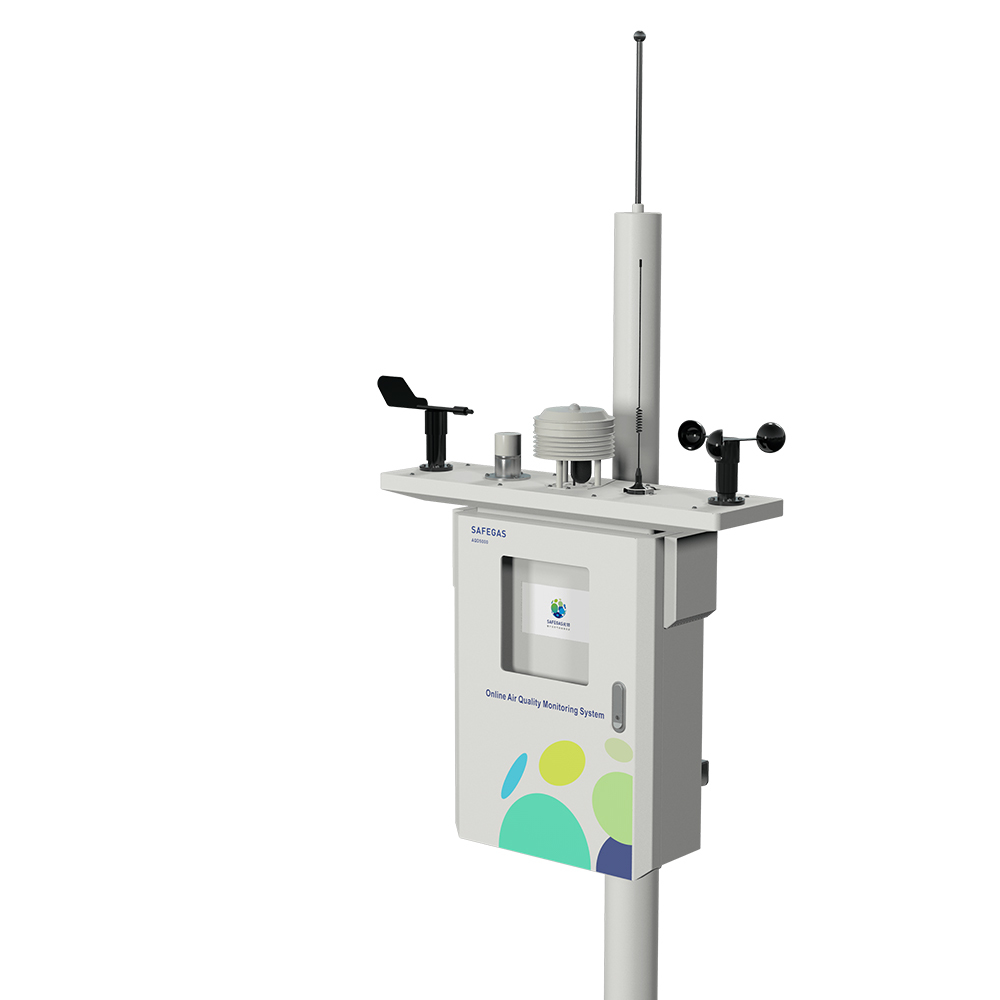

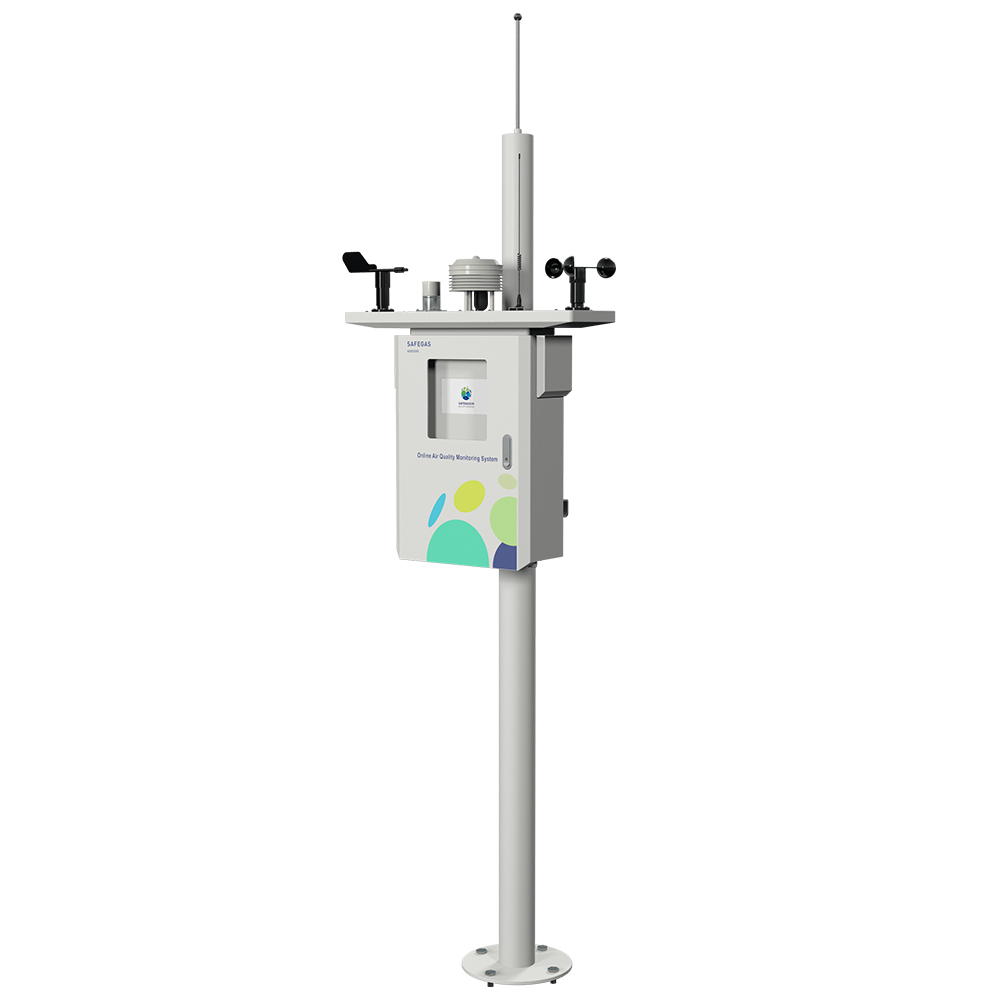

AQD5000 Ambient Air Quality Station with ppb Gas Detection, PM2.5/PM10 Measurement, and Weather Data Collection

The AQD5000 Ambient Air Quality Monitoring System is a comprehensive 7-in-1 monitoring solution combining gas detection, particulate matter measurement, and meteorological data collection in a single outdoor-rated system.

This cost-effective intelligent air quality monitor is designed for urban and industrial deployment. It synchronously detects up to 9 ppb-level gas pollutants, PM2.5/PM10 and full meteorological indicators, equipped with a 7-inch color touch screen, outdoor dust/rainproof housing and dual flowmeter.

• All-round parameter monitoring: 9 gaseous pollutants + PM2.5/PM10 + complete meteorological indicators
• High-precision detection: Imported sensors support ppb-level gas measurement
• On-site interaction: 7-inch color touch screen for intuitive operation
• Harsh environment adaptability: Dustproof & rainproof outdoor protective shell
• Accurate sampling: Dual flowmeter design stabilizes internal air pressure
• Stable continuous operation: Fault self-diagnosis and automatic reboot
• Long-term data retention: ≥2 years built-in local storage
• Flexible signal linkage: Standard RS485, optional wireless and remote accessories
• Low operational cost: Simple daily maintenance with replaceable filters
• Rich expandable configurations: Solar power, public LED screen, meteorological sensors and cameras optional

• Urban ambient air monitoring
• Hierarchical grid environmental supervision
• Environment-sensitive zones (schools, medical institutions, residential communities)
• Industrial zone supervision (petrochemical bases, thermal power plants, landfills)
• Traffic scenario monitoring (roads, airports, ports, railways, tunnels)
• Public ecological spaces (parks, woodland reserves, agricultural research sites)
• Pollutant emission supervision
• Environmental impact assessment

It supports synchronous sampling of maximum 9 gas indicators, matched with PM2.5, PM10 and full meteorological parameters including temperature, humidity, wind condition, air pressure, illuminance and noise.

Trace detection reaches ppb ultra-low level; representative pollutants such as SO₂, NO₂ and O₃ own 1 ppb minimum resolution.

Absolutely yes. Equipped with dedicated outdoor protective housing, the device integrates dustproof and rainproof performance to adapt to harsh outdoor climates.

RS485 wired output acts as the default transmission mode. Extended options contain 4G DTU for cloud and environmental protection bureau data uploading, 3.5km long-distance LoRa wireless transmission, plus video cameras for synchronous image collection.

Sure. Optional photovoltaic power modules enable autonomous operation for field locations without municipal power supply access.

The built-in storage module saves no less than two years of uninterrupted monitoring data locally.

Daily upkeep is simple, only periodic filter element replacement is required. The optional CCEP-qualified activated carbon pipe can further stabilize detection performance.

Note: Sensors (gas, PM, meteorological) are integrated into the main box. Please specify required parameters when ordering.
