| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | Safegas |
| Certification: | CCEP |
| Model Number: | AQD5000 |
| Minimum Order Quantity: | 1 Pcs |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 3-5 work days |
| Payment Terms: | Western Union, T/T,Credit card |
| Supply Ability: | 100 pieces/week |
| Product Model: | AQD5000 | Sampling Mode: | Pump-sunction |
|---|---|---|---|
| Data Logging: | Standard 32GB SD Card | Shell Material: | Aluminium Die Casting |
| Installation Mode: | Wall-mounted | Weight: | 18 KG |
| Size: | 478*581*163 Mm | Signal Transmission: | Standard RS485 Signal Output (optional For Wireless) |
| High Light: | OEM Air Quality Monitoring System,CCEP Air Quality Monitoring System |
||

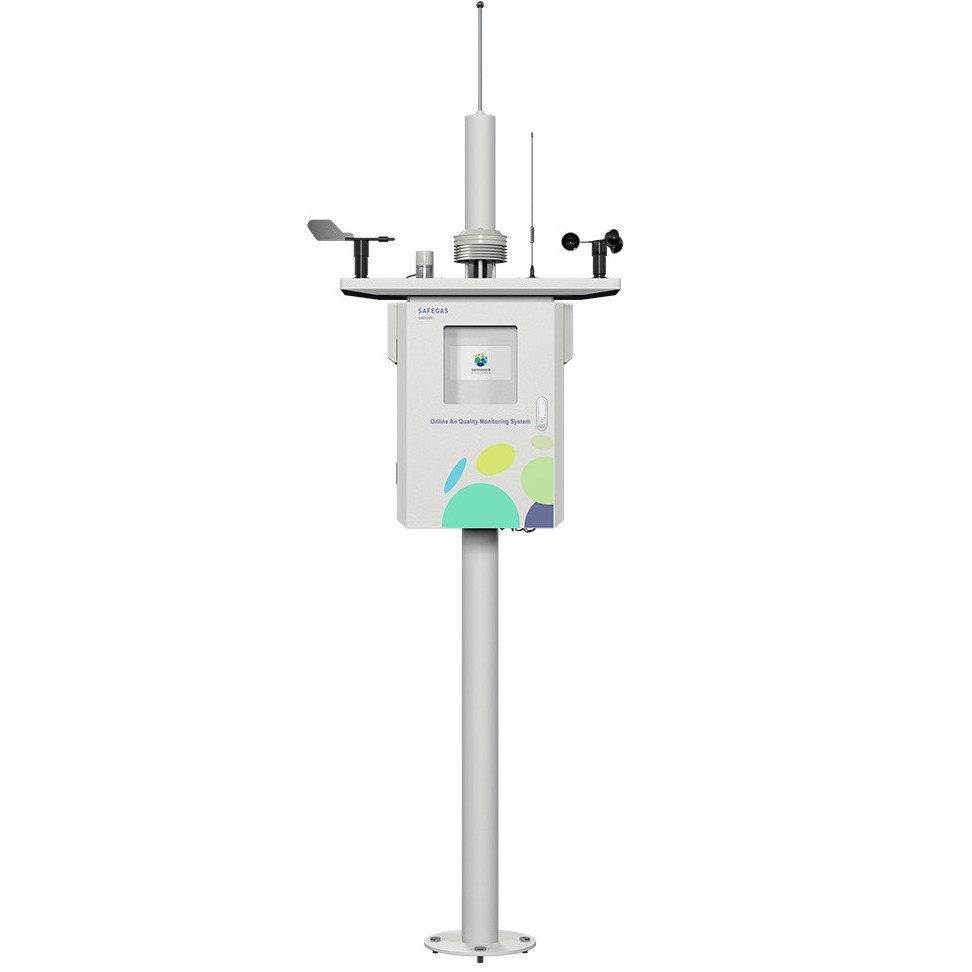

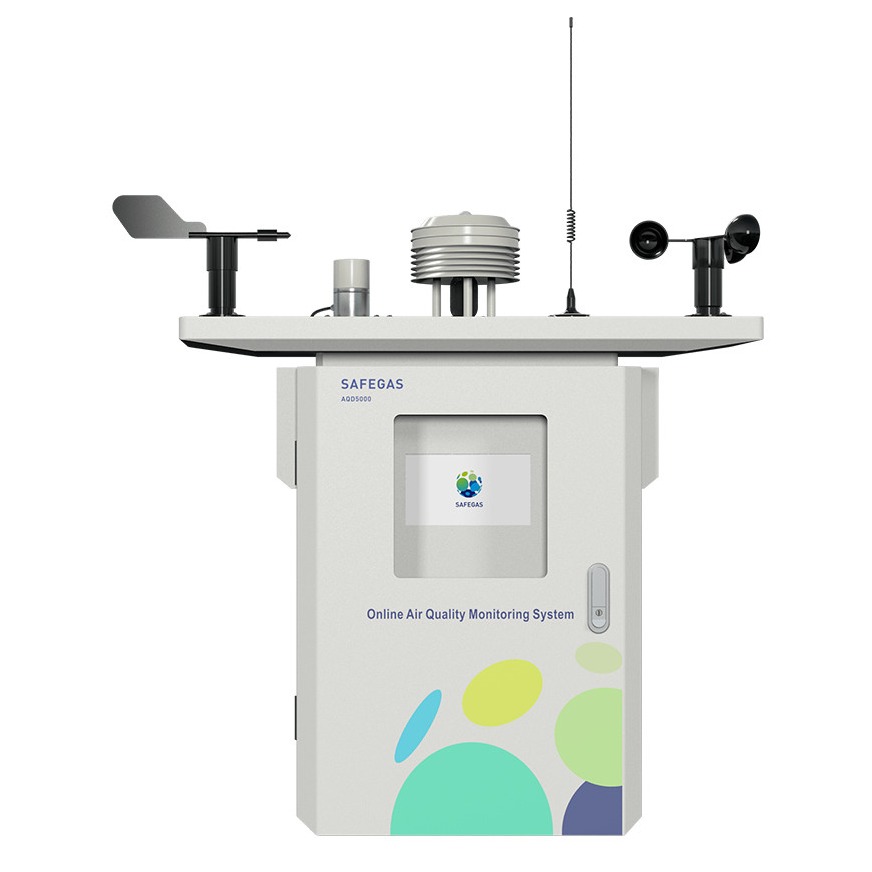

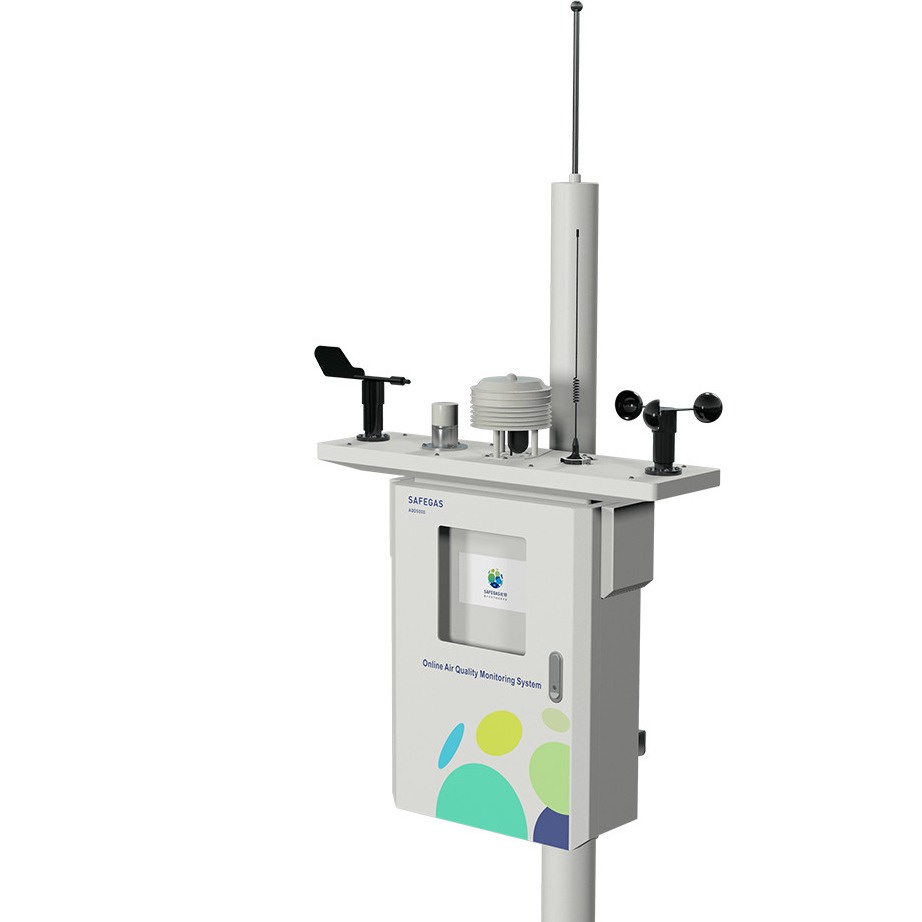

Continuously Automatic Operation Micro Air Quality Monitoring System AQD5000
Product overview
The AQD5000 air quality monitoring system is widely used for urban air quality monitoring and industrial air emission pollution monitoring. It can simultaneously measure various environmental pollution gases, particulate matter, and meteorological parameters in the air. The system supports RS485 signal transmission and has data storage and export functions. Through wireless collection terminals, measurement data can be transmitted in real-time to the cloud platform and remotely controlled through the cloud platform.
Specification
| Gas parameters (can be combined freely) | Measurement parameters: ozone, sulfur dioxide, nitrogen dioxide, formaldehyde, carbon monoxide, TVOC, etc.; Measuring range: 0-1000ppb, 0-1000ppb, 0-1000ppb, 0-5ppm, 0-20ppm, 0-5ppm; Resolution: 1 ppb, 1 ppb, 1 ppb, 0.01ppm , 0.001ppm, 0.001ppm; Measuring principle: electrochemical, infrared, PID photo ionization and other principles Detection accuracy: ±3%.S Response time: ≤30S |
| Particle parameters (optional) | Measurement parameters: PM2.5, PM10, PM0.3, PM1.0, PM10.0, TSP, etc. Measuring range: 0-1000ug/m3, 0-5000ug/m3; Resolution: 1ug/m3, 1ug/m3; Measuring principle: laser principle Response time: ≤30S |
| Meteorological parameters (optional) | Measurement parameters: temperature, humidity, wind speed, wind direction, air pressure, light intensity, noise, etc.; Measuring range: -40°C~+120°C, 0~99%RH, 0~20m/s, 8 directions, 0~120Kpa, 0~200,000 Lux, 30dB~130dB; Resolution: 0.1℃, 1%RH, 0.1 m/s, 1 piece, 1 Kpa, 1Lux, 1dB; Measuring principle: thermocouple, mechanical and other principles |
| Output signal | RS485,relay,4G DTU(optional),LORA(optional),etc |
| Sampling method | Pump suction |
| Pump flow rate | 0.5L/min (gas); 1.8L/min (particles/dust) |
| Display | 7-inch color touch screen display |
| Power supply | 220VAC(AC),0.1A |
| Working current | <100Ma(Max) |
| Temperature | –10℃～55℃ |
| Humidity | 0-95%RH (non-condensing) |
| Alarm type | Sound and light alarm (optional) |
| Product shell | Anti-corrosion, sun protection, anti-collision |
| Product size | rainproof beams, and mounting brackets) |
| Installation way | Ceiling, wall-mounted |
| Product weight | 18kg |
| Product composition | This equipment is composed of a pre-processing system and a monitoring factor analysis system |
| Oil water dust filter | Glass fiber material, PE material, different monitoring factors correspond to different materials |
| Warranty | 12 months |
| Product casing | Carton |
Product details
Product advantages
Multi module and gas measurement
It can simultaneously monitor 1-9 gas parameters, and select measurement modules such as particle parameters and meteorological parameters according to user needs
High protection against hazardous environments
Equipped with professional outdoor shielding, it can perfectly prevent dust and rain, and continuously monitor and work stably in high or low temperature environments
Long term data collection
Standard storage function, capable of storing monitoring data for at least two years
Multifunctional use
Continuous operation 7 × 24 hours, with real-time data upload, fault self-diagnosis, automatic restart and other functions
Standard transmission
Standard output RS485 signal, a set of relay signals
Multiple Options
