Name: Fixed SO2 Gas Detector with Electrochemical Sensor for Continuous Monitoring and Explosion Proof Safety
Brand: Shenzhen YuanTe Technology Co., Ltd. (Safegas)
SKU: YT-95H
Price: 1,037.00 USD
Availability: InStock

Detail Information

Gas Detected:	SO2	Range:	0-500PPM
Resolusion:	1PPM	Sensor Type:	Electrochemical
H.S Code:	9027100090	Dimensions:	180mm×150mm×90mm
Weight:	Less Than 1.6kg	Explosion-proof Grade:	Ex D IIC T6 Gb
Display:	LCD	Repeatability:	≤±1%
Zero Shift（F.S./year）:	≤±1%

Product Description

Continuous Online Monitoring Module For Industrial SO2 Sulfur Dioxide Flue Gas Emission Detection

Product Overview

YT-95H-A Fixed SO2 Hydrogen Chloride Gas Detector

High-precision Fixed SO2 Gas Detector with diffusion detection principle, designed for industrial safety applications

YT-95H/YT-95H-A series is a cost effective explosion proof transmitter for the detection of flammable gases and toxic gases. A 3 wire 4 to 20 mA analog output with relays and RS485 Modbus protocol, makes it compatible with most control systems. Third party products such as horns, warning lights and fans are compatible with our components and integrated by us into the system. With optional wireless function, operator can view data on laptop, mobile phone or cloud system remotely.

Key Features

Online monitoring with sound/light alarm (Optional) - 24h continuously monitoring, data will real-time display. High/low alarm with sound and light, sound >90dB, alarm point is settable
Non-contacted control the device - With infrared ray controller, which can remote control alarm point settings, zero calibration, and address modification
Variety of installation methods - 4-20mA current signal output, compatible with different kinds of controllers. RS485 MODBUS signal output. Relay signal output, to turn on/off ventilator, generators or other external devices
Data transmission - Can be installed with PC software, to transmit the data to computer, workers can remote monitor the data. Wireless data transmission including Lora, 4G (Optional)
High quality case - Die-cast aluminum case, strong and durable; Stainless steel case is optional, meeting the demand of different situations. IP65 protection degree, water-proof, dust-proof, explosion-proof

Technical Specifications

Parameter	Details
Gas Detected	SO2
Detection Principle	Electrochemical
Measure range	Specified according to application
Resolution	Specified according to application
Accuracy	≤±2-5%FS (depending on the specific sensor)
Response time(T90)	15-30s (depending on the specific sensor)
Repeatability	≤±1%
Zero shift	≤±1% (F.S./year)
Display	4 digits Nixie tube display
Connection mode	G1/2 external thread explosion-proof flexible pipe
Thread Size	M45*2mm
Temperature	-20℃ ~ 50℃
Humidity	0-95%RH (no condensation)
Material Case	Die-cast aluminum, Sensor housing: aluminum alloy or 316 stainless steel
Power	12-36V DC
Dimensions	180×150×90mm
Weight	≤1.6kg
Explosion-proof grade	Ex d IIC T6 Gb

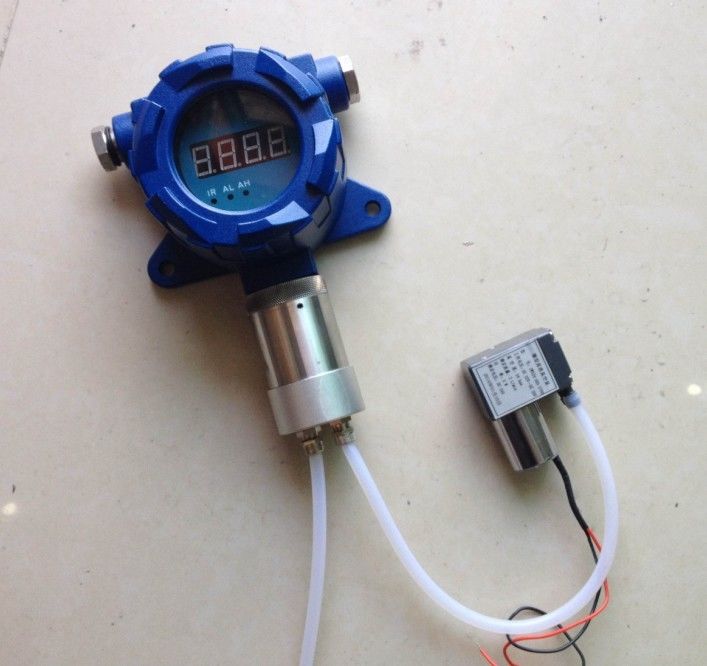

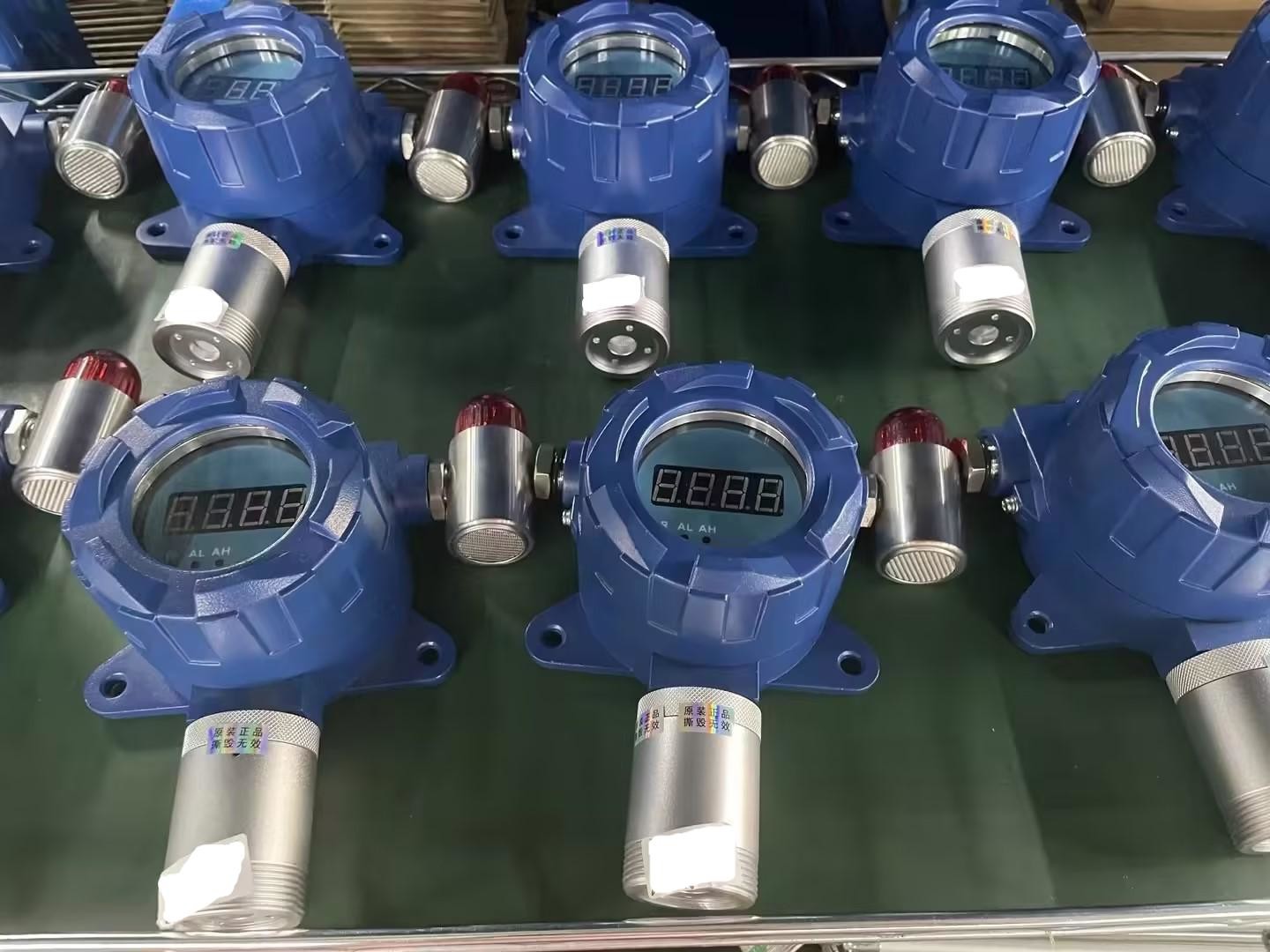

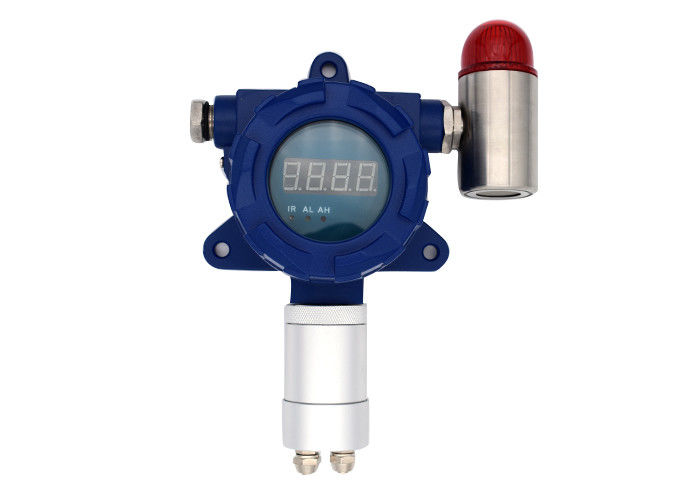

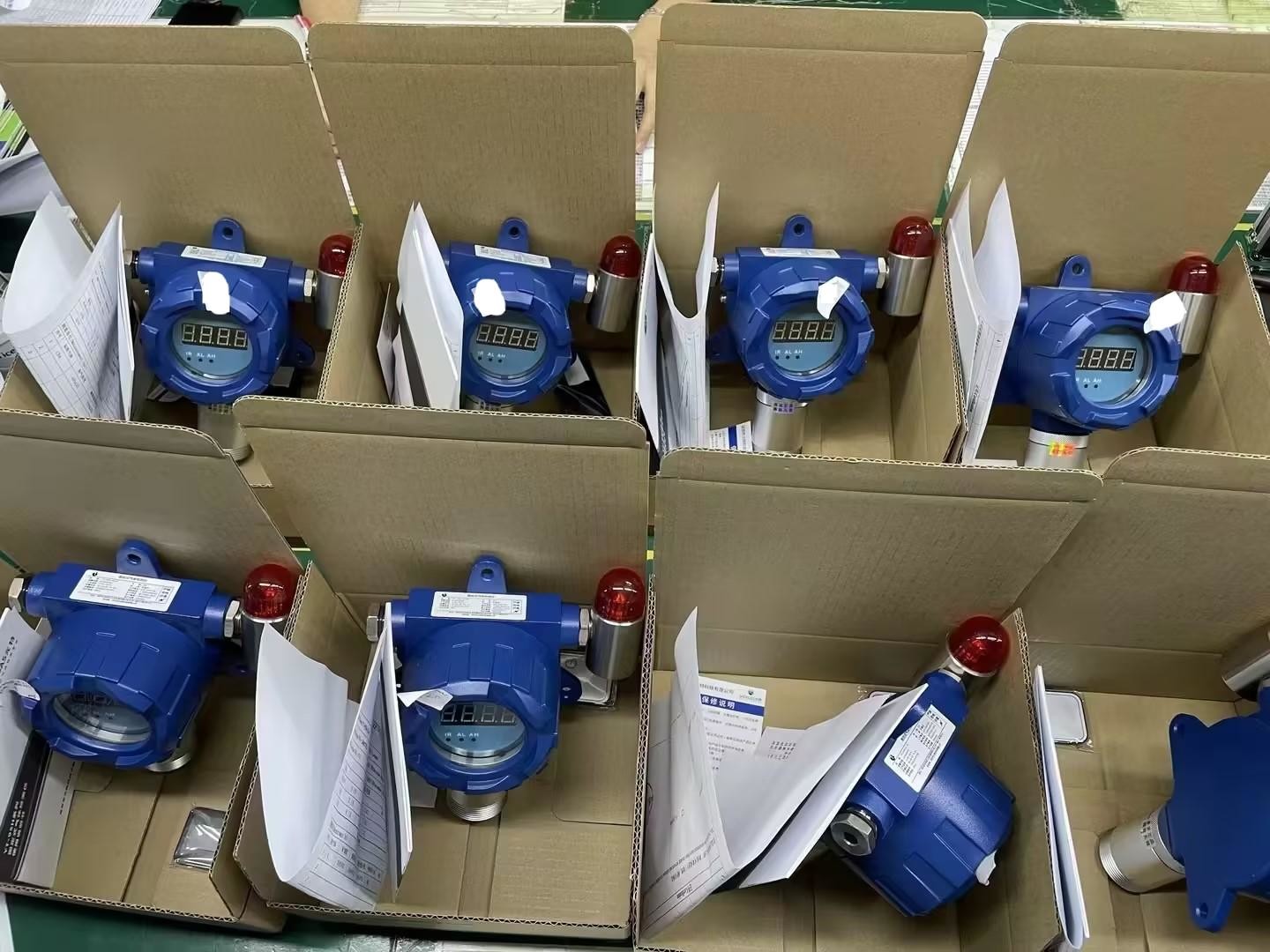

Product Images

Manufacturer Profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production, and sales of gas detection equipment and systems. With 16 years of industry experience, we provide comprehensive solutions for various sectors including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.

Product Line

Portable Detectors

Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000, SKY1000, MAXMETA

Fixed Systems

YT-95H, YT-98H, YT-96H, SG100, SG200

Controllers

YT-1100H, YT-1600H, YT-1800H

Particle Counters

AQD5000, SKY6000-PM, SKY2000-PM

Tag:

Place of Origin:	China
Brand Name:	SAFEGAS
Certification:	CNEX CE ISO9001, ISO14001, ISO45001
Model Number:	YT-95H

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	3 work days
Payment Terms:	T/T,Western Union
Supply Ability:	1000 pieces per month
