Infrared Principle Continuous Monitoring Module For CH4 Methane 0-5000PPM Concentration Online Detection
Product Overview
YT-95H-A Fixed CH4 Hydrogen Chloride Gas Detector
High-precision Fixed CH4 Gas Detector with diffusion detection principle, designed for industrial safety applications
YT-95H/YT-95H-A series is a cost effective explosion proof transmitter for the detection of flammable gases and toxic gases. A 3 wire 4 to 20 mA analog output with relays and RS485 Modbus protocol, makes it compatible with most control systems. Third party products such as horns, warning lights and fans are compatible with our components and integrated by us into the system. With optional wireless function, operator can view data on laptop, mobile phone or cloud system remotely.
Key Features
- Online monitoring with sound/light alarm (Optional) - 24h continuously monitoring, data will real-time display. High/low alarm with sound and light, sound >90dB, alarm point is settable
- Non-contacted control the device - With infrared ray controller, which can remote control alarm point settings, zero calibration, and address modification
- Variety of installation methods - 4-20mA current signal output, compatible with different kinds of controllers. RS485 MODBUS signal output. Relay signal output, to turn on/off ventilator, generators or other external devices
- Data transmission - Can be installed with PC software, to transmit the data to computer, workers can remote monitor the data. Wireless data transmission including Lora, 4G (Optional)
- High quality case - Die-cast aluminum case, strong and durable; Stainless steel case is optional, meeting the demand of different situations. IP65 protection degree, water-proof, dust-proof, explosion-proof
Technical Specifications
| Parameter |
Details |
| Gas Detected |
CH4 |
| Detection Principle |
Infrared Ray |
| Measure Range |
Specified according to application |
| Resolution |
Specified according to application |
| Accuracy |
≤±2-5%FS (depending on the specific sensor) |
| Response Time (T90) |
15-30s (depending on the specific sensor) |
| Repeatability |
≤±1% |
| Zero Shift |
≤±1% (F.S./year) |
| Display |
4 digits Nixie tube display |
| Connection Mode |
G1/2 external thread explosion-proof flexible pipe |
| Thread Size |
M45*2mm |
| Temperature |
-20℃ ~ 50℃ |
| Humidity |
0-95%RH (no condensation) |
| Material Case |
Die-cast aluminum, Sensor housing: aluminum alloy or 316 stainless steel |
| Power |
12-36V DC |
| Dimensions |
180×150×90mm |
| Weight |
≤1.6kg |
| Explosion-proof Grade |
Ex d IIC T6 Gb |

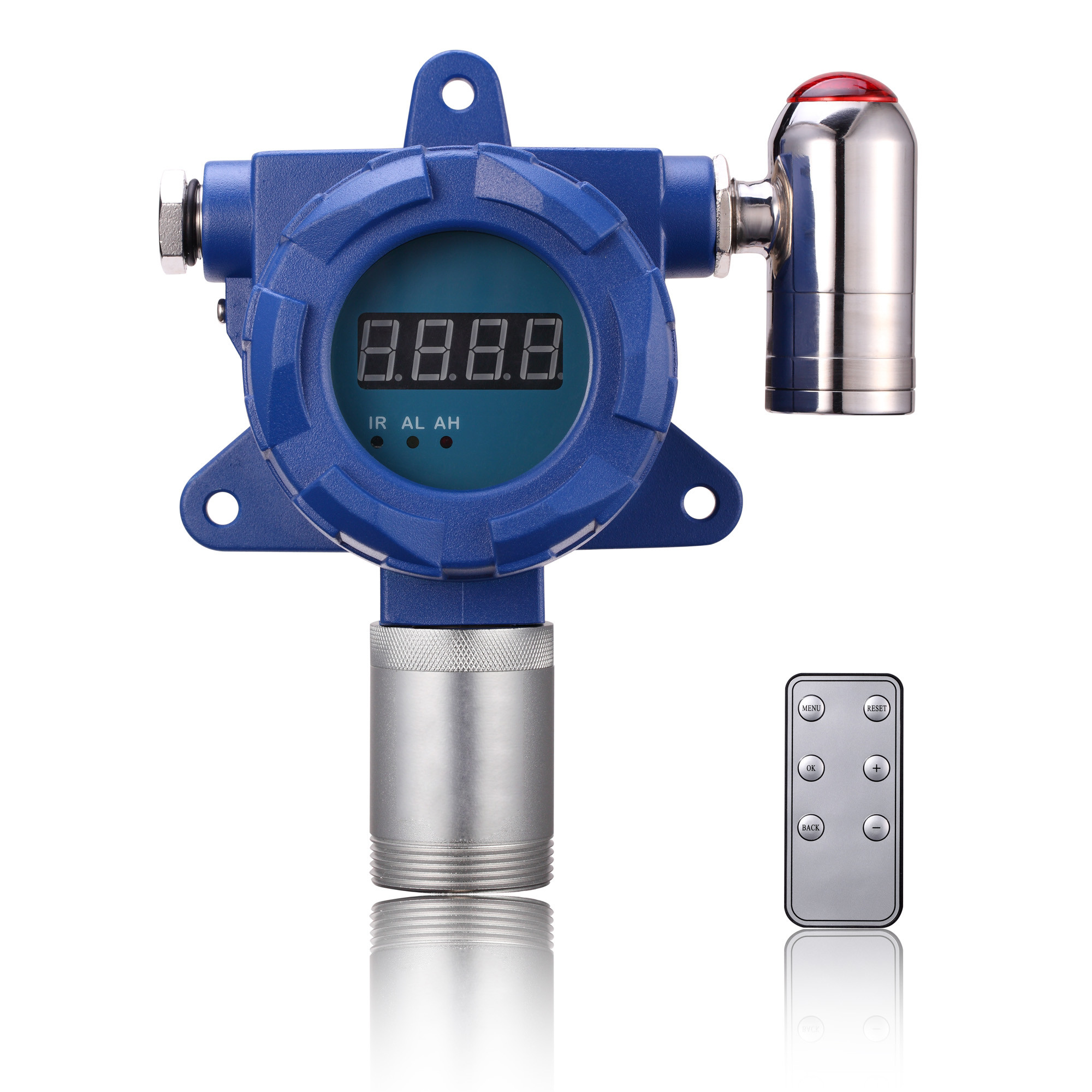

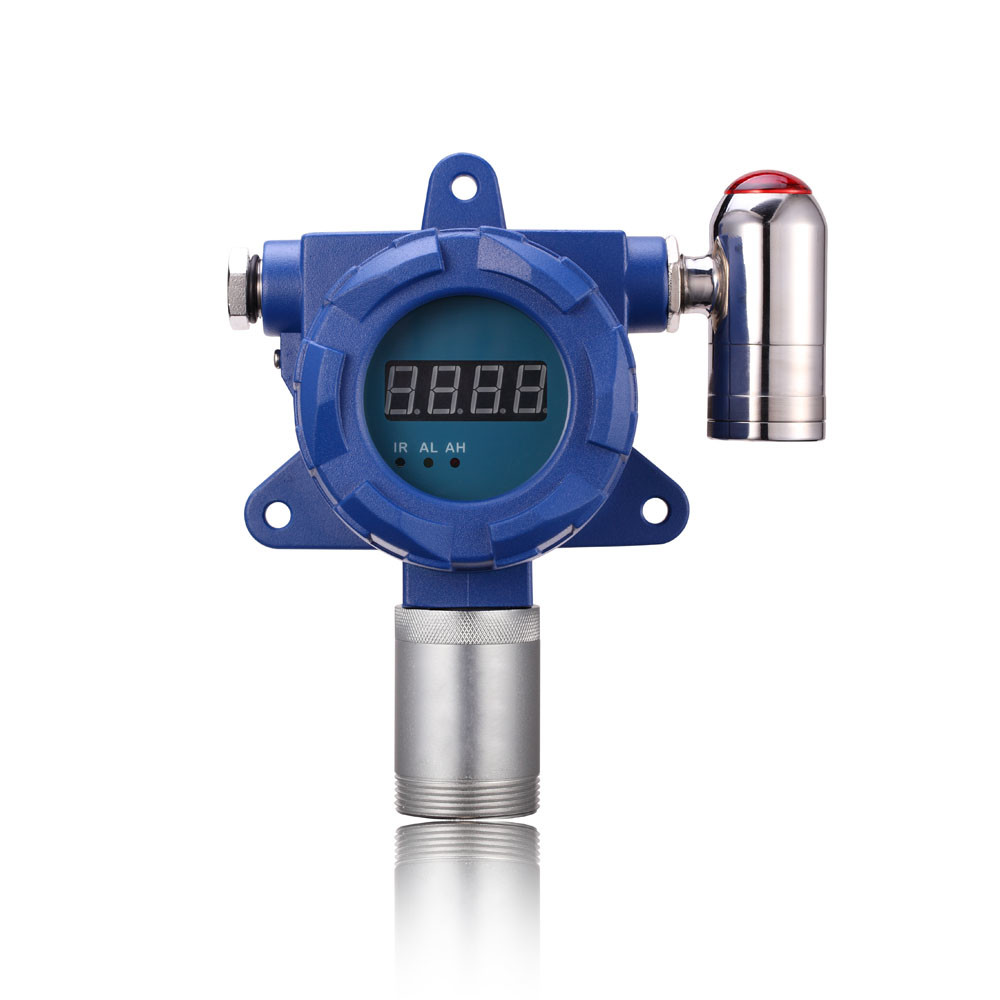

Product Images
Application Scenarios
- Coal mine underground roadway methane gas real time concentration monitoring
- Natural gas pipeline station CH4 leakage 24 hours online inspection
- Landfill biogas gathering well methane continuous emission detection
- Sewage treatment plant anaerobic tank combustible gas alarm monitoring
- Gas station buried pipeline methane concentration overlimit linkage ventilation control
- Chemical raw material warehouse volatile methane gas safety monitoring
