SKY2000 Built-in Pump CH3Br Detector
Product Overview
SKY2000 features an integrated high-flow sampling pump for fast gas intake, with a robust IP66 engineering plastic housing and intrinsic safety certification. This methyl bromide variant adopts PID detection technology, with separately selectable measuring ranges and resolution parameters. Bilingual display, switchable gas units and optional data export functions support all kinds of portable on-site testing work.
Introduction to Methyl Bromide (CH3Br)
Methyl bromide is a highly toxic volatile fumigant widely applied in grain storage, cargo quarantine and pest control. Inhalation of its vapor can cause severe damage to the nervous system and respiratory tract, and the substance also depletes the ozone layer. The built-in sampling pump actively draws gas from airtight silos and enclosed fumigation zones to test residual concentration and avoid operator poisoning hazards.

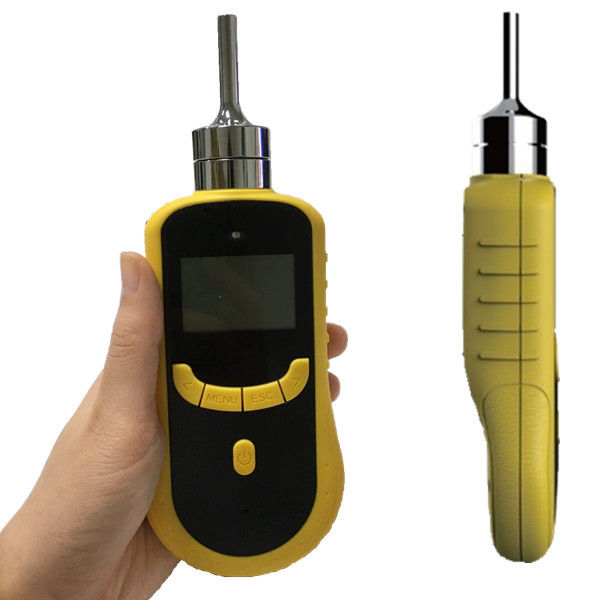

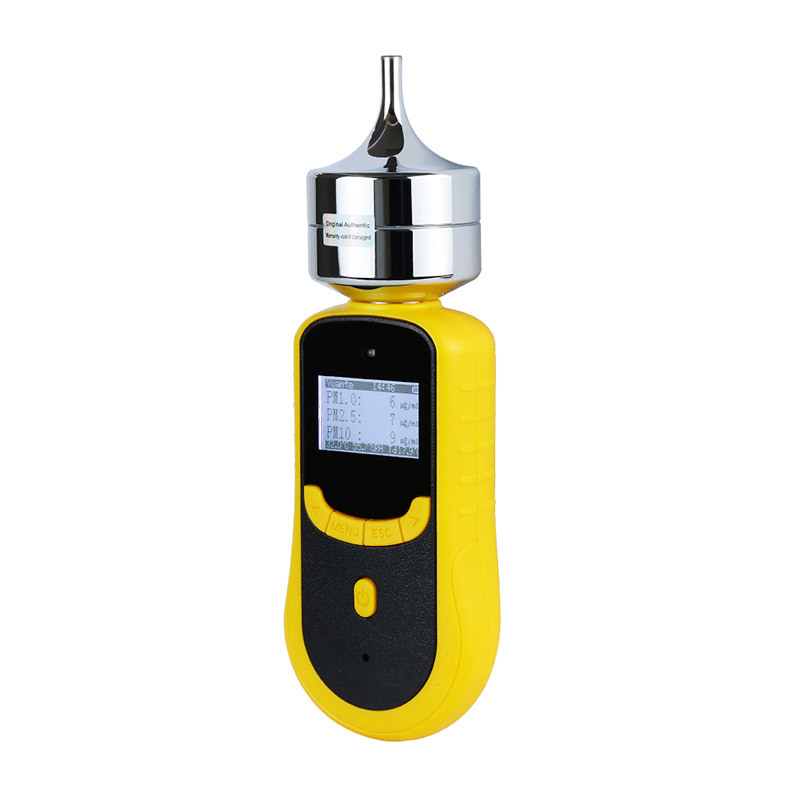

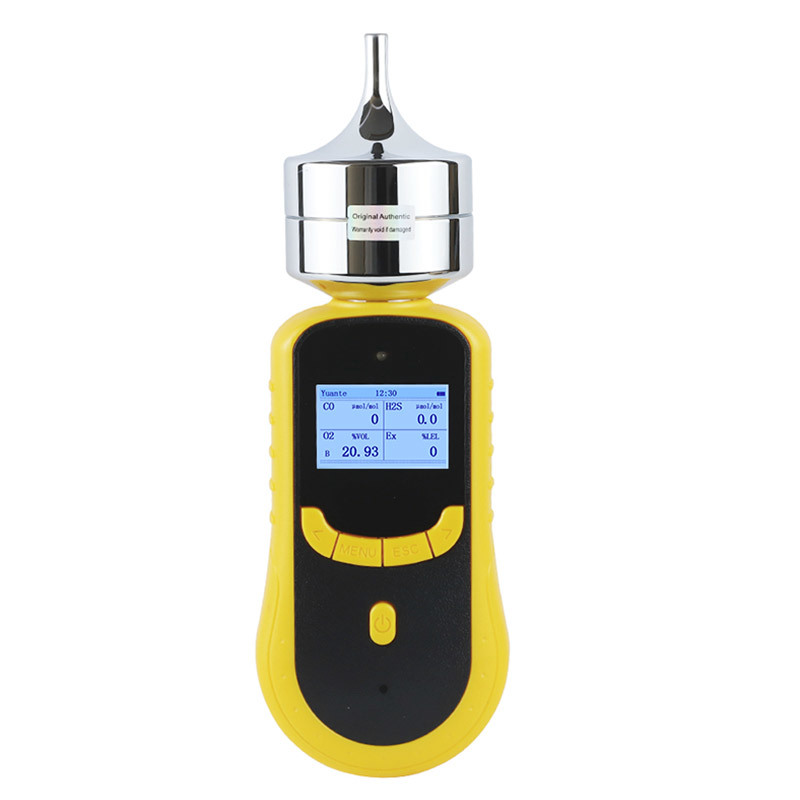

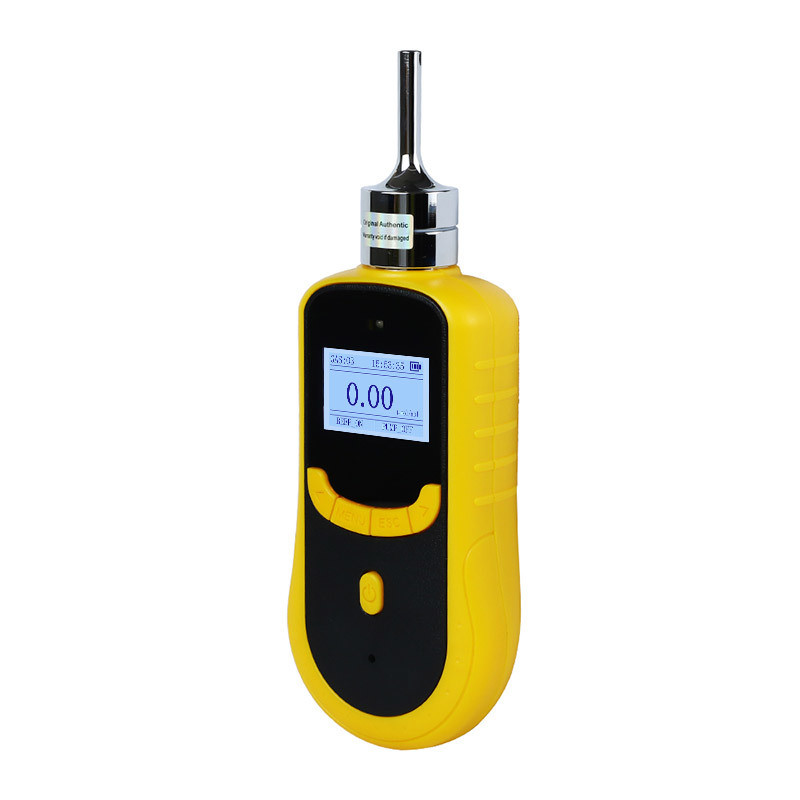

Product Pictures
Key Technical Specifications
| Parameter |
Value |
| Model |
SKY2000 |
| Target Gas |
Methyl Bromide (CH3Br) |
| Detection Principle |
PID photoionization sensor |
| Optional Measuring Ranges |
0-100ppm, 0-200ppm, 0-1000ppm, 0-2000ppm, 0-3000ppm |
| Optional Resolution |
0.01ppm, 0.1ppm, 1ppm |
| Precision |
≤±1-5% F.S |
| Response Time (T90) |
≤20S |
| Recovery Time |
≤10S |
| Repeatability |
≤±1% |
| Linearity Error |
≤±1% |
| Annual Zero Shift |
≤±1% F.S/year |
| Sampling Mode |
Built-in internal sampling pump |
| Display |
Backlit dot matrix LCD, Chinese & English switchable |
| Gas Unit |
One-key switchable multiple concentration units |
| Alarm Mode |
Sound + light + vibration triple alarm |
| Explosion Proof Grade |
Ex ia IIC T4 Ga |
| Protection Class |
IP66 |
| Working Temperature |
-20℃ ~ 50℃ |
| Working Humidity |
0-95%RH (non-condensing) |
| Optional Data Logging |
Store 100,000 readings, export data via USB to PC software |
| Calibration Functions |
Zero calibration + span calibration |
| Factory Reset |
One press to restore factory parameters |
| Working Duration (pump closed) |
100h |
| Dimension |
2057532mm |
| Weight |
300g |
Main Features
- Built-in high-speed sampling pump actively extracts gas from silos, pipelines and closed spaces, T90 response time ≤20s
- PID photoionization sensor available with independent measuring ranges and resolution options to match diverse testing standards
- IP66 heavy-duty engineering plastic shell resists industrial dust and water splashes
- Ex ia IIC T4 Ga intrinsic safety certification allows use in flammable and explosive work zones
- Backlit bilingual LCD screen, supports one-key switching of multiple gas concentration units
- Independent zero and span calibration reduces measurement drift for long-term stable readings
- One-touch factory reset quickly restores default parameters after misoperation
- Optional data logging module stores up to 100,000 measurement records for USB export to computer
- Combined sound, light and vibration alarm ensures clear alerts in noisy or dim fumigation environments
- Low annual zero shift, stable repeatability and linearity for continuous long-duration monitoring
- Up to 100 hours of continuous operation when the sampling pump is shut down for all-day field patrols
Typical Applications
- Grain and fruit fumigation warehouse residual methyl bromide detection
- Import and export cargo quarantine disinfection monitoring
- Pesticide and fine chemical production plant safety inspection
- Agricultural seed storage pest control gas testing
- Closed containers and cabins post-fumigation inspection
- Environmental monitoring of volatile toxic gas emissions
Standard Package
- SKY2000 portable gas detector ×1
- User manual ×1
- Certificate of conformity & warranty card ×1
- Charger ×1
- Premium aluminum alloy portable carrying case ×1
- Optional accessory: Data logging storage module
FAQ
Q1: What gas can this SKY2000 detector test?
A: This customized unit is designed for methyl bromide (CH3Br). Sensors for CO, H2S, O2 and LEL can be replaced as required.
Q2: What measuring ranges and resolution options are available for methyl bromide?
A: Measuring ranges: 0-100ppm, 0-200ppm, 0-1000ppm, 0-2000ppm, 0-3000ppm; Independent resolution choices: 0.01ppm, 0.1ppm, 1ppm.
Q3: Does this instrument adopt active pumping sampling?
A: Yes, an internal sampling pump is integrated to draw gas from sealed confined spaces.
Q4: What are its explosion-proof and dust/water resistance ratings?
A: Explosion-proof grade Ex ia IIC T4 Ga, IP66 dust and splash resistant.
Q5: Does it support calibration and factory parameter reset?
A: Zero and span calibration functions are available; one single button restores factory settings.
Q6: Can test data be stored and exported externally?
A: Data logging is an optional function, which can save 100,000 readings and export data to PC via USB cable.
Q7: How long can the detector run continuously with the pump off?
A: It supports up to 100 hours of continuous working time when the sampling pump is disabled.
Q8: What alarm notification modes are integrated?
A: Simultaneous sound, light and vibration triple alarm reminder.
Q9: Does the display support multi-language switching?
A: The backlit dot matrix LCD switches between Chinese and English, and gas concentration units are adjustable.
