Fixed Gas Detector with Real-time Concentration Alarm and Sound Light Alarm for Acetylene C2H2 Leakage Monitoring in Welding Workshop

Fixed Gas Detector with Real-time Concentration Alarm and Sound Light Alarm for Acetylene C2H2 Leakage Monitoring in Welding Workshop
Fixed Gas Detector with Real-time Concentration Alarm and Sound Light Alarm for Acetylene C2H2 Leakage Monitoring in Welding Workshop Fixed Gas Detector with Real-time Concentration Alarm and Sound Light Alarm for Acetylene C2H2 Leakage Monitoring in Welding Workshop Fixed Gas Detector with Real-time Concentration Alarm and Sound Light Alarm for Acetylene C2H2 Leakage Monitoring in Welding Workshop Fixed Gas Detector with Real-time Concentration Alarm and Sound Light Alarm for Acetylene C2H2 Leakage Monitoring in Welding Workshop Fixed Gas Detector with Real-time Concentration Alarm and Sound Light Alarm for Acetylene C2H2 Leakage Monitoring in Welding Workshop
Basic Information
Place of Origin: China
Brand Name: SAFEGAS
Certification: Chinese EX certificate
Model Number: YT-95H
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 3 work days
Payment Terms: T/T,Western Union
Supply Ability: 300 pieces per month
Get Best Price Contact Now
Detail Information
Explosion-proof Grade: Ex D IIC T6 Gb Thread Size: M45*2mm
Dimensions: 180mm×150mm×90mm Zero Shift（F.S./year）: ≤±1%
Display: Display 4 Digits Repeatability: ≤±1%
Connection Mode: G1/2 External Thread Explosion-proof Flexible Pipe Weight: Less Than 1.6kg
Response Time(T90): 15 To 30s H.S Code: 9027100090
Highlight:

Real-time Concentration Alarm Acetylene Gas Detector

,

Sound Light Alarm Fixed Gas Detector

,

Explosion-proof Grade Ex d IIC T6 Gb Gas Leak Monitor

Product Description

Sound Light Real-time Concentration Alarm Welding Workshop Acetylene Leakage Monitoring
Industry Applications
  • Confined Space Entry: Gas monitoring for tanks, tunnels, vessels and enclosed working areas
  • Oil & Gas: Explosion-proof detection for refineries, fuel stations and offshore platforms
  • Environmental: Emission testing for landfills, wastewater plants and ecological monitoring
  • Fire & Hazmat: Emergency gas detection for fire rescue and chemical spill response
  • Industrial Hygiene: Workplace toxic gas inspection for factory occupational safety
Product Description

YT-95H/YT-95H-A Fixed Gas Detector

YT-95H/YT-95H-A series is a cost effective explosion proof transmitter for the detection of flammable gases and toxic gases. A 3 wire 4 to 20 mA analog output with relays and RS485 Modbus protocol makes it compatible with most control systems. Third party products such as horns, warning lights and fans are compatible with our components and integrated by us into the system. With optional wireless function, operators can view data on laptop, mobile phone or cloud system remotely.

Product Images - YT-95H

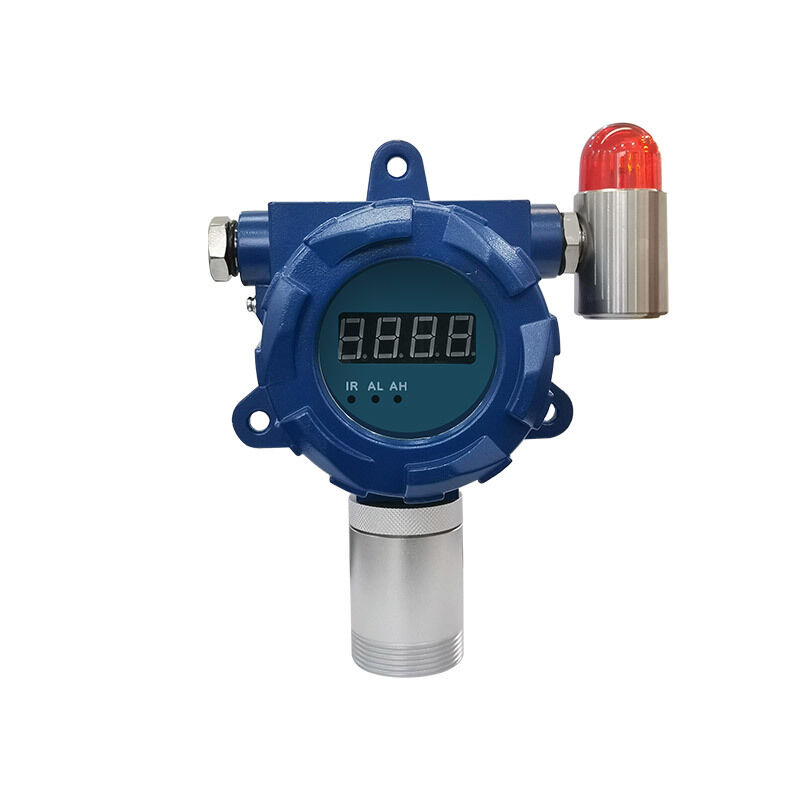

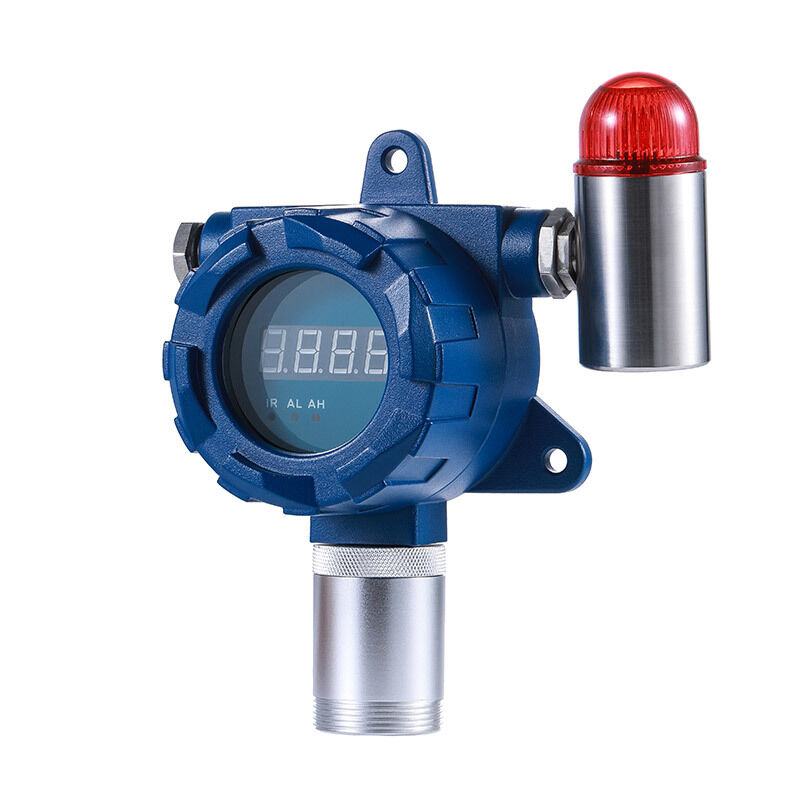

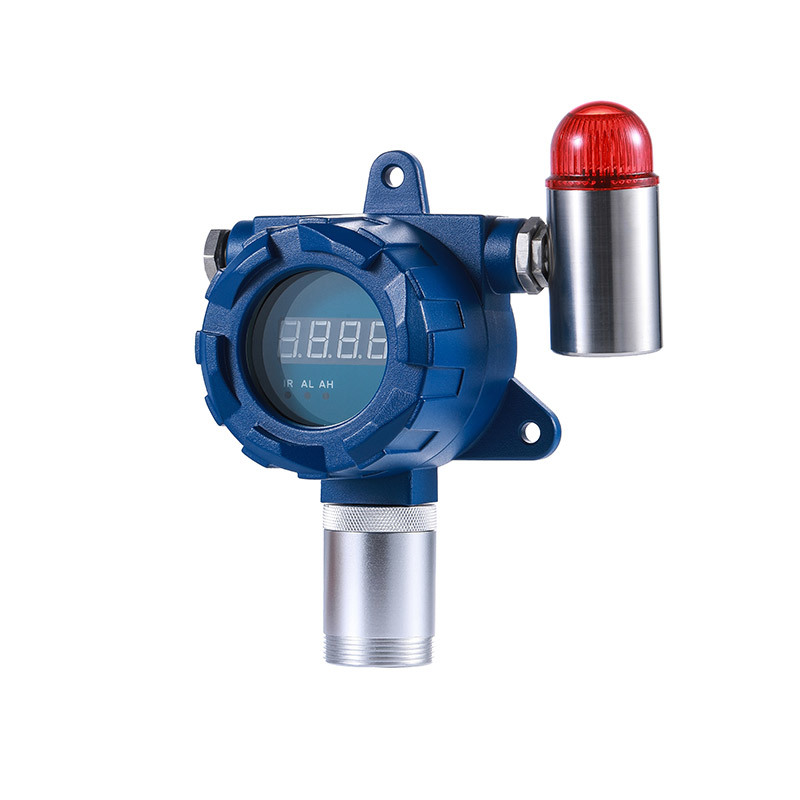

YT-95H Fixed Gas Detector front view YT-95H Fixed Gas Detector side view
Product Images - YT-95H-A

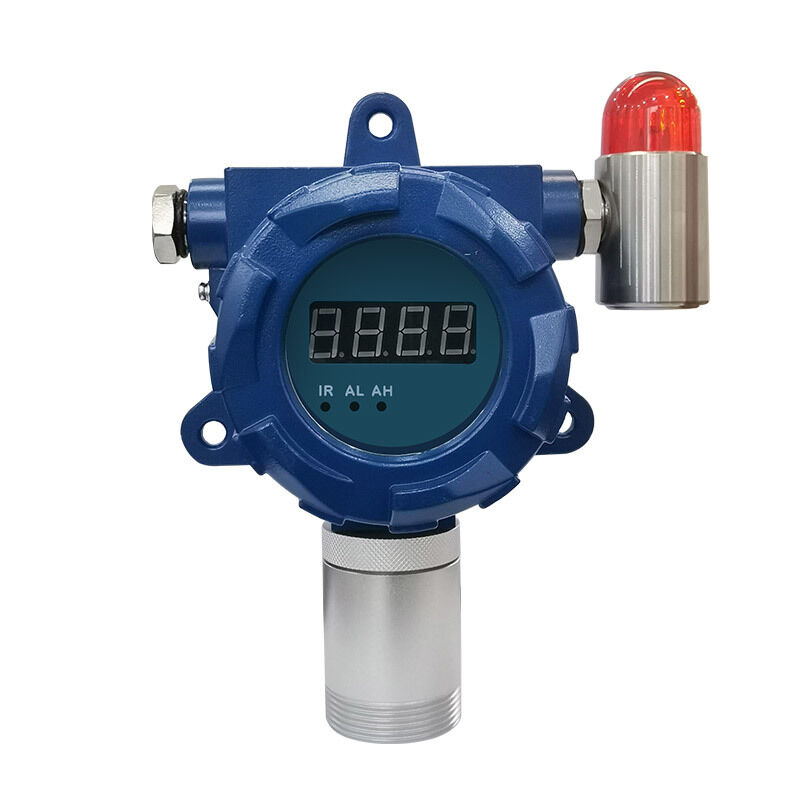

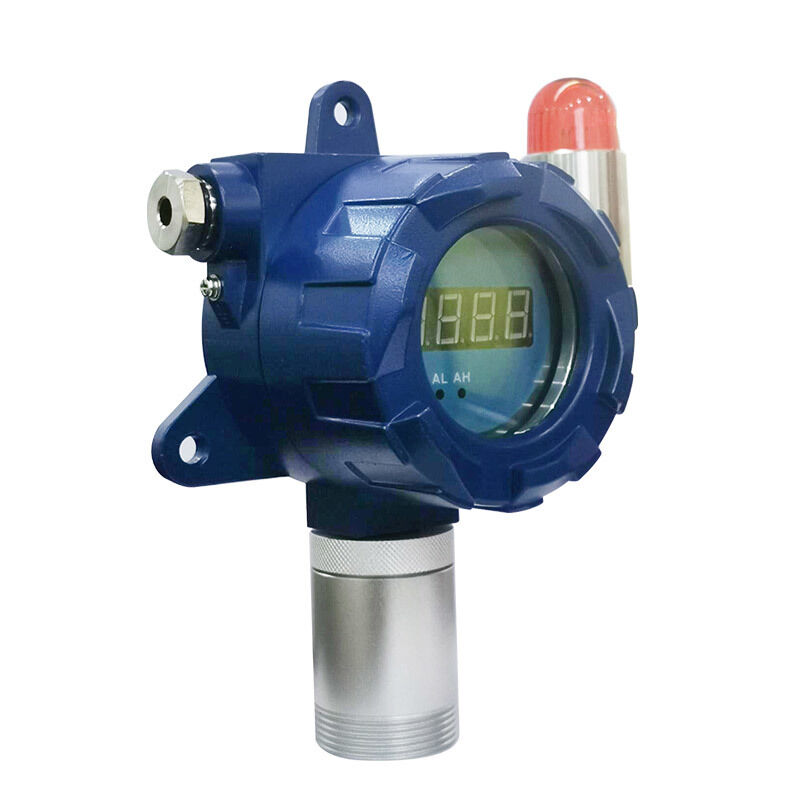

YT-95H-A Fixed Gas Detector front view YT-95H-A Fixed Gas Detector side view
Product Advantages
Online monitoring with sound/light alarm (Optional)

24h continuously monitoring, data will real-time display. High/low alarm with sound and light, sound >90dB, alarm point is settable.

Non-contacted control the device

With infrared ray controller, which can remote control alarm point settings, zero calibration, and address modification.

Variety of installation methods

4-20mA current signal output, compatible with different kinds of controllers. RS485 MODBUS signal output. Relay signal output, to turn on/off ventilator, generators or other external devices.

Data transmission

Can be installed with PC software, to transmit the data to computer, workers can remote monitor the data. Wireless data transmission including Lora, 4G (Optional).

High quality case

Die-cast aluminum case, strong and durable; Stainless steel case is optional, meeting the demand of different situations. IP65 protection degree, water-proof, dust-proof, explosion-proof.

Specifications
Gas detected C2H2
Install method Wall-mounted, piping type, flow-type (according to the detected environment)
Measure range 0-100%LEL
Resolution 1%LEL
Precision ± 2-5% FS
Signal output 4-20mA, 0-5V, RS485, relay(optional)
Response time ≤10S
Recovery time ≤10S
Repeatability ≤±1%
Linearity error ≤±1%
Zero shift ≤±1%(FS/year)
Display High-light nixie tube display
Connection mode G1/2 external thread explosion-proof flexible pipe
Unit ppm, mg/m³, %vol
Temperature -20 to 50°C
Humidity 0-95%RH
Explosion-proof Ex dⅡCT6
Degree of protection IP65
Alarm Sound, light
Operating time 24H
Dimensions 180*150*90mm
Weight ≤2kg
Product Configuration

Standard accessories:

  • Gas detector: 1 piece
  • Instruction Manual: 1 piece
  • Product certificate: 1 piece
  • Remote controller: 1 piece
  • Label: 1 piece
  • Packing box: 1 piece
Why Choose Us?
  • R&D team experience: over 25 years
  • Company certification: ISO9001, ISO45001
  • Product certification: IECEx (the only one in China), ATEX, CE
  • Delivery: 5-7 days
  • Yearly capacity: 80,000 units
  • Service: Professional sales staff provide 7*24 hours service
Company Profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) is a company that focuses on the design, production and sales of gas detection equipment and system for 16 years. With "gas detector" as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc.

Product Line

Our products contain portable types, fixed types and controller panels.

Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000

Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200

Controller panels: YT-1100H, YT-1600H

Product line overview showing portable, fixed and controller panel gas detectors
Certifications

IECEX, ATEX, CE, TEST Report, ISO 9001, ISO 45001

Company certifications including IECEX, ATEX, CE and ISO standards
Company Partners

Huawei, Coca-Cola, Samsung, Nestlé and so on.

Logos of partner companies including Huawei, Coca-Cola, Samsung and Nestlé
Frequently Asked Questions
Q1: Are you manufacture or trading company?
A1: We are a professional manufacture specialize in the gas detector for more than 10 years.
Q2: What is the MOQ?
A2: Usually it is 1 piece.
Q3: How about the quality of your products?
A3: Our product is made of imported sensors and components, the products are certified.
Q4: How long is the warranty time of the products?
A4: The warranty period is 1 years from the factory, we also provide lifetime maintenance.
