SF6 Gas Detector with LORA 4G Remote Data Transmission Ex d IIC T6 Gb Explosion-proof and 180mm×150mm×90mm Compact Design

SF6 Gas Detector with LORA 4G Remote Data Transmission Ex d IIC T6 Gb Explosion-proof and 180mm×150mm×90mm Compact Design
SF6 Gas Detector with LORA 4G Remote Data Transmission Ex d IIC T6 Gb Explosion-proof and 180mm×150mm×90mm Compact Design SF6 Gas Detector with LORA 4G Remote Data Transmission Ex d IIC T6 Gb Explosion-proof and 180mm×150mm×90mm Compact Design SF6 Gas Detector with LORA 4G Remote Data Transmission Ex d IIC T6 Gb Explosion-proof and 180mm×150mm×90mm Compact Design SF6 Gas Detector with LORA 4G Remote Data Transmission Ex d IIC T6 Gb Explosion-proof and 180mm×150mm×90mm Compact Design SF6 Gas Detector with LORA 4G Remote Data Transmission Ex d IIC T6 Gb Explosion-proof and 180mm×150mm×90mm Compact Design
Basic Information
Place of Origin: China
Brand Name: SAFEGAS
Certification: Chinese EX certificate
Model Number: YT-95H
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 3 work days
Payment Terms: T/T,Western Union
Supply Ability: 300 pieces per month
Get Best Price Contact Now
Detail Information
Explosion-proof Grade: Ex D IIC T6 Gb Thread Size: M45*2mm
Dimensions: 180mm×150mm×90mm Zero Shift（F.S./year）: ≤±1%
Display: Display 4 Digits Repeatability: ≤±1%
Connection Mode: G1/2 External Thread Explosion-proof Flexible Pipe Weight: Less Than 1.6kg
Response Time(T90): 15 To 30s H.S Code: 9027100090
Highlight:

LORA 4G Remote Data Transmission SF6 Gas Detector

,

Ex d IIC T6 Gb Explosion-proof Fixed Gas Detector

,

180mm×150mm×90mm Compact Design Gas Leak Detector

Product Description

Power Substation SF6 Leakage Monitoring with Optional LORA 4G Remote Data Transmission
YT-95H/YT-95H-A Fixed Gas Detector
The YT-95H/YT-95H-A series is a cost-effective explosion-proof transmitter for detecting flammable and toxic gases. Featuring a 3-wire 4 to 20 mA analog output with relays and RS485 Modbus protocol, it's compatible with most control systems. Third-party components like horns, warning lights, and fans can be integrated. Optional wireless functionality allows remote data viewing on laptops, mobile phones, or cloud systems.
Industry Applications
  • Confined Space Entry: Gas monitoring for tanks, tunnels, vessels and enclosed working areas
  • Oil & Gas: Explosion-proof detection for refineries, fuel stations and offshore platforms
  • Environmental: Emission testing for landfills, wastewater plants and ecological monitoring
  • Fire & Hazmat: Emergency gas detection for fire rescue and chemical spill response
  • Industrial Hygiene: Workplace toxic gas inspection for factory occupational safety
Product Images - YT-95H

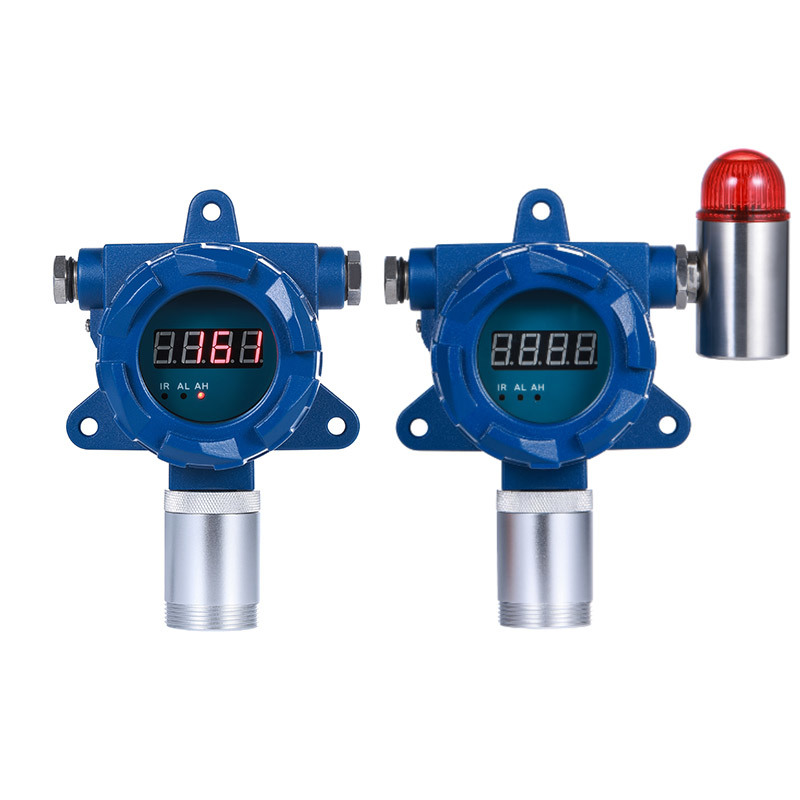

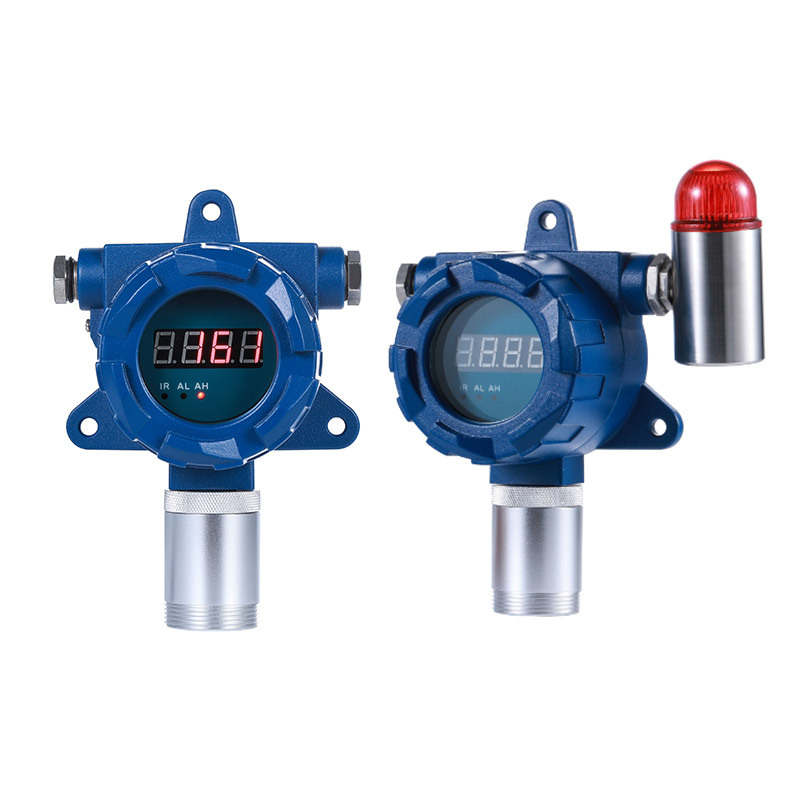

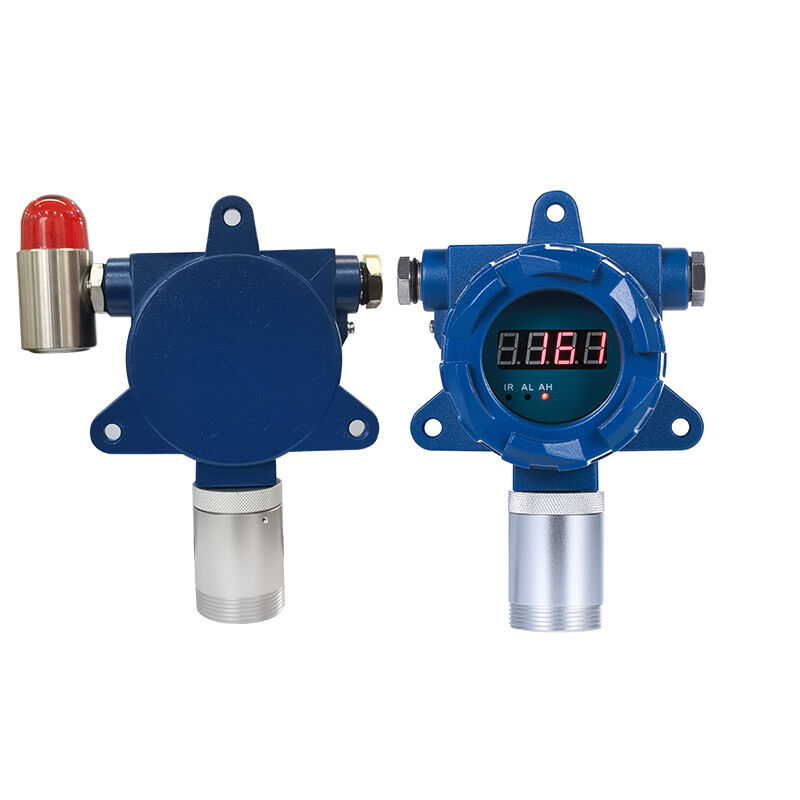

YT-95H Fixed Gas Detector front view YT-95H Fixed Gas Detector side view
Product Images - YT-95H-A

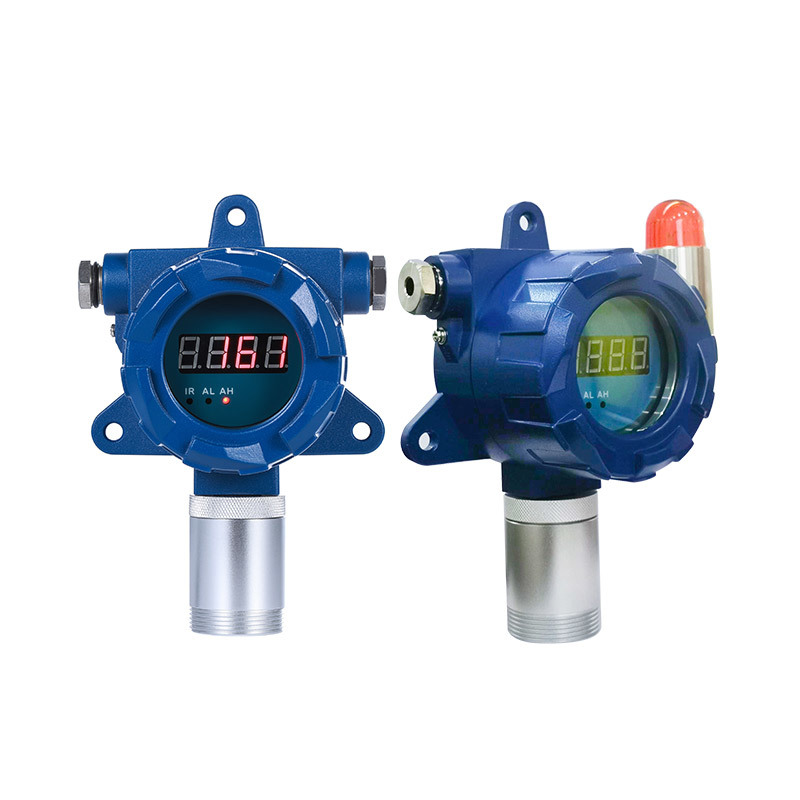

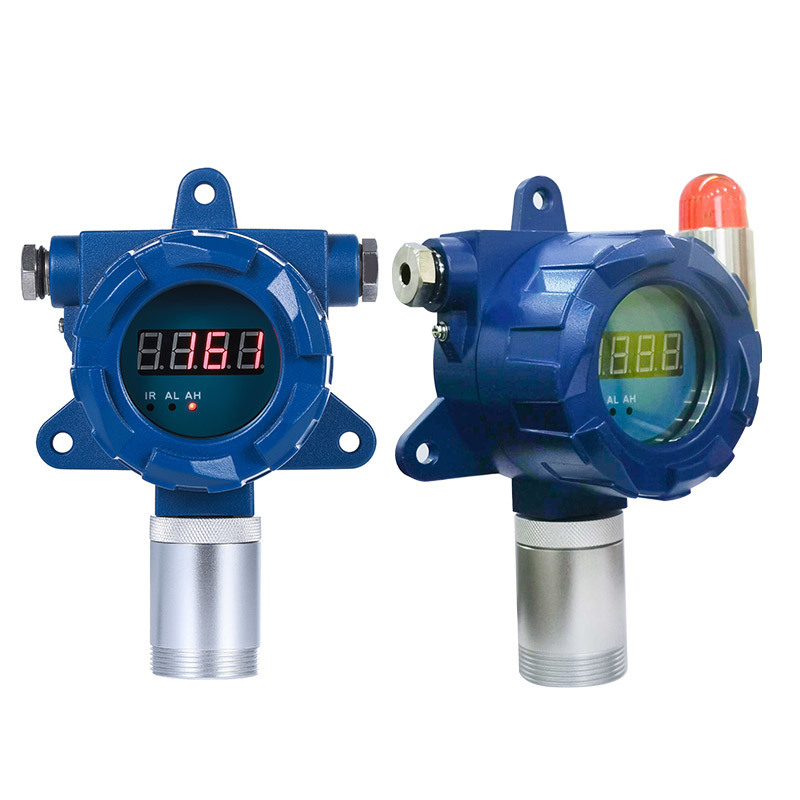

YT-95H-A Fixed Gas Detector front view YT-95H-A Fixed Gas Detector side view
Product Advantages
Online monitoring with sound/light alarm (Optional)
24h continuous monitoring with real-time data display
High/low alarm with sound and light, sound >90dB, settable alarm points
Non-contacted device control
Infrared ray controller for remote alarm point settings, zero calibration, and address modification
Variety of installation methods
4-20mA current signal output, compatible with different controllers
RS485 MODBUS signal output
Relay signal output for controlling ventilators, generators, or other external devices
Data transmission
PC software installation for computer data transmission
Wireless data transmission including Lora, 4G (Optional)
High quality case
Die-cast aluminum case, strong and durable
Stainless steel case optional for different situations
IP65 protection degree, water-proof, dust-proof, explosion-proof
Specifications
Gas detected SF6
Install method Wall-mounted, piping type, flow-type (according to detected environment)
Measure range 0-2000ppm
Resolution 1ppm
Precision ± 2-5% FS
Signal output 4-20mA, 0-5V, RS485, relay (optional)
Response time ≤10S
Recovery time ≤10S
Repeatability ≤±1%
Linearity error ≤±1%
Zero shift ≤±1%(FS/year)
Display High-light nixie tube display
Connection mode G1/2 external thread explosion-proof flexible pipe
Unit ppm, mg/m³, %vol
Temperature -20 to 50°C
Humidity 0-95%RH
Explosion-proof Ex dⅡCT6
Degree of protection IP65
Alarm Sound, light
Operating time 24H
Dimensions 180*150*90mm
Weight ≤2kg
Product Configuration
Standard accessories:
  • Gas detector: 1 piece
  • Instruction Manual: 1 piece
  • Product certificate: 1 piece
  • Remote controller: 1 piece
  • Label: 1 piece
  • Packing box: 1 piece
Why Choose Us?
  • R&D team experience: over 25 years
  • Company certification: ISO9001, ISO45001
  • Product certification: IECEx (the only one in China), ATEX, CE
  • Delivery: 5-7 days
  • Yearly capacity: 80,000 units
  • Service: Professional sales staff provide 7*24 hours service
Company Profile
Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) is a company that focuses on the design, production and sales of gas detection equipment and systems for 16 years. With "gas detector" as the core product, we have completed production lines and solutions for different industries including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc.
Product Line
Our products contain portable types, fixed types and controller panels:
  • Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000
  • Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200
  • Controller panels: YT-1100H, YT-1600H
Product line overview diagram
Certifications
IECEX, ATEX, CE, TEST Report, ISO 9001, ISO 45001
Company certifications and standards
Companies We Cooperated With
Huawei, Coca-Cola, Samsung, Nestlé and more
Partner company logos
Frequently Asked Questions
Q1: Are you a manufacturer or trading company?
A1: We are a professional manufacturer specializing in gas detectors for more than 10 years.
Q2: What is the MOQ?
A2: Usually it is 1 piece.
Q3: How about the quality of your products?
A3: Our products are made of imported sensors and components, and are certified.
Q4: How long is the warranty time of the products?
A4: The warranty period is 1 year from the factory, and we also provide lifetime maintenance.
