Name: Fixed THT Gas Detector with 3 Wire 4-20mA Analog RS485 Modbus Relay Output and Ex d IIC T6 Gb Explosion-Proof for Natural Gas Pipeline Odorant Monitoring
Brand: Shenzhen YuanTe Technology Co., Ltd. (Safegas)
SKU: YT-95H
Price: 1,037.00 USD
Availability: InStock

Detail Information

Explosion-proof Grade:	Ex D IIC T6 Gb	Thread Size:	M45*2mm
Dimensions:	180mm×150mm×90mm	Zero Shift（F.S./year）:	≤±1%
Display:	Display 4 Digits	Repeatability:	≤±1%
Connection Mode:	G1/2 External Thread Explosion-proof Flexible Pipe	Weight:	Less Than 1.6kg
Response Time(T90):	15 To 30s	H.S Code:	9027100090
Highlight:	3 Wire 4-20mA Analog Fixed Gas Detector , RS485 Modbus Relay Output Gas Alarm Detector , Ex d IIC T6 Gb Explosion-Proof Single Gas Detector

Product Description

Natural Gas Pipeline Odorant Monitoring 3 Wire 4-20mA Analog RS485 Modbus Relay Output THT Alarm Detector

Industry Applications

Confined Space Entry: Gas monitoring for tanks, tunnels, vessels and enclosed working areas
Oil & Gas: Explosion-proof detection for refineries, fuel stations and offshore platforms
Environmental: Emission testing for landfills, wastewater plants and ecological monitoring
Fire & Hazmat: Emergency gas detection for fire rescue and chemical spill response
Industrial Hygiene: Workplace toxic gas inspection for factory occupational safety

Product Description

YT-95H/YT-95H-A Fixed Gas Detector

YT-95H/YT-95H-A series is a cost effective explosion proof transmitter for the detection of flammable gases and toxic gases. A 3 wire 4 to 20 mA analog output with relays and RS485 Modbus protocol makes it compatible with most control systems. Third party products such as horns, warning lights and fans are compatible with our components and integrated by us into the system. With optional wireless function, operators can view data on laptop, mobile phone or cloud system remotely.

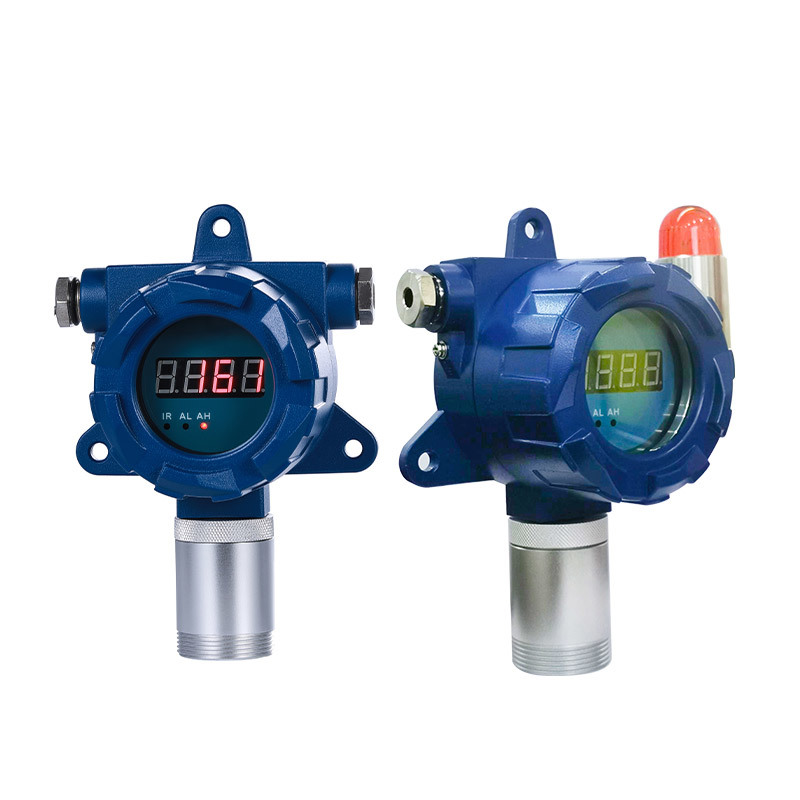

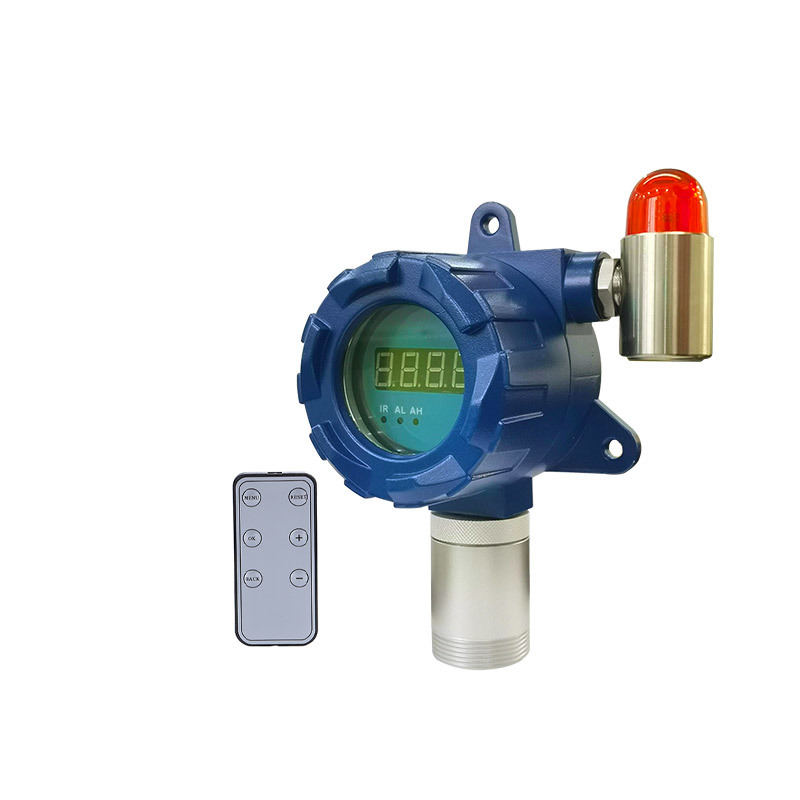

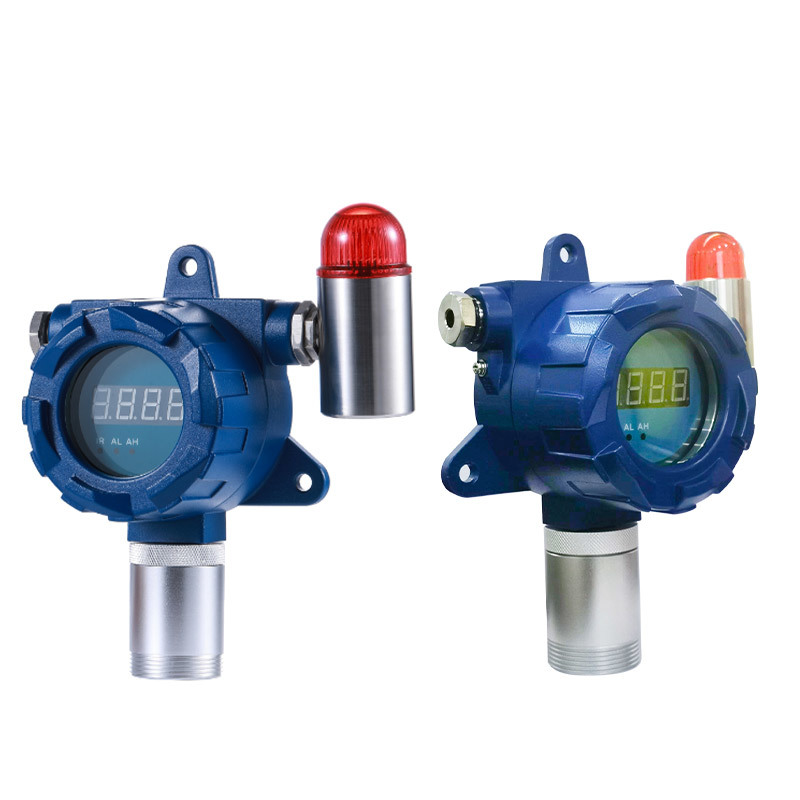

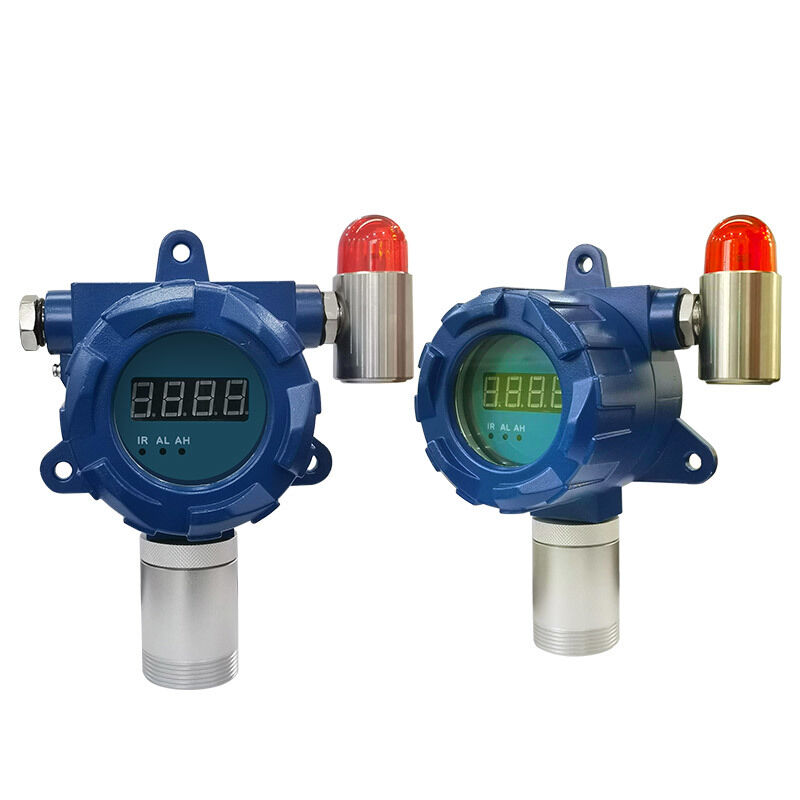

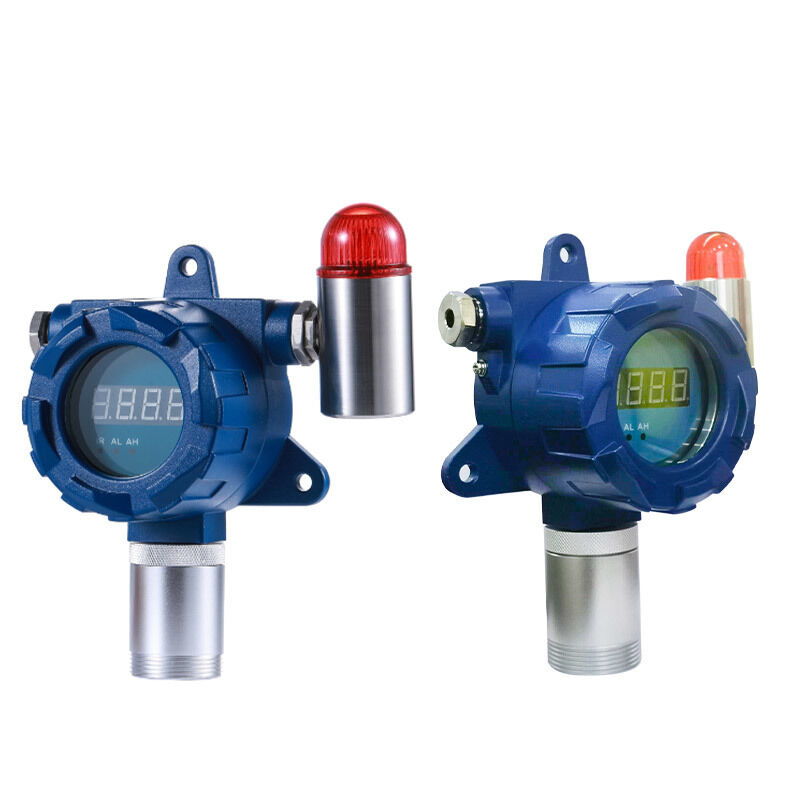

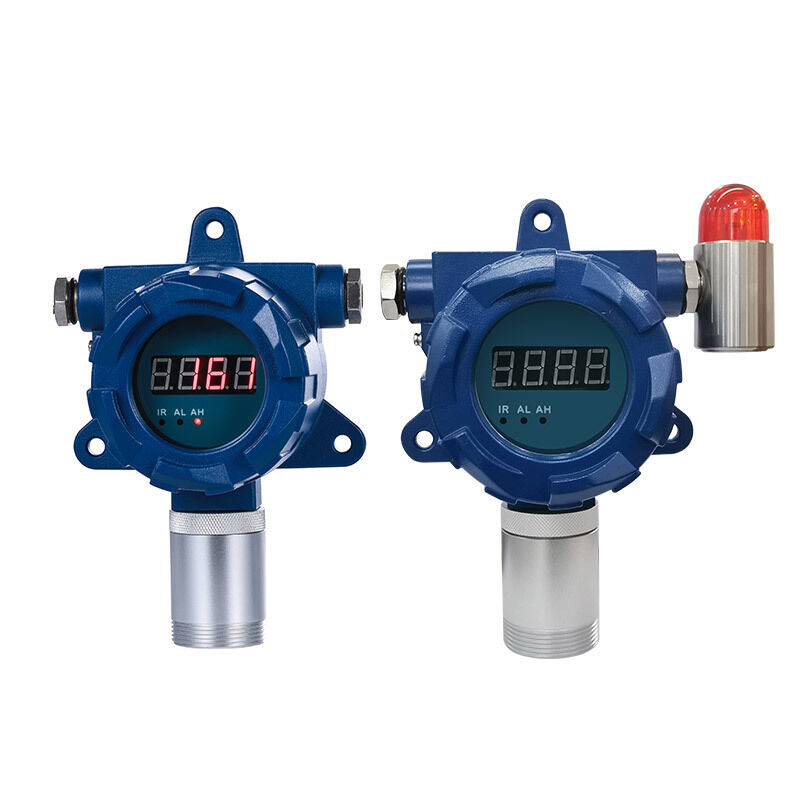

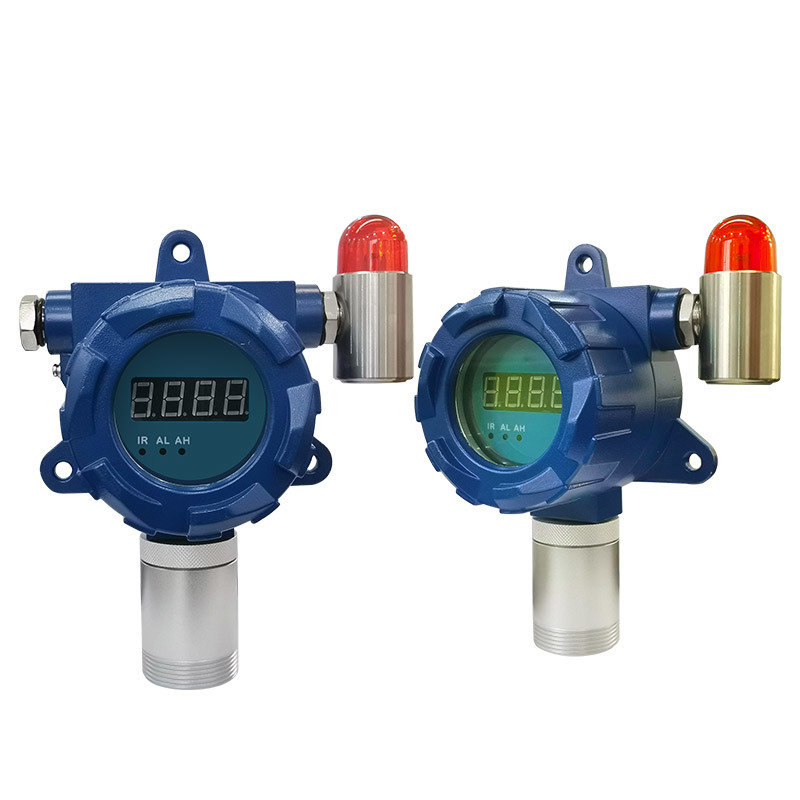

Product Images - YT-95H

Product Images - YT-95H-A

Product Advantages

Online monitoring with sound/light alarm (Optional)

24h continuously monitoring, data will real-time display

High/low alarm with sound and light, sound >90dB, alarm point is settable

Non-contacted control the device

With infrared ray controller, which can remote control alarm point settings, zero calibration, and address modification

Variety of installation methods

4-20mA current signal output, compatible with different kinds of controllers. RS485 MODBUS signal output. Relay signal output, to turn on/off ventilator, generators or other external devices

Data transmission

Can be installed with PC software, to transmit the data to computer, workers can remote monitor the data

Wireless data transmission including Lora, 4G (Optional)

High quality case

Die-cast aluminum case, strong and durable; Stainless steel case is optional, meeting the demand of different situations

IP65 protection degree, water-proof, dust-proof, explosion-proof

Specifications

Gas detected	THT
Install method	Wall-mounted, piping type, flow-type (according to the detected environment)
Measure range	0-20 mg/m3
Resolution	0.01mg/m3
Precision	± 2-5% FS
Signal output	4-20mA, 0-5V, RS485, relay(optional)
Response time	≤10S
Recovery time	≤10S
Repeatability	≤±1%
Linearity error	≤±1%
Zero shift	≤±1%(FS/year)
Display	High-light nixie tube display
Connection mode	G1/2 external thread explosion-proof flexible pipe
Unit	ppm, mg/m³, %vol
Temperature	-20 to 50°C
Humidity	0-95%RH
Explosion-proof	Ex dⅡCT6
Degree of protection	IP65
Alarm	Sound, light
Operating time	24H
Dimensions	18015090mm
Weight	≤2kg

Product Configuration

Standard accessories:

Gas detector: 1 piece
Instruction Manual: 1 piece
Product certificate: 1 piece
Remote controller: 1 piece
Label: 1 piece
Packing box: 1 piece

Why Choose Us?

R&D team experience: over 25 years
Company certification: ISO9001, ISO45001
Product certification: IECEx (the only one in China), ATEX, CE
Delivery: 5-7 days
Yearly capacity: 80,000 units
Service: Professional sales staff provide 7*24 hours service

Company Profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) is a company that focuses on the design, production and sales of gas detection equipment and system for 16 years. With "gas detector" as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc.

Product Line

Our products contain portable types, fixed types and controller panels.

Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000

Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200

Controller panels: YT-1100H, YT-1600H

Certifications

IECEX, ATEX, CE, TEST Report, ISO 9001, ISO 45001

Companies We Cooperated With

Huawei, Coca-cola, Samsung, Nestle and so on.

Frequently Asked Questions

Q1: Are you manufacture or trading company?

A1: We are a professional manufacture specialize in the gas detector for more than 10 years.

Q2: What is the MOQ?

A2: Usually it is 1 piece.

Q3: How about the quality of your products?

A3: Our product is made of imported sensors and components, the products are certified.

Q4: How long is the warranty time of the products?

A4: The warranty period is 1 years from the factory, we also provide lifetime maintenance.
