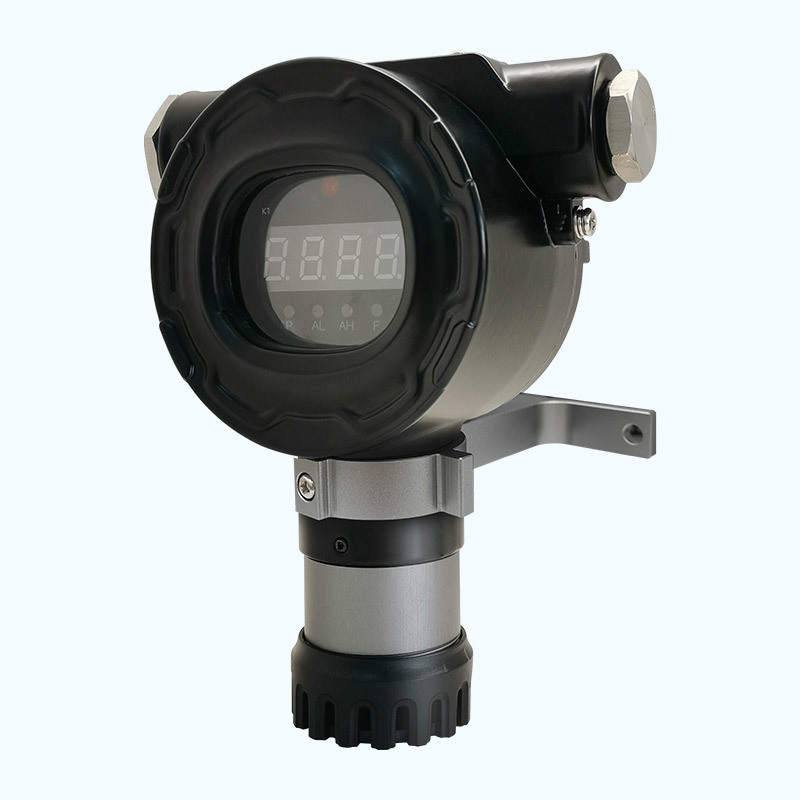

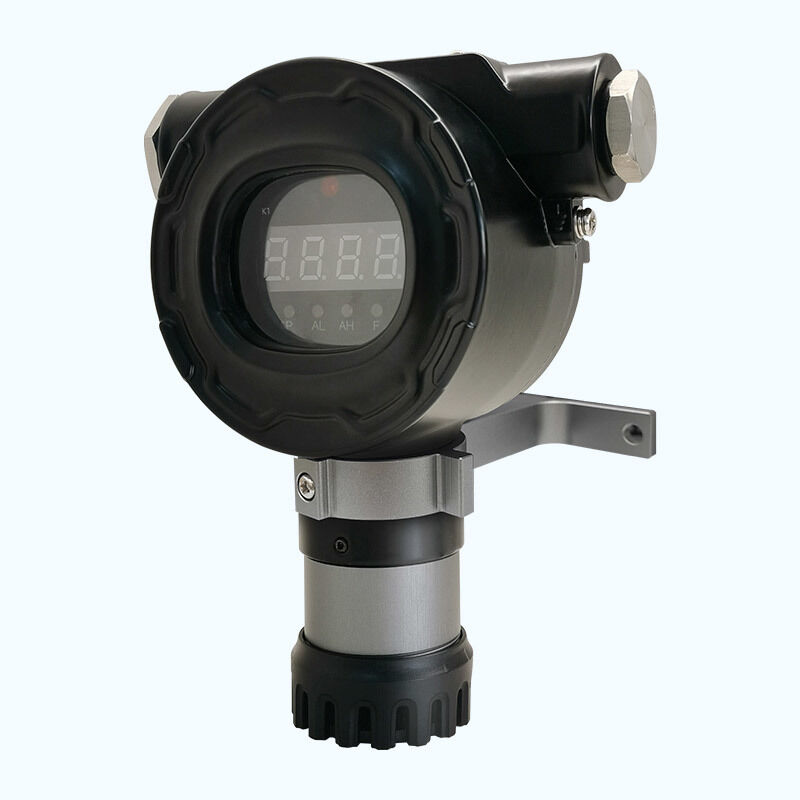

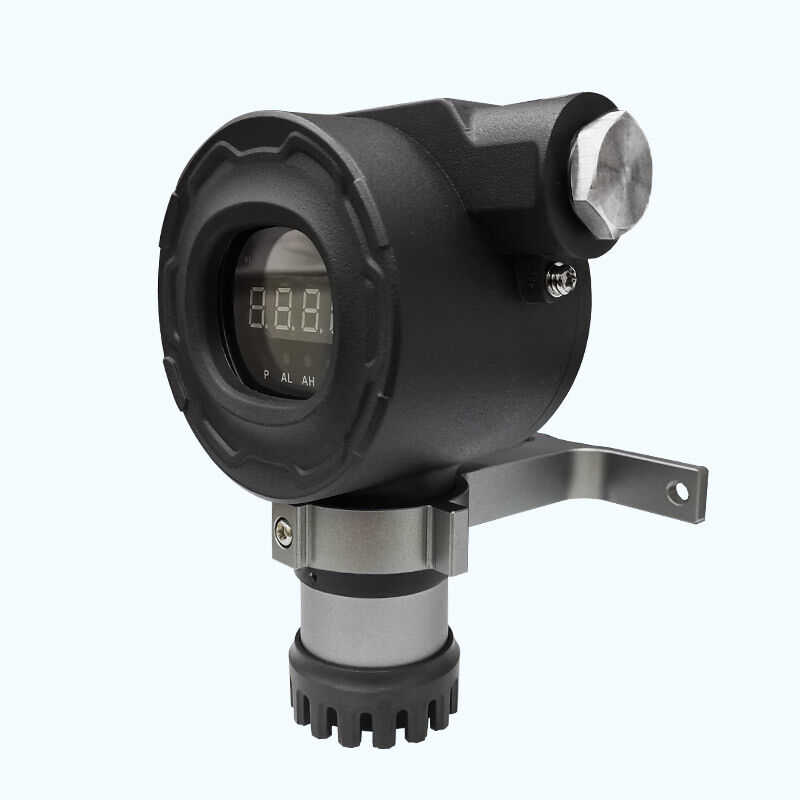

Industrial Ethane Alarm Transmitter with Multiple Output Options
Industry Applications
- Confined Space Entry: Gas monitoring for tanks, tunnels, vessels and enclosed working areas
- Oil & Gas: Explosion-proof detection for refineries, fuel stations and offshore platforms
- Environmental: Emission testing for landfills, wastewater plants and ecological monitoring
- Fire & Hazmat: Emergency gas detection for fire rescue and chemical spill response
- Industrial Hygiene: Workplace toxic gas inspection for factory occupational safety
Product Overview
SG100 series is a cost-effective gas detector for continuous monitoring of toxic gases, oxygen, flammable, and VOC gases. It is IECEx and ATEX certified with intrinsically safe explosion grade. Featuring 2-wire or 3-wire 4 to 20 mA analog output, RS485 Modbus output, and optional HART output, making it compatible with most control systems. With optional wireless data transmission, customers can review and download data remotely. Supports both magnetic and remote control for flexible configuration.
Product Advantages
IP66/IP68 Protection - Water and dust resistant housing
Intelligent Sensor Module - Plug and play with PC software calibration support
Splash Guard - Standard protection for outdoor installation
Compact Design - Lightweight (1kg) with standard mounting bracket
Multiple Outputs - 4-20mA, RS485 Modbus, optional HART, 2-wire output
Relay Control - 3 relays for low/high/fault alarm (optional)
Flexible Control - Magnetic and remote control options
Technical Specifications
| Parameter |
Specification |
| Detected Gas |
C2H6 (Ethane) |
| Measure Range |
0-100%LEL |
| Install Method |
Wall-mounted, piping type, flow-type |
| Output Signal |
4-20mA, 1-5V, 2-10V, RS485, RS232, relays (optional) |
| Precision |
≤±1%F.S. (to be specialized) |
| Zero Shift |
≤±1%(F.S./year) |
| Display |
4 digits Nixie tube display |
| Connection Mode |
G3/4 external thread explosion-proof flexible pipe |
| Thread Size |
Standard M20*1.5, 3/4NPT |
| Temperature |
-20℃～50℃ |
| Humidity |
10-95%RH (non-condensing) |
| Explosion-Proof |
Ex db ⅡC T6/ Ex db ia IIC T6 Gb/ Ex da db ia IIC T6 Gb |
| Degree of Protection |
IP66/IP68 |
| Material |
Sensor housing: aluminum alloy or 316 stainless steel |
| Power |
12-24V DC |
| Dimensions |
158×129×70mm |
| Weight |
≤1kg |
| Approval |
CE, CNEX explosion proof certificate, CMC, IECEx, ATEX |
| Warranty |
12 months |
Supported Gases
SG100 model can detect single gas. Here are some of the gases we can detect:
Product Configuration
Standard Accessories:
- Gas detector, 1 set
- Magnetic wand, 1 set
- User manual, 1 piece
- Conformity Certificate/warranty card, 1 piece
- Installation bracket, 1 set
- Infrared Ray Controller, 1 piece
Optional Accessories:
- Calibration cap
- Power adapter
- External pump
- Explosion-proof gland
- Adapter NPT3/4
- Adapter M20 * 1.5

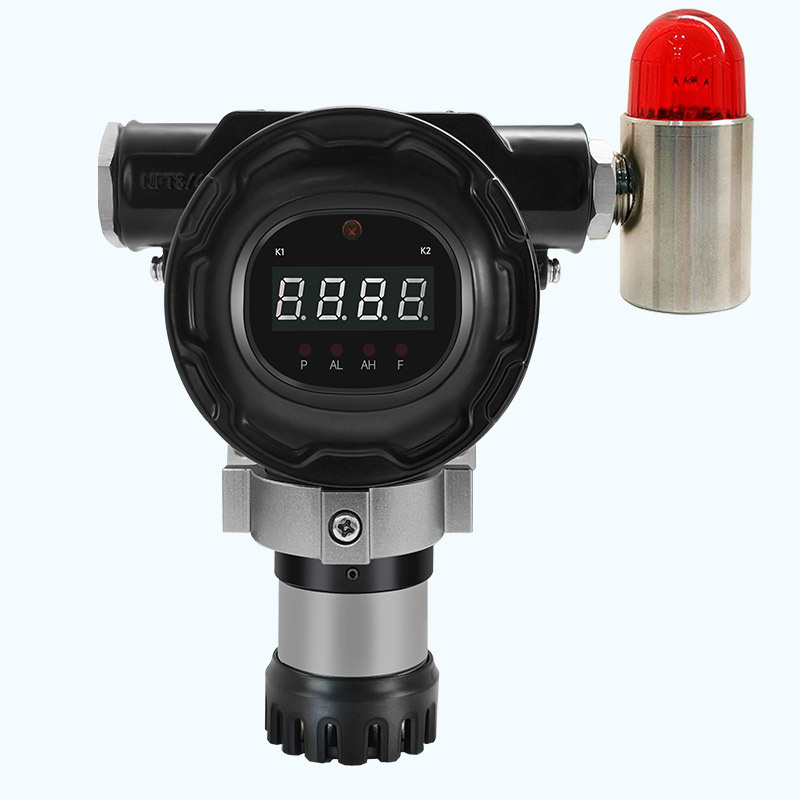

- Sound and light alarm
Please contact us for details on optional accessories.
Product Applications
Chemical Industry
Environmental Monitoring
Healthcare Applications
Automotive Industry
Industrial Safety
Wastewater Treatment
Greenhouse Gas Monitoring
Oil and Gas Exploration
Food and Beverage Production
Mining and Mining Operations
Key Features
IP66/IP68 waterproof dustproof die casting aluminum explosion proof housing
Hot swappable sensor module - single person quick replacement without whole machine disassembly
Wide measuring range 0-99.99%vol suitable for high purity hydrogen environment
Multi signal output: 4-20mA, RS485 Modbus, optional HART, relay linkage control
Magnetic wand non-contact parameter setting - safe operation in explosion hazardous zone

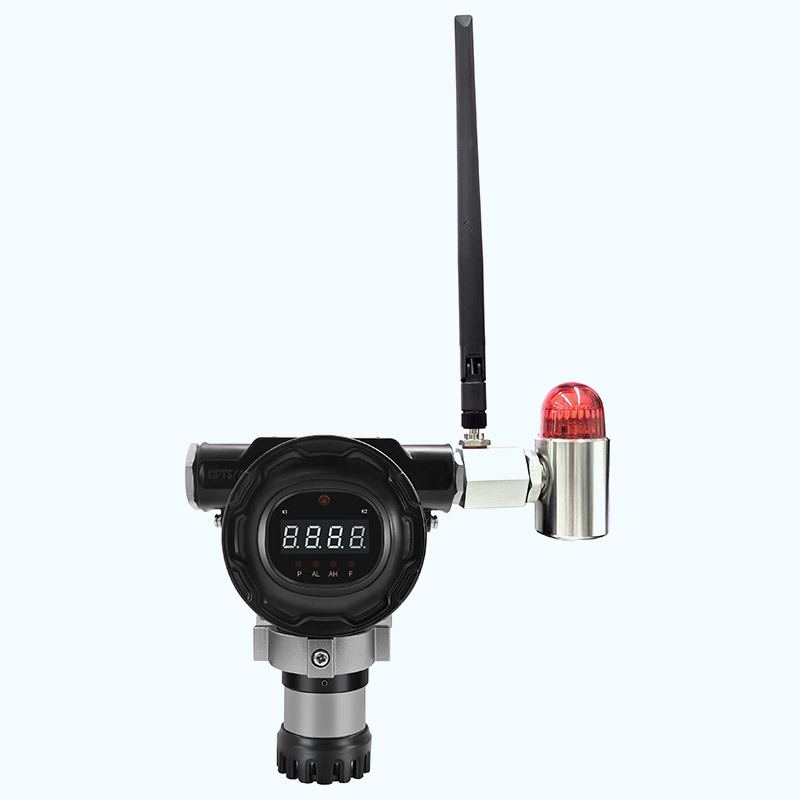

Optional LORA, GPRS, 4G wireless remote data transmission with cloud real-time viewing
Why Choose Us?
R&D Experience: Over 25 years of expertise
Company Certification: ISO9001 ISO45001
Product Certification: IECEx ATEX CE
Delivery: 5-7 days standard delivery
Production Capacity: 80,000 units per year
Service: Professional 7*24 hours customer support
As a professional gas detector manufacturer, we control the entire process from design-R&D-production-sales to ensure consistent product quality. We have more than 100 independent intellectual property patents in design and development. Our skilled technical workers and complete industrial line ensure production quality throughout the process.
Our professional R&D department has been engaged in gas detection industry for about 25 years, providing customers with professional technical after-sales service.
We maintain a strict quality management system with quality first as our core principle. We are recognized by authoritative organizations with ISO9001 and ISO14001 certifications.
Our products have obtained IECEx and ATEX explosion-proof certification, making them suitable for hazardous areas such as mines, underground facilities, and oil plants. We are the first and currently the only manufacturer in China with this certification.
Our core components, including ICs and sensors, use imported brands to improve product accuracy, stabilize service life, ensure detection accuracy, and protect customer safety.
Our complete product line and stable inventory provide fast delivery: 3 days for orders under 10 pieces, half a month for orders over 100 pieces.
Frequently Asked Questions
Q1: What is a gas detector?
A1: A gas detector is an instrument for gas leakage concentration detection, including portable gas detectors and fixed gas detectors.
Q2: What does a gas detector detect?
A2:
Combustible gases: Natural gas (methane), liquefied gas, coal gas, acetylene, pentane, alkynes, toluene, etc.
Toxic gases: Carbon monoxide, hydrogen sulfide, ammonia, chlorine, phosphine, sulfur dioxide, hydrogen chloride, chlorine dioxide and other toxic and harmful gases.
Q3: What is the ppm unit of the gas detector?
A3: ppm represents the volume concentration of the gas, meaning the volume of pollutants contained in one million volumes of air. For example, if the concentration of ammonia is 30ppm, it means that the volume of ammonia in one million volumes of air is 30.
