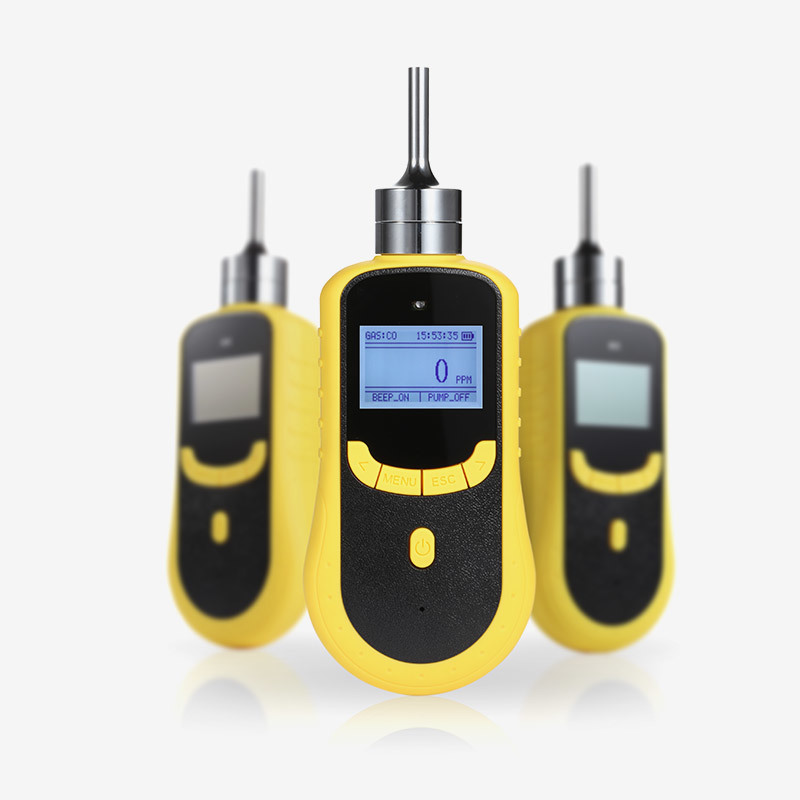

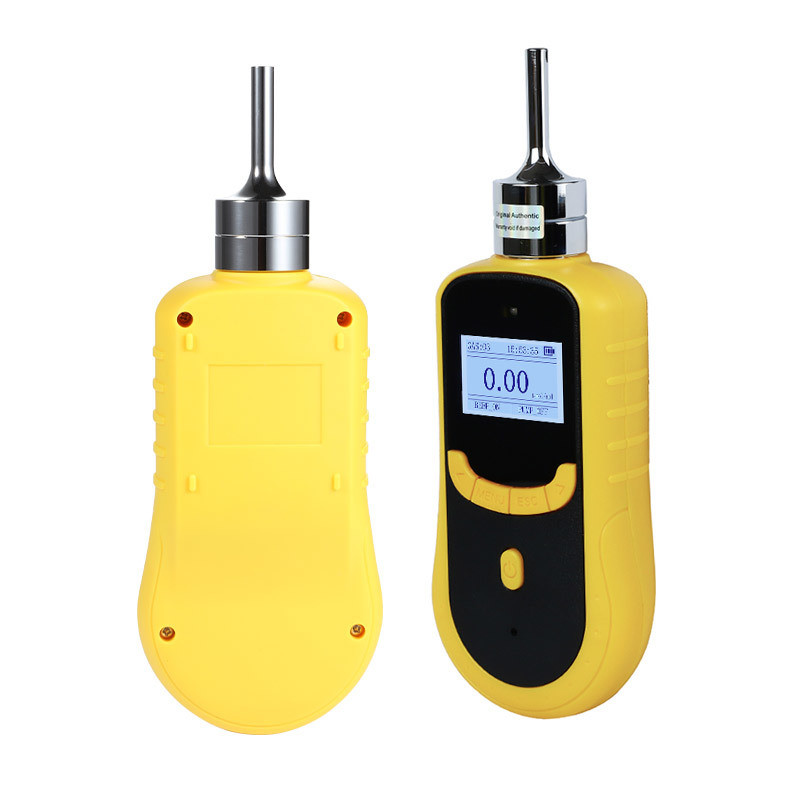

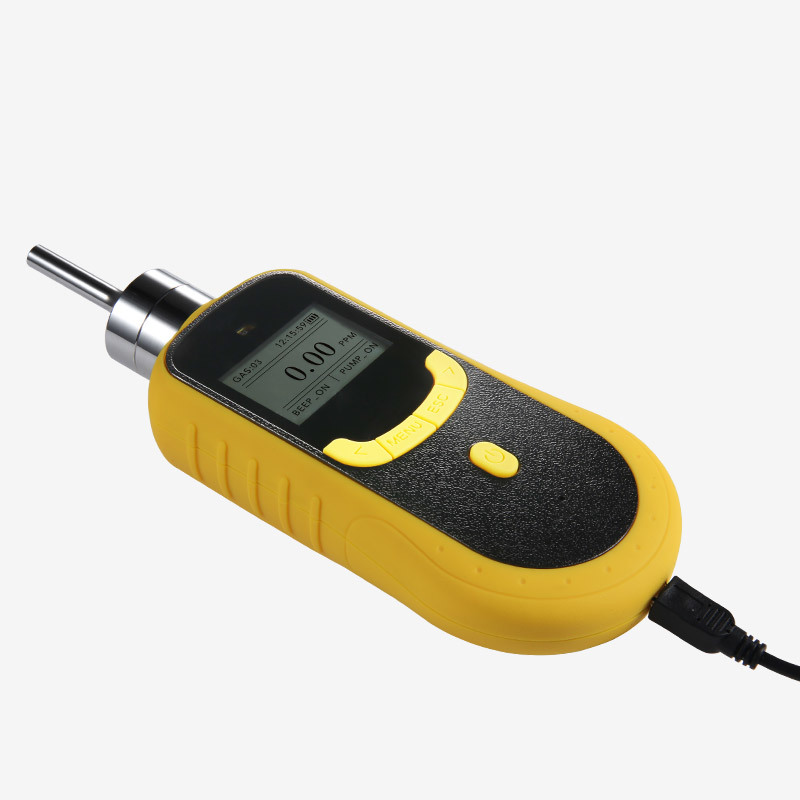

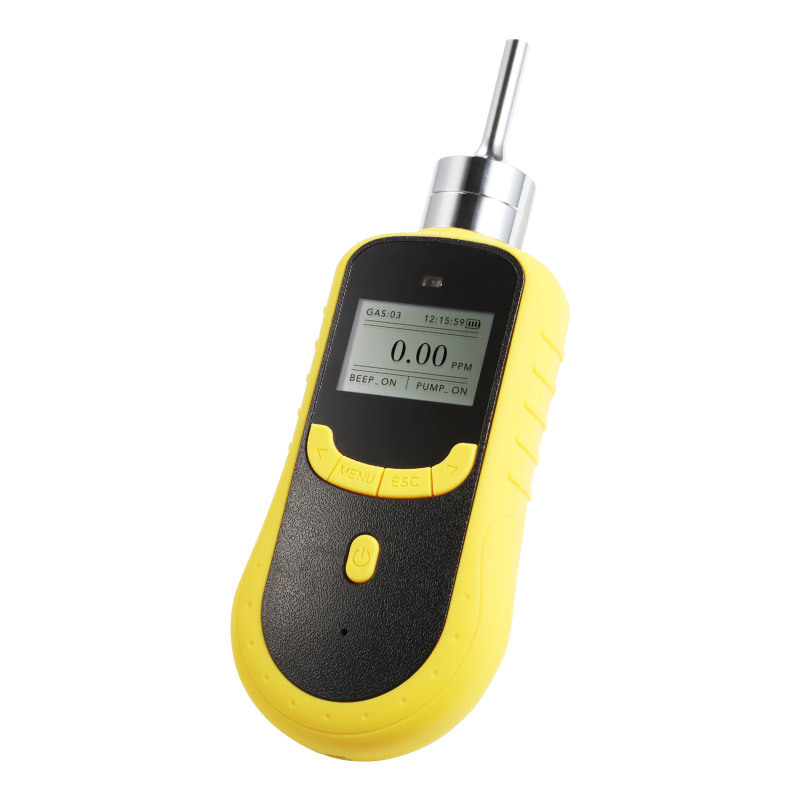

SKY2000 Handheld H2 Leak Detector with Built-in Pump
Professional-grade hydrogen leak detection instrument featuring selectable measurement ranges and advanced electrochemical sensing technology.
Product Overview
The SKY2000 is a portable gas detector combining a built-in sampling pump with advanced electrochemical sensor technology for rapid, reliable hydrogen measurement. Its compact, lightweight housing is made from high-strength engineering plastic, making it easy to carry and suitable for a wide range of industrial settings.
This hydrogen-specific version detects H₂ with selectable full-scale ranges of 1000ppm, 2000ppm, or 5000ppm at 1ppm resolution. Response time is ≤20 seconds, with repeatability ≤±1% and zero shift ≤±1% F.S./year. The detector features an LCD dot matrix display with backlight, switchable gas units, and triple alarm modes (sound, light, vibration). Optional data logging stores up to 100,000 readings for export via USB. Certified Ex ia IIC T4 Ga and rated IP66, the SKY2000 performs reliably in harsh conditions.
Why Hydrogen Detection Matters
| Hazard |
Risk |
Typical Sources |
| Hydrogen (H₂) |
Highly flammable (4–75% volume in air), explosive; colorless, odorless |
Chemical plants, refineries, battery charging rooms, electrolyzers, fuel cells, laboratories, hydrogen storage and transport |
Hydrogen leaks pose a significant fire and explosion risk, especially in confined spaces. Its low ignition energy and wide explosive range make early detection critical. The SKY2000 provides real-time H₂ concentration monitoring, enabling timely intervention before dangerous levels accumulate.
Key Technical Specifications
| Parameter |
Specification |
| Gas Detected |
Hydrogen (H₂) |
| Detection Principle |
Electrochemical |
| Measuring Ranges (Selectable) |
0–1000ppm, 0–2000ppm, or 0–5000ppm |
| Resolution |
1ppm |
| Precision |
≤ ±1–5% F.S. (gas-dependent) |
| Response Time |
≤20 seconds |
| Repeatability |
≤ ±1% |
| Zero Shift |
≤ ±1% F.S./year |
| Linearity Error |
≤ ±1% |
| Recovery Time |
≤10 seconds |
| Display |
LCD dot matrix with backlight |
| Gas Units |
Switchable (ppm, mg/m³) |
| Data Logging (Optional) |
100,000 readings; USB export to PC |
| Alarm Modes |
Sound, light, vibration |
| Operating Language |
Chinese / English |
| Operating Temperature |
-20°C to +50°C |
| Operating Humidity |
0–95% RH |
| Explosion-Proof Grade |
Ex ia IIC T4 Ga |
| Degree of Protection |
IP66 |
| Operating Time |
100 hours (pump off) |
| Dimensions |
205 × 75 × 32 mm |
| Weight |
300g |
Main Features
- Built-in sampling pump – Fast sampling speed and high flow rate ensure quick response to H₂ leaks.
- Explosion-proof certified – Ex ia IIC T4 Ga for safe use in hazardous zones.
- IP66 rated – Dust-tight and protected against powerful water jets.
- Span and zero calibration – Manual calibration ensures accurate, reliable readings.
- One-key factory reset – Quickly restores default settings.
- LCD display with backlight – Clear readings in low-light conditions.
- Triple alarm – Sound, light, and vibration alerts for immediate hazard notification.
- Optional data logging – Stores up to 100,000 readings; export via USB for analysis.
- Lightweight and portable – 300g, compact dimensions – easy to carry.
- Switchable gas units – Flexible display options (ppm, mg/m³).
- Long battery life – 100 hours of operation with pump off.
Typical Applications
- Chemical and petrochemical plants – Leak detection in production and storage areas.
- Oil refineries – Monitoring hydrogen in process units.
- Power generation facilities – Hydrogen-cooled generator monitoring.
- Hydrogen production and storage – Electrolyzer and tank farm surveillance.
- Laboratories and R&D – Safety monitoring in experimental setups.
- Battery rooms and charging stations – H₂ detection during charging cycles.
- Fuel cell testing and maintenance – Leak checks in fuel cell systems.
- Industrial hygiene – Worker exposure monitoring in hydrogen-handling areas.
Frequently Asked Questions
Q1: What ranges does this SKY2000 configuration measure?
A1: It offers selectable full-scale ranges: 0–1000ppm, 0–2000ppm, or 0–5000ppm, with 1ppm resolution.
Q2: What sensor technology is used for H₂ detection?
A2: An electrochemical sensor – providing accurate, stable, and long-life performance.
Q3: Is the detector explosion-proof?
A3: Yes, certified Ex ia IIC T4 Ga – suitable for hazardous areas.
Q4: What is the IP rating?
A4: IP66 – dust-tight and protected against powerful water jets.
Q5: How long does the battery last?
A5: 100 hours of continuous operation with the pump turned off.
Q6: Does it have a built-in pump?
A6: Yes, the internal sampling pump provides fast and consistent gas sampling.
Q7: Can it store data?
A7: Yes, the optional data logging function stores up to 100,000 readings, which can be exported to a PC via USB.
Q8: How do I calibrate the detector?
A8: The SKY2000 supports manual span and zero calibration functions.
Q9: What alarm types does it have?
A9: Triple alarm – sound, light, and vibration.
Q10: What is the response time?
A10: ≤20 seconds.
About the Manufacturer
Shenzhen YuanTe Technology Co., Ltd. (Safegas) – founded in 2010, with over 16 years of experience in R&D, manufacturing, and sales of gas detection equipment and integrated systems. The company serves oil & gas, chemicals, energy, environmental protection, electronics, municipal engineering, agriculture, and home appliances.
Key credentials:
- ISO9001 and ISO45001 certified
- IECEx, ATEX, and EMC certifications
- Annual production capacity: >80,000 units
- Global distribution network with 24/7 customer support
Product portfolio includes portable gas detectors, fixed transmitters, control panels, calibration accessories, and custom solutions.
