IECEx ATEX Certified SKY3000 Ethylene Oxide Detector
Professional-grade ethylene oxide detection system specifically designed for medical disinfection and sterilization facility monitoring. The SKY3000 provides reliable, accurate detection capabilities in critical healthcare environments.
Product Overview
SKY3000 is high-performance pump-suction portable gas detector with built-in powerful sampling pump for active gas extraction. This ETO customized version uses electrochemical sensor with independent range and resolution options. It features auto-power-on self-test, 180° auto-flip graphic display and comprehensive alarm functions to satisfy sterilization-site on-site testing.
Introduction to Ethylene Oxide (ETO)
Ethylene oxide (ETO) is highly toxic, irritant gas widely used for low-temperature sterilization of medical devices and pharmaceutical products. ETO inhalation harms the respiratory tract and nervous system; residual gas in sterilization workshops brings acute poisoning risk for operators. Built-in sampling pump can draw gas from confined sterilization chambers and workshop air to monitor ETO residual concentration and protect personnel safety.

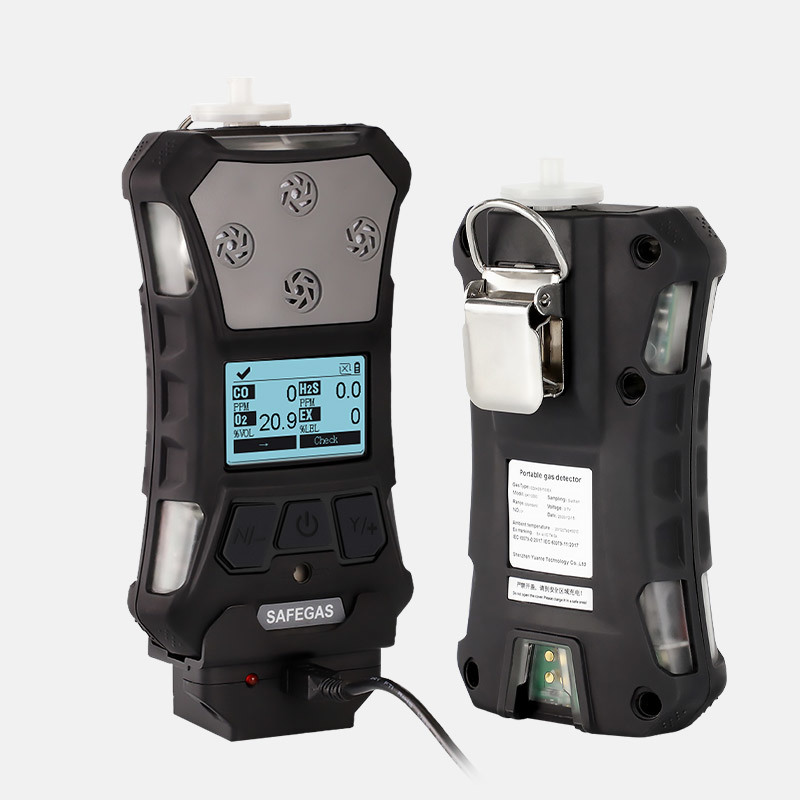

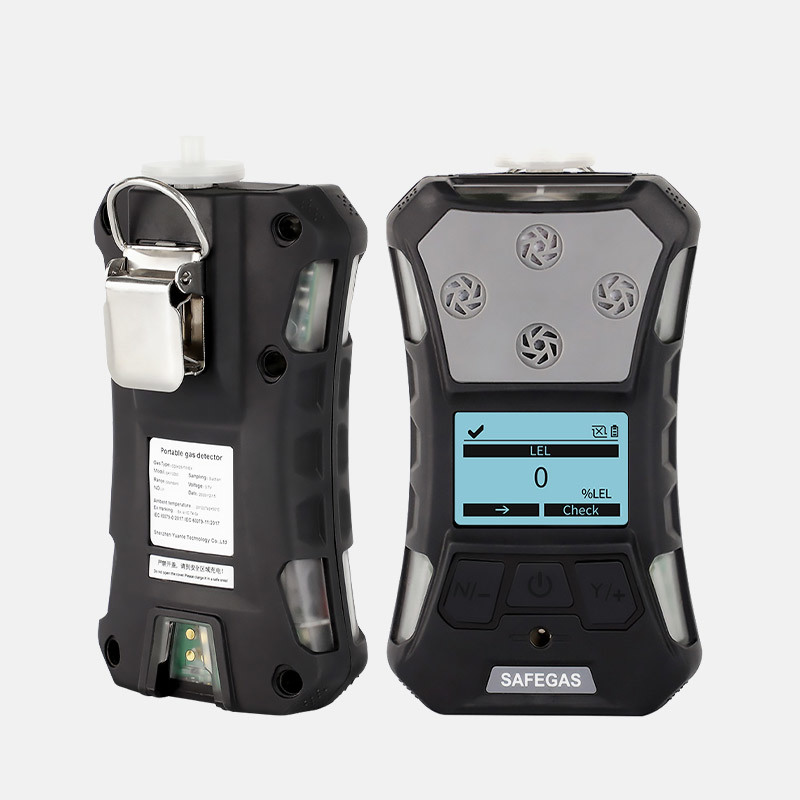

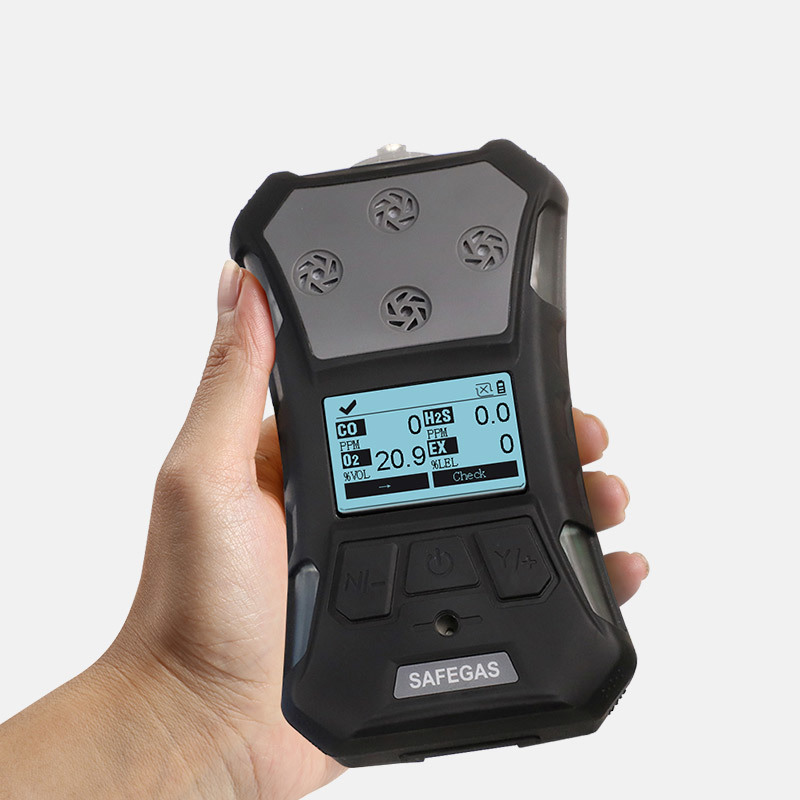

Product Pictures
Key Technical Specifications
| Parameter |
Value |
| Model |
SKY3000 |
| Target Gas |
Ethylene Oxide (ETO) |
| Detection Principle |
Electrochemical sensor |
| Optional Measuring Ranges |
0-20ppm, 0-50ppm, 0-100ppm, 0-200ppm, 0-1000ppm |
| Optional Resolution |
0.001ppm, 0.01ppm, 0.1ppm, 1ppm |
| Precision |
≤±2% F.S |
| Response Time |
≤30S |
| Sampling Method |
Built-in pump suction sampling |
| Display |
160×96 monochrome graphic LCD, supports 180° automatic flip, manually adjustable backlight, auto-on during alarm |
| Supported Languages |
Chinese, English; more languages customizable |
| Unit Switch |
One-key PPM / mg/m³ switch, automatic system concentration conversion |
| Data Recording |
Max 100,000 data sets; storage interval adjustable 5-3600s, export via data cable |
| Alarm System |
95dB@30cm buzzer, flashing red LED, vibration; latchable alarm, man-down, pump block, low-voltage, diagnostic alarm; optional Bluetooth remote alarm notification |
| Power Supply |
3.7V 2200mAh rechargeable lithium battery |
| Continuous Pumping Runtime |
More than 15 hours |
| Charging Time |
≥4 hours with DC travel charger |
| Explosion-proof Grade |
Ex ia IIC T4 Ga, IECEx & ATEX II 1G certified |
| Protection Class |
IP67 |
| Drop Resistance |
3-meter drop resistant |
| Working Temperature |
-20℃ ~ +50℃ |
| Working Humidity |
0-90%RH (non-condensing) |
| Working Air Pressure |
86~106Kpa |
| Standard Accessory |
Water trap filter for filtering water, oil and dust impurities; support external 20m sampling tube |
| Optional Functions |
Bluetooth wireless transmission, separate channel factory reset, modifiable instrument ID |
| Dimension |
157*84.5*59.5mm (with back clip & water trap filter) |
| Weight |
365g (including battery, belt clip and filter) |
Main Features
- Powerful built-in sampling pump: Active gas sampling, compatible with external 20m sampling tube; standard water-trap filter blocks moisture, oil and dust for confined-space sterilization-chamber inspection.
- Rugged industrial hardware: IP67 enclosure with 3-meter drop resistance, passes EMC anti-static test; IECEx / ATEX Ex ia IIC T4 Ga approval for hazardous pharmaceutical-sterilization zones.
- Complete safety-oriented alarms: Standard man-down alarm, password protection, latchable sound-light-vibration triple alert, plus pump-block and low-voltage fault reminders.
- Convenient operation & data management: 180° auto-flip graphic LCD, multi-language & unit conversion; stores up to 100 000 records; optional Bluetooth for remote data / alarm notification, supports fleet ID management and per-channel sensor reset.
- Long field runtime: Over 15-hour continuous pumping working time to satisfy full-shift on-site inspection tasks.
Typical Applications
Medical-device ETO sterilization workshop residual-gas monitoring Pharmaceutical factory ethylene-oxide disinfection-process site patrol Sterilization chamber pre-entry gas safety inspection Medical-supplies manufacturing plant toxic-gas environmental testing Third-party sterilization-service factory occupational-health monitoring Laboratory ethylene-oxide processing-area safety protection

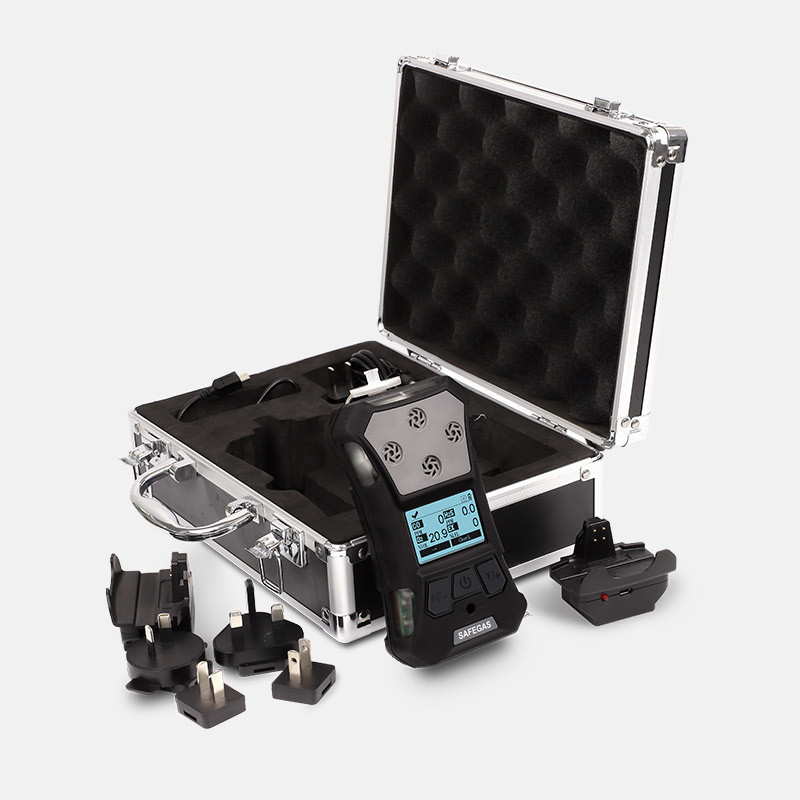

Standard Package
- SKY3000 ETO gas detector ×1
- 12V/1A DC power adapter ×1
- USB data cable ×1
- User manual ×1
- Warranty card ×1
- Water-trap filter ×1
- Premium aluminum alloy portable suitcase ×1
FAQ
Q1: What gas is this SKY3000 configured to detect?
A: This unit is customized for ethylene oxide (ETO). Sensors for other toxic or combustible gases can be configured on request.
Q2: What ranges and resolution options are available for ETO?
A: Measuring ranges:0-20/50/100/200/1000/2000/3000ppm; optional resolution:0.001ppm,0.01ppm,0.1ppm,1ppm.
Q3: What sampling method does this instrument adopt?
A: Built-in pump-suction sampling, supports external 20-meter sampling tube for confined-space sampling.
Q4: What are its protection, anti-drop and explosion-proof specifications?
A: IP67 ingress protection, 3-meter drop-resistant; IECEx & ATEX Ex ia IIC T4 Ga intrinsic-safety certification.
Q5: Does it support man-down alarm and data storage?
A: Man-down alarm is standard; it can store 100,000 groups of data with adjustable recording interval.
Q6: How long can it run under continuous pumping condition?
A: More than 15 hours continuous pumping operation; charging time ≥4 hours.
Q7: Can I connect an extended sampling tube?
A: Yes, it supports external 20-meter sampling tube, together with standard water-trap filter.
Q8: Is Bluetooth wireless function available?
A: Bluetooth is optional for real-time data and alarm notification.
Q9: What special display functions does the device have?
A: 160×96 graphic LCD supports automatic 180-degree flipping and manually configurable backlight timing.
