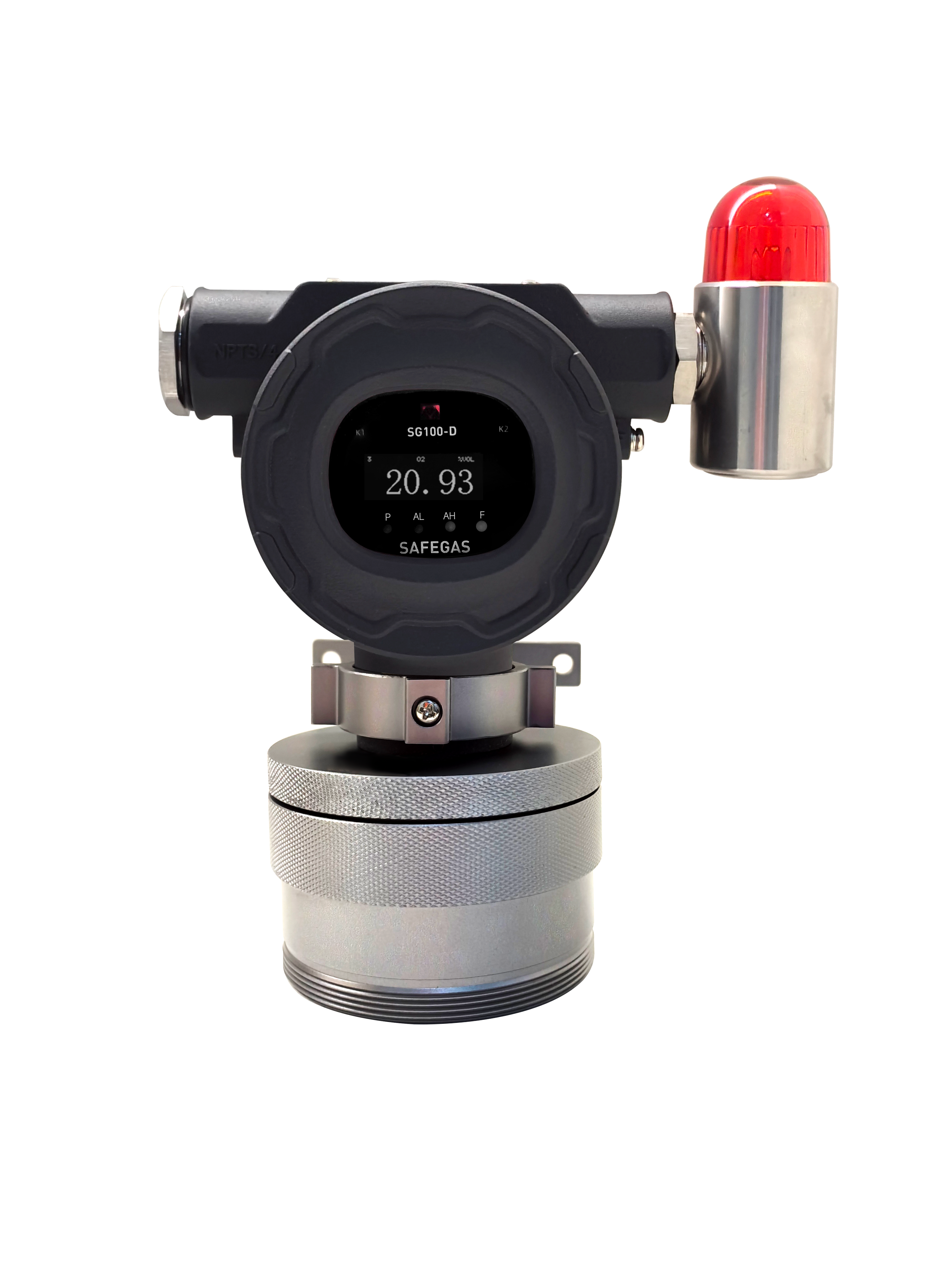

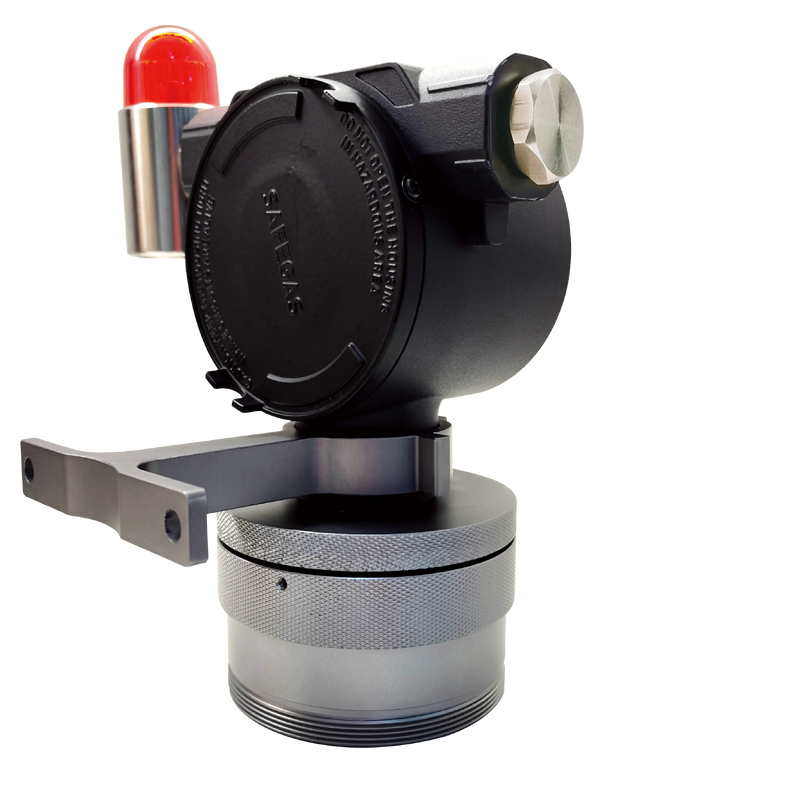

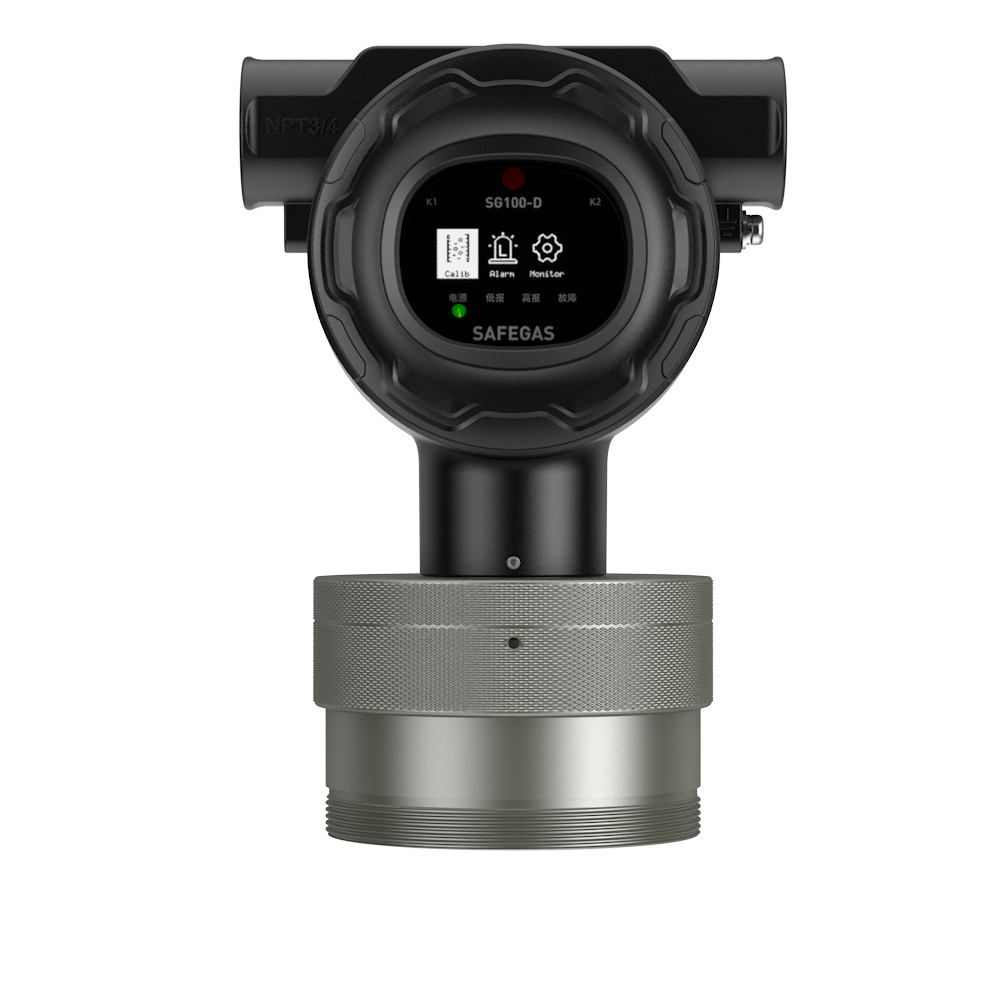

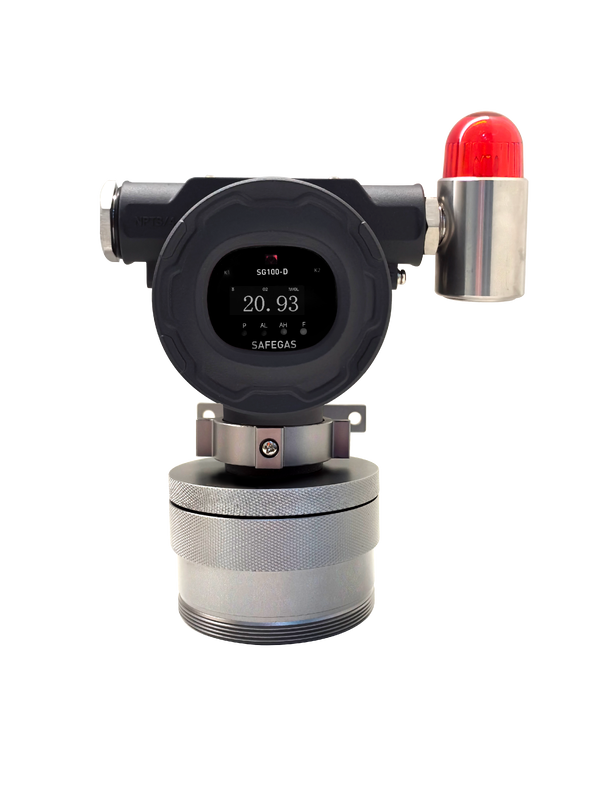

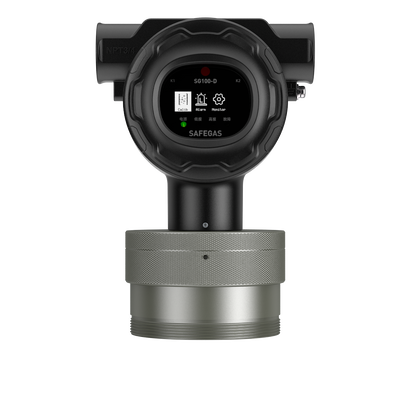

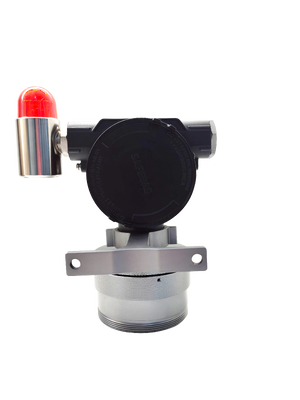

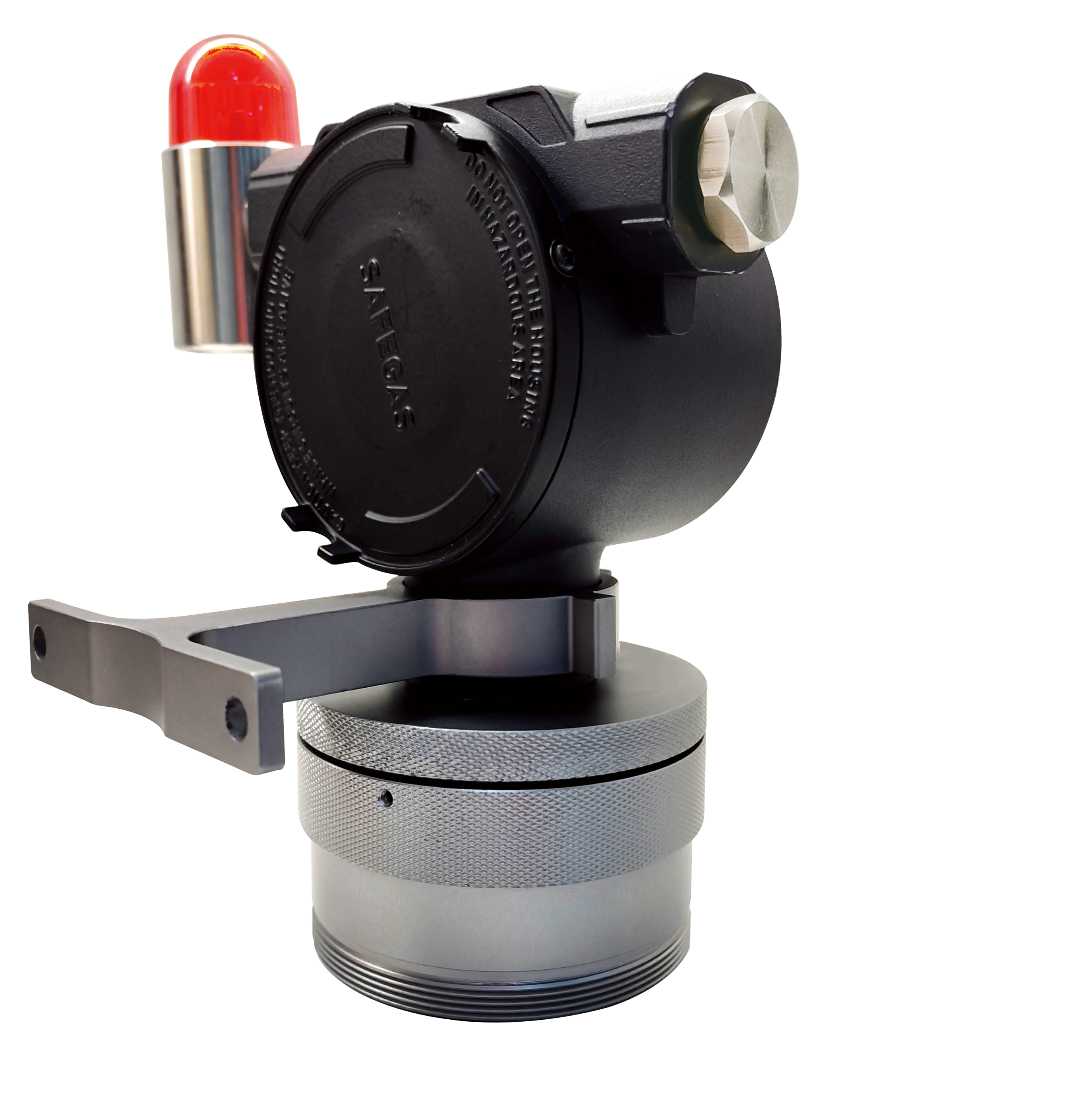

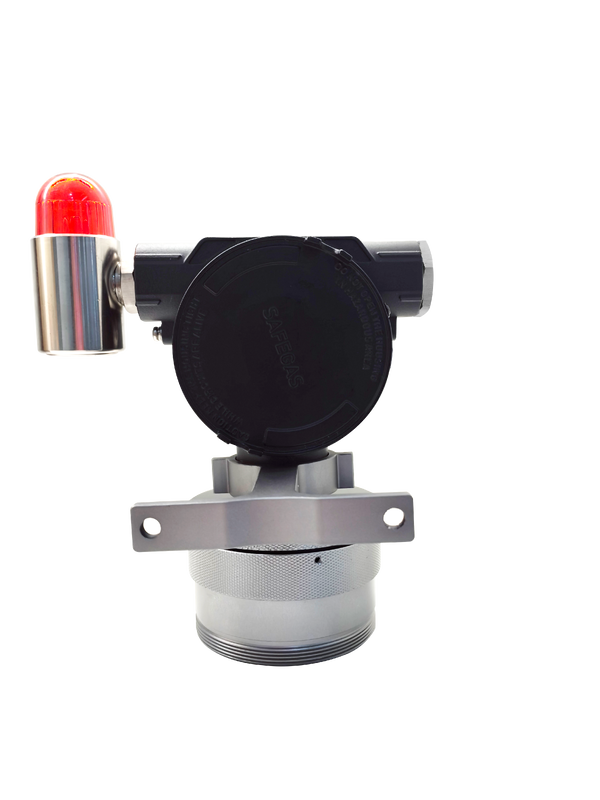

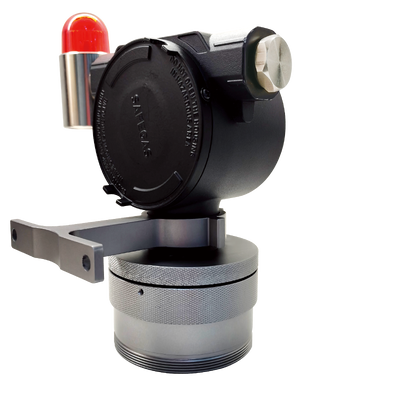

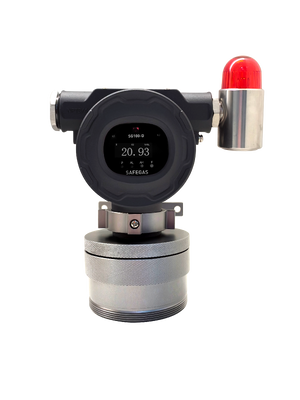

SG100-D Multi Gas Detector with Hot-swappable Sensor Chamber IECEx & ATEX Explosion-proof and IP66/IP68 Protection for Fruit Ripening

SG100-D is an intelligent hot-swappable fixed dual-gas detector configured for ethylene (C2H4) and carbon dioxide (CO₂), featuring an electrochemical sensor for C2H4 and infrared sensor for CO₂. Measuring ranges: C2H4 0-200 ppm, CO₂ 0-10% VOL, with other measuring ranges available upon custom request. Resolution: 0.1 ppm for C2H4, 0.01% VOL for CO₂. With IECEx & ATEX explosion-proof certification and IP66/IP68 protection grade. It supports magnetic wand non-contact operation, multiple signal outputs and hot-swap sensor chamber, specially designed for 24-hour continuous monitoring in fruit-vegetable cold-storage and fresh-keeping warehouses.

Ethylene (C2H4) is the key ripening hormone for fruits and vegetables. Excessive ethylene will accelerate over-ripening and spoilage of stored produce. Carbon dioxide (CO₂) is widely applied in modified-atmosphere cold storage; improper CO₂ concentration will cause physiological damage to fruits and vegetables. Real-time dual-gas monitoring helps maintain optimal atmosphere environment and extend post-harvest shelf-life of agricultural products.

• Hot-swappable sensor-chamber design, no whole-machine disassembly for maintenance
• Magnetic-wand non-contact operation, safe configuration inside explosive-risk locations

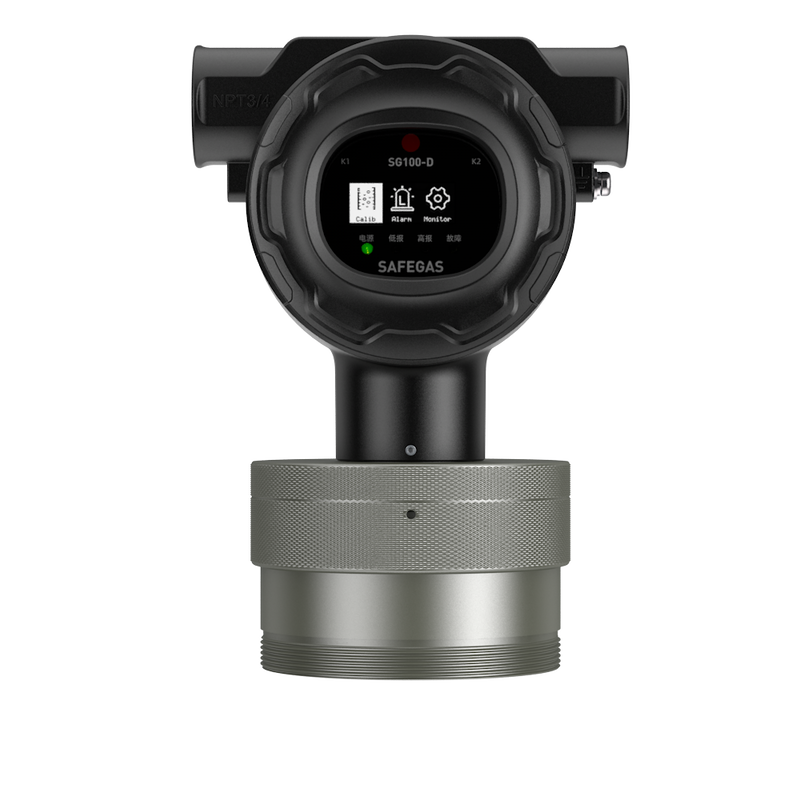

• 1.21-inch OLED local real-time data display
• Standard 4-20mA, RS485 Modbus and dual-relay signal outputs
• Optional 4-channel 4-20mA multi-loop signal output
• Relay output supports linkage with external alarm or ventilation equipment
• Optional LoRa / 4G wireless for remote data access
• Stores 1000 event records per channel for data traceability

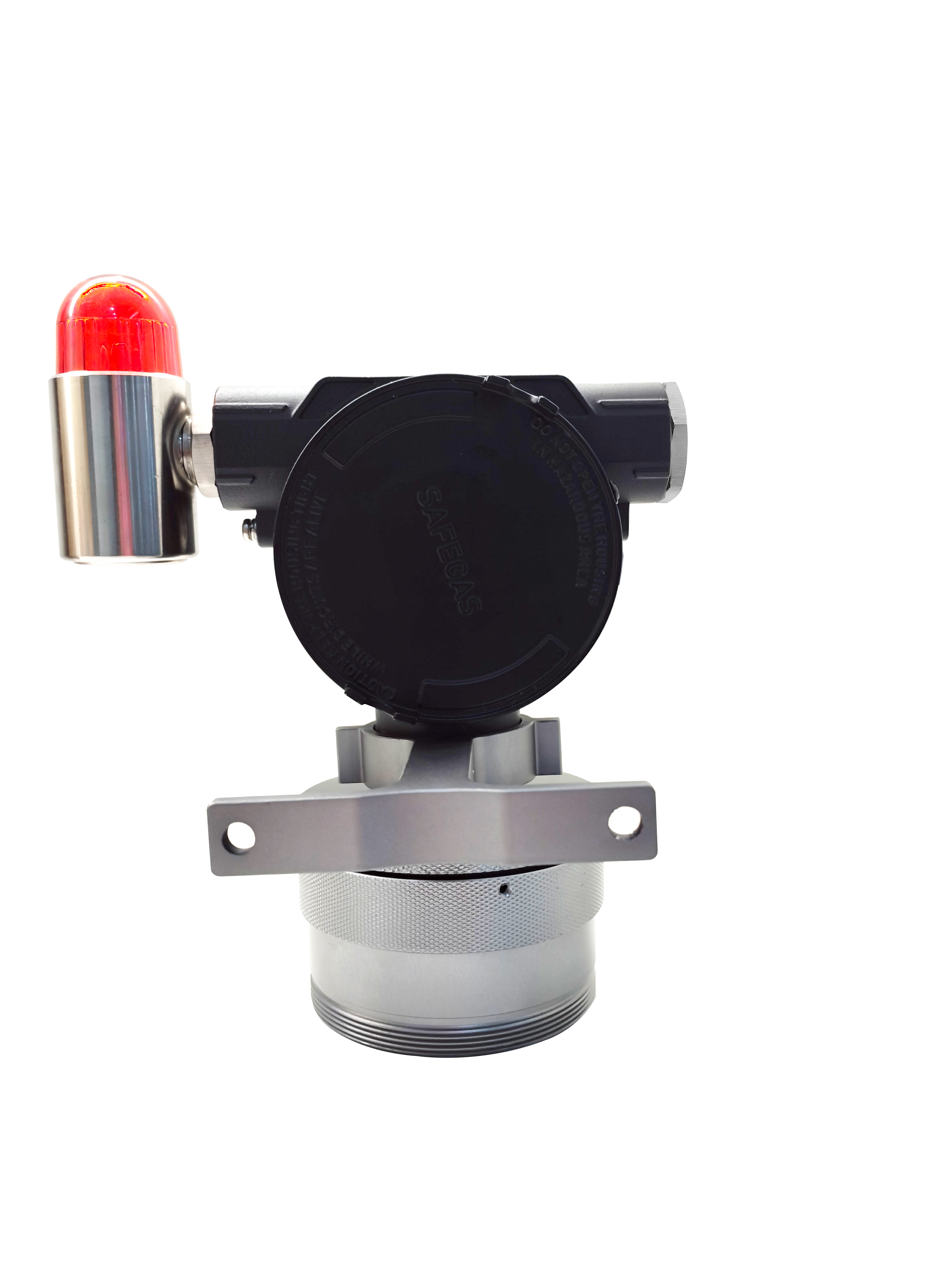

• Quick installation aided by dedicated mounting-plate accessories
• IP66/IP68 rugged die-cast aluminum housing for warehouse environments

• Controlled-atmosphere fruit cold-storage dual-gas monitoring
• Vegetable fresh-keeping warehouse C2H4 & CO₂ continuous detection
• Post-harvest fruit ripening-chamber atmosphere supervision
• Agricultural product processing-warehouse gas-safety inspection
• Fruit logistics storage-area modified-atmosphere monitoring
• Large-scale agricultural cold-chain facility on-line gas early-warning

• SG100-D C2H4 & CO₂ dual-gas detector ×1
• Magnetic wand ×1
• Mounting plate + M4 installation bolt sets ×1
• User manual ×1
• Certificate of conformity & warranty card ×1
