Name: IECEx ATEX Certified Portable SO2 Gas Detector with IP66/68 Protection and 0.1ppm Resolution
Brand: Shenzhen YuanTe Technology Co., Ltd. (Safegas)
SKU: Minimeta
Price: 1,037.00 USD
Availability: InStock

Detail Information

Principle:	Electrochemical Principle	Working Temperature:	-20℃ To 55℃
Display:	Gas Name, Battery Power, Concentration Unit, Measured Value	Response Time(T90):	15 To 30s
Working Humidity (non-condensing):	0-95%RH	Resolution:	0.1ppm
Working Air Pressure:	86 To 106kpa	Alarm Mode:	Sound, Light, Vibration Alarm
Weight (With Clip):	125g	Dimensions:	90mm60mm33mm (lengthwidththickness)
Measure Range:	0-100ppm	Detection Principle:	Diffusion
Accuracy:	≤±2-5%FS	Gas Detected:	SO2
Power Supply Mode::	3.6V Dry Battery (non-rechargeable And Replaceable)	Alarm Type:	Low Alarm, High Alarm, STEL, TWA, Low Battery Optional Calibration Due And Bump Test Due
Explosion-proof Certification:	IECEx, ATEX	Protection Class:	IP66/68
Highlight:	IECEx ATEX Certified SO2 Gas Detector , IP66/68 Protection Portable Gas Detector , 0.1ppm Resolution Single Gas Detector

Product Description

Wearable SO2 Detector For Industrial Maintenance And Confined Space Work With IECEX ATEX Certification

Product Overview

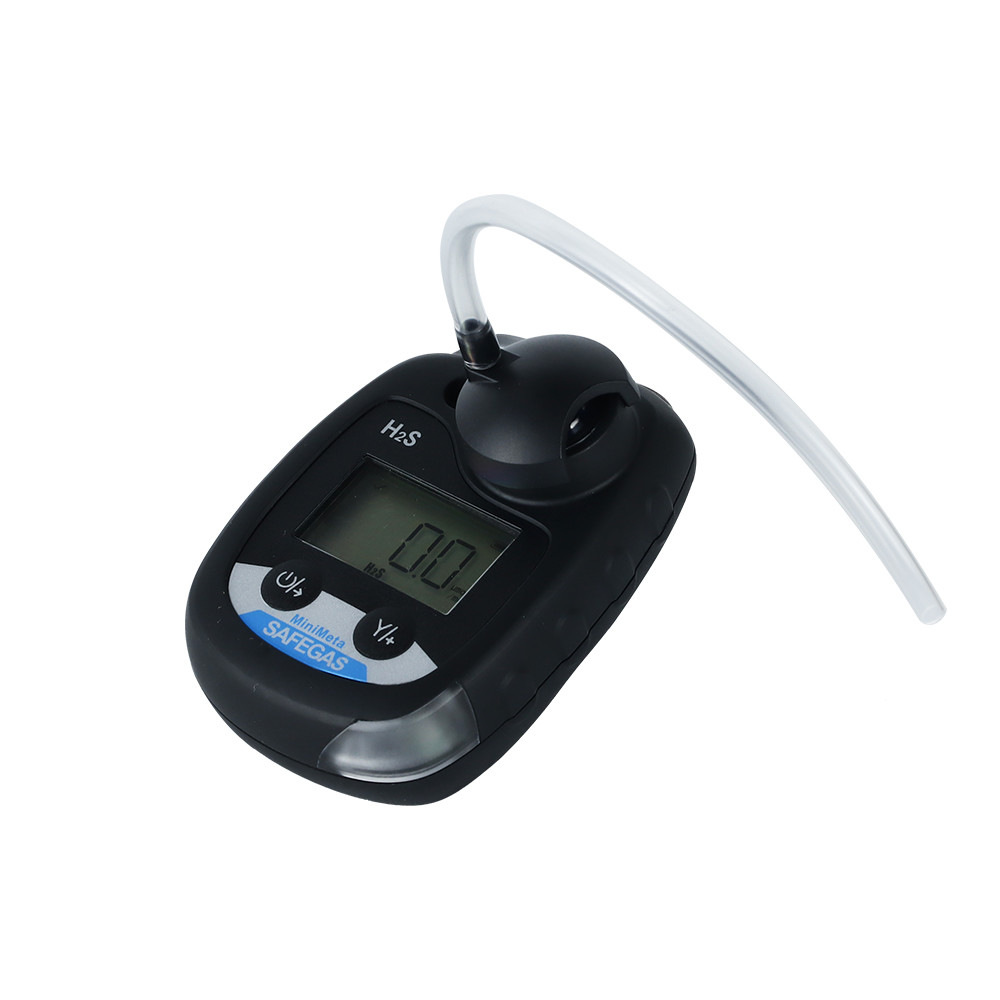

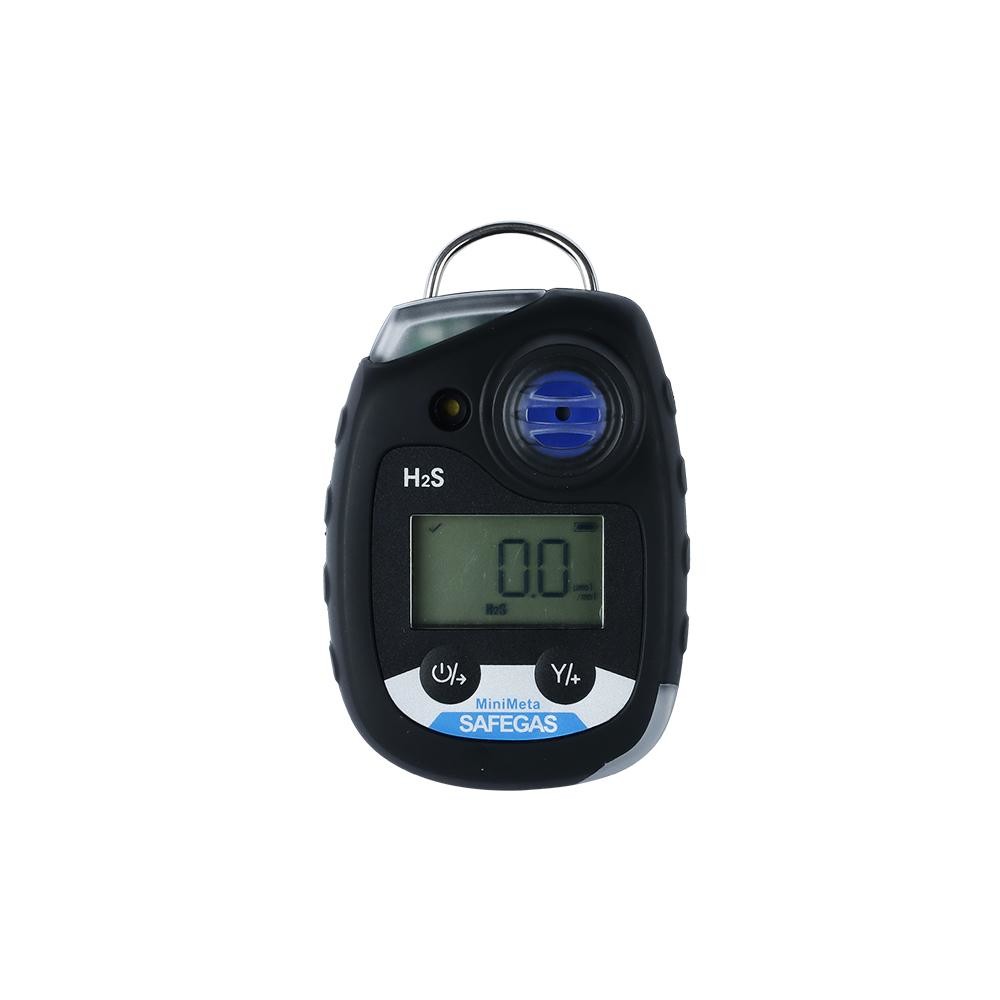

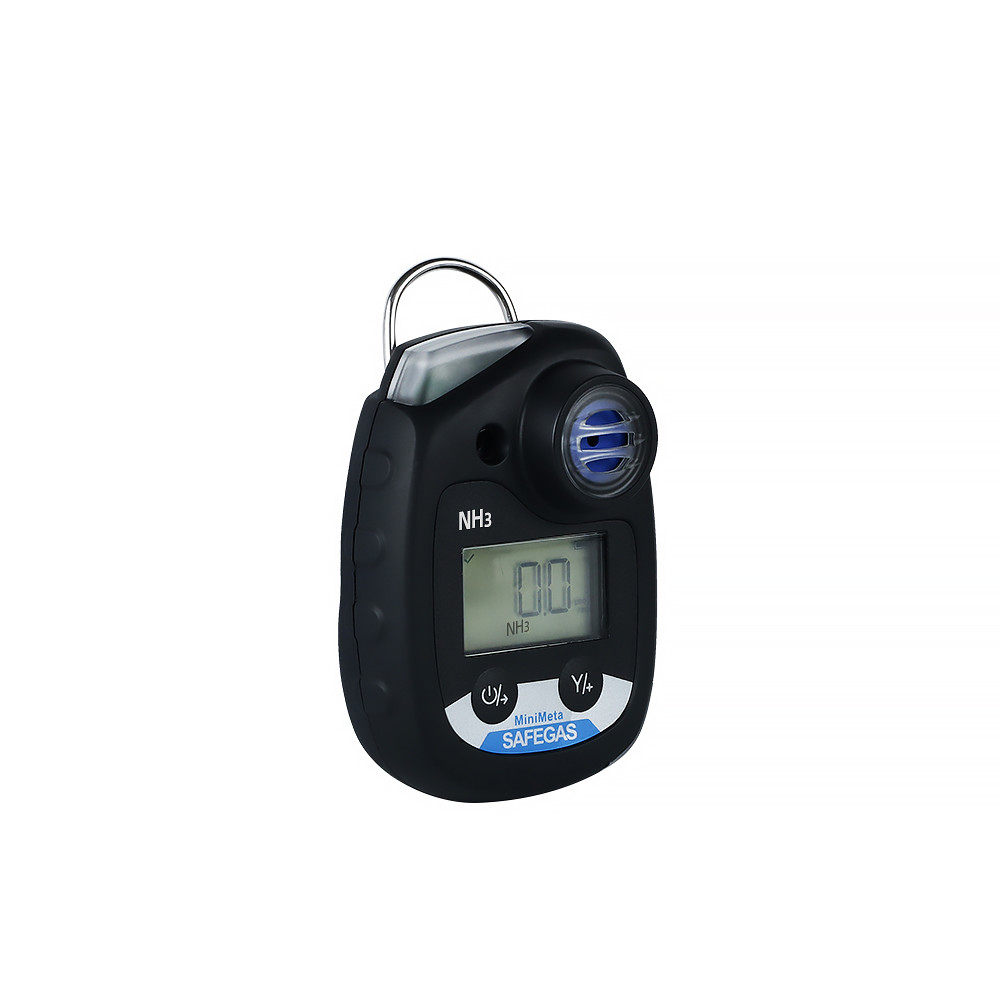

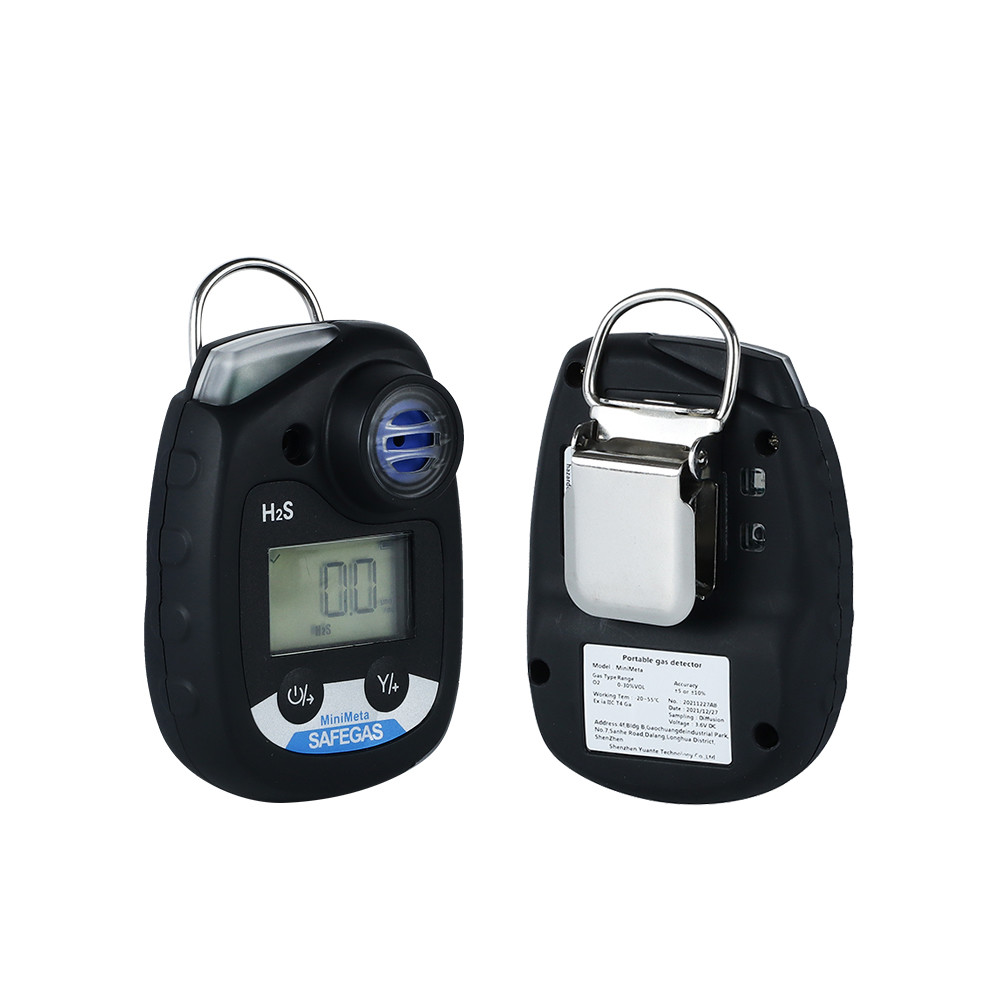

Minimeta Portable SO2 Gas Detector is a high-precision portable gas detector for SO2 detection with diffusion detection principle, designed for industrial safety applications.

MiniMeta is an IECEX/ATEX/EMC certified single-gas detector that can detect hundreds of user-selected toxic gases. User-friendly and easy to operate, it features replaceable battery and sensor for long-term protection. Designed to offer a low-cost, long-term ownership gas monitoring system.

Key Features

IP68 water- and dust-resistant case
Low power consumption with 2 years standby time, no battery charge or calibration needed
Single/multi unit docking station for daily bump test and calibration (Optional)
Event and data logging function
Self-test function for improved safety through automatic self-test
Small size, lightweight design with back clip for easy carrying
95db@30cm buzzer alarm, 2 high-bright red LED light alarm and vibration alarm
Real time value, TWA, STEL, MAX, MIN multiple numerical display

Technical Parameters

Detect gas	SO2
Sensor type	Electrochemical
Sampling method	Diffusion
Measure range	0-100PPM
Resolution	0.1ppm
Precision	≤± 3% F.S.
Response Time	≤30s(T90)
Unit	PPM
Display	Gas name, concentration unit, measured value, electricity
Alarm mode	Sound, light, vibration alarm, high and low alarm values can be set by yourself
Alarm type	Low alarm, high alarm, STEL, TWA, low battery
Display	LCD Display
Operating language	Chinese/English
Size	906033mm
Weight	125g
Working Temperature	-20ºC~50ºC
Working Humidity	0-95%RH
Working air pressure	86~106kpa

Company Advantages

R&D team experience: over 25 years
Company certifications: ISO9001, ISO45001
Product certifications: IECEx, ATEX, CE
Delivery time: 5-7 days
Annual capacity: 80,000 units
Professional 7*24 hours customer service

Manufacturer Profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production, and sales of gas detection equipment and systems. With 16 years of industry experience, we provide comprehensive solutions for various sectors including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.

Product Line

Portable: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000, SKY1000, MAXMETA
Fixed: YT-95H, YT-98H, YT-96H, SG100, SG200
Controllers: YT-1100H, YT-1600H, YT-1800H
Particle Counter: AQD5000, SKY6000-PM, SKY2000-PM
