Name: Diffusion-type NH3 Single Gas Detector Portable Gas Detector with CPA IECEx ATEX ISO9001 Certificate
Brand: Shenzhen YuanTe Technology Co., Ltd. (Safegas)
SKU: minimeta
Price: 1,037.00 USD
Availability: InStock

Detail Information

Gas:	NH₃ (Ammonia)	Alarm Type:	95dB (@30cm) Alarm Sound; Multi-alarm Types Including High Alarm, Low Alarm, TWA And STEL; Sound, Light And Vibration Alarm. High And Low Alarm Thresholds Can Be Set Via Upper Computer And Calibration Platform.
Measure Range:	0~100, 200, 500, 1000 Ppm	Size:	906033mm
Warranty:	One Year	Package:	Carton
Humidity:	0-95%RH (non-condensing)	Sampling Method:	Diffusion
Accuracy:	≤±2-5%FS (depending On The Specific Sensor)	Response Time:	≤20S(T90),T90<30s
Protection Class:	IP68	Detection Principle:	Electrochemical
Battery:	Power Supply Mode: 3.6V Dry Battery (non-rechargeable)
Highlight:	Diffusion-type Single Gas Detector , CPA IECEx ATEX Portable Gas Detector , NH3 Single Gas Detector

Product Description

Minimeta-NH3
Product Overview

MiniMeta is an IECEX/ATEX/EMC certified single-gas detector. It Can detect hundreds of user-selected toxic gases, user friendly and easy for operation. The battery and sensor is replaceable to provide user a long-term protection. It is designed to offer a low long-term ownership cost of a gas monitoring system.

Technical parameters

Item	Specification
Product Type	Diffusion Ammonia Gas Detector
Sampling Method	Diffusion
Gas Type	NH₃ (Ammonia)
Detection Principle	Electrochemical Principle
Measuring Range	0~100, 200, 500, 1000 ppm
Resolution	0.1, 1 ppm
Response Time	≤30s (T90)
Accuracy	≤±3%FS or ±10% (depends on specific sensor)
Alarm Mode	95dB (@30cm) alarm sound; multi-alarm types including high alarm, low alarm, TWA and STEL; sound, light and vibration alarm. High and low alarm thresholds can be set via upper computer and calibration platform.
Battery Life	More than 2 years under normal use, no charging required, replaceable battery
Communication Method	Infrared transmission
Upper Computer	Configuration modification, function test and calibration via docking station (optional)
Calibration Platform	DKM-MiniMeta automatic calibration platform for parameter configuration, function test and calibration (optional)
Storage & Settings	Automatically store 60 alarm events
Explosion-proof Certification	IECEx, ATEX and Chinese explosion-proof certifications
Metrological Certification	CPA Certificate
Explosion-proof Grade	Ex ia IIC T4 Ga / Ex ia I Ma, suitable for Zone 0, Zone 1 and coal mine area detection
Ingress Protection	IP66/IP68
Display Interface	Gas name, concentration unit, measured value, battery level
Operating Temperature	-20℃～50℃
Operating Humidity	0-95%RH (non-condensing)
Overall Dimension	906033mm (LWH)
Host Weight	125g
Warranty	1 year

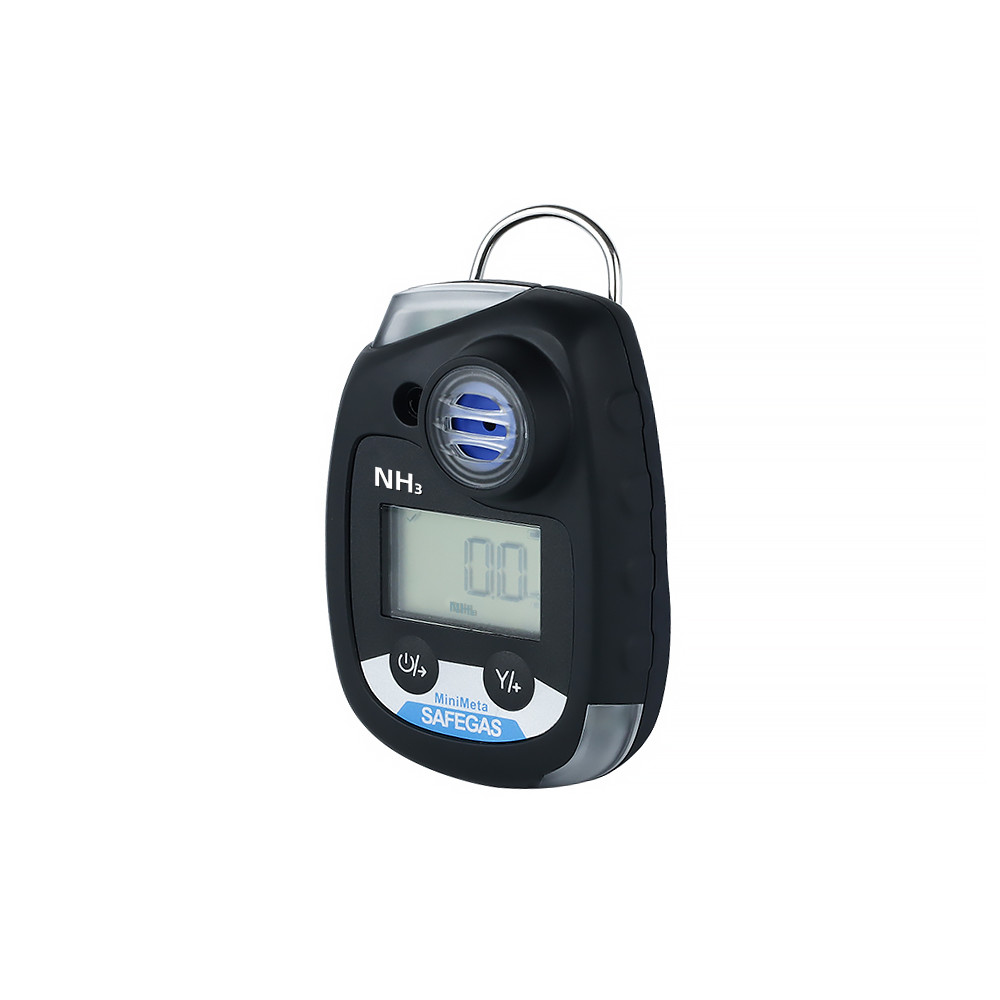

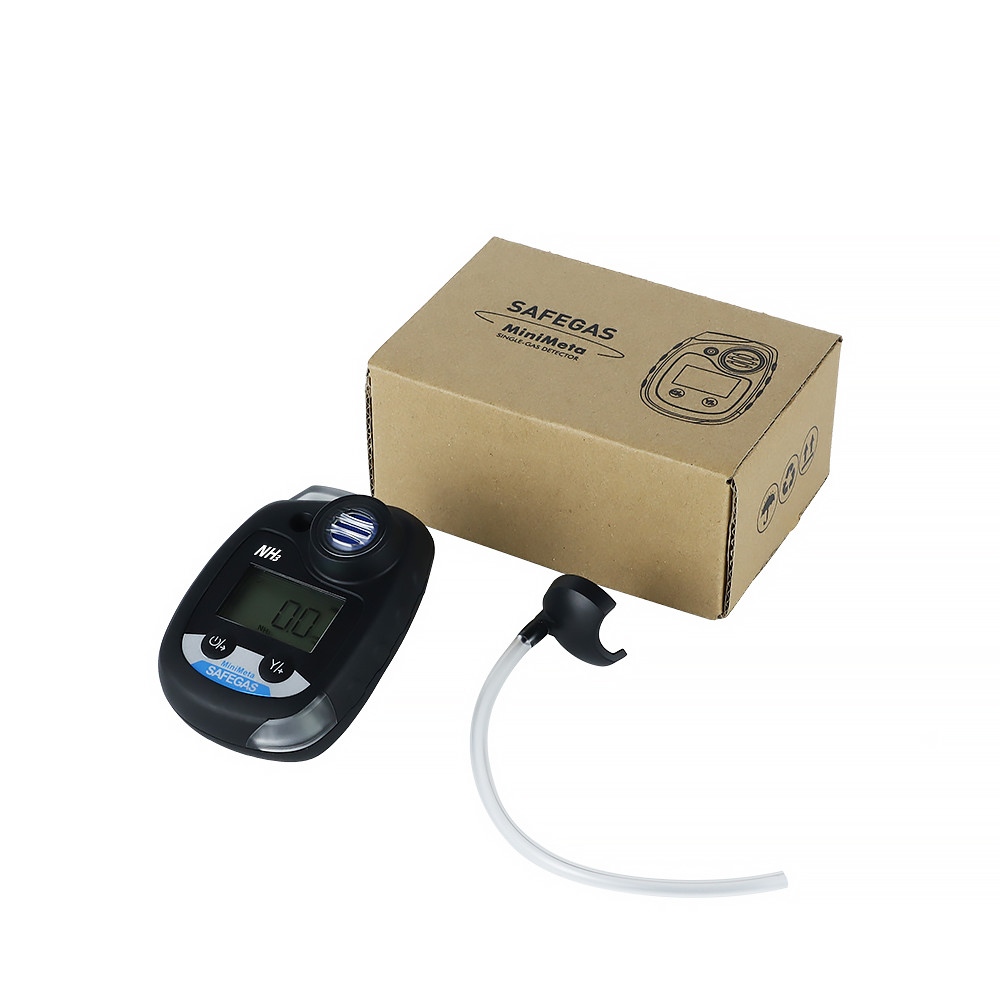

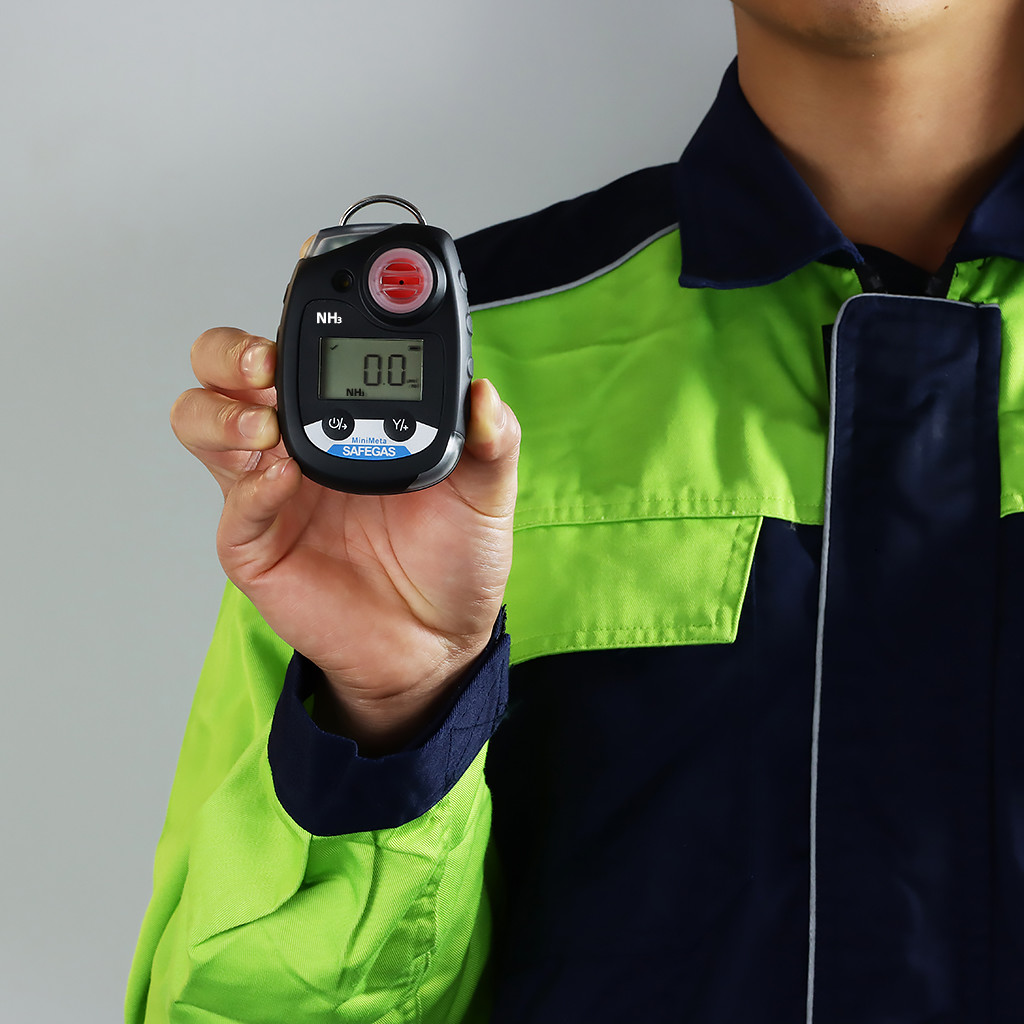

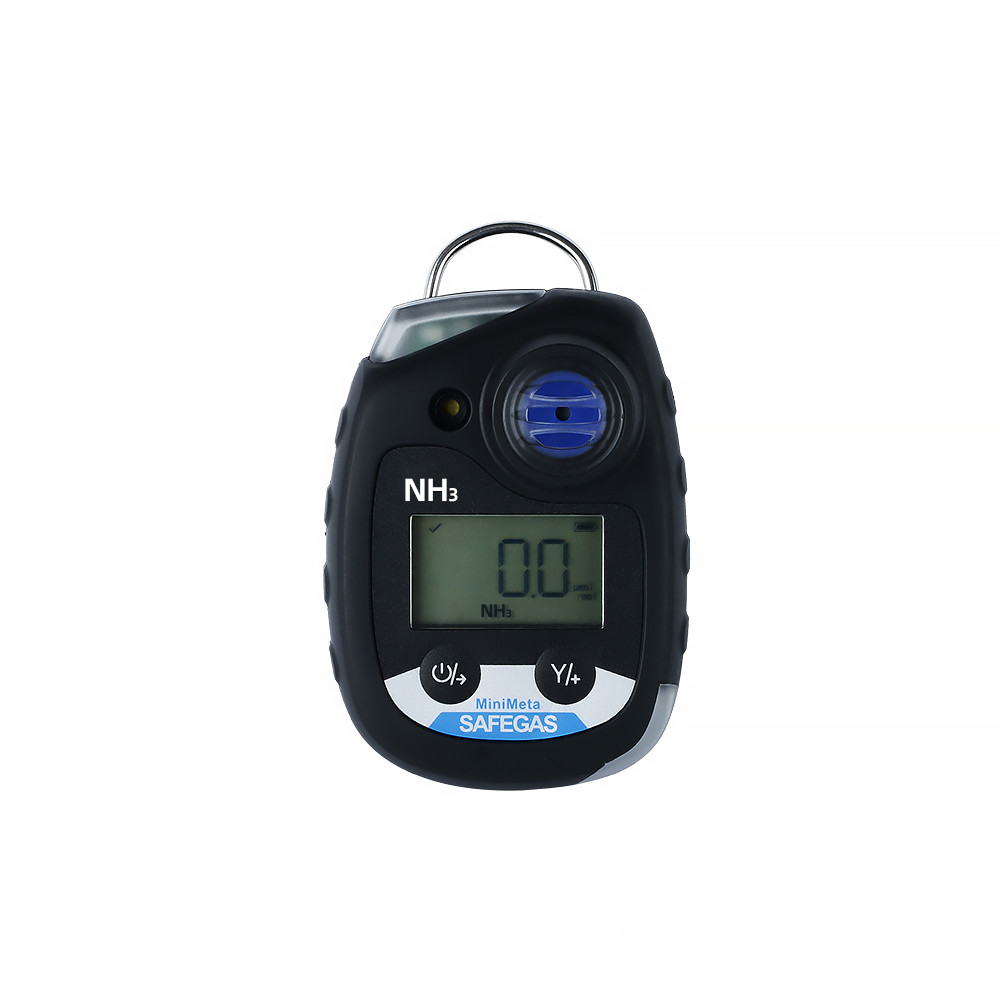

Product Images

Diffusion-type NH3 Single Gas Detector Portable Gas Detector with CPA IECEx ATEX ISO9001 Certificate

Scenario Application

In the refrigeration industry chain, liquid ammonia is commonly used for refrigeration However, liquid ammonia has strong corrosive effects, strong irritants, and suffocation effects, so it is necessary to detect its leakage

Thermal power plant: a denitrification treatment for flue gas exhaust ( ammonia is a common denitrification agent)

Agriculture: mainly requires some breeding farms

Chemical industry, environmental protection, automotive

Company Profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production, and sales of gas detection equipment and systems. With 16 years of industry experience, we provide comprehensive solutions for various sectors including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.

Our product includes portable detectors, fixed systems, controller panels, and particle counters:

Portable: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000, SKY1000, MAXMETA
Fixed: YT-95H, YT-98H, YT-96H, SG100, SG200
Controllers: YT-1100H, YT-1600H, YT-1800H
Particle Counter: AQD5000, SKY6000-PM, SKY2000-PM

Why Choose Us?

Manufacturer&Factory
Company Certifications: ISO9001, ISO45001
Product Certifications: IECEx, ATEX, CE
Delivery time: 5–7 days
One- stop- service
Quality Guaranteed
Personalized Solutions

Tag:

Place of Origin:	China
Brand Name:	safegas
Certification:	CE,ATEX,IECEx
Model Number:	minimeta
Document:	MiniMeta Datasheet.pdf

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	3-8 days
Payment Terms:	T/T
Supply Ability:	100 pcs/day
