Product Overview
SG100 is a cost-effective, IECEx & ATEX-certified explosion-proof fixed online gas transmitter specially built for ethylene-oxide (ETO) monitoring in disinfection and sterilization-industry sites. It supports selectable electrochemical or PID sensor, with measuring ranges 0-10/50/100ppm and resolution options 0.01ppm / 0.1ppm. Featuring IP66/IP68 ingress protection, intelligent plug-and-play sensor module, multiple standard signal outputs and optional wireless transmission, it supports magnetic remote operation. This unit simplifies field installation and routine maintenance and delivers reliable 24-hour continuous gas concentration monitoring for medical-sterilization-related facilities.
Introduction to Ethylene-Oxide (ETO)
Ethylene-oxide is an efficient low-temperature sterilizing agent widely adopted in medical-device disinfection workshops. ETO is toxic and flammable; long-term occupational exposure brings serious health hazards to on-site staff. Continuous real-time monitoring helps control ETO residual concentration and protects operators in disinfection-production environments.

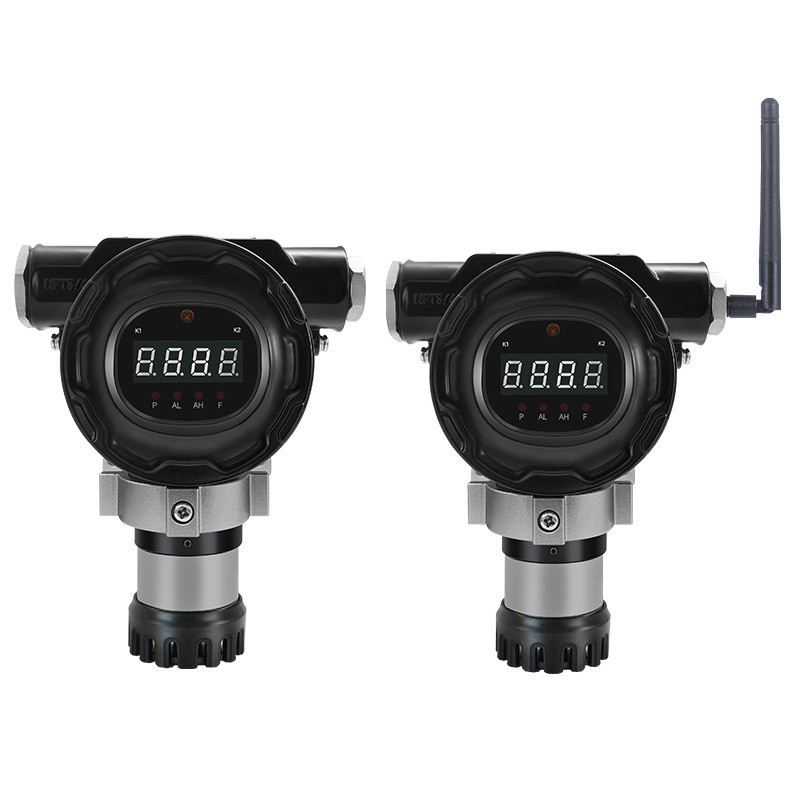

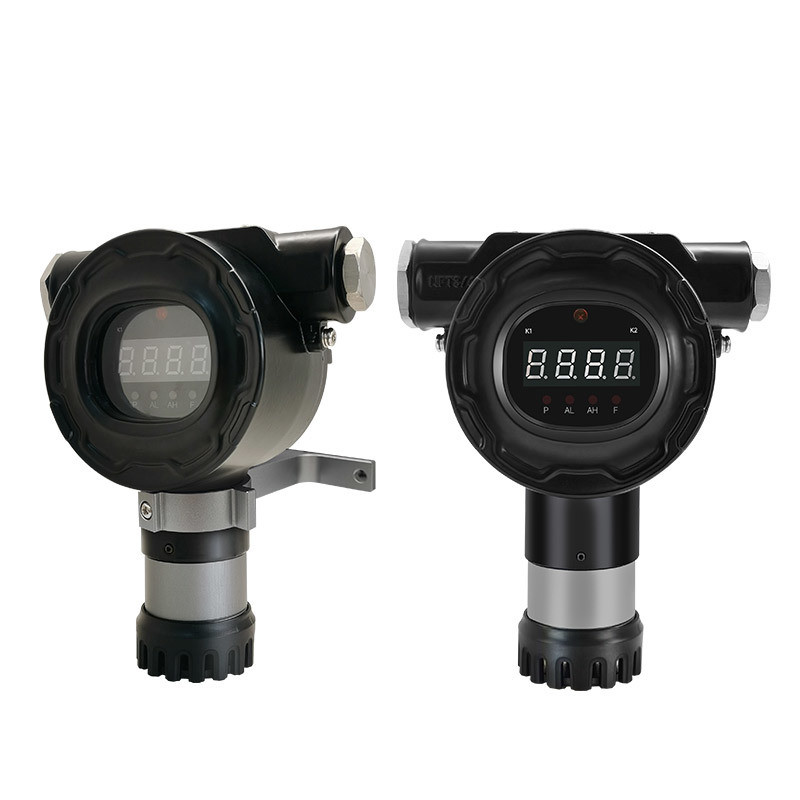

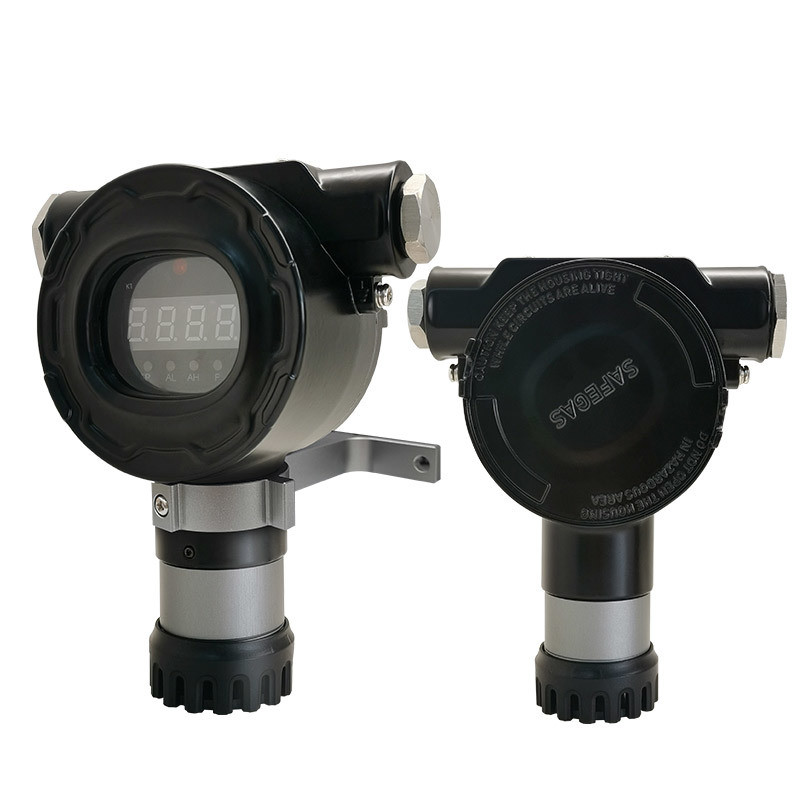

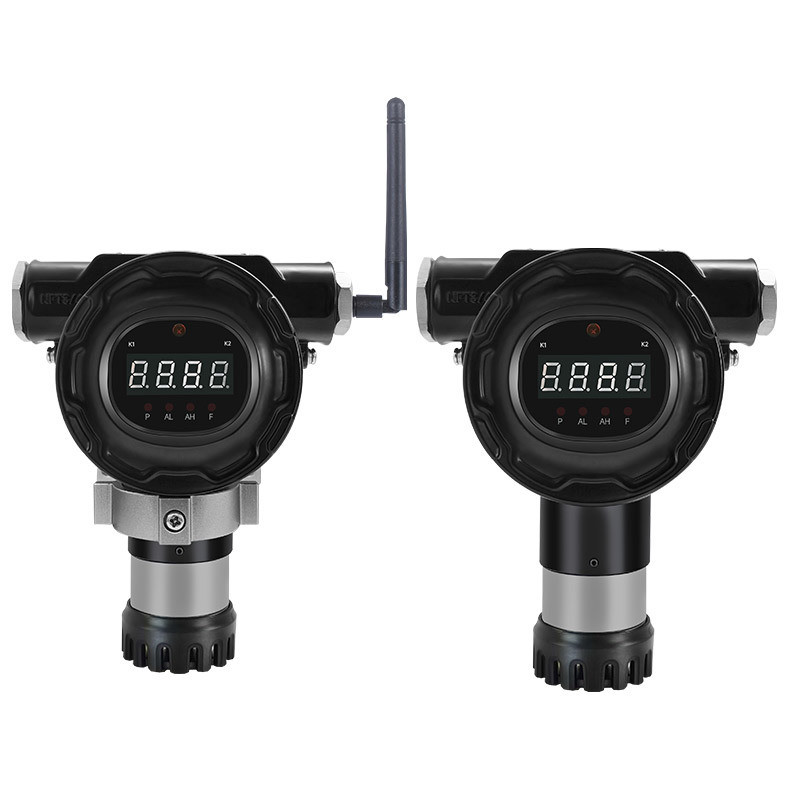

Product Pictures
Key Technical Specifications
| Parameter |
Value |
| Model |
SG100 |
| Target Gas |
Ethylene-Oxide (ETO) |
| Detection Principle |
Electrochemical / PID sensor (selectable) |
| Optional Measuring Ranges |
0-10ppm, 0-50ppm, 0-100ppm |
| Optional Resolution |
0.01ppm, 0.1ppm |
| Accuracy |
≤±2-5%FS (sensor-dependent) |
| Explosion-proof Grade |
IECEx / ATEX: Ex db IIC T6 Gb, Ex db ia IIC T6 Gb |
| Protection Class |
IP66 / IP68 |
| Power Dissipation |
Toxic gas ＜2.5W |
| Working Voltage |
12-24VDC |
| Communication |
4-20mA(3-wire), RS485 Modbus; HART optional |
| Wireless Option |
LoRa, 4G (optional) |
| Relay |
3 relays (low / high / fault alarm, optional) |
| Display |
LED digital display |
| Working Temperature |
-20℃ ~ 50℃ (Electrochemical / PID sensor) |
| Working Air Pressure |
86kPa ~ 106kPa |
| Housing Material |
Die-cast aluminum; S316 stainless steel optional |
| Cable Entry |
1 × ¾ NPT & 1 × M20 |
| Dimension |
157.8×128.8×69.6mm |
| Weight |
1.0 Kg |
| Standard Accessory |
Splash guard, mounting bracket |
| Warranty |
1 year |
Main Features
- Intelligent plug-and-play sensor module, PC-software-supported calibration for easy field replacement.
- IP66/IP68 enclosure, equipped standard splash-guard for damp sterilization-workshop conditions.
- Multiple industry-standard signal outputs compatible with mainstream PLC/DCS control systems.
- Optional HART, LoRa, 4G wireless modules for remote data viewing and downloading.
- Optional 3-relay group to drive external alarm lamps, horns and ventilation interlock equipment.
- Supports magnetic non-contact operation for safe parameter setting inside hazardous zones.
- Complete mounting accessories included for fast on-site wall-mount installation.
- Multiple housing-material options to adapt different workshop corrosive-level environments.
Typical Applications
- Medical-device ETO sterilization-workshop continuous-leakage monitoring
- Disinfection-equipment-manufacturing-plant ETO-process-area supervision
- Sterilization-chamber peripheral residual-gas real-time detection
- Third-party medical-sterilization-factory occupational-safety monitoring
- Pharmaceutical-disinfection-workshop toxic-gas early-warning
- ETO-sterilizer-equipment-room gas-safety inspection
Standard Package
- SG100 fixed ETO gas detector ×1
- Splash guard ×1
- Installation mounting bracket ×1
- User manual ×1
- Certificate of conformity & warranty document ×1
- Optional accessories: S316 housing, HART module, LoRa /4G wireless module, relay assembly
FAQ
Q1: What gas is this SG100 configured for?
A: This unit is customized for ethylene-oxide (ETO). Sensors for other toxic, combustible and VOC gases can be selected.
Q2: What ranges and resolution are available for ETO?
A: Measuring ranges:0-10/50/100ppm; optional resolution:0.01ppm,0.1ppm. Both electrochemical and PID sensor types are selectable.
Q3: What signal outputs does the transmitter provide?
A: Standard 4-20mA, RS485 Modbus; HART, LoRa and 4G functions are optional.
Q4: What are its explosion-proof and ingress-protection ratings?
A: Explosion-proof Ex db IIC T6 Gb / Ex db ia IIC T6 Gb; IP66/IP68 dust-water resistant.
Q5: How is sensor maintenance completed on-site?
A: It adopts plug-and-play sensor module; calibration can be performed by Safegas PC software.
Q6: Does it support relay alarm-output function?
A: Three-relay assembly for low-alarm, high-alarm and fault-alarm is optional.
Q7: What power-supply requirements apply?
A: Working voltage 12-24VDC; power consumption less than 2.5W for toxic-gas configuration.
Q8: Can it be installed in splash-prone workshop-areas?
A: Yes, standard splash-guard accessory is included.
Q9: What housing-material selections are offered?
A: Standard die-cast-aluminum housing; S316 stainless-steel housing is available as an option.
Company Introduction
Shenzhen YuanTe Technology Co., Ltd. (Safegas) – Established in 2010, YuanTe specializes in the R&D, manufacturing, and sales of gas detection equipment and integrated systems for over 16 years. The company serves industries including oil & gas, chemicals, energy, environmental protection, electronics, municipal engineering, agriculture, forestry, and household appliances.
Key advantages:
- International certifications – IECEx, ATEX, EMC certified for explosive atmospheres.
- Full product range – Portable detectors, fixed transmitters, analyzers, control panels, docking stations, accessories.
- Wide gas coverage – Hundreds of gases (toxic, flammable, oxygen, VOCs, CO2, refrigerants, etc.).
- Quality management – ISO9001 and ISO45001 certified; over 100 independent intellectual property patents.
- High production capacity – Over 80,000 units per year; fast delivery (5–7 working days typical).
- Global support – 24/7 after-sales service and tailored solutions.
