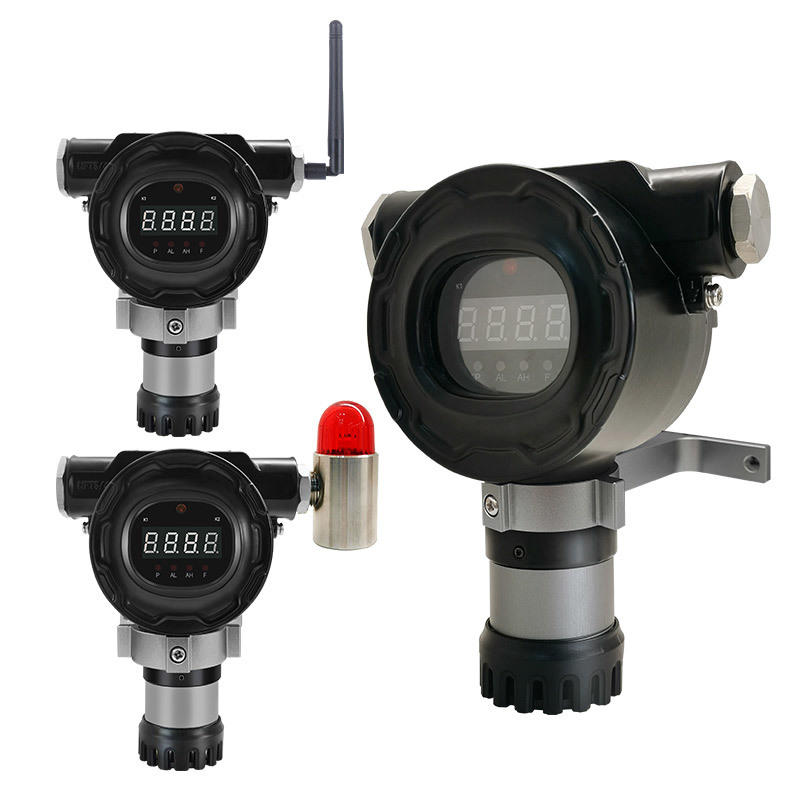

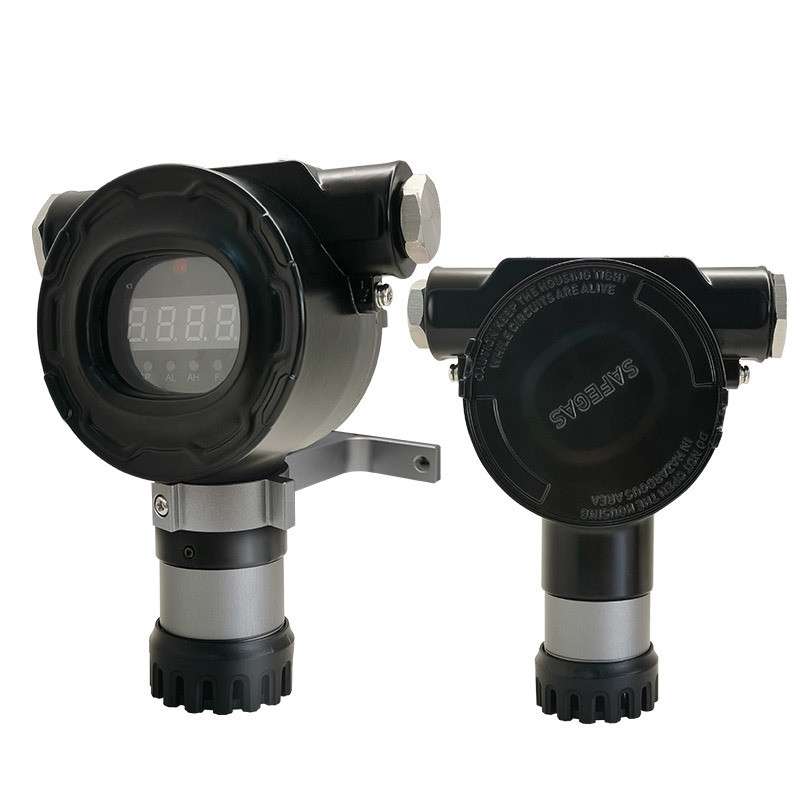

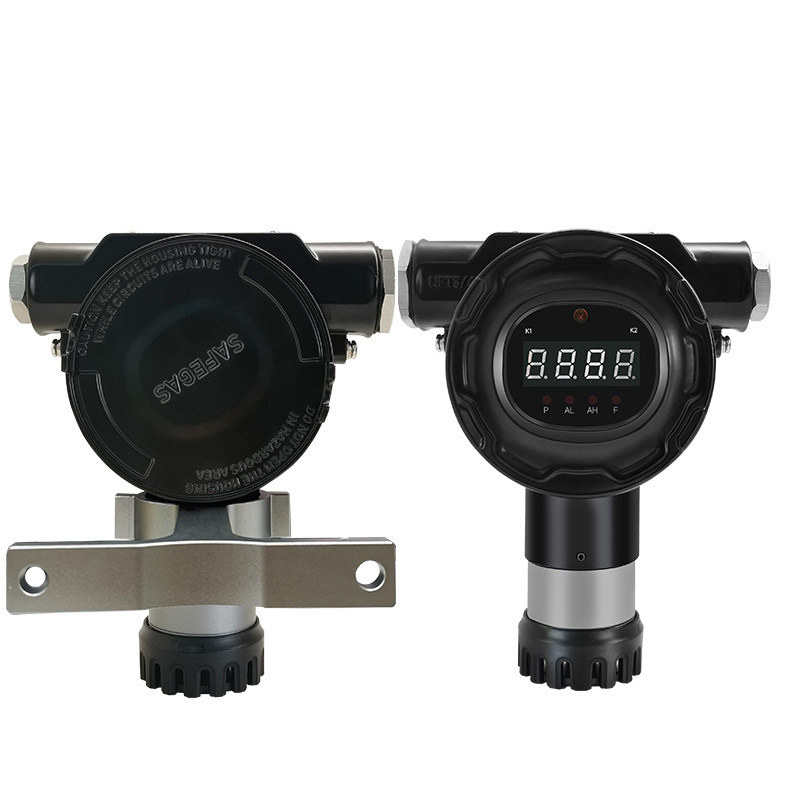

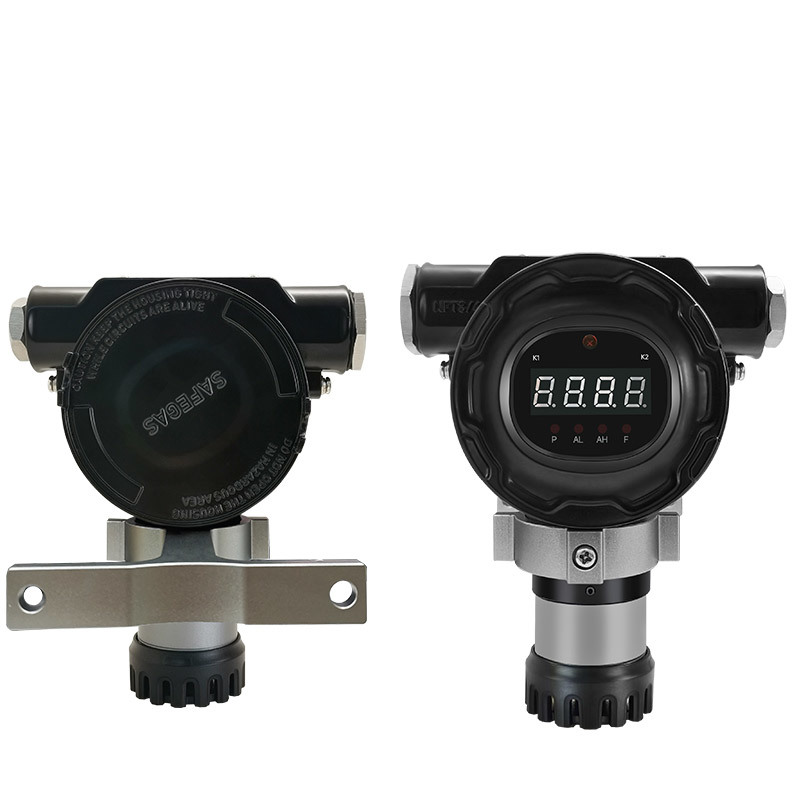

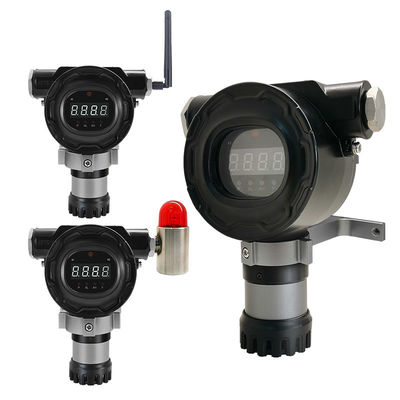

IP66 IP68 H2S Gas Detector with IECEx ATEX Explosion Proof and Electrochemical Sensor for Hydrogen Sulfide Monitoring

The SG100 is a cost-effective, IECEx & ATEX-certified explosion-proof fixed online gas transmitter for hydrogen sulfide (H2S) monitoring — one of the most commonly measured toxic gases across industries. It adopts an electrochemical sensor with optional measuring ranges of 0–50 / 100 / 200 ppm and selectable resolution of 0.1 ppm / 1 ppm.

Featuring IP66/IP68 ingress protection, an intelligent plug-and-play sensor module, multiple standard signal outputs and optional wireless transmission, it supports magnetic remote control. This unit simplifies field installation and routine maintenance and delivers reliable 24-hour continuous gas-concentration monitoring for oil-and-gas sites, sewage plants and other industrial facilities.

Hydrogen sulfide is a highly toxic, corrosive gas with a rotten-egg odor, frequently encountered in oil-and-gas extraction, sewage treatment, landfill and mining operations. Even short-term exposure to elevated H2S concentrations may cause respiratory injury or loss of consciousness. Continuous fixed-point monitoring provides early leakage alerts and protects on-site operators against H2S occupational hazards.

• Intelligent plug-and-play sensor module with PC-software-supported calibration for easy field replacement.
• IP66/IP68 enclosure with standard splash guard included for outdoor and damp industrial locations.
• Supports 2-wire / 3-wire 4–20 mA and RS485 Modbus, compatible with mainstream PLC/DCS systems.
• Optional HART, LoRa and 4G wireless modules for remote data viewing and downloading.
• Optional 3-relay assembly to actuate external alarm lamps, horns and ventilation interlock devices.
• Magnetic non-contact operation enables safe parameter setup inside hazardous zones.
• Supplied with mounting bracket for fast on-site wall-mount installation.
• Multiple housing-material choices to suit different corrosive working environments.

• Oil-and-gas production site H2S leakage continuous monitoring
• Sewage-treatment-plant toxic-gas safety supervision
• Landfill and biogas-processing facility gas detection
• Mining-site hydrogen sulfide early warning
• Petrochemical-refinery process-area monitoring
• Tunnel and sewer-maintenance peripheral gas inspection
