Place of Origin: | China |
---|---|
Brand Name: | YuanTe |
Certification: | CNEX,ISO9001,CE |
Model Number: | SKY2000-HF |
Minimum Order Quantity: | 1 piece |
Price: | Negotiable |
Packaging Details: | Aluminum Suitcase |
Delivery Time: | 3-5 working days |
Payment Terms: | Western Union, T/T |
Supply Ability: | 1000 pieces/week |
Detected Gas: | HF | Measure Range: | 0-10ppm、0-20ppm、0-50ppm |
---|---|---|---|
Sampling Method: | Pumping Suction | Alarm Type: | Sound, Light, Vibration |
Size: | 205*75*32mm | Weight: | 300g |
Charging Method: | Power Adapter, USB Cable | Packing: | Aluminum Suitcase |
Highlight: | toxic gas monitoring system,hazardous gas detector |

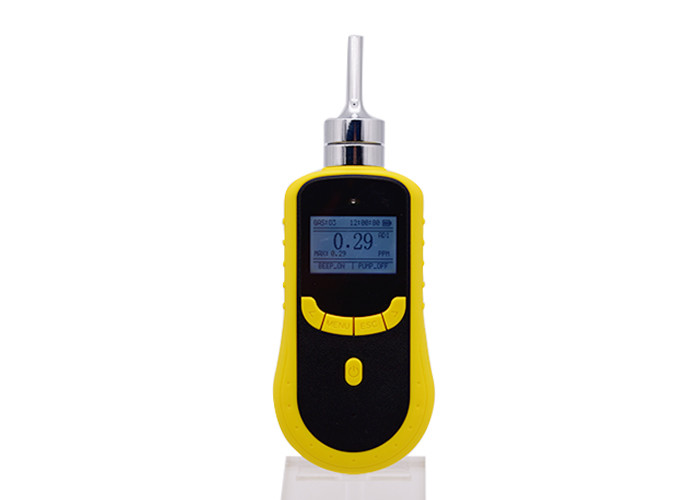

Handheld Lcd Display Fast Reponse Explosion Proof HF Hydrogen Fluoride Toxic Gas Detector With Internal Pump
Hydrogen Fluoride is main gas source used in fluorine. This makes Hydrogen Fluoride the precursor to many pharmaceutical and industrial compounds and polymers, especially Teflon. YuanTe's HF gas detectors are hot sold in many pharmaceutical and industrial parks.
Specifications
Gas Detected |
HF/Hydrogen Fluoride |
||
Detection principle |
Electrochemistry
|
||
Sampling Method | Pumping suction, flow rate can up to 1L/min, ten grades of pumping suction for selection. | ||
Measure Range | 0-10ppm,0-20ppm,0-50ppm | ||
Resolution | 0.01ppm | ||
Precision | ≤± 2% F.S. | ||
Signal Output |
High-speed data transmission by USB, available for data downloading and |
||
Response Time | ≤10S | Recovery Time | ≤10S |
Repeatability | ≤±1% | Linearity error | ≤±1% |
Zero shift | ≤±1%(F.S/year) | Display | LCD dot matrix display |
Operating language | Chinese/English | Gas unit | Units are switchable |
Temperature | -20℃~50℃ | Humidity | 0-95%RH |
Explosion-Proof | ExiaⅡCT4 | Degree of protection | IP66 |
Alarm mode | Sound, light, vibration | Operating time | 100h(pump off) |
Dimensions | 205*75*32mm | Weight | 300g |
Functions:
1. LCD dot matrix display, the gas type, unit, concentration, local time, temperature and max measure value (optional) can be showed on the screen.
2. Support Chinese and English operation, easy to shift.
3. The gas concentration unit PPM and mg/m3 can be shifted quickly.
4. Explosion-proof certification, explosion-proof grade: ExiaⅡCT4.
5. Monitor the Hydrogen Fluoride HF gas concentration in environment and enclosed space and alarm.
6. With Self-calibration and zero calibration functions, makes the detection more accurate and reliable.
7. One press to restore factory setting, free from the bother of mis-operation.
8. With temperature and pressure compensation, to realize gas concentration compensation under conditions of different temperatures or pressures.
9. Two stages alarm with sound and light, alarm point is settable.
10. Rechargeable lithium polymer battery of large capacity.
