| Place of Origin: | China |
|---|---|
| Brand Name: | YuanTe |
| Certification: | CNEX,ISO9001,CE |
| Model Number: | SKY6000-EX |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | Aluminum Suitcase |
| Delivery Time: | 3-5 working days |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 1000 pieces/week |
| Detected Gas: | EX/ Combustible Gas | Measure Range: | 0-100%LEL |
|---|---|---|---|
| Sampling Method: | Pumping Suction | Alarm Type: | Sound, Light, Vibration |
| Size: | 270*75*41mm | Charging Method: | Power Adapter, USB Cable |
| Packing: | Corrosion Resistant Suitcase | Resolution: | 1%LEL |
| High Light: | combustible gas meter,combustible gas analyzer |
||

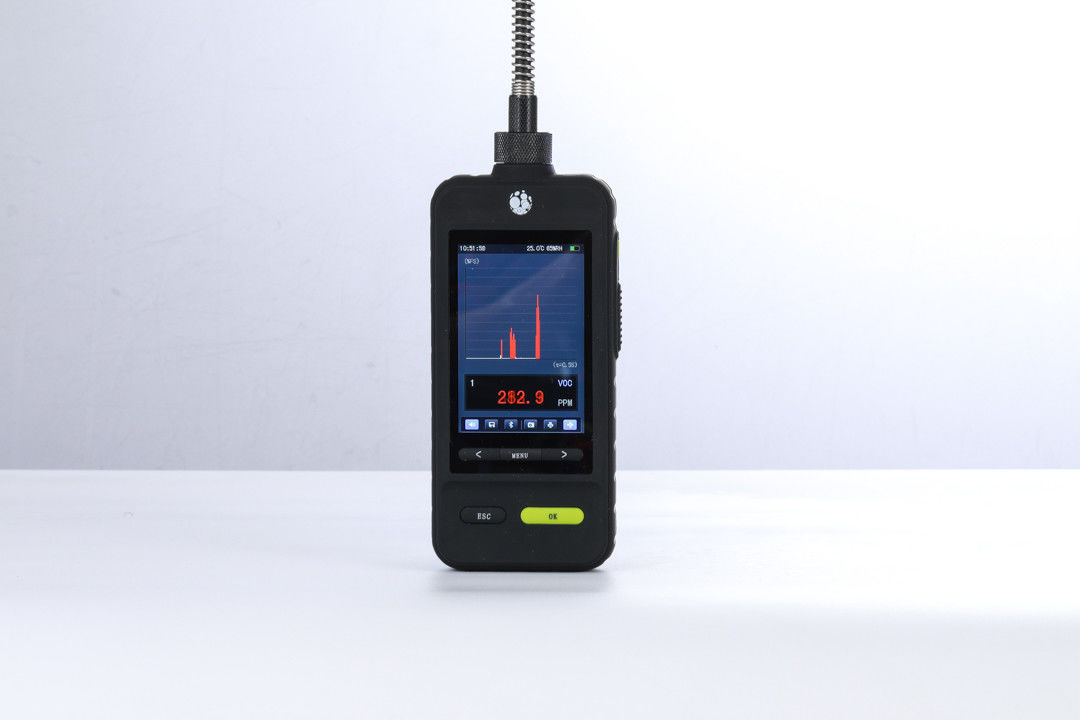

Flame-proof certification LEL Single Gas Detector Combustible Gas Detector with Double-Layer Pipeline
The flammable gas is the most common hazardous gas in mines – especially in coal mines, where large pockets may be present. Methane, one of the combustible gas which is lighter than air, tends to rise to the ceiling of a mine or tunnel leaving it virtually undetectable to the senses. Methane can cause injury or death by asphyxiation, when it is in high concentrations, or by exploding when ignited by a flame or spark. The sensors inside the YuanTe detectors can detect up various combustible gas, which can display accurate data.
Specifications
| Gas Detected | EX | ||
| Detection principle | Catalytic Combustion | ||
| Sampling Method | Pumping suction, flow rate can up to 1L/min, ten grades of pumping suction for selection. | ||
| Measure Range | 0-100%LEL | ||
| Resolution | 1%LEL | ||
| Precision | ≤± 2% F.S. | ||
| Signal Output |
High-speed data transmission by USB, available for data downloading and |
||
| Response Time | ≤10S | Recovery Time | ≤10S |
| Network frequency | 2.4G high frequency | Pressure measurement | 0.5-2.0 bar (optional) |
| Zero shift | ≤±1%(F.S/year) | Display | LCD dot matrix display |
| Operating language | Chinese/English | Gas unit | Units are switchable |
| Temperature | -20℃~50℃ | Humidity | 0-95%RH |
| Explosion-Proof | Ex ic IIC T3 Gc | Degree of protection | IP65 |
| Alarm mode | Sound, light, vibration | Operating time | 100h(pump off) |
| Dimensions | 270*75*41mm | Weight | 400g |
Product Overview
The Sky6000 Series Gas Detector is a Portable Equipment Which Can Be Used in Scientific Research, University, Complex Working Environment and so on. The Sky6000 Series Gas Detector Can Detect Up to Four Gases at The Same Time. It Can Fuse Electrochemistry, Catalysis, Thermal Conduction, Infrared, Photoion, Ultraviolet and Other Detection Principles. We are Committed to Providing Customers With The Most Reliable, Accurate and Safe Gas Detection Instrument.
Comprehensive Functions
Various gas units can be shift easily, concentration value are converted automatically by the system
With temperature and humidity detection and compensation function
Chinese and English display are switchable
Large capacity fast storage function, storage space can be customized
Micro-USB charging interface is designed to be charged anytime, anywhere with common data lines and mobile power Large capacity rechargeable lithium battery for longer standby time
High temperature, high humidity and dust environment gas detection can be achieved (optional pretreatment probe) Tasteless, Explosion-proof, Waterproof, Heat - Resistant, High – Temperature Resistant, Corrosion Resistant, ABC material Suitcase
