| Place of Origin: | China |
|---|---|
| Brand Name: | YuanTe |
| Certification: | CE CNEX ISO9001-2015 |
| Model Number: | YT-95H-CS2 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton Box |
| Delivery Time: | 2-3 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500PCS/DAY |
| Detected Gas: | CS2, Carbon Disulfide | Measure Range: | 0-1ppm,0-5ppm,0-10ppm,0-20ppm,0-50ppm,0-100ppm,0-200ppm,0-500ppm. 0-1000ppm, 0-2000ppm, 0-5000ppm |
|---|---|---|---|
| Color: | Blue | Packing: | Paper Box |
| Install Method: | Wall-mounted, Piping-type, Flow-type | Power: | 12-36Vdc |
| High Light: | pid voc detector,voc gas analyzer |
||

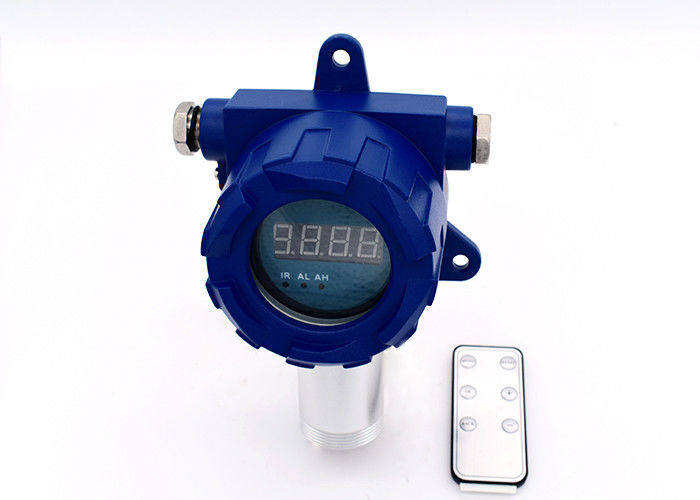

Data Restore and Data Logger VOC Gas Detector Carbon Disulfide CS2 Gas Detector
Carbon disulfide is mainly used as a raw material for the manufacture of viscose fiber and glass for the production of agricultural pesticides. YT-95H series gas detector can show the gas level on the disply, you will know CS2 concentration in real time and it is RS485 output, you can check data on PC.
Specification
|
Gas detected |
CS2, Carbon disulfide |
||
|
Detection principle |
PID, Electrochemistry |
||
|
Install method |
Wall-mounted, piping type, flow-type (according to the detected environment) |
||
|
Measure range |
0-1ppm,0-5ppm,0-10ppm,0-20ppm,0-50ppm,0-100ppm,0-200ppm,0-500ppm. 0-1000ppm, 0-2000ppm, 0-5000ppm |
||
|
Resolution |
0.001ppm, 0.01ppm, 0.1ppm, 1ppm |
||
|
Precision |
≤± 1% FS, 2-3%FS |
||
|
Signal output |
4-20mA, 0-5V, RS485, relay(optional) |
||
|
Response time |
≤10S |
Recovery time |
≤10S |
|
Repeatability |
≤±1% |
Linearity error |
≤±1% |
|
Zero shift |
≤±1%(FS/year) |
Display |
High-light nixie tube display |
|
Connection mode |
G1/2 external thread explosion-proof flexible pipe |
Unit |
ppm |
|
Temperature |
-20 to 50°C |
Humidity |
0-95%RH |
|
Explosion-proof |
Ex dⅡCT6 |
Degree of protection |
IP65 |
|
Alarm |
Sound, light |
Operating time |
24H |
|
Dimensions |
180*150*90mm |
Weight |
≤2kg |
Characteristics:
1. Standard equipped with three-wire system 4-20mA analog output; relay output; RS485 output.
2. Unique infrared ray control function, which can non-contacted control the device.
3. Being compatible with all kinds of controlled alarms, PLC, DCS and other control system, can be remote monitored.
4. Explosion-proof design, fast, reliable and stable.
5. Explosion-proof grade: Ex dⅡCT6
6. With self-calibration function, and three standard keys will be used to realize on-site maintenance.
7. Detachable probe/gas cell: It is very easy to calibrate and replace sensor
Funtions:
1. Monitor the CS2, Carbon disulfide gas in environment or pipeline.
2. With self-calibration and zero calibration function, makes the detection more accurate and reliable.
3. With temperature compensation, this is able to realize gas concentration compensation under conditions of different temperatures.
4. Infrared ray controller can remote control alarm point settings, zero calibration, and address modification. (optional)
5. Can output one or two on-off signals, can drive ventilator or solenoid valve and other external devices. (optional)
6. Working Voltage:24V DC
7. Case: die-cast aluminum
Why to choose YuanTe Gas Alarm Leak Detector?
1. Our sensor and IC are imported from UK directly, professional biogas sensors.
