Detected Gas: | Fluorine, F2 | Measure Range: | 0-1ppm, 10ppm |
---|---|---|---|
Color: | Blue | Packing: | Paper Box |
Install Method: | Wall-mounted, Piping-type, Flow-type | Power: | 12-36Vdc |
Highlight: | toxic gas monitoring system,gas monitoring equipments |

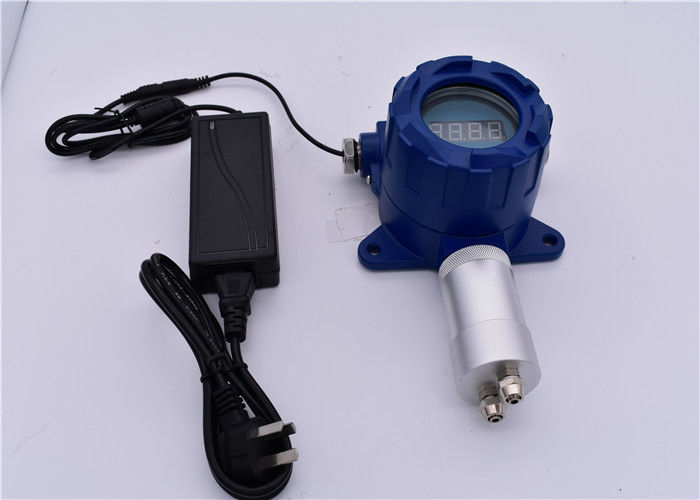

New Chemical Plant Toxic Gas Detector Fluorine F2 Gas Detector
Application areas are chemical plants, environmental protection companies, glass factories, pharmaceutical companies. YuanTe’ F2 gas detector can meet all kinds of market requirements with imported sensors and IC, English display, zero calibration function.
Technical Parameters
Gas detected |
Fluorine, F2 |
||
Detection principle |
Electrochemistry |
||
Install method |
Wall-mounted, piping type, flow-type (according to the detected environment) |
||
Measure range |
0-1ppm, 10ppm |
||
Resolution |
0.001ppm, 0.01ppm |
||
Precision |
≤± 1-2% FS |
||
Signal output |
4-20mA, 0-5V, RS485, relay(optional) |
||
Response time |
≤10S |
Recovery time |
≤10S |
Repeatability |
≤±1% |
Linearity error |
≤±1% |
Zero shift |
≤±1%(FS/year) |
Display |
High-light nixie tube display |
Connection mode |
G1/2 external thread explosion-proof flexible pipe |
Unit |
ppm |
Temperature |
-20 to 50°C |
Humidity |
0-95%RH |
Explosion-proof |
Ex dⅡCT6 |
Degree of protection |
IP65 |
Alarm |
Sound, light |
Operating time |
24H |
Dimensions |
180*150*90mm |
Weight |
≤2kg |
Main Features:
1. Monitor the Fluorine, F2 gas in environment or pipeline.
2. With self-calibration and zero calibration function, makes the detection more accurate and reliable.
3. With temperature compensation, this is able to realize gas concentration compensation under conditions of different temperatures.
4. Infrared ray controller can remote control alarm point settings, zero calibration, and address modification. (optional)
5. Can output one or two on-off signals, can drive ventilator or solenoid valve and other external devices. (optional)
6. Working Voltage:24V DC
7. Case: die-cast aluminum
8. Standard equipped with three-wire system 4-20mA analog output; relay output; RS485 output.
9. Unique infrared ray control function, which can non-contacted control the device.
10. Being compatible with all kinds of controlled alarms, PLC, DCS and other control system, can be remote monitored.
11. Explosion-proof design, fast, reliable and stable.
12. Explosion-proof grade: Ex dⅡCT6
13. With self-calibration function, and three standard keys will be used to realize on-site maintenance.
14. Detachable probe/gas cell: It is very easy to calibrate and replace sensor
FAQ:
1. Could you please tell me the Warranty Period of your product?
Our warranty period is one year free and lifelong maintenance, and if the product we sell is damaged (if not man-made damage), in the first year,we will send free parts for replacement.
Over the warranty,maintenance is paid service.
2. What kind of Certificate can you provide?
We can provide the CE mark,ISO 9001 quality certificate,the third party calibration certificate(CNAS),factory test report.
3. Do you have Technical Backup to all customers from different countries?
To be surely,our technical support is always available and quick response.
We are manufacturer of so much on site testing experience and understand how to deal with your problems. Moreover, our engineers can go to your country to support if need.
