| Place of Origin: | China |
|---|---|
| Brand Name: | YuanTe |
| Certification: | CE CNEX ISO9001-2015 |
| Model Number: | YT-95H-C2H6 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton Box |
| Delivery Time: | 2-3 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500PCS/DAY |
| Detected Gas: | C2H6 Ethane | Measure Range: | 0-100%VOL, 0-100%LEL |
|---|---|---|---|
| Color: | Blue | Packing: | Paper Box |
| Install Method: | Wall-mounted, Piping-type, Flow-type | Power: | 12-36Vdc |
| Highlight: | combustible gas analyzer,lel gas detector |
||

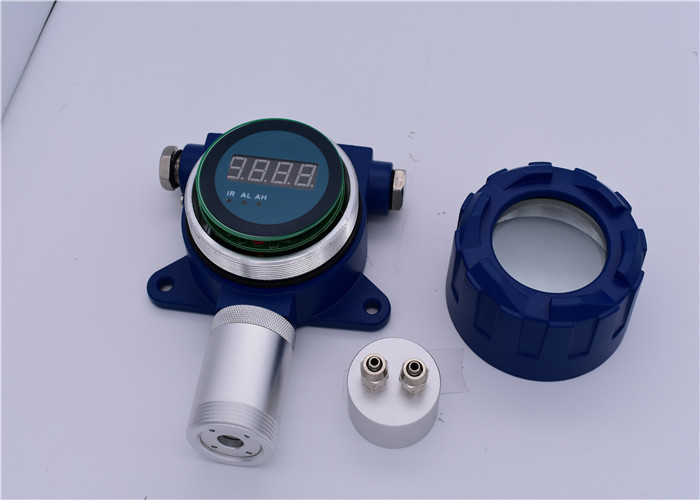

IR Detection Combustible Gas Detector C2H6 Ethane Monitoring Level
Application areas are gas company, biogas project, mine, power company, municipal engineering. C2H6 detector is can help you to know Ethane concentration exactly with fast response and high precision and it can meet all kinds of demands.
Technical Parameters
|
Gas detected |
C2H6 Ethane |
||
|
Detection principle |
IR, Catalytic Combustion |
||
|
Install method |
Wall-mounted, piping type, flow-type (according to the detected environment) |
||
|
Measure range |
0-100%VOL, 0-100%LEL |
||
|
Resolution |
0.01%VOL, 1%LEL |
||
|
Precision |
≤± 1-2% FS |
||
|
Signal output |
4-20mA, 0-5V, RS485, relay(optional) |
||
|
Response time |
≤10S |
Recovery time |
≤10S |
|
Repeatability |
≤±1% |
Linearity error |
≤±1% |
|
Zero shift |
≤±1%(FS/year) |
Display |
High-light nixie tube display |
|
Connection mode |
G1/2 external thread explosion-proof flexible pipe |
Unit |
ppm |
|
Temperature |
-20 to 50°C |
Humidity |
0-95%RH |
|
Explosion-proof |
Ex dⅡCT6 |
Degree of protection |
IP65 |
|
Alarm |
Sound, light |
Operating time |
24H |
|
Dimensions |
180*150*90mm |
Weight |
≤2kg |
Main Features:
1. Monitor the C2H6 Ethane gas in environment or pipeline.
2. With self-calibration and zero calibration function, makes the detection more accurate and reliable.
3. With temperature compensation, this is able to realize gas concentration compensation under conditions of different temperatures.
4. Infrared ray controller can remote control alarm point settings, zero calibration, and address modification. (optional)
5. Can output one or two on-off signals, can drive ventilator or solenoid valve and other external devices. (optional)
6. Working Voltage:24V DC
7. Case: die-cast aluminum
8. Standard equipped with three-wire system 4-20mA analog output; relay output; RS485 output.
9. Unique infrared ray control function, which can non-contacted control the device.
10. Being compatible with all kinds of controlled alarms, PLC, DCS and other control system, can be remote monitored.
11. Explosion-proof design, fast, reliable and stable.
12. Explosion-proof grade: Ex dⅡCT6
13. With self-calibration function, and three standard keys will be used to realize on-site maintenance.
14. Detachable probe/gas cell: It is very easy to calibrate and replace sensor.
APPLICATION:
Petroleum and petrochemical, chemical, smelting, iron and steel, coal, thermal power, pharmaceutical scientific research, pharmaceutical production workshop, tobacco company, environmental monitoring, school research, building construction, fire alarm, sewage treatment, industrial gas process control, boiler room, waste treatment plant, Tunnel construction, oil pipelines, gas stations, overhaul of underground gas pipelines, indoor air quality testing, safety protection in hazardous areas, aerospace, military equipment monitoring, etc.
