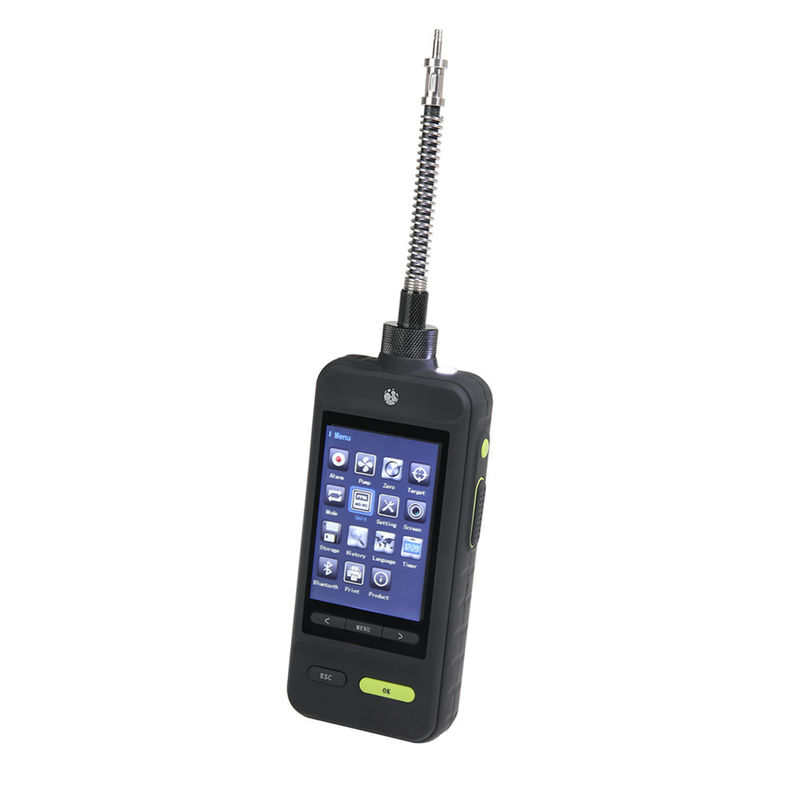

3.5 Inch Color Display High Precision PID Sensor C2H4 VOC Gas Detector For Fruit Ripening

Basic Information
Place of Origin: China
Brand Name: YuanTe
Certification: CNEX,ISO9001,CE
Model Number: SKY6000-C2H4
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Aluminum Suitcase
Delivery Time: 3-5 working days
Payment Terms: Western Union, T/T
Supply Ability: 1000 pieces/week
Detail Information
Detected Gas: C2H4 Measure Range: 0-10ppm, 0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm
Sampling Method: Pumping Suction Alarm Type: Sound, Light, Vibration
Size: 270*75*41mm Weight: 400g
Charging Method: Power Adapter, USB Cable Resolution: 0.001ppm, 0.01ppm, 1ppm
High Light:

pid voc detector

,

voc gas analyzer


Product Description



3.5 Inch Color Display High Precision PID sensor C2H4 VOC Gas Detector Ethylene Gas Detector for Fruit Ripening



Ethylene oxide is an organic compound and is one of the important organic synthetic raw materials.

Widely used in medical disinfection and industrial sterilization.

It is also widely used in washing, pharmaceutical, printing and dyeing industries. It can be used as a starter for detergents in chemical industry.

Yuante gas detector can measuring the concentration of residual process and fumigating process, our sensor was imported from EU, we can provide you best quality.



Specifications



Gas Detected C2H4
Detection principle PID
Sampling Method Pumping suction, flow rate can up to 1L/min, ten grades of pumping suction for selection.
Measure Range 0-10ppm, 0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm
Resolution 0.001ppm, 0.01ppm, 0.1ppm
Precision ≤± 2% F.S.
Signal Output

High-speed data transmission by USB, available for data downloading and
printing (optional function)

Response Time ≤10S Recovery Time ≤10S
Network frequency 2.4G high frequency Pressure measurement 0.5-2.0 bar (optional)
Zero shift ≤±1%(F.S/year) Display LCD dot matrix display
Operating language Chinese/English Gas unit Units are switchable
Temperature -20℃~50℃ Humidity 0-95%RH
Explosion-Proof Ex ic IIC T3 Gc Degree of protection IP65
Alarm mode Sound, light, vibration Operating time 100h(pump off)
Dimensions 270*75*41mm Weight 400g


Product Overview


The Sky6000 Series Gas Detector is a Portable Equipment Which Can Be Used in Scientific Research, University, Complex Working Environment and so on. The Sky6000 Series Gas Detector Can Detect Up to Four Gases at The Same Time. It Can Fuse Electrochemistry, Catalysis, Thermal Conduction, Infrared, Photoion, Ultraviolet and Other Detection Principles. We are Committed to Providing Customers With The Most Reliable, Accurate and Safe Gas Detection Instrument.



Product Advantages



1.Integrated built-in pumping gas detector can detect and display one or more gases simultaneously.
2.3.5-inch high-definition color screen and 120 °degree wide view
3.With detachable suction probe >130mm, double-layer pipeline: Internal PTFE layer and it can not absorb any gas;
4.Plus spring protection layer, 360 degree bendable and hardly deformed. Specially designed flashlight button which can turn on with one button and operator can detect with lighting in the dark environment.
5.With pinhole type one-key recovery button, can restart the instrument with one button for recovering caused by misoperation
6.Internal modular design, smaller and lighter for easily carry



Optional Function



Optional external Bluetooth printer, can realize mobile print

Bluetooth, ZIGBEE, WIFI, GPRS and other wireless communication modes

High temperature, high humidity and dust environment gas detection can be achieved
